Expert Insights for the NI-9476
"The NI-9476 is a low-power, high channel digital current sourcing output module. It works with voltages between 6 and 36V and has over current and short circuit protection. It can source up to 250mA and has over voltage protection up to 40V. The device comes with either a D-SUB or spring terminal connector. This makes it versatile for a variety of systems and can easily be scaled if needed."
- Chris B.
LabVIEW Trained
In-House Technician
Andrew Gar**** Verified Buyer
" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "
March 2025
Said Sai**** Verified Buyer
" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "
January 2025
Bob C**** Verified Buyer
" Jason was able to get our emergency situation taken care of quickly and professionally. "
May 2025
Gregg Flecki**** Verified Buyer
" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "
January 2025
Carol Zimme**** Verified Buyer
" Very responsive and helpful, competitive pricing. Good source! "
July 2025
Andrew Gar**** Verified Buyer
" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "
March 2025
Said Sai**** Verified Buyer
" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "
January 2025
Bob C**** Verified Buyer
" Jason was able to get our emergency situation taken care of quickly and professionally. "
May 2025
Gregg Flecki**** Verified Buyer
" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "
January 2025
Expert Insights for the NI-9476
"The NI-9476 is a low-power, high channel digital current sourcing output module. It works with voltages between 6 and 36V and has over current and short circuit protection. It can source up to 250mA and has over voltage protection up to 40V. The device comes with either a D-SUB or spring terminal connector. This makes it versatile for a variety of systems and can easily be scaled if needed."
- Chris B.
LabVIEW Trained
In-House Technician

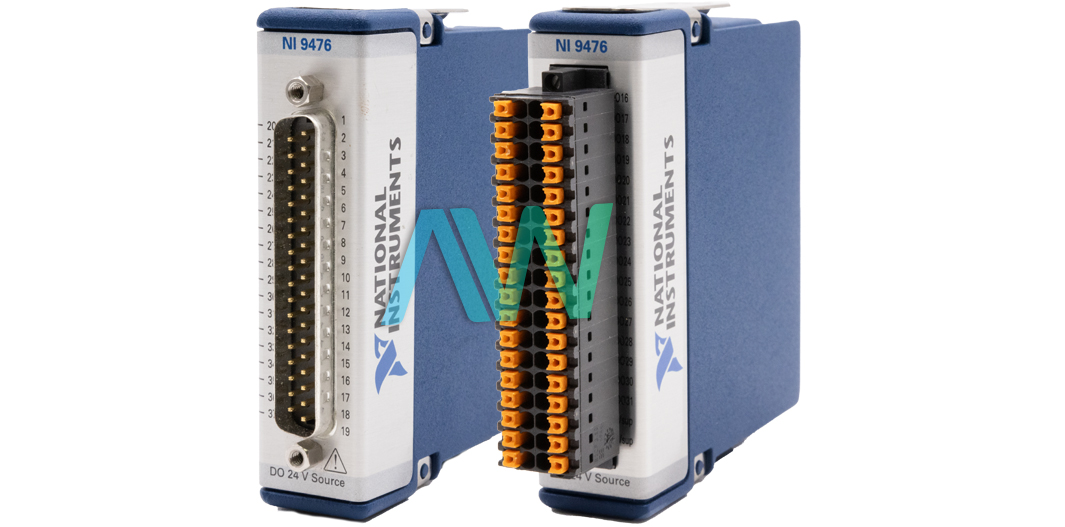

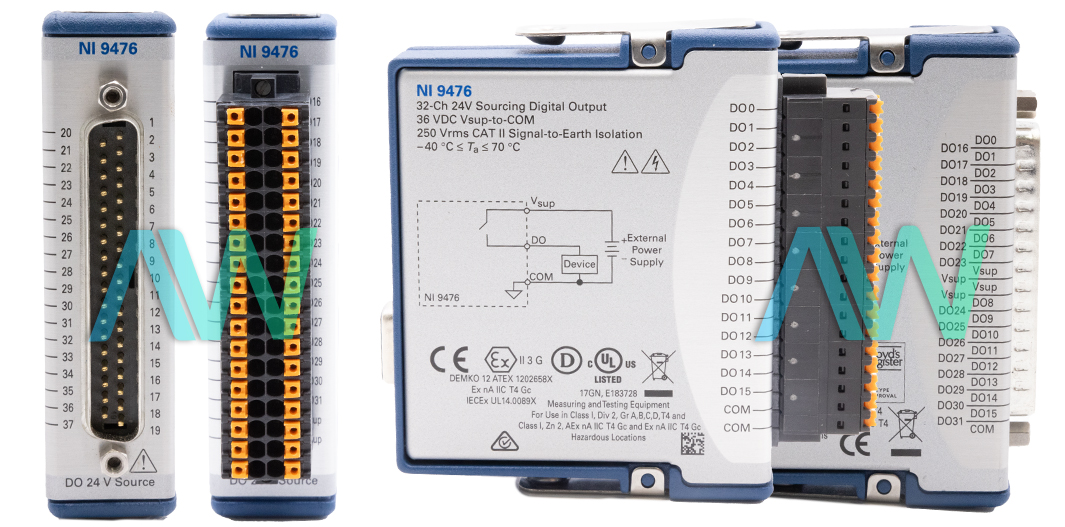

National Instruments NI-9476 C Series Digital Module
The National Instruments NI-9476 is a 32 channel C Series Digital Module with three part numbers, which have a few differences. The first part number, 785045-01, has 250 Vrms channel-to-earth isolation, a spring terminal front connector, and no conformal coating. The next part number, 779140-01, has 60 V DC channel-to-earth ground isolation, D-Sub front connectors, and no conformal coating. Lastly, part number 780175-01 features 60 V DC channel-to-earth ground isolation, D-Sub front connectors, and is conformal coated. All other specifications between the different part numbers for the NI-9476 module (except for measurement category and physical weight) are the same. The device’s channels are equipped with circuitry to protect them from current voltage surges.
The NI-9476 is a 32 Digital Output Channel module with a 40 us maximum update rate. This module interacts with a variety of industrial devices, switches, and transducers by working with industrial logic levels and signals. The NI 9476 module adds protection to the user’s digital output connections with the isolation and sourcing features, making it ideal for an array of bench top and industrial environments. This module is compatible with both CompactDAQ and CompactRIO platforms. It can be programmed using software packages such as LabVIEW professional Development System for Windows, LabVIEW FPGA Module, and the LabVIEW Real-Time Module. The digital I/O logic levels on this module are 12V, 24V. The NI 9476 requires an external power supply that provides a voltage range of 6 V to 36 V. The NI-9476 C Series Digital Module is hot-swappable, which means that the user can move it between systems without altering it. The device is equipped with either a D-SUB or spring terminal front connector.
The spring terminal model of the device weighs 5.9 oz., while the D-SUB model weighs slightly less at 5.2 oz. The NI instrument has a recommended operating temperature range of -40 °C to 70 °C, a storage temperature range of -40 °C to 85 °C, and an operating humidity range of 10% RH to 90% RH. The spring terminal model has a maximum altitude of 5,000 m while the DSUB model has a 2,000 m altitude.
| Model | NI-9476 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 779140-01, 785045-01, 780175-01 |
| Type | Digital Module |
| Digital Output Channels | 32 |
| Digital I/O Logic Levels | 12V, 24V |
| Maximum Update Rate | 500 us |
| Front Connector | D-Sub or Spring Terminal |
| Supported Hardware Platform | C Series |
| Current Flow Direction | Sourcing Output |
| Enclosed? | Yes |
| Gauge | 26 AWG to 16 AWG |
| Operating Temperature Range | -40 °C to 70 °C |
| Storage Temperature Range | -40 °C to 85 °C |
| Weight | Spring Terminal- 5.9 ozD-Sub- 5.2 oz. |
| NI-9476 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a Quote for Pricing Information |
Associated part numbers for NI-9476:
National Instruments NI-9476 Frequently Asked Questions
Question: Which accessories are required for the NI-9476 module?
Answer: The Digital Module requires the NI-9940 Backshell Kit for the spring-terminal version and either the NI-9923 Front-mount DSUB to Screw-Terminal or the 1 metre DIN-Rail and 37-Pin Spring-Terminal Connector Block with Shielded Female to Male Cable for the D-SUB versions.
Question: What is the maximum output of the NI-9476?
Answer: The maximum output is 36 V.
Question: What are the power requirements for the power consumption from chassis for the NI-9476?
Answer: The power requirements are 250 mW maximum in active mode and 25 μW maximum in sleep mode.
Question: Is an external power supply needed for the NI-9476?
Answer: Yes, an external power supply with a 6 V DC to 36 V DC voltage range is needed to deliver current for the devices connected to the Digital Module.
