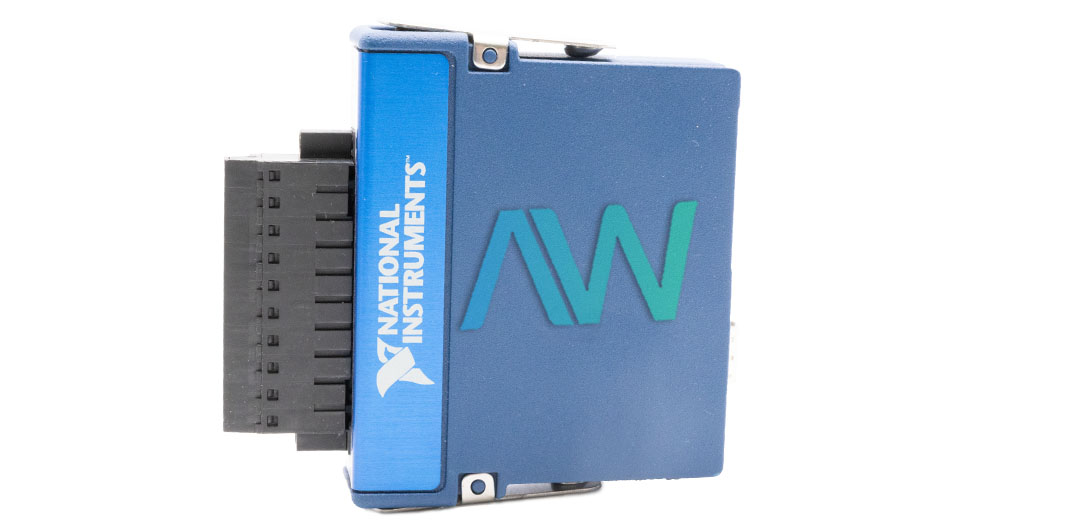

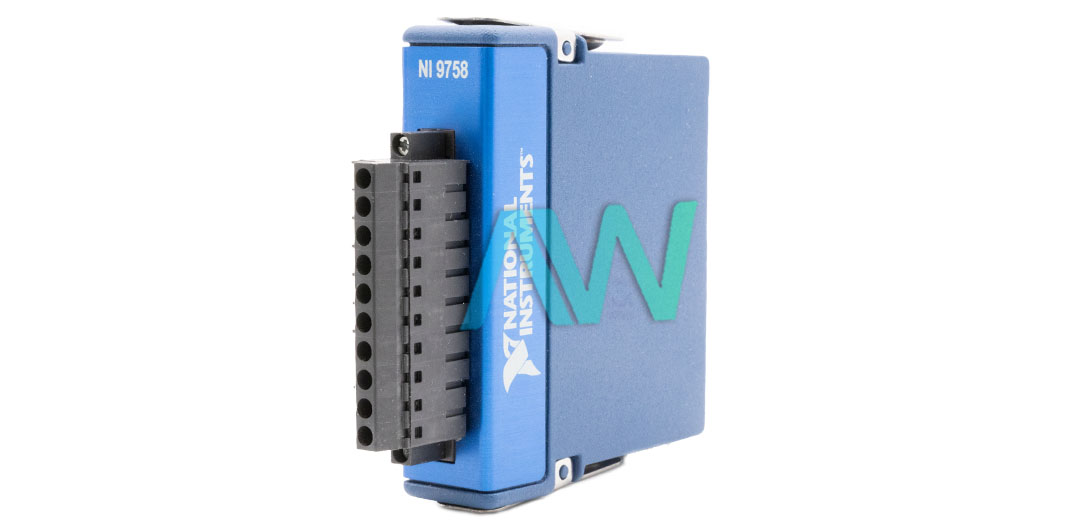

National Instruments NI-9758 C Series Port Fuel Injector Driver Module
The NI‑9758 (Part number: 782080-01) drives four low-and high-impedance port fuel injectors (PFI) and four broadly useful car solenoid valves. Each PFI driver is exclusively controlled for timing, span, and two ebb and flow stages. Each generalâ€purpose, lowâ€side solenoid driver is pulse‑width balance (PWM)‑controlled and fit for 0 to 100 percent obligation cycle task. The NI-9758 module additionally features open‑ and short‑circuit location and revealing. Every sensor radiator requires around 2 An amid the initial 30 seconds of activity and roughly 1 A from that point. The UEGO sensor radiators are fueled and controlled specifically from the NI 9758. This Driver Module needs 100 mA (at the most) from an outside power supply. This model comes with a battery or power supply fit for 10A consistent output that is needed under a full load. In that case, the actuators and injectors will be associated with and fueled from a similar power supply.
This model offers 4 channel low or high impedance drivers, 1.5 A of continuous duty, an external power supply of 7 V to 32 V, PWM controlled with 2 Hz to 10 KHz of frequency, and a two phase current control. On the NI-9758, high current is not required for the whole term of the infusion event to keep the valve open. The underlying current level is alluded to as the pinnacle current and the current level for the remaining infusion term is alluded to as the hold current. The standard setup for the PFI drivers is a pinnacle ebb and flow of 4 An and a hold ebb and flow.
| Model | NI-9758 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 782080-01 |
| Type | C Series Port Fuel Injector Driver Module |
| PFI Driver Channels | 4 |
| Solenoid Driver Channels | 4 |
| Resolution | 500 ns |
| Screw Terminal Wiring | 18 AWG or Larger |
| Maximum Altitude | 2000 m |
| Frequency Operation | 2 Hz to 10 kHz |
| Operating Humidity | Noncondensing, 10% to 90% RH |
| Operating Temperature | -40 °C to 70 °C |
| Weight | 145 g. |
| NI-9758 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for NI-9758:
National Instruments NI-9758 Frequently Asked Questions
Question: Are any accessories required for the NI-9758 module?
Answer: The NI-9758 module requires an Industrial Power Supply, an IEC Power Cord (dependent on the country it is used in), and a Front-Mounted Terminal Block such as the NI-9936.
Question: What is the frequency operation of the NI-9758?
Answer: The frequency operation of the module is 2 Hz to 10 kHz.
Question: How does the NI-9758 receive power?
Answer: The Driver Module needs power from the external screw-terminal connector and a 15-pin D-SUB connector.
Question: Which hardware platforms by National Instruments are compatible with the NI-9758?
Answer: The CompactRIO and PXI platforms are compatible with the NI-9758.
