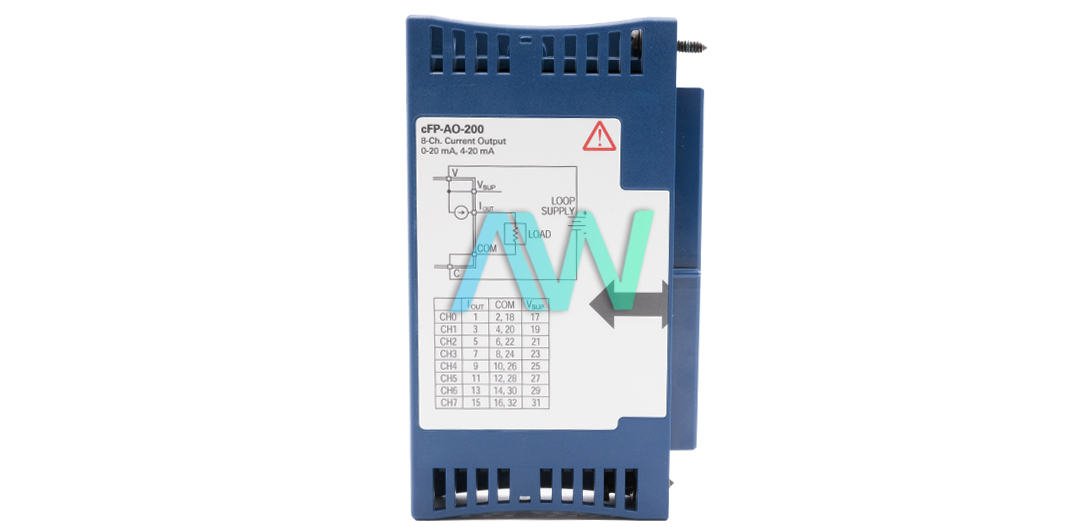

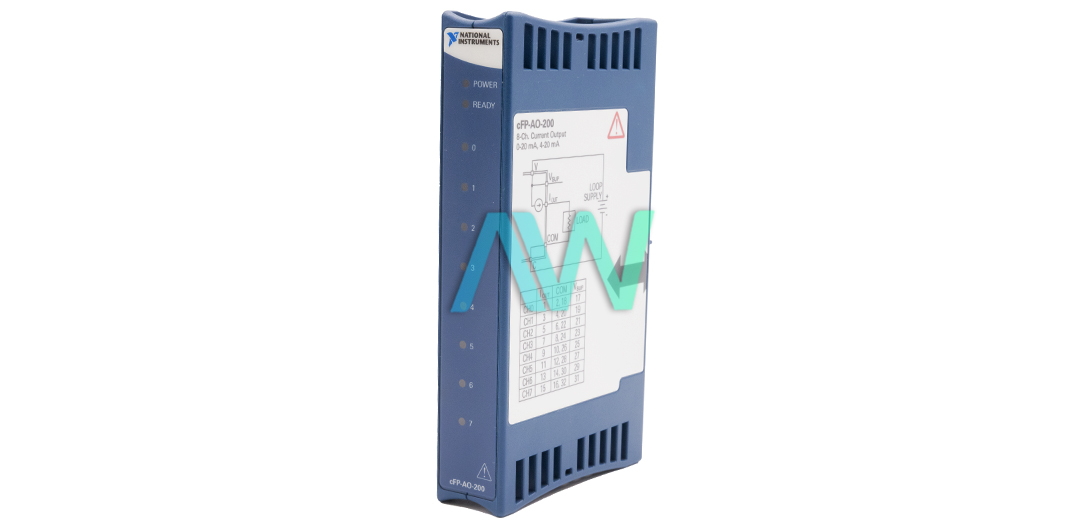

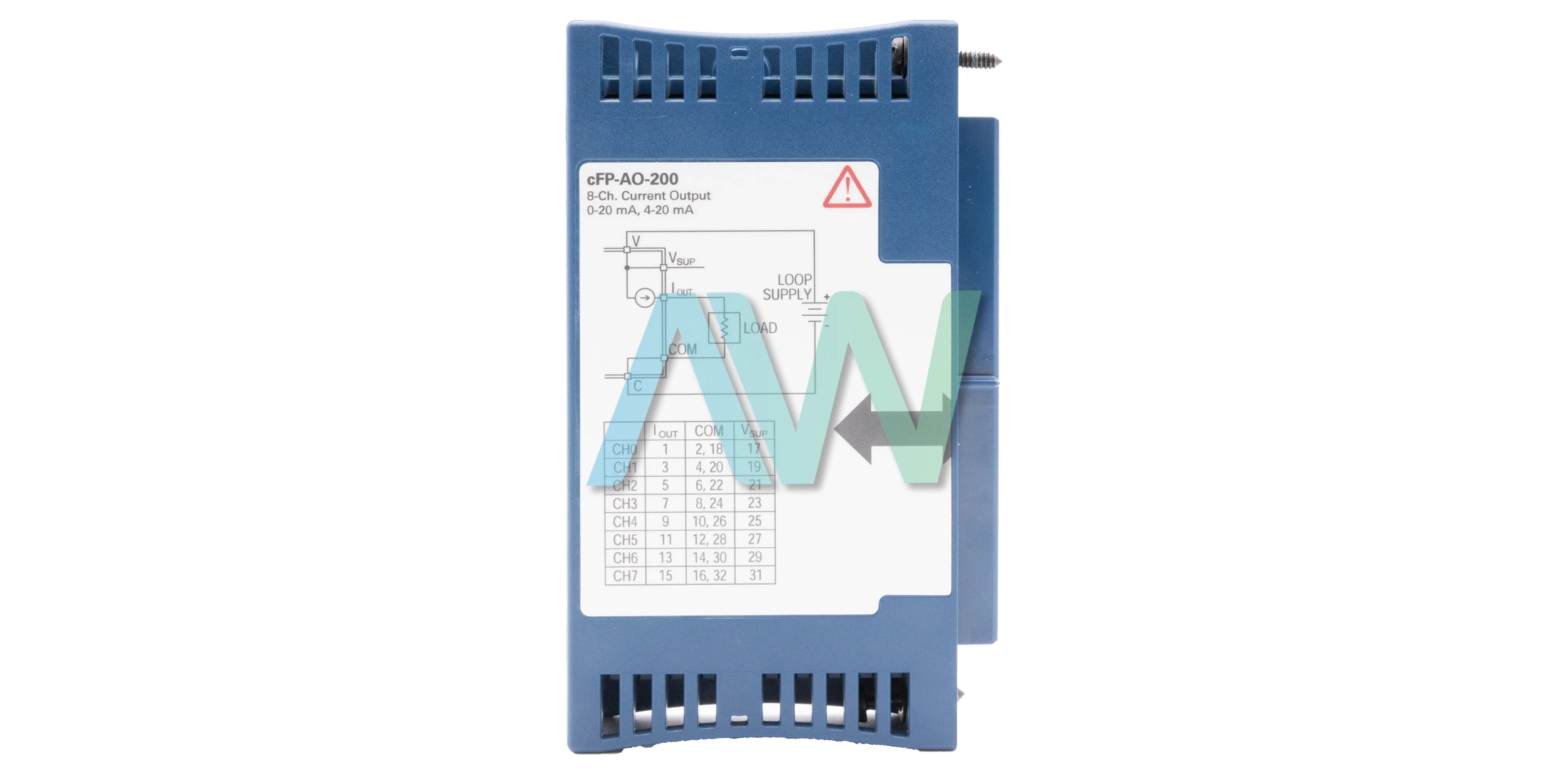

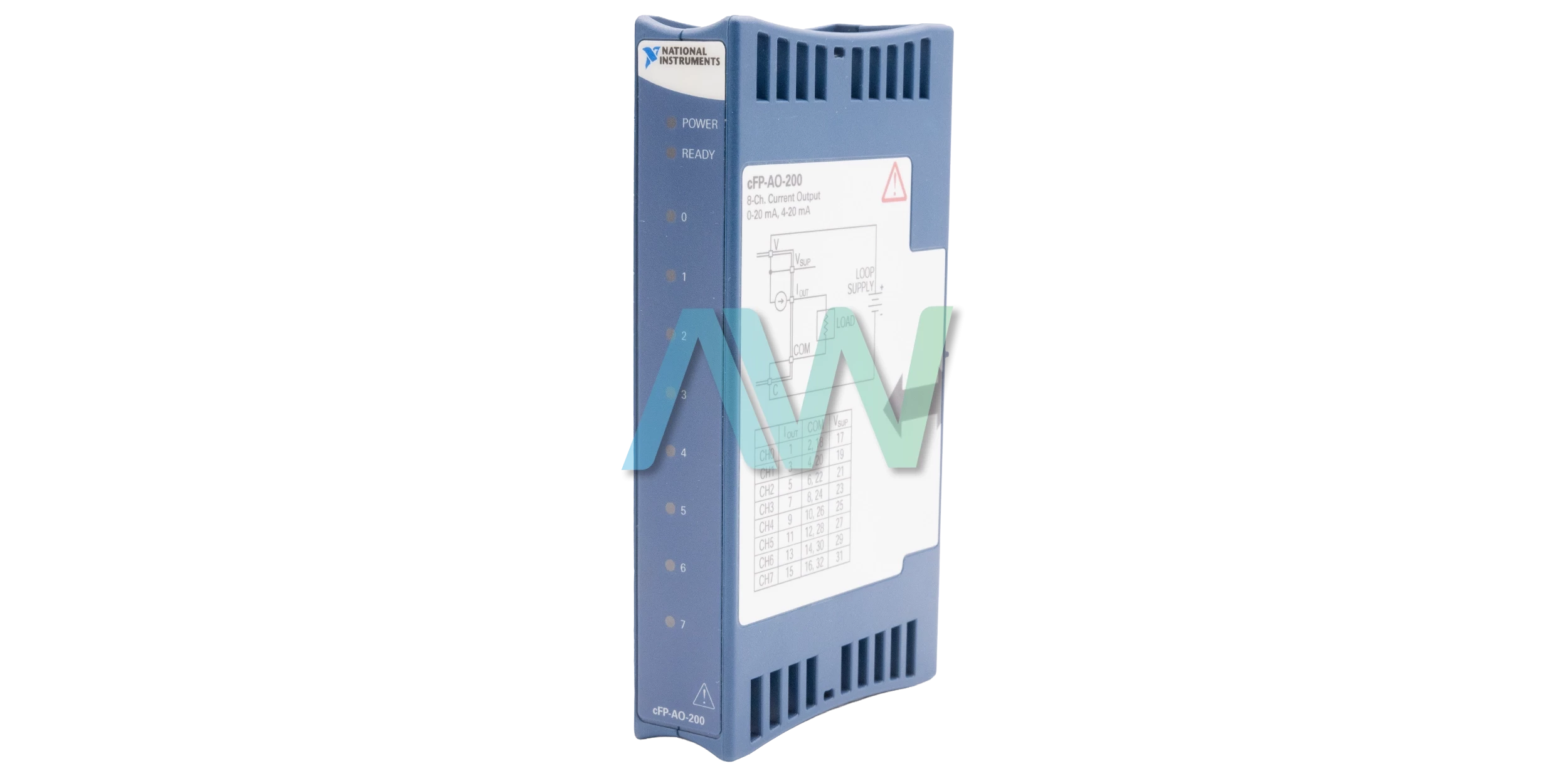

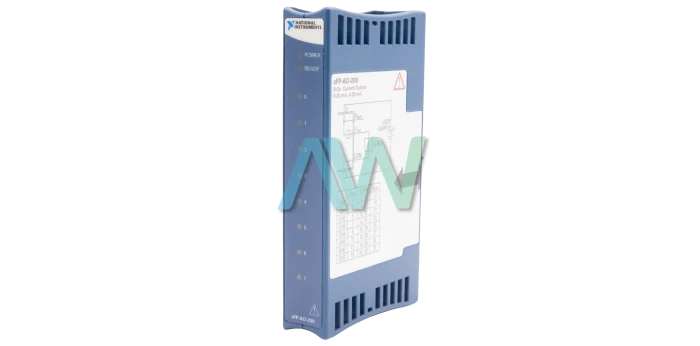

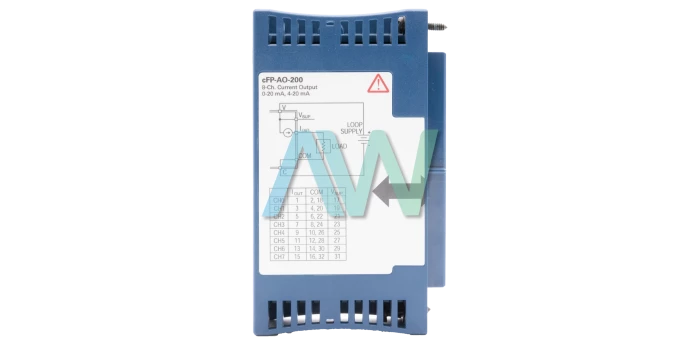

National Instruments cFP-AO-200 Analog Output Module for Compact Fieldpoint
The cFP-AO-200 (part number: 777318-200) incorporates an open-circuit location for wiring and sensor investigating and shorting out insurance for wiring mistakes. Each channel is separately configurable. To make establishment and setup less demanding, the National Instruments cFP-AO-200 highlights HotPnP (hot plug-and-play) tasks, so it is consequently recognized and distinguished by the arrangement programming. The I/O modules adjust and scale building units to sensor signals while also performing self-diagnostics to search for issues with the module or with the wiring, such as open momentum circles. The NI cFP AO-200 module has an update rate of 200 Hz. The time it takes to respond to a change on a single channel is 3 to 6 ms and 24 to 27 ms for all eight channels.
This module incorporates eight 0 to 20 mA or 4 to 20 mA yield output channels (with an overranging of 0.5 mA), produced with a 12-bit DAC and with an update rate of 200 Hz. Each yield channel incorporates a checking circuit and LED marker for open current circuit location. The NI cFP-AO-200 requires an outside power supply that gives 5 to 24 VDC. It is protected against short circuits and has 2,300 Vrms transient overvoltage protection between the inter-module communication bus and the I/O channels. The NI device has a maximum conversion rate of 200 updates per second and a slew rate of 0.4 mA per microsecond.
Compact FieldPoint modules incorporate an implicit power conveyance transport that gives different power associations on the module. A field-wired power supply associated with the voltage (V) and normal (C) terminals is inside, associated with a power circulation transport that gives extra breakout terminals to voltage supply (VSUP) and normal (COM). The device weighs 3.7 oz. and has a recommended operating temperature range of -40 to 70°C and a storage temperature range of -55 to 100°C.
| Model | cFP-AO-200 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 777318-200 |
| Type | Analog Output Module for Compact FieldPoint |
| Input Channels | 8 |
| Resolution | 12 bits |
| All Channel Update Rate | 200 Hz |
| Operating Temperature | -40 to 70°C |
| Weight | 3.7 oz. |
| cFP-AO-200 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a Quote |
Associated part numbers for cFP-AO-200:
National Instruments cFP-AO-200 Frequently Asked Questions
Question: Why is my cFP-AO-200 putting out a lower max current level than normal?
Answer: The module's output load drive capability is based upon the voltage of the external supply you’re using. They each have an internal 3-volt drop. You can use V=I*R to determine the load drive capability. For example, with a 5-volt external supply, you have the 3-volt drop, so 2 volts / 21 mA = 95 ohms of load maximum. With a 24 V supply, you can drive the maximum rated load of 1000 ohms. For a 350 Ohm load, you will need a minimum of a 10.5-volt supply.
Question: How do you read open loop status on the NI cFP-AO-200?
Answer: On the Analog Output Module, if you are reading a multiple-channel tag and one or more channels are in an open loop condition, then you will receive a warning from the FP Read or FP Writing to tell you that one or more channels have reported an open loop. If you need to find which channel specifically is reporting the open loop, you’ll have to read/write each channel one by one to get their status.
Question: What is the operating temperature range of the cFP-AO-200 module?
Answer: The operating temperature range is -40 to 70°C.
