cFP-CTR-502
Modular Systems > National Instruments > Compact FieldPoint
| Description: | cFP-CTR-502, 8-Channel, Sourcing Counter Module for Compact FieldPoint |
Need an Official Quote?
Or speak to a sales representative for additional information:
Phone:1-800-915-6216
Email:sales@apexwaves.com

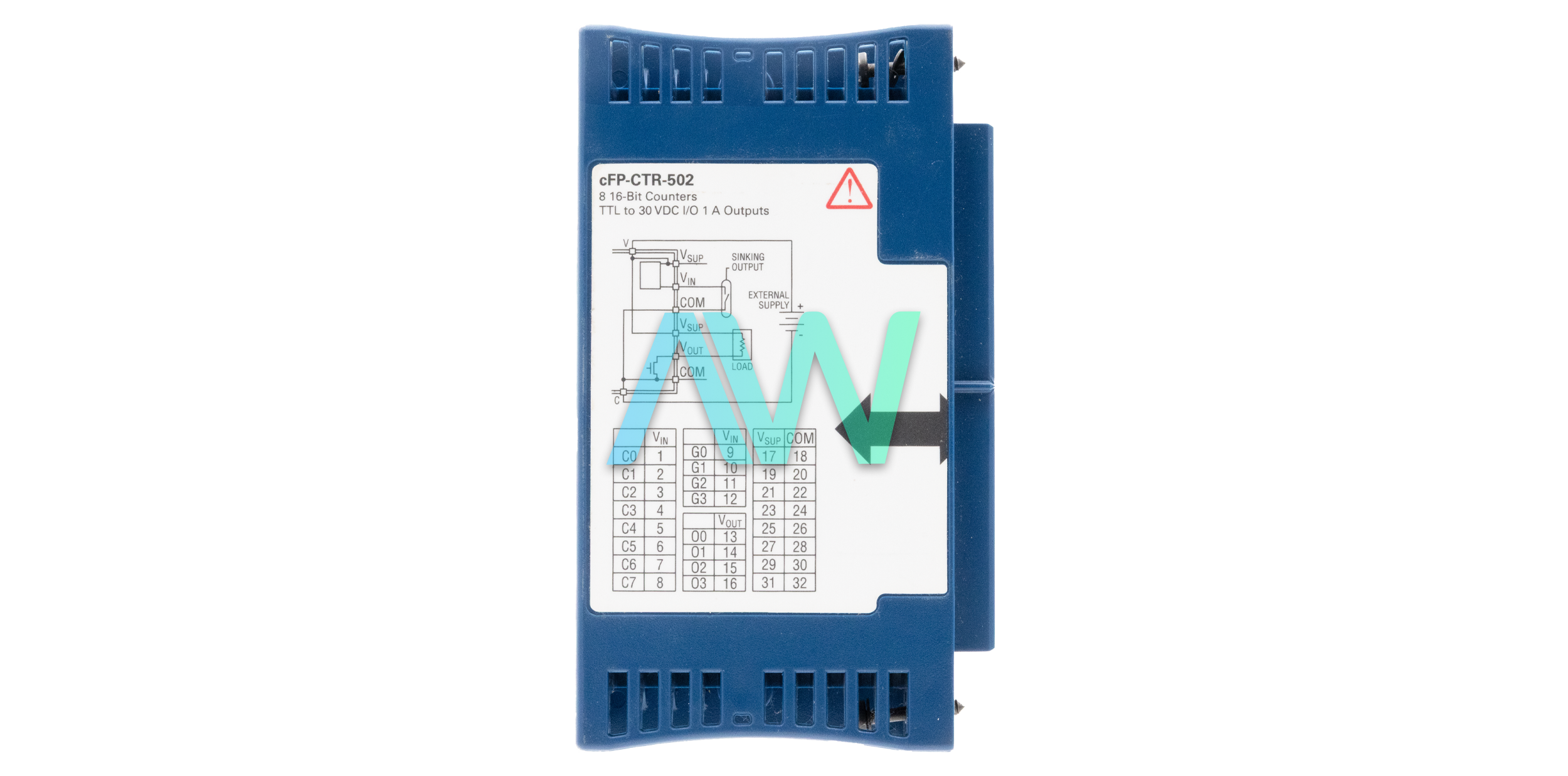

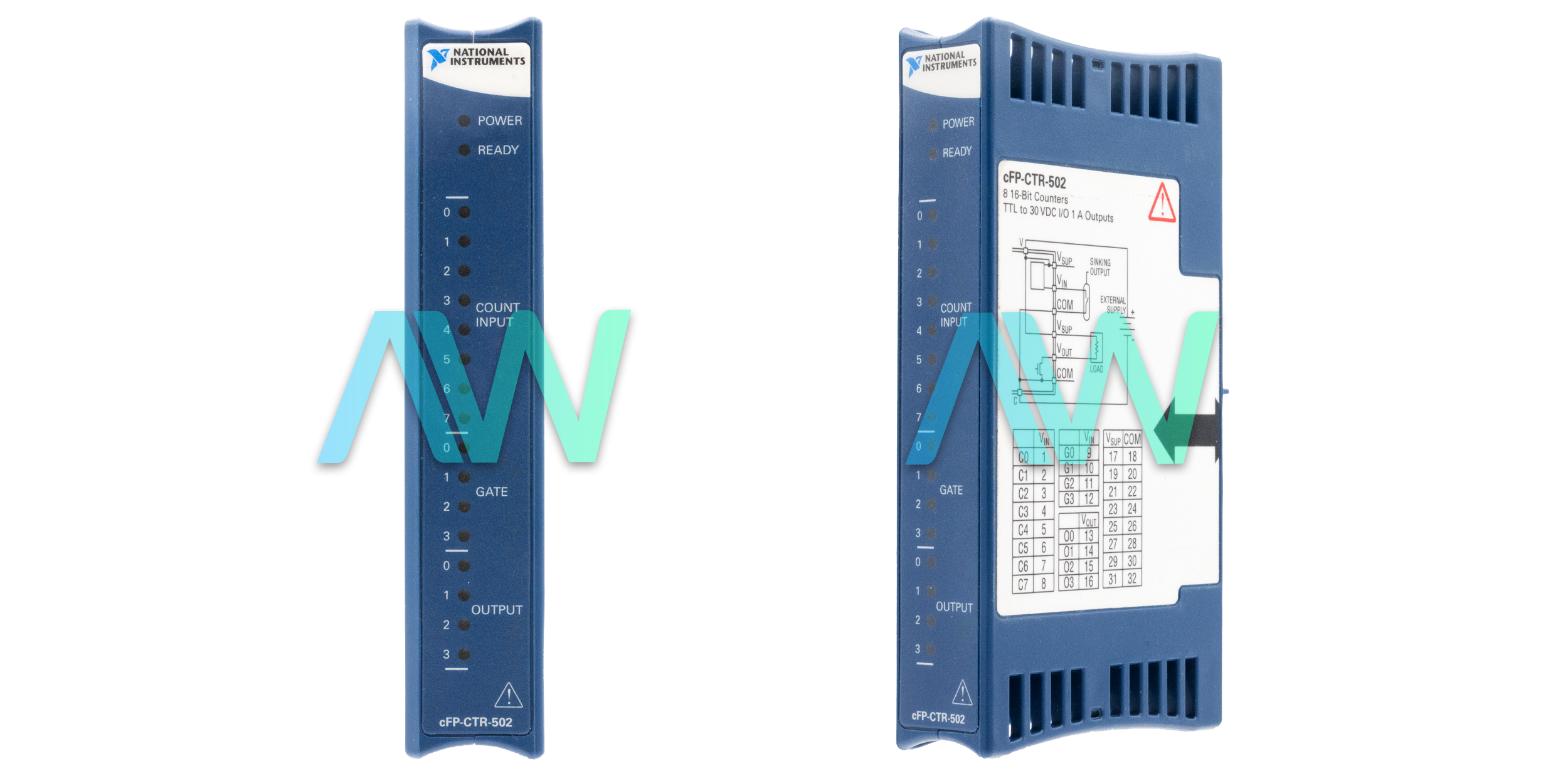

National Instruments cFP-CTR-502 Counter Module for Compact Fieldpoint
The cFP-CTR-502 (Part number: 777318-502) Counter Module is separated from whatever is left of the FieldPoint bank. In the OFF express, this transistor is killed, permitting just a little spillage current to stream. The user should guarantee that the heap present at every channel will not draw over 1 A.
In FieldPoint programming, the user can design each count input channel to work with traits and summons. The accompanying segments portray the distinctive qualities and charges the user can choose when designing the count input channels.
To set the terminal check, enter an incentive from 0 to 65,535 in the Value field. The default esteem is 65,535. When the tally input channel surpasses its terminal tally, the count goes to 0 and triggers any outputs related with it. If the tally input channel utilizes one of the outside entryway inputs, checking is empowered when the door input signal is high and is debilitated when the flag is low. The outer gadget decides the high and low interims of the entryway input flag. If the user does not relate a door input channel with the tally input channel, then they can select Always Disabled or Always Enabled. The user can select Always Enabled if they need the tally input channel to tally constantly, regardless of whether there is nothing wired to the entryway input. Continuously Enabled is the default esteem.
| Model | cFP-CTR-502 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 777318-502 |
| Type | Counter Module for Compact FieldPoint |
| Counter Inputs | 8 |
| Resolution | 16 bits |
| Input Range | 5 to 30 VDC |
| Dimensions | 4.2 x 4.3 x 3.6 in. |
| Weight | 3.5 oz. |
| Warranty | 2-3 Year Warranty |
| cFP-CTR-502 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for the cFP-CTR-502:
186729A-01, 186729A-02, 186729B-02, 186729C-02, 186729D-02, 186729E-02L, 777318-502
National Instruments cFP-CTR-502 Frequently Asked Questions
Question: Does the NI cFP-CTR-502 work with sinking devices?
Answer: The NI cFP-CTR-502 works with 5 to 30 VDC sinking devices and provides sinking outputs. A sinking device connects and disconnects a common terminal to and from the counter module.
Question: Do all the channels on the cFP-CTR-502 have LEDs?
Answer: All the channels on the cFP-CTR-502 module feature LEDs.
Question: How do you configure multiple counters to operate as one large counter with the cFP-CTR-502?
Answer: To configure the cFP-CTR-502 to have multiple counters operate as one large counter, you need to wire your signal into the input of counter 0, then set the following: Count Source: External Count Input, Terminal Count: 65535, Gate Source: Always Enabled, Read Reset Mode: Don't Reset on Read Noise Rejection: 50 kHz. Next, set counter 1 attributes to the following: Count Source: Previous Channel Terminal Count: 65535, gate Source: Always Enabled, Read Reset Mode: Don't Reset on Read Noise Rejection: 50 kHz. Then, you will create a Control @Multi channel by checking both channel 0 and channel 1 and then clicking on Create Item in the Channel Commands section.
Question: What could I use to measure speed with the NI cFP-CTR-502?
Answer: Using Fieldpoint with CVI would be the easiest way to measure speed with the NI cFP-CTR-502.
cFP-CTR-502 PDF Manuals
ARCHIVED FP CTR 502 AND CFP CTR 502 OPERATING INSTRUCTIONS.PDF
FIELDPOINT SAFETY AND RADIO FREQUENCY INTERFERENCE READ ME FIRST.PDF
USING FIELDPOINT AND COMPACT FIELDPOINT SAFELY IN HAZARDOUS LOCATIONS 5BNOTE TO USERS5D.PDF
Why Buy From Apex Waves:
"The business transaction was super easy and friendly."
"Hand carrying parts to fedex directly to make sure I get them overnight. Great service"
"They were very helpful to get me the test equipment that I need."
cFP-CTR-502
Modular Systems > National Instruments > Compact FieldPoint
cFP-CTR-502, 8-Channel, Sourcing Counter Module for Compact FieldPoint
1-800-915-6216
- Description
- Technical Specifications
- FAQ
- Manuals & PDFs

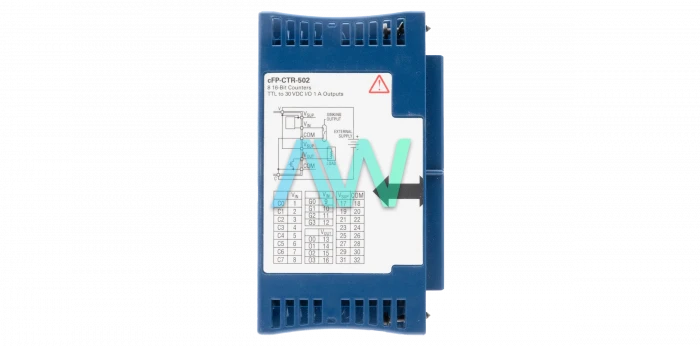

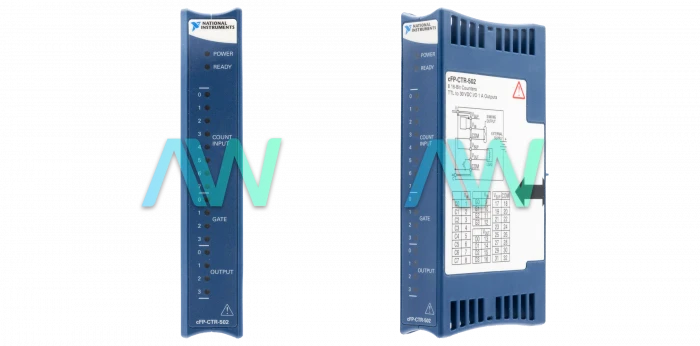

National Instruments cFP-CTR-502 Counter Module for Compact Fieldpoint
The cFP-CTR-502 (Part number: 777318-502) Counter Module is separated from whatever is left of the FieldPoint bank. In the OFF express, this transistor is killed, permitting just a little spillage current to stream. The user should guarantee that the heap present at every channel will not draw over 1 A.
In FieldPoint programming, the user can design each count input channel to work with traits and summons. The accompanying segments portray the distinctive qualities and charges the user can choose when designing the count input channels.
To set the terminal check, enter an incentive from 0 to 65,535 in the Value field. The default esteem is 65,535. When the tally input channel surpasses its terminal tally, the count goes to 0 and triggers any outputs related with it. If the tally input channel utilizes one of the outside entryway inputs, checking is empowered when the door input signal is high and is debilitated when the flag is low. The outer gadget decides the high and low interims of the entryway input flag. If the user does not relate a door input channel with the tally input channel, then they can select Always Disabled or Always Enabled. The user can select Always Enabled if they need the tally input channel to tally constantly, regardless of whether there is nothing wired to the entryway input. Continuously Enabled is the default esteem.
| Model | cFP-CTR-502 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 777318-502 |
| Type | Counter Module for Compact FieldPoint |
| Counter Inputs | 8 |
| Resolution | 16 bits |
| Input Range | 5 to 30 VDC |
| Dimensions | 4.2 x 4.3 x 3.6 in. |
| Weight | 3.5 oz. |
| Warranty | 2-3 Year Warranty |
| cFP-CTR-502 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
National Instruments cFP-CTR-502 Frequently Asked Questions
Question: Does the NI cFP-CTR-502 work with sinking devices?
Answer: The NI cFP-CTR-502 works with 5 to 30 VDC sinking devices and provides sinking outputs. A sinking device connects and disconnects a common terminal to and from the counter module.
Question: Do all the channels on the cFP-CTR-502 have LEDs?
Answer: All the channels on the cFP-CTR-502 module feature LEDs.
Question: How do you configure multiple counters to operate as one large counter with the cFP-CTR-502?
Answer: To configure the cFP-CTR-502 to have multiple counters operate as one large counter, you need to wire your signal into the input of counter 0, then set the following: Count Source: External Count Input, Terminal Count: 65535, Gate Source: Always Enabled, Read Reset Mode: Don't Reset on Read Noise Rejection: 50 kHz. Next, set counter 1 attributes to the following: Count Source: Previous Channel Terminal Count: 65535, gate Source: Always Enabled, Read Reset Mode: Don't Reset on Read Noise Rejection: 50 kHz. Then, you will create a Control @Multi channel by checking both channel 0 and channel 1 and then clicking on Create Item in the Channel Commands section.
Question: What could I use to measure speed with the NI cFP-CTR-502?
Answer: Using Fieldpoint with CVI would be the easiest way to measure speed with the NI cFP-CTR-502.
cFP-CTR-502 PDF Manuals & Diagrams
cFP-CTR-502 PDF Manuals
ARCHIVED FP CTR 502 AND CFP CTR 502 OPERATING INSTRUCTIONS.PDF
FIELDPOINT SAFETY AND RADIO FREQUENCY INTERFERENCE READ ME FIRST.PDF
USING FIELDPOINT AND COMPACT FIELDPOINT SAFELY IN HAZARDOUS LOCATIONS 5BNOTE TO USERS5D.PDF
