cDAQ-9171 In Stock | Ships Today
cDAQ-9171, 1-Slot, USB CompactDAQ Chassis
Need an Official Quote?

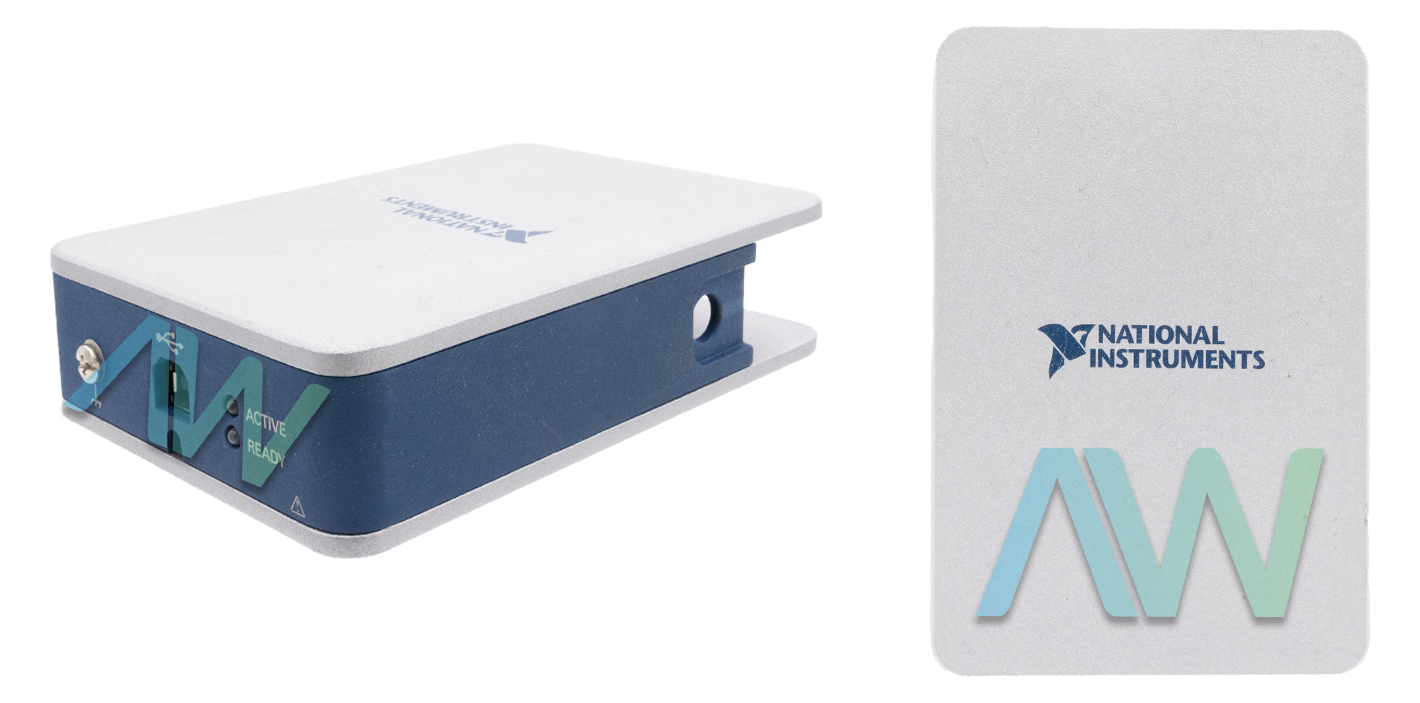

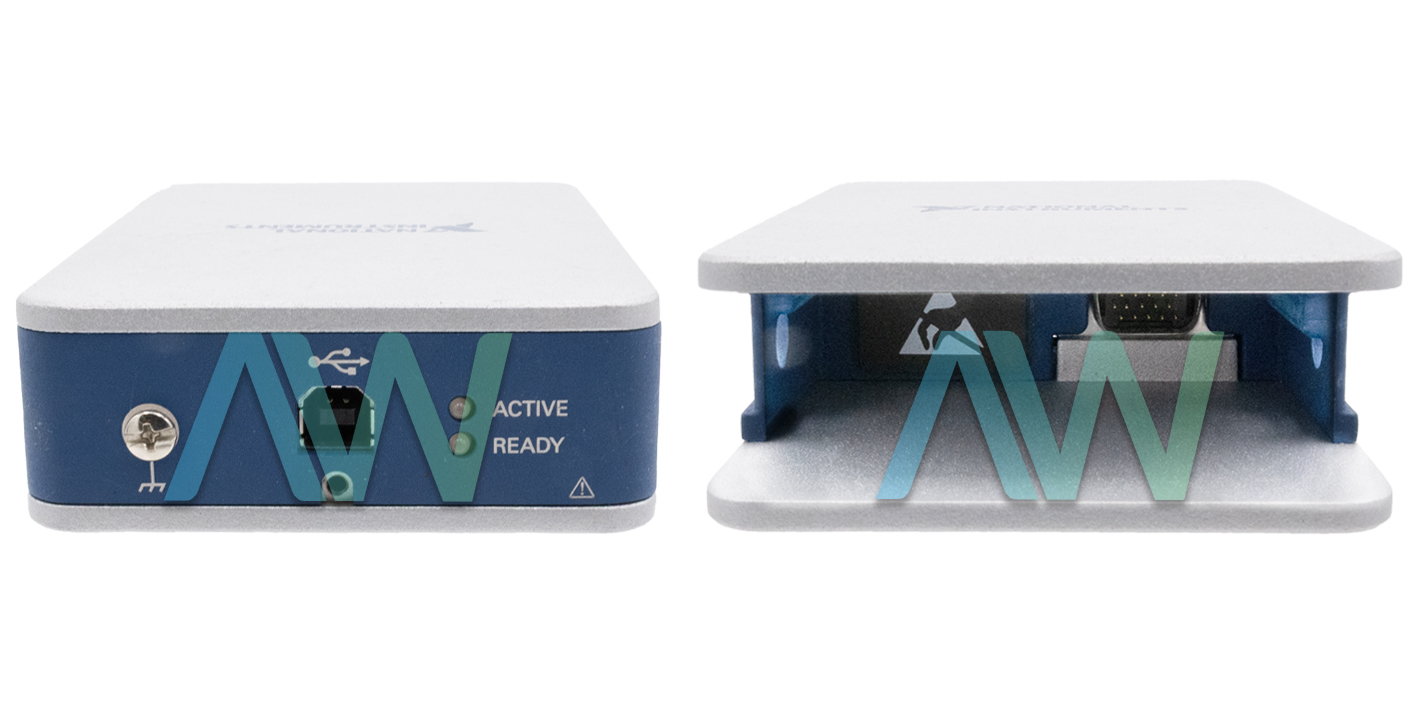

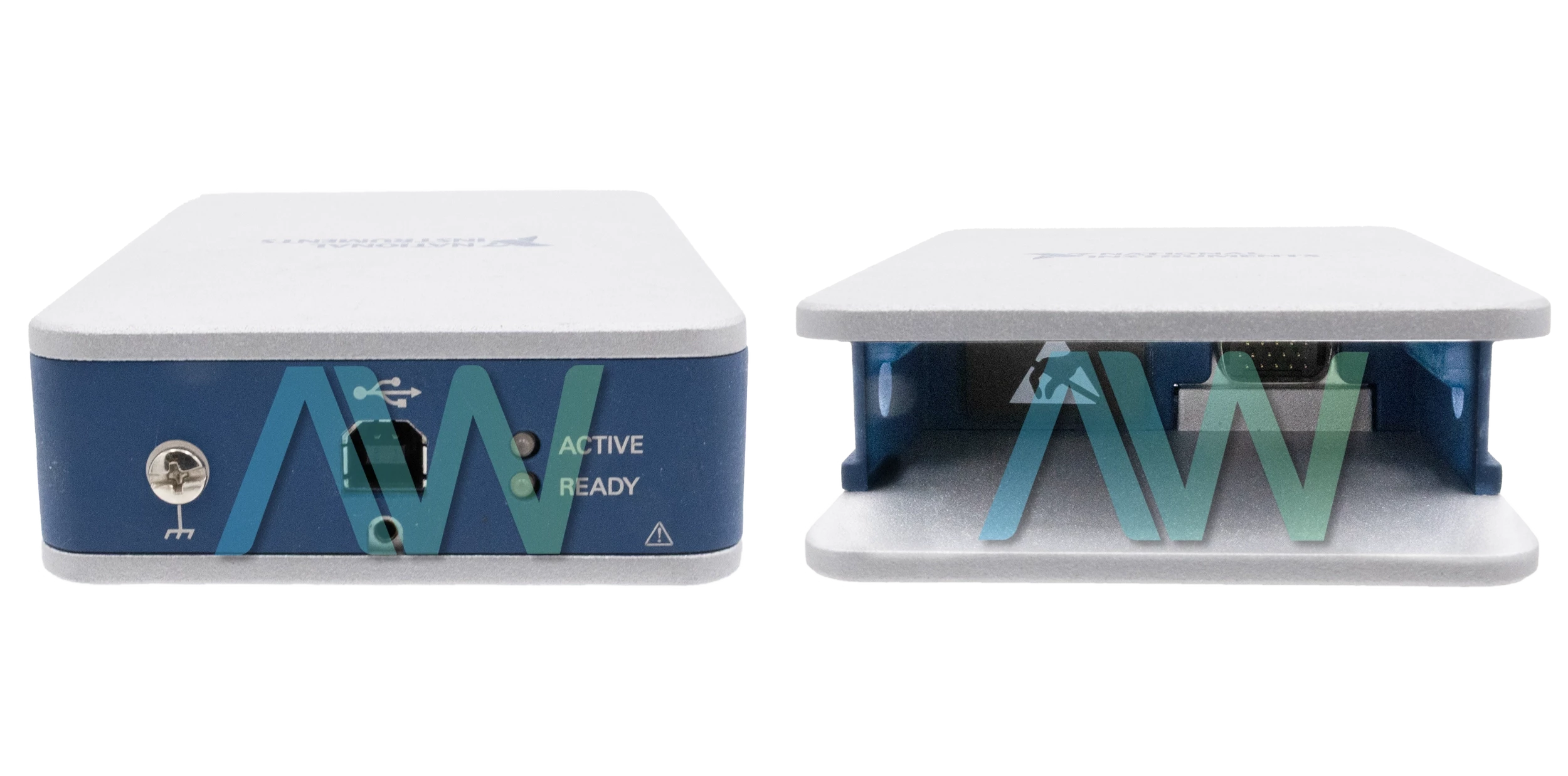

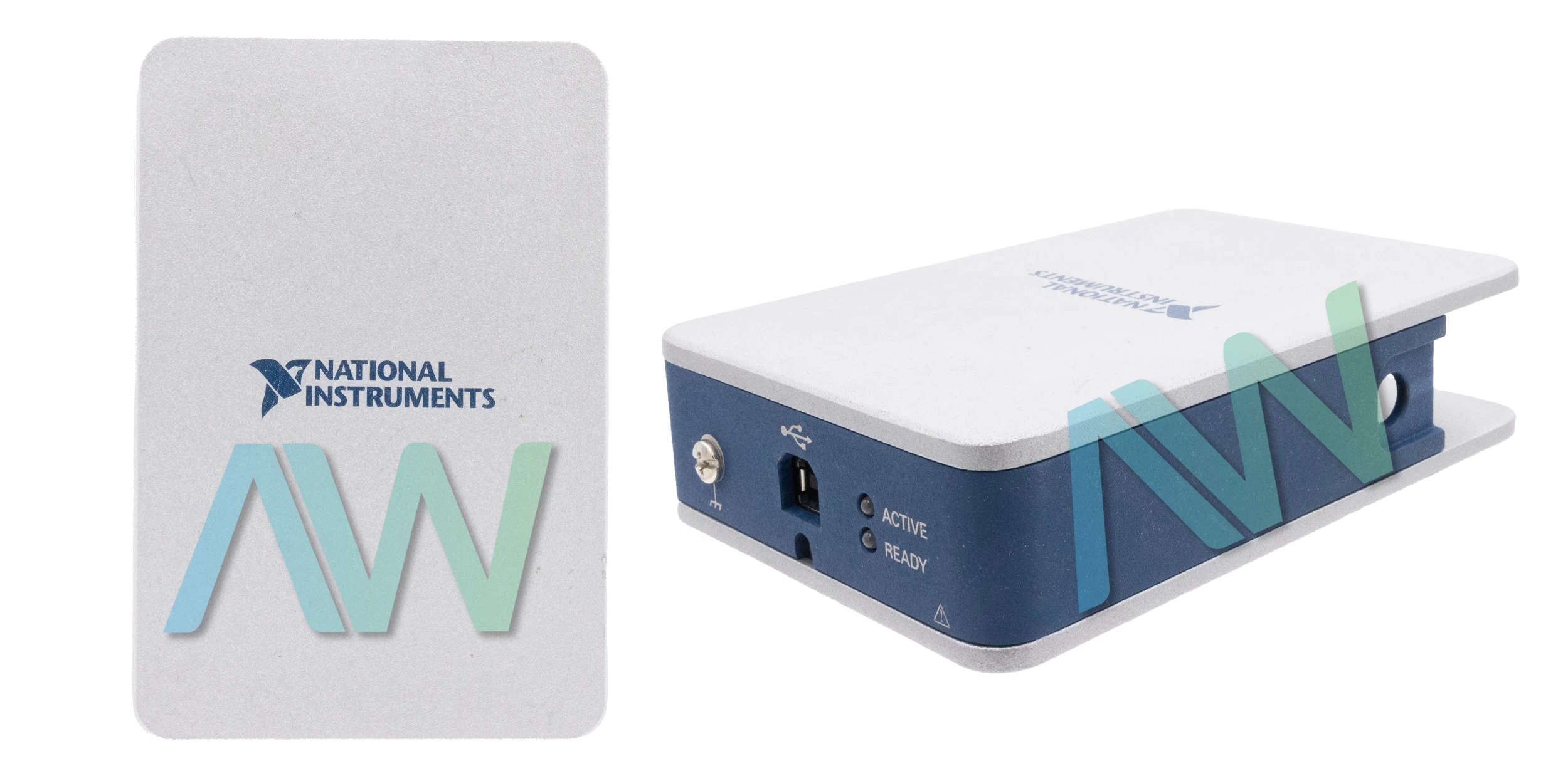

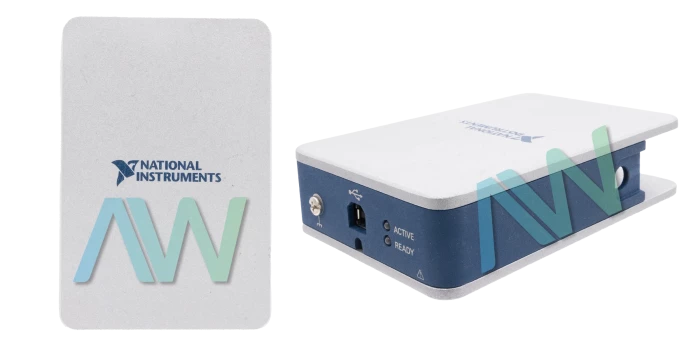

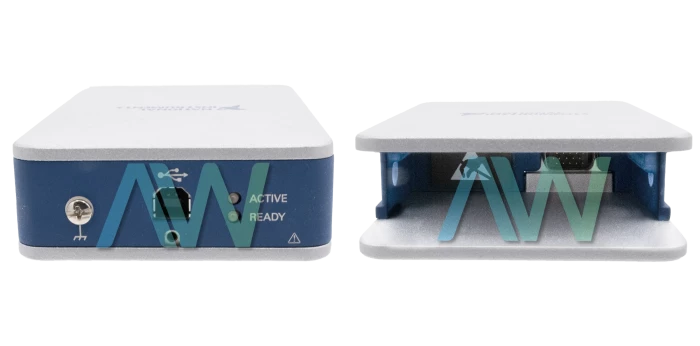

National Instruments cDAQ-9171 CompactDAQ Chassis
The cDAQ-9171 (Part Number: 781425-01) is a bus-fueled CompactDAQ Chassis, intended for small and convenient sensor estimation frameworks. The instrument gives the straightforwardness of quick association (plug-and-play) of USB to its electrical and sensor estimations. This CompactDAQ also controls the planning, synchronization, and information exchange between the C Series I/O modules and an outside server. The user can utilize this suspension with a blend of C Series I/O modules to perform different estimations of simple I/O, computerized I/O, and counter/clock. The cDAQ-9171 National Instruments has four 32-bit universally useful clocks/counters that can be reached through an equipment planned, C Series computerized module in applications that utilize quadrature encoders, pulse width estimations, event counting, pulse train generation, and period or frequency estimations. The cDAQ framework is comprised of three parts: C Series module(s), the STC3, and the cDAQ module interface. These parts digitize signals, perform D/A transformations to create analog output signals, measure and control computerized I/O signals, and offer signal conditioning. The device has a USB 2.0 hi-speed bus connector, and has a timing resolution of 12.5 ns.
The NI cDAQ-9171 1-slot USB Chassis supports over 60 sensor-specific I/O modules with integrated signal conditioning. This USB Chassis allows the user to run as many as six hardware-timed analog I/O, digital I/O, or counter/timer operations at the same time. The number of channels the NI cDAQ-9171 can support, the sample rate, and several other specifications are based on the C Series module used with the Chassis. The NI cDAQ 9171 USB Chassis has the capability to be mounted to a panel, wall, or a DIN rail. The optional rack mounting kits can be purchased separately. When mounted, the cDAQ Chassis should not be stacked. This model is run using the NI-DAQmx driver software which is compatible with software packages like LabVIEW, LabWindows/CVI, or Measurement Studio.
The NI device weighs 12.5 oz, and measures 5.17 x 3.49 x 1.31 in. in physical dimensions. It has a power consumption of 500 mA maximum at 5 V, a recommended operating temperature range of -20 °C to 55 °C, and a storage temperature range of -40 °C to 85 °C. Additional specifications for the cDAQ-9171 can be found in the manuals and datasheets under the "Manuals & PDFs" tab.
Model | cDAQ-9171 |
---|---|
Manufacturer | National Instruments |
Part Number | 781425-01 |
Type | CompactDAQ Chassis |
Slots | 1 |
Bus Connector | USB 2.0 |
Timing Resolution | 12.5 ns |
Dimensions | 5.17 x 3.49 x 1.31 in. |
Weight | 12.5 oz. |
Warranty | Three Year Warranty |
cDAQ-9171 Manual | User Manual and Maintenance Manual Available for Download |
Price | Contact a sales representative for a quote. |
Associated part numbers for the cDAQ-9171:
195724A-01L, 195724A-02L, 195724A-10L, 195724B-01L, 195724B-10L, 195724C-01L, 195724C-22L, 195724D-01L, 195724D-30L, 195724E-01L, 781425-01, 782885-01, 787927-01
Associated NSNs for the cDAQ-9171:
5975-01-626-2436 (5975016262436), 6130-01-661-6400 (6130016616400)
National Instruments cDAQ-9171 Frequently Asked Questions
Question: What is the timing resolution of the cDAQ 9171?
Answer: The timing resolution of the cDAQ 9171 is 12.5 ns.
Question: What output applications can the counters/timers on the NI cDAQ 9171 USB Chassis be used for?
Answer: The counters/timers on the NI cDAQ 9171 USB Chassis can be used for equivalent time sampling, pulse, frequency division, and pulse train with dynamic updates.
Question: Is sleep mode supported for the C Series modules in the cDAQ-9171 NI?
Answer: In the cDAQ-9171 NI, sleep mode is not supported.
Question: What are the power requirements for the cDAQ 9171?
Answer: For the cDAQ 9171, the power consumption from USB is 5 V, 500 mA maximum and the suspend mode is 2.5 mA maximum.
Question: Does the cDAQ 9171 need an external power source?
Answer: No, the cDAQ 9171 does not need an external power source.
cDAQ-9171 PDF Manuals
CDAQ 9171 CDAQ 9174 CDAQ 9178 LETTER OF VOLATILITY.PDF
CDAQ CHASSIS AND CONTROLLERS CALIBRATION PROCEDURE.PDF
COMPACTDAQ SYSTEMS PRODUCT FLYER.PDF
DC3A9MARRAGE RAPIDE DU NI CDAQ 9171 AVEC CHC3A2SSIS USB.PDF
NI CDAQ 9171 9174 9178 USER MANUAL.PDF
NI CDAQ 9171 SAFETY ENVIRONMENTAL AND REGULATORY INFORMATION.PDF
NI CDAQ 9171 SPECIFICATIONS.PDF
NI CDAQ 9171 USB CHASSIS QUICK START.PDF
Driver Downloads for cDAQ-9171
OS Compatibility:
Win XP 32-bit, Win 7 32-bit, Win 10 32-bit
