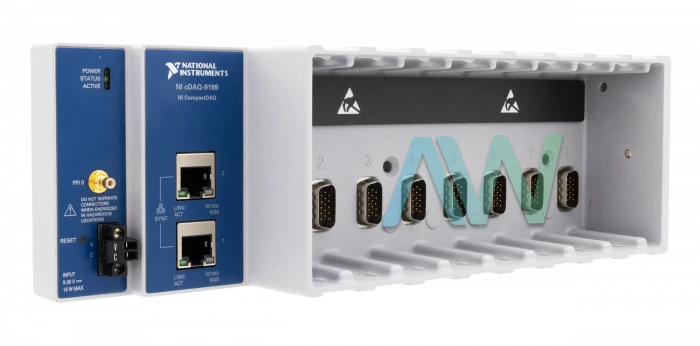

National Instruments cDAQ-9189 CompactDAQ Chassis

The cDAQ-9189 (Part Numbers: 785065-01785065-02, 787930-01) CompactDAQ Chassis comes with parallel advanced output modules (in the past known as equipment coordinated modules), which can be used with various programming coordinated errands on a solitary module. On serial computerized yield modules, the user cannot blend equipment planned and programming coordinated undertakings, but rather they can run various programming coordinated errands. The user can empower a programmable debouncing channel on each PFI signal. When the channel is empowered, the case tests the contributions with a client arranged Filter Clock from the time-base undercarriage. The device is equipped with 8 slots, has an Ethernet bus connector, and a timing accuracy of 50 ppm of sample rate. Part number 785065-02 is conformal coated.

In edge checking applications, the counter depends on its Source after the counter is outfitted. The user can design the counter to tally rising or falling edges on its Source input. The user can also control the heading of counting (up or down), as portrayed in the Controlling the Direction of Counting segment. The counter qualities ​​can be perused on request or with an example clock. With buffered edge checking (edge ​​counting utilizing an example clock), the counter tallies the quantity of edges on the Source contribution after the counter is outfitted. The estimation of the counter is tested on every dynamic edge of an example check and put away in the FIFO. The STC3 exchanges the inspected esteems ​​to have memory utilizing a fast information stream. With single pulse width estimation, the counter tallies the quantity of edges on the Source input while the Gate input stays dynamic. When the Gate input goes idle, the counter stores the tally in the FIFO and overlooks different edges on the Gate and Source inputs.

The cDAQ-9189 is run using the NIDAQmx driver software which can be programmed using an application development environment such as LabVIEW Real-Time Module. The NI device weighs 37.6 oz, and measures 10.74 x 3.47 x 2.45 in. in physical dimensions. It has recommended operating and storage temperature ranges of -40 °C to 70 °C and -40 °C to 85 °C respectively, operating and storage humidity ranges of 10% to 90% RH and 5% to 95% RH respectively.

Additional information about the cDAQ-9189 can be found in the manuals and datasheets under the "Manuals & PDFs" tab. Firmware and drivers can be found under the "Drivers" tab.

ModelcDAQ-9189
ManufacturerNational Instruments
Part Numbers785065-01, 785065-02, 787930-01
TypeCompactDAQ Chassis
Slots8
Bus ConnectorEthernet
Timing Accuracy50 ppm of sample rate
Dimensions10.74 x 3.47 x 2.45 in.
Weight37.6 oz.
WarrantyThree Year Warranty
cDAQ-9189 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for the cDAQ-9189:

142143A-01L, 142143B-01L, 142143B-12L, 142143B-42L, 142143C-01L, 200388A-01, 785065-01, 785065-02, 787930-01

National Instruments cDAQ-9189 Frequently Asked Questions



Question: Why are there two part numbers for the NI cDAQ 9189?

Answer: The NI cDAQ 9189 has two versions: one that is conformal coated (Part Number: 785065-02) and one that is not conformal coated (Part Number: 785065-01).



Question: How does the NI cDAQ-9189 CompactDAQ Chassis provide timing over the network?

Answer: The NI cDAQ-9189 CompactDAQ Chassis provides synchronized timing over the network using TSN, which is ideal for highly distributed measurements that go over a long distance.



Question: Can you combine I/O modules when using the cDAQ 9189?

Answer: The cDAQ 9189 allows you to combine C Series I/O modules to create a mix of analog I/O, digital I/O, and counter/timer measurements.



Question: How many counters/timers does the NI cDAQ-9189 CompactDAQ have available?

Answer: The NI cDAQ-9189 CompactDAQ has four 32-bit general-purpose counters/timers.



Question: What is the difference between the cDAQ-9189 and the cRIO-9148?

Answer: The cDAQ-9189 has a TSN (Time-sensitive network) feature, as well as DAQmx capability- while the cRIO-9148 uses FPGA.
