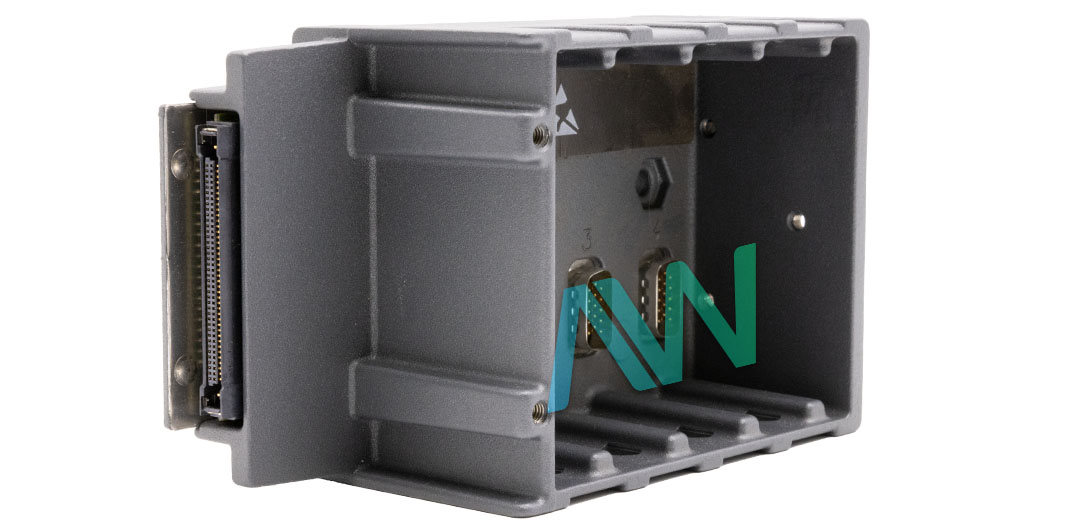

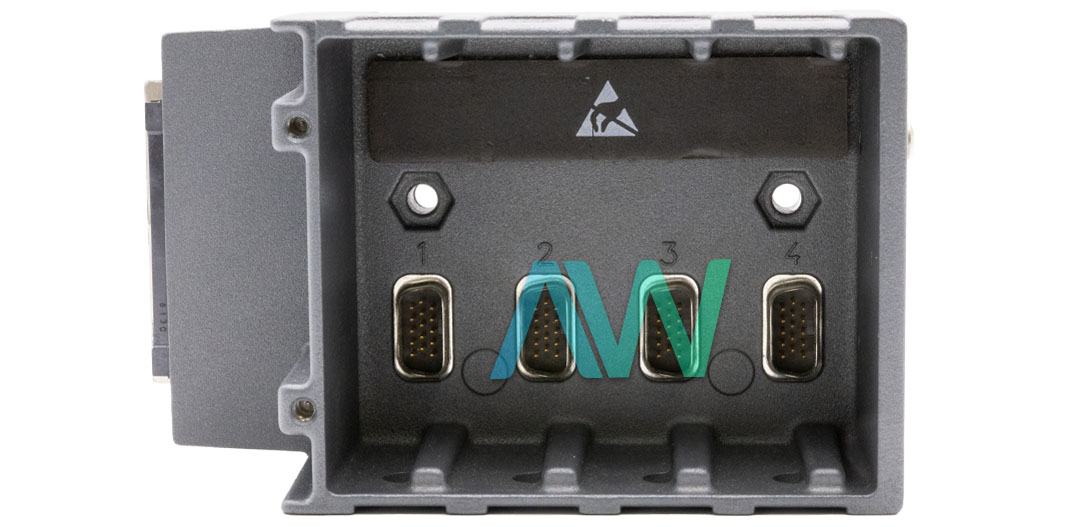

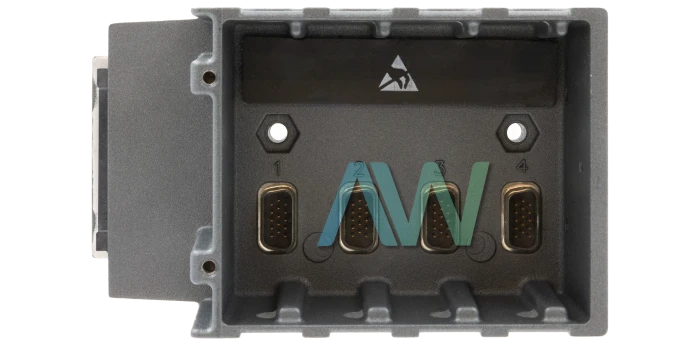

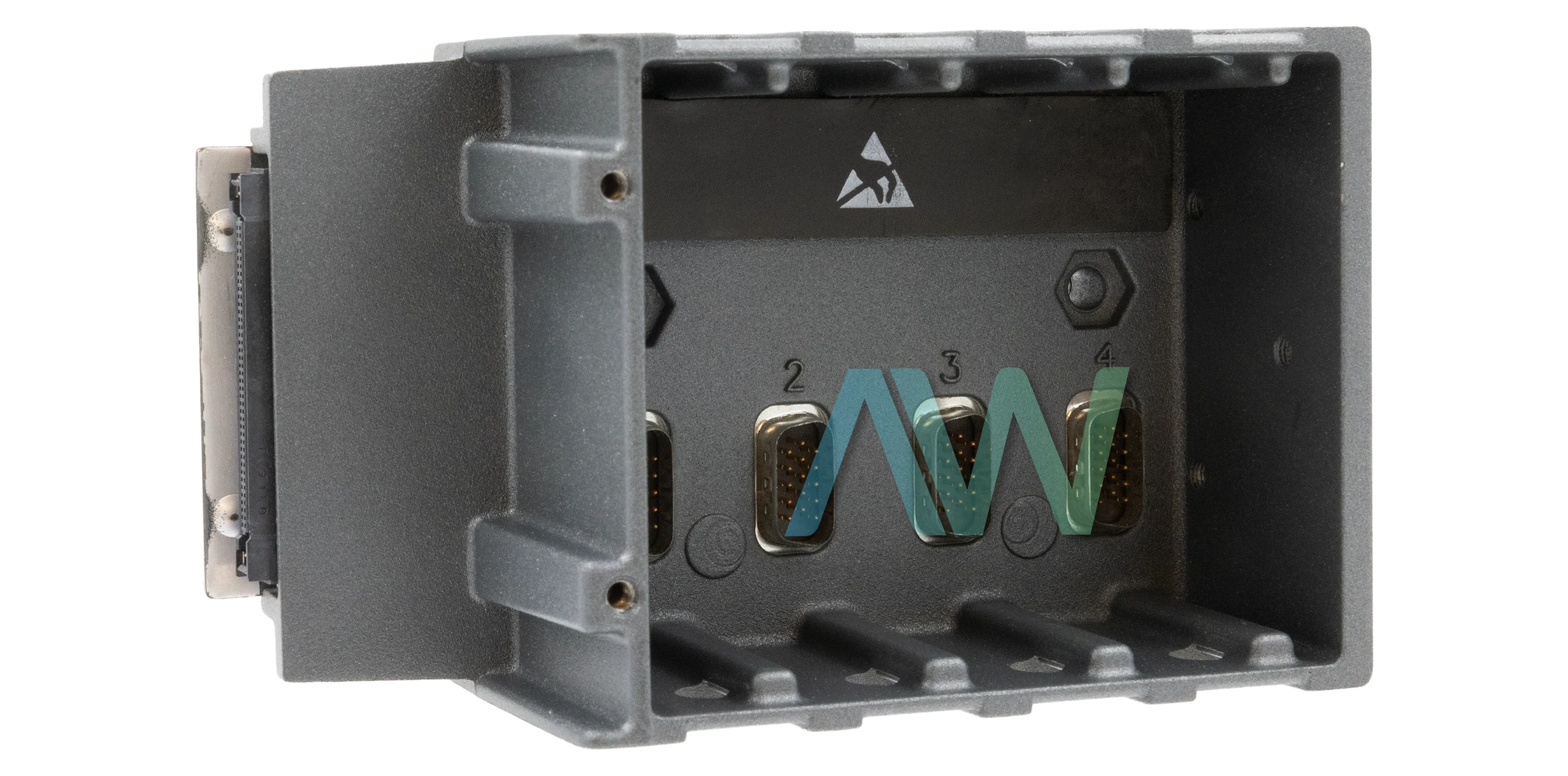

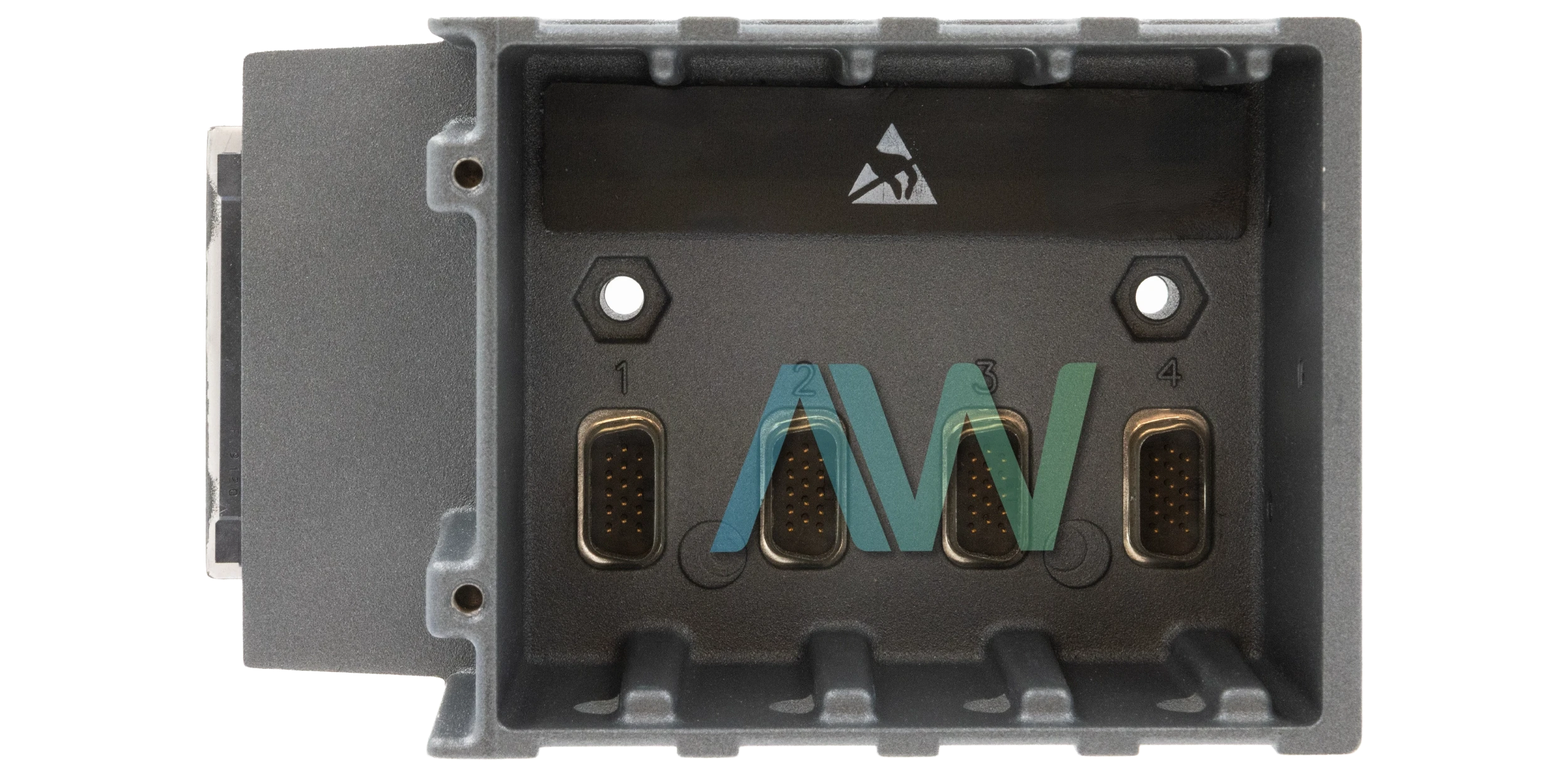

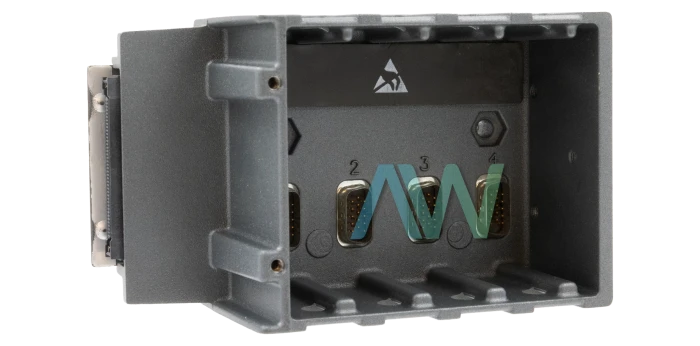

779052-01, 4 Slots, Reconfigurable, cRIO-9101 CompactRIO Chassis
Need an Official Quote?
National Instruments 779052-01 CompactRIO Chassis
National Instruments part number 779052-01 is an identifying part number for the cRIO-9101 CompactRIO Chassis. The NI 779052-01 is a 4-slot rugged chassis which allows users to add multiple C Series I/O modules to their existing monitoring or control applications. It can be programmed through scan mode for quick real-time infrastructure expansion or via the onboard FPGA. The reconfigurable FPGA in this chassis has 5120 logic slices and 81,920 bytes of embedded RAM, providing high-speed control and I/O.
A CompactRIO controller is needed to communicate with the C Series modules installed in any of the four slots. For mounting, users can opt for the National Instruments 9912 DIN rail kit, which is sold separately. Other mounting options include rack mounting and panel mounting. It weighs about 490 g and requires a maximum of 2,300 mW of power, drawing 500 mW from the +5 VDC rail and 1,800 mW from the +3.3 VDC rail. To start using the CompactRIO system, you need a Windows computer with NI-RIO drivers. Each I/O module in the 779052-01 chassis maintains an individual connection to the FPGA core, with synchronization up to 25 ns resolution. This chassis is considered the heart of any CompactRIO system due to its integrated I/O core.
The 779052-01 allows for the removal of I/O modules while the power supply is on, without disrupting the entire control system. To install the CompactRIO system, you will need the following components: a CompactRIO reconfigurable embedded chassis, a CompactRIO intelligent real-time embedded controller, and C Series I/O modules. Additionally, you may require mounting hardware, available from National Instruments, and two M4 or number 10 panhead screws if you are opting for panel mounting. You will also need a number 2 Philips screwdriver, a power supply, and an Ethernet cable to complete the installation.
Part Number | 779052-01 |
---|---|
Model Name | cRIO-9101 |
Part Type | CompactRIO Chassis |
Slots | 4 |
FPGA | 1M Gate |
Logic Slices | 5,120 |
Embedded RAM | 81,920 bytes |
Timebases | 40, 80, 120, 160, or 200 MHz |
Ingress Protection | IP40 |
Weight | 17.3 oz. |
