National Instruments 780465-01 CompactRIO Controller

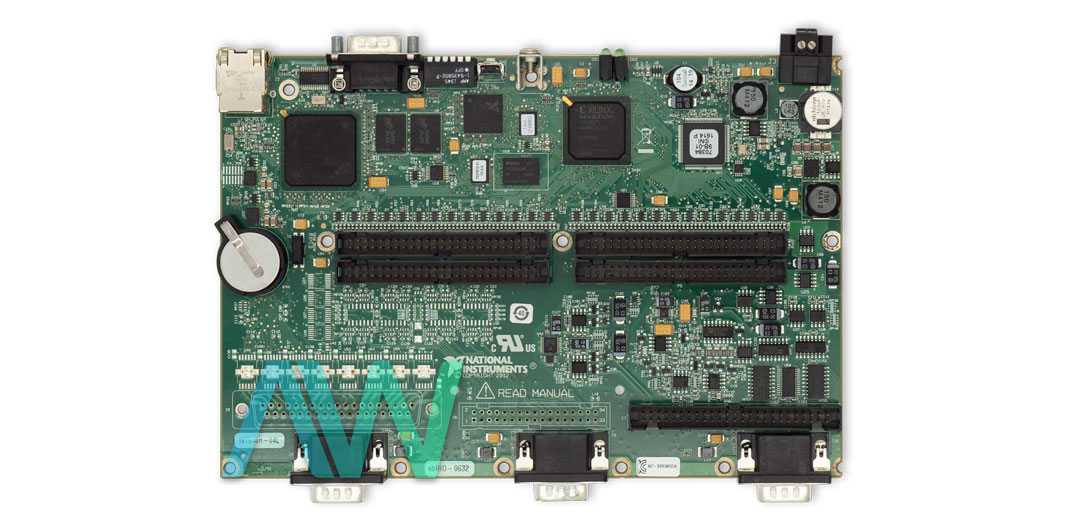

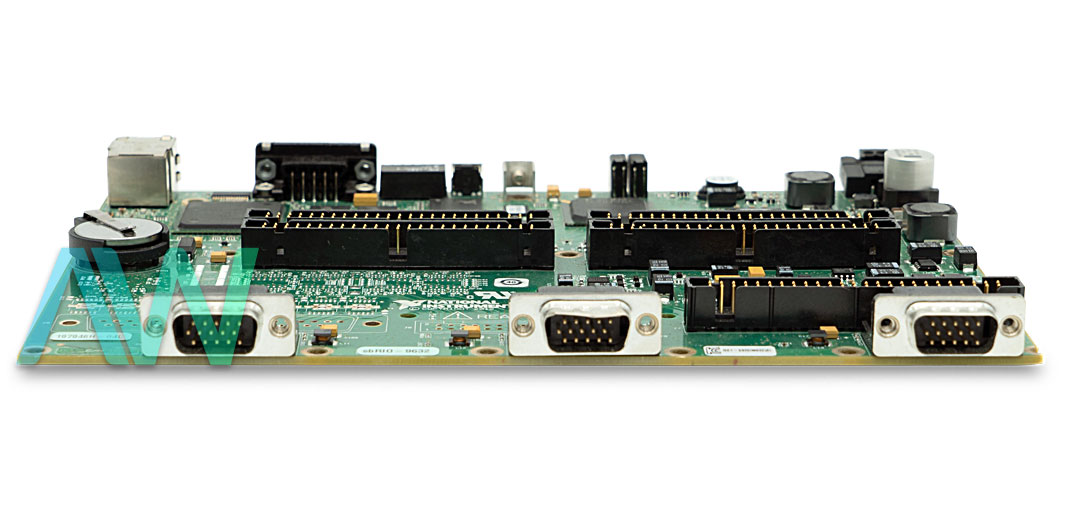

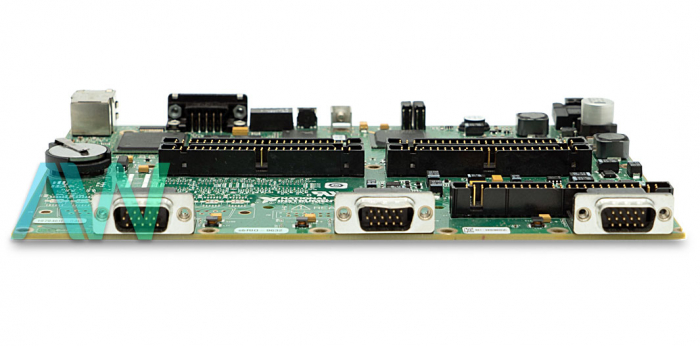

National Instruments part number 780465-01 is an identifying part number for the sbRIO-9632 CompactRIO Controller. The purpose of the 780465-01 is to combine a set of I/O, a user-reconfigurable FPGA, and a real-time CPU into a single printed circuit board (PCB). Performance-intensive, high-volume OEM applications are a good fit for this compact controller.

The 780465-01 has a 400 MHz CPU, 128 MB of DRAM, and 256 MB of storage, providing ample processing power and memory to handle demanding applications. The controller also features a 2M Gate FPGA that can be reconfigured, enabling it to tackle a wide range of tasks. In terms of I/O, the 780465-01 offers three connectors for non-enclosed C Series I/O modules, allowing for easy expansion and customization of the system. Additionally, it includes one Ethernet port and one serial port for communication and integration with other systems.

The NI 780465-01 features 3.3 V digital I/O with 110 DIO channels. A maximum of 330 mA is the maximum total current across all lines, with a maximum tested current of 3 mA per channel. Ten millihertz is the highest tested DIO frequency. The input low voltage (VIL) varies from 0 V minimum to 0.8 V maximum, and the input high voltage (VIH) ranges from 2.0 V minimum to 5.25 V maximum for the input logic levels. For the output logic levels, the output high voltage (VOH) when sourcing 3 mA ranges from 2.7 V minimum to 3.3 V maximum, and the output low voltage (VOL) when sinking 3 mA ranges from 0.07 V minimum to 0.54 V maximum. For direct I/O, the 780465-01 features 32 16-bit analog inputs, four 16-bit analog outputs, and 110 3.3 V digital lines. This set of I/O options enables the controller to interface with a diverse range of sensors, actuators, and other devices.
