780917-01 Request for Availablility
780917-01, 4 Slots, 1,728 kbits, 20 oz., cRIO-9113 CompactRIO Chassis
Need an Official Quote?

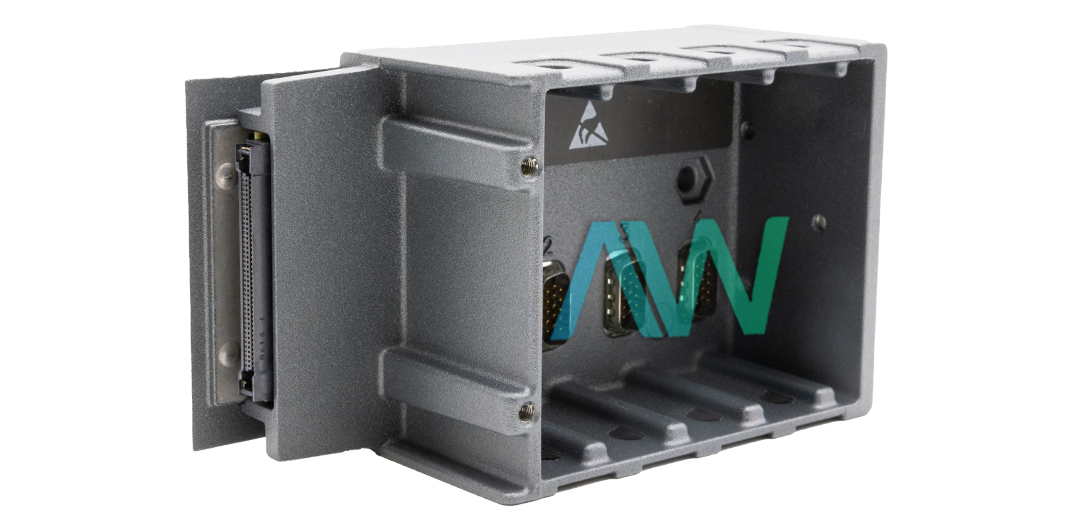

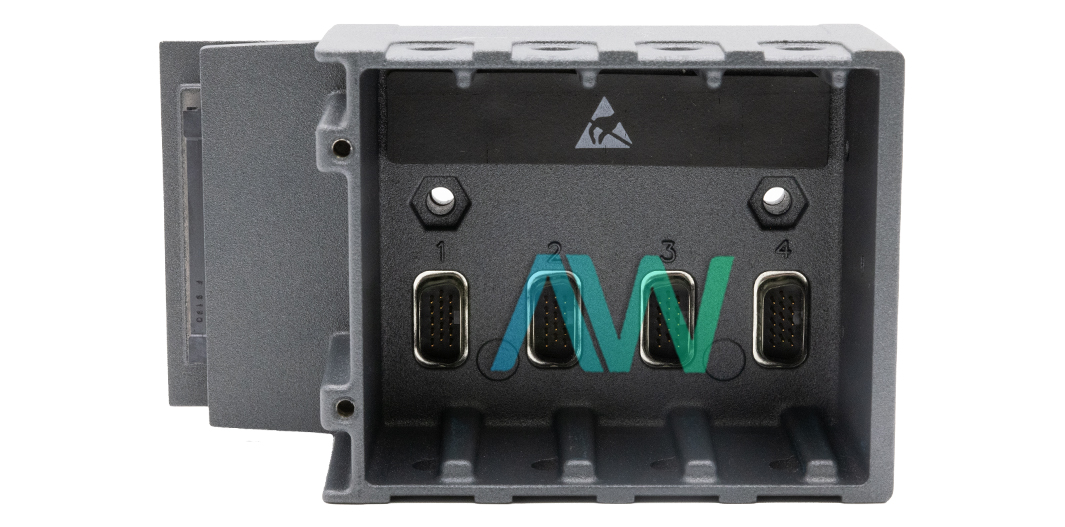

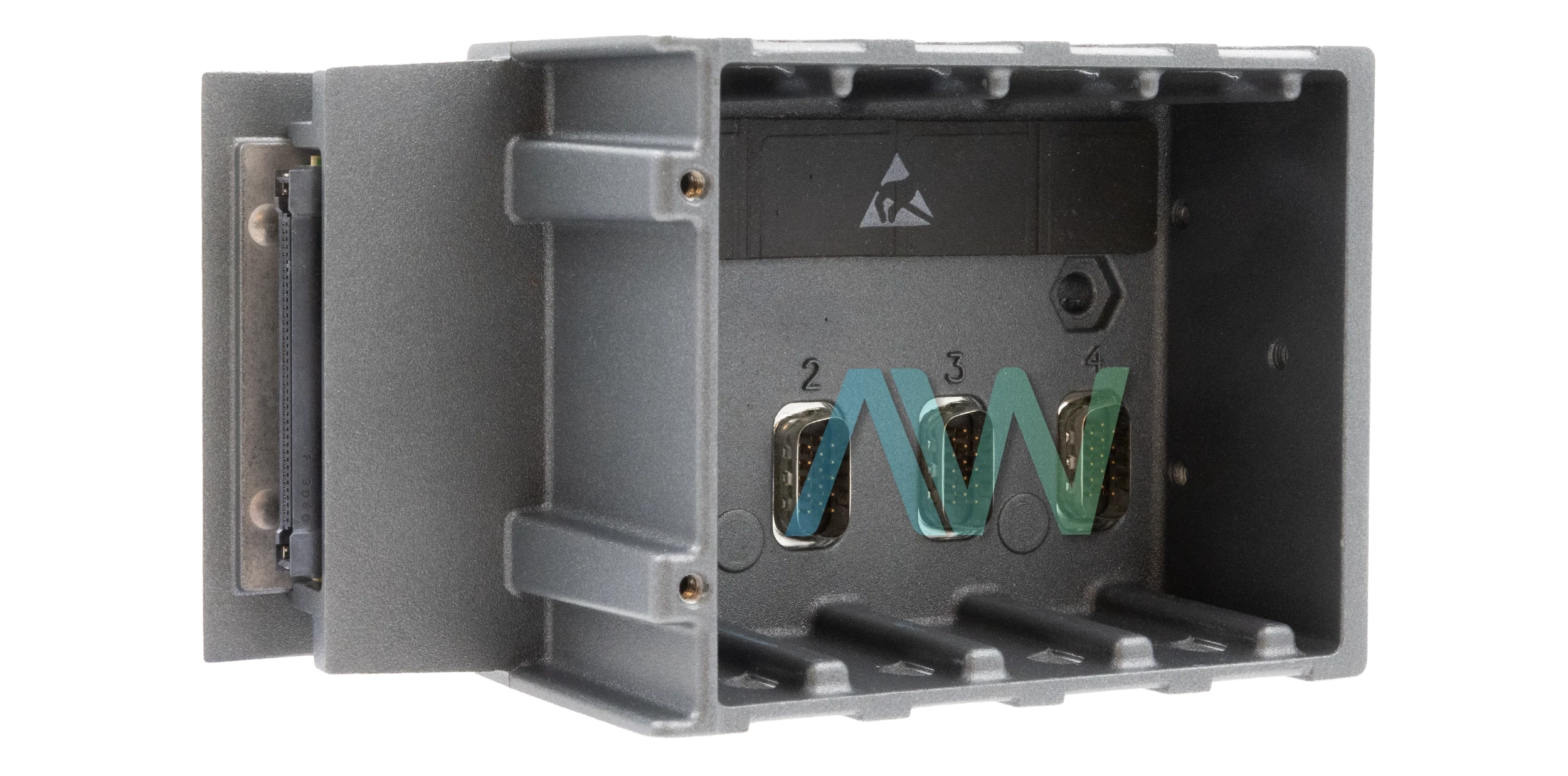

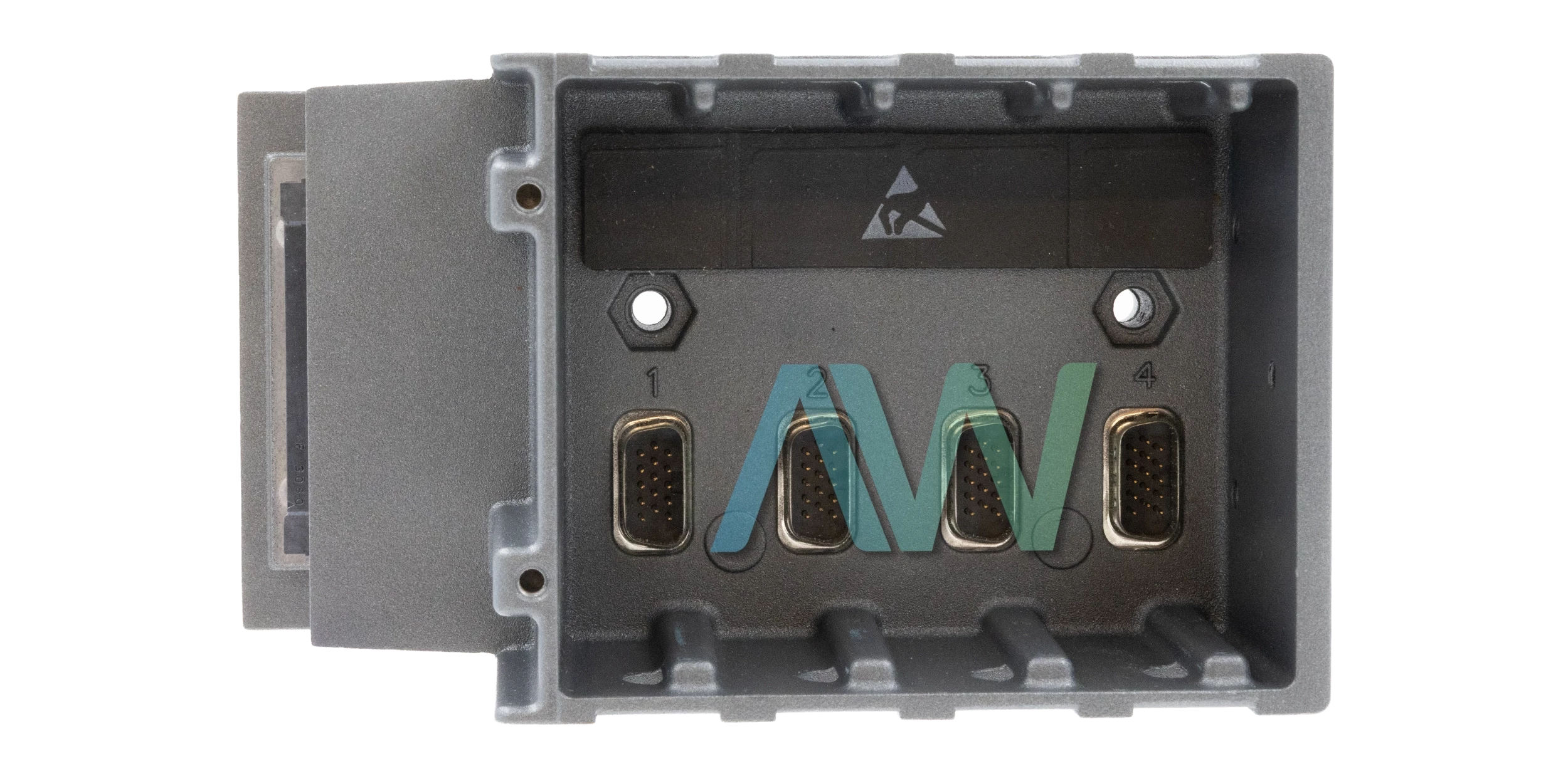

National Instruments 780917-01 CompactRIO Chassis
National Instruments part number 780917-01 is an identifying part number for the cRIO-9113 a CompactRIO Chassis with 4 slots and Virtex-5 LX50 FPGA Type. The NI 780917-01 features an FPGA that shares interconnect and access to a global routing grid, ensuring consistent high-speed performance. FPGAs are crucial in building reliable and highly available systems. The Virtex-5 family System Monitor simplifies monitoring of the FPGA and its external environment, enhancing overall system reliability and ease of management. The Virtex-5 FPGA on this CompactRIO Chassis employs input LUTs capable of handling up to 64 configurations, enabling greater logic execution per slice.
The slices are positioned closer together to minimize electron propagation delay and improve overall performance speeds. LabVIEW FPGA's single-cycle Timed Loop structure optimally utilizes six-input LUTs, significantly enhancing resource efficiency. This allows users to fit more LabVIEW FPGA code onto the Virtex-5 FPGA and execute more operations per clock cycle. Each FPGA within the Virtex-5 family features a System Monitor block, incorporating a 10-bit 200k SPS ADC (Analog-to-Digital Converter). This ADC is used to convert signals from on-chip sensors, such as temperature and power supply sensors, providing information about the FPGA's internal conditions.
External environmental monitoring is enabled through several analog input channels, supporting a wide range of voltage signal types. These inputs are versatile and support unipolar, bipolar, and true differential data formats. To install a CompactRIO system, you'll need the following key components: a reconfigurable embedded chassis and an intelligent real-time embedded controller. Additionally, C Series I/O modules are required for interfacing with external devices. Mounting hardware, including two M4 or number 10 panhead screws if panel mounting is needed, along with a number 2 Philips screwdriver, ensures secure installation. A reliable power supply and Ethernet cable are essential to power and connect the system, facilitating seamless operation and communication in industrial and embedded applications.
Part Number | 780917-01 |
---|---|
Model Range | cRIO-9113 |
Part Type | CompactRIO Chassis |
Slots | 4 |
FPGA | Virtex-5 LX50 |
Number of flip flops | 28,000 |
Embedded RAM | 1,728 kbits |
Number of 6-input LUTs | 28,000 |
Total Chassis Power Consumption | 3,300 mW maximum |
Weight | 20 oz. |
780917-01 PDF Manuals
780917-01 DECLARATION OF CONFORMITY.PDF
780917-01 DIMENSIONAL DRAWINGS.PDF
780917-01 LETTER OF VOLATILITY.PDF
CRIO 9113 USER MANUAL AND SPECIFICATIONS.PDF
Why Buy From Apex Waves:
"Hand carrying parts to fedex directly to make sure I get them overnight. Great service"
"They were very helpful to get me the test equipment that I need."
780917-01
Modular Systems > National Instruments > CompactRIO Controllers
780917-01, 4 Slots, 1,728 kbits, 20 oz., cRIO-9113 CompactRIO Chassis
1-800-915-6216
- Description
- Technical Specifications
- Manuals & PDFs

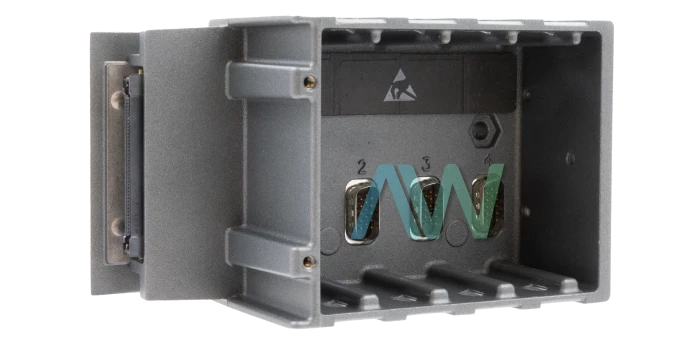

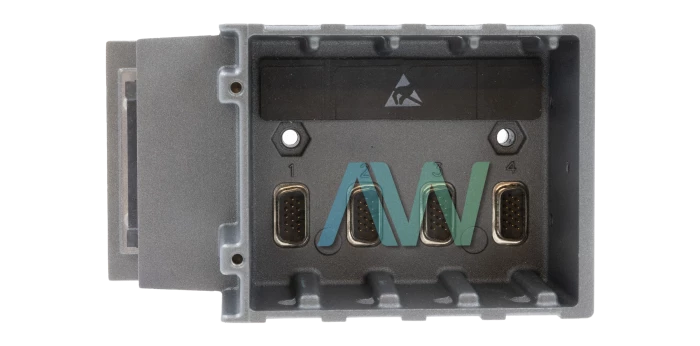

National Instruments 780917-01 CompactRIO Chassis
