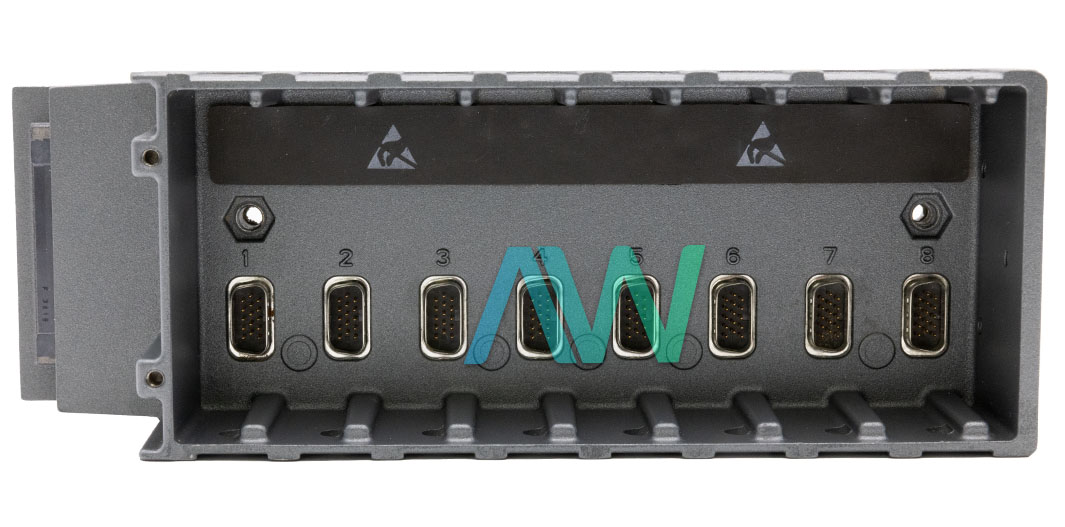

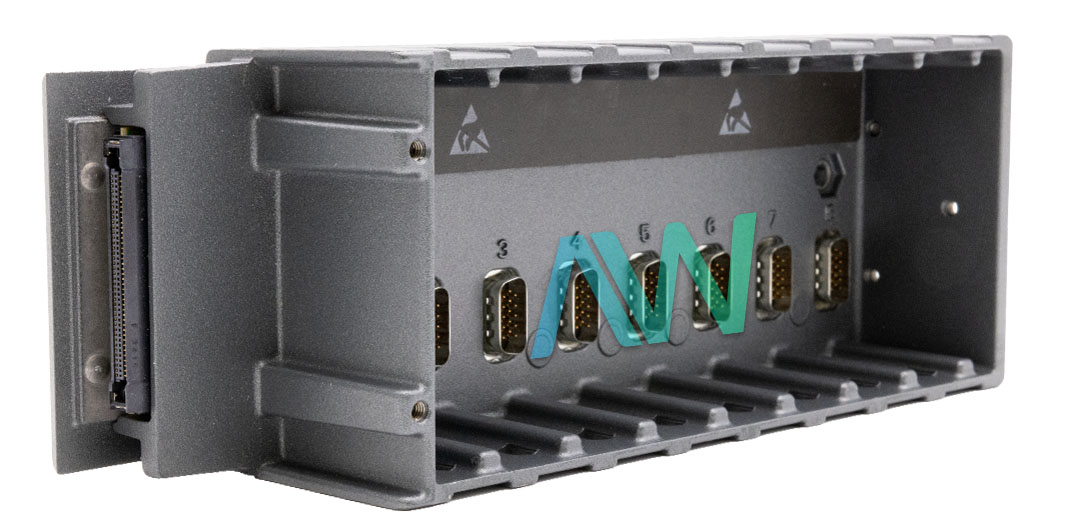

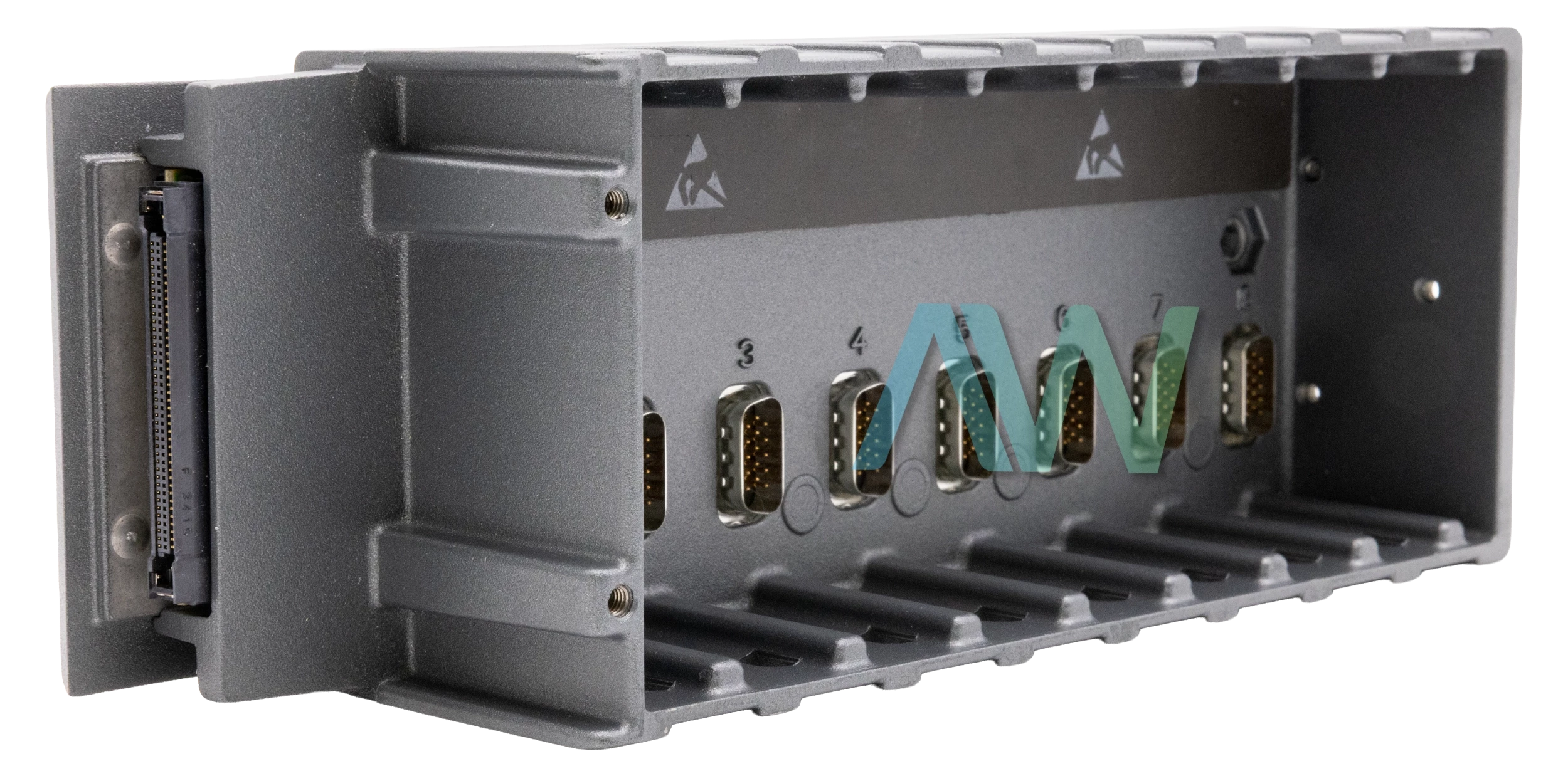

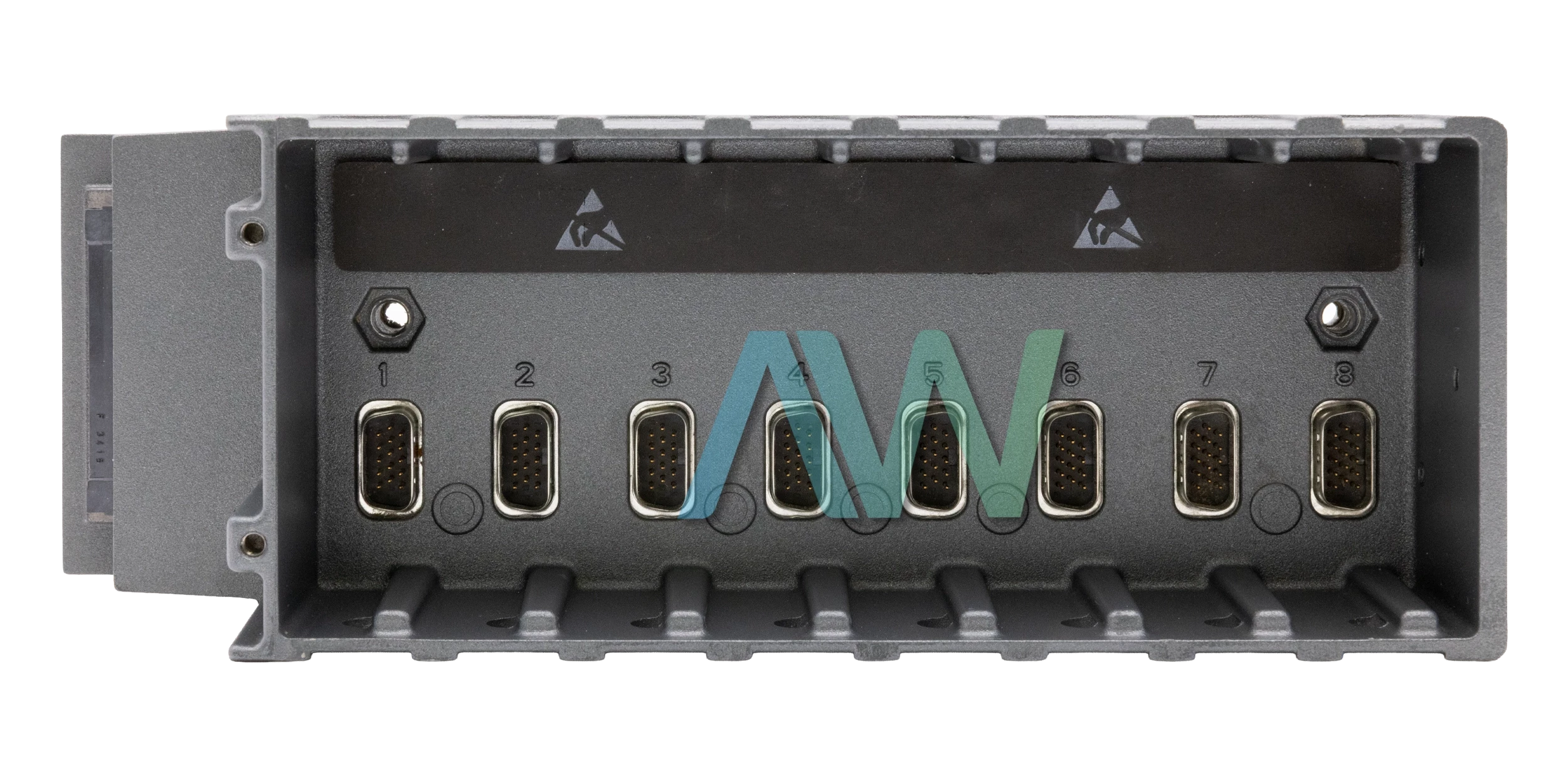

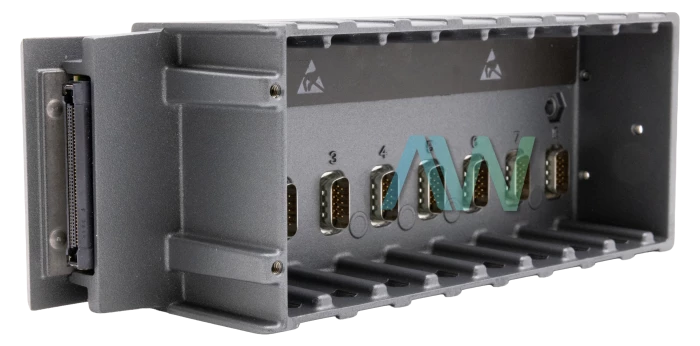

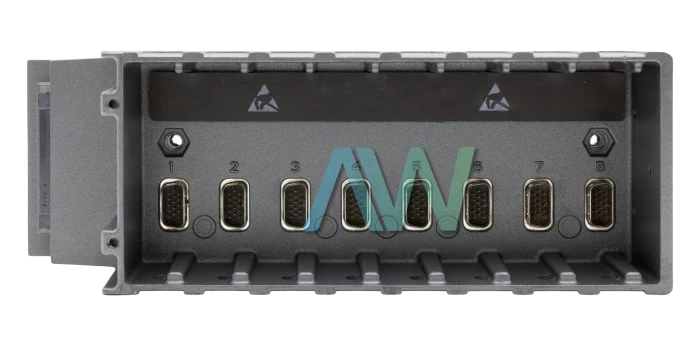

National Instruments 780920-01 Compact RIO Chassis.
The part number 780920-01 from National Instruments is the identifying part number for the cRIO-9118 Compact RIO Chassis. This chassis runs on the NI Linux Real-Time (32-bit) operating system and supports the LabVIEW 2014 SP1 or later and LabVIEW FPGA Module 2014 SP1 or later software and is compatible with the later driver software.
This chassis features 512 MB of Nonvolatile memory and 256 MB of DRAM. The 780920-01 supports the 10Base-T, 100Base-T, 1000Base-T Ethernet network interface and is compatible with the IEEE 802.3 protocol. The chassis has network communication speeds of 10 Mb/s, 100 Mb/s, and 1,000 Mb/s auto-negotiated. The chassis also features a USB 2.0 Hi-Speed, with a standard B connector that has a maximum data rate of 480 Mb/s.
With a reconfigurable FPGA type Virtex-5 LX110, the 783376-01 Compact RIO chassis has 69,120 number of flip-flops, 69,120 6-input LUTs, 64 DSP48 slices 25 x 18 multipliers, 4,608 kbits of embedded block RAM and accuracy of ±100 ppm (max). This chassis is designed to consume power of +5 VDC at 500 mW (max) and +3.3 VDC at 5,400 mW (max) with a total chassis power consumption of 5,900 mW maximum. This module is built to withstand operational vibration of 5 grms, 10 Hz to 500 Hz that is random under the (IEC 60068-2-64) standard and 5 g, 10 Hz to 500 Hz that is sinusoidal under the (IEC 60068-2-6) standard. It has operating shock (IEC 60068-2-27) of 30 g, 11 ms half sine; 50 g, 3 ms half sine 18 shocks at 6 orientations
The 780920-01 should be operated in an environment with an ambient temperature of -40 degrees Celsius to 70 degrees Celsius, and stored in a temperature between -40 degrees Celsius to 70 degrees Celsius. The operating humidity rating of this chassis is 10% RH to 90% RH, noncondensing while the storage is 5% RH to 95% RH, noncondensing. The module has Ingress protection of IP40 and pollution degree level 2 and is required to be use in indoors only. This chassis has dimensions of 63.5 mm (2.5 in.) from the side, and 25.4 mm (1 in.) and weighs 880 g (31 oz).
| Model | 780920-01 |
|---|---|
| Part Number | 780920-01 |
| Model Name | cRIO-9118 |
| Part Type | CompactRIO Chassis |
| Ingress Protection | IP40 |
| Weight | 880 g |
| Total Chassis Power Consumption | 5,900 mW maximum |
| FPGA Type | Virtex-5 LX110 |
| Number of Flip-flops | 69,120 |
| Number of 6-input LUTs | 69,120 |
| Embedded Block RAM | 4,608 kbits |
