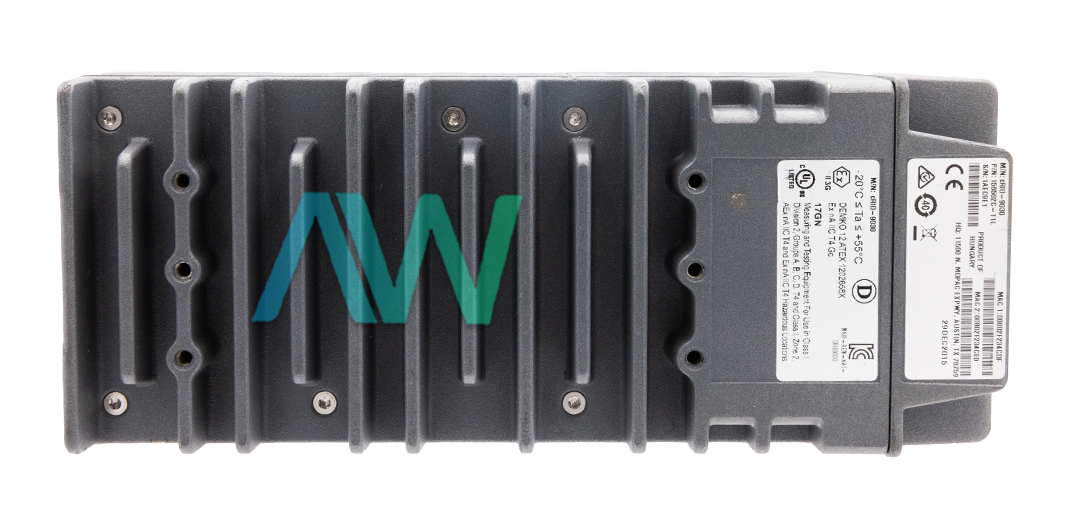

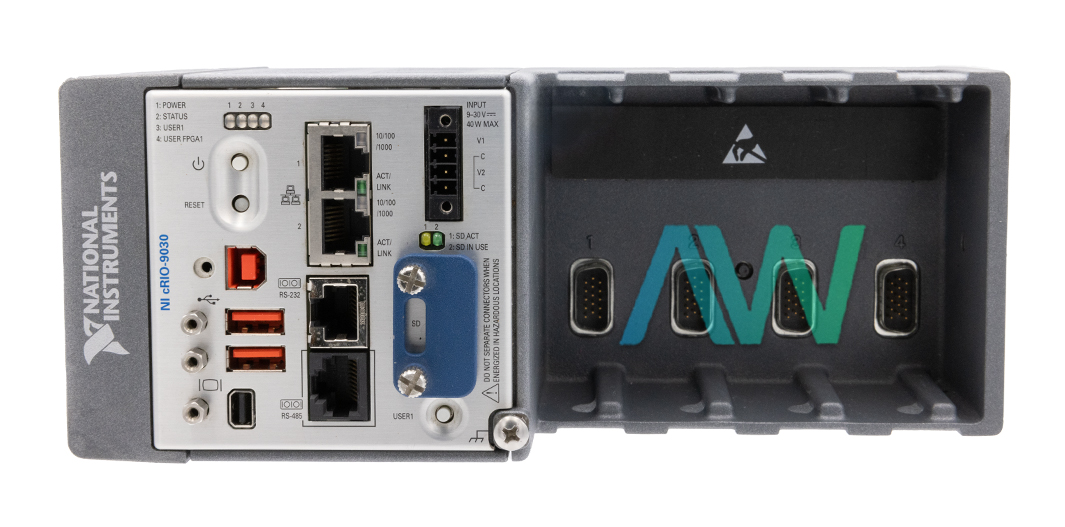

National Instruments 783450-01 CompactRIO Controller

The National Instruments 783450-01 compactRIO controller is the unique part number for the cRIO-9030 Model. It is made for industrial automation applications requiring sophisticated control and monitoring. With a 1.33 GHz Dual-Core CPU, 1 GB DRAM, and 4 GB of storage, this compact and fanless embedded controller ensures strong performance for even the most demanding applications. This controller utilizes a Kintex-7 70T FPGA to offer enhanced processing capabilities. It is incredibly flexible, making it the perfect choice for applications involving real-time data processing and control algorithms.

The controller runs on the NI Linux Real-Time OS, which offers industrial applications a dependable and stable platform. It makes the development and deployment of control systems easier by supporting a number of software tools, such as LabVIEW, LabVIEW Real-Time Module, LabVIEW FPGA Module, and C/C++ Development Tools for NI Linux Real-Time.

The 783450-01 guarantees simple integration with existing systems and peripherals due to its multiple connectivity options, which include two tri-speed Gigabit Ethernet ports, two USB host ports, one USB device port, and two RS-232 serial ports. In order to offer a local human-machine interface (HMI) for application development, it also has a Mini DisplayPort.

A 4 GB solid-state drive and an SDHC slot that can accommodate up to 32 GB of removable memory are included in the 783450-01 for data storage. High-quality visual interfaces for control and monitoring applications are made possible by the Mini DisplayPort, which has a maximum resolution of 2560 x 1600 at 60 Hz.

With 82,000 flip-flops, 41,000 6-input LUTs, and 240 DSP slices, the reconfigurable FPGA—which is based on Xilinx Kintex-7 technology—offers significant programmability. Its 16 DMA channels and 32 logical interrupts provide effective data handling and transmission for workloads requiring real-time processing.

To provide accurate timing for time-sensitive applications, the 783450-01 controller also has an internal real-time clock with an accuracy of 200 ppm. Backup power is provided by CMOS batteries, which have an average lifespan of up to ten years when used normally.
