National Instruments 784548-01 CompactRIO Controller

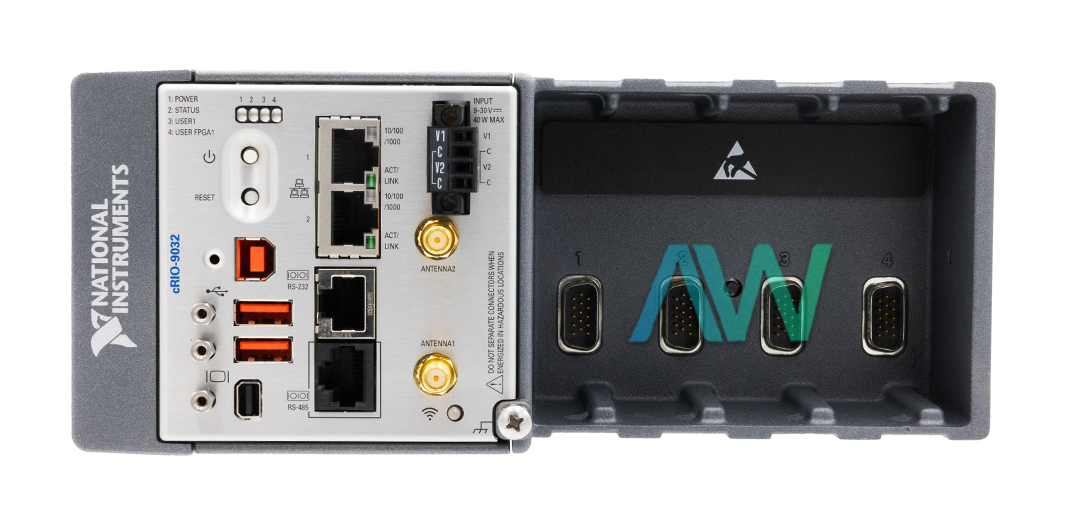

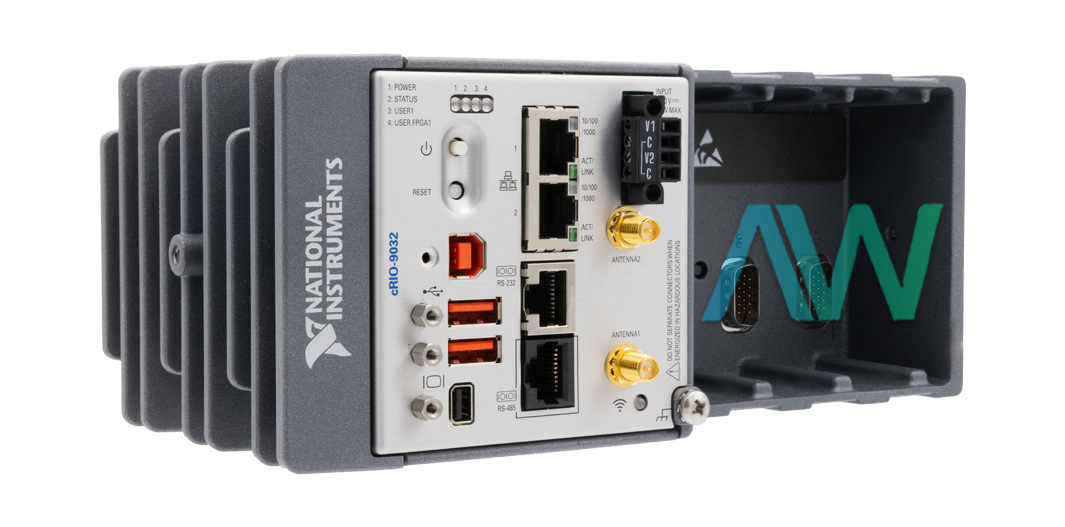

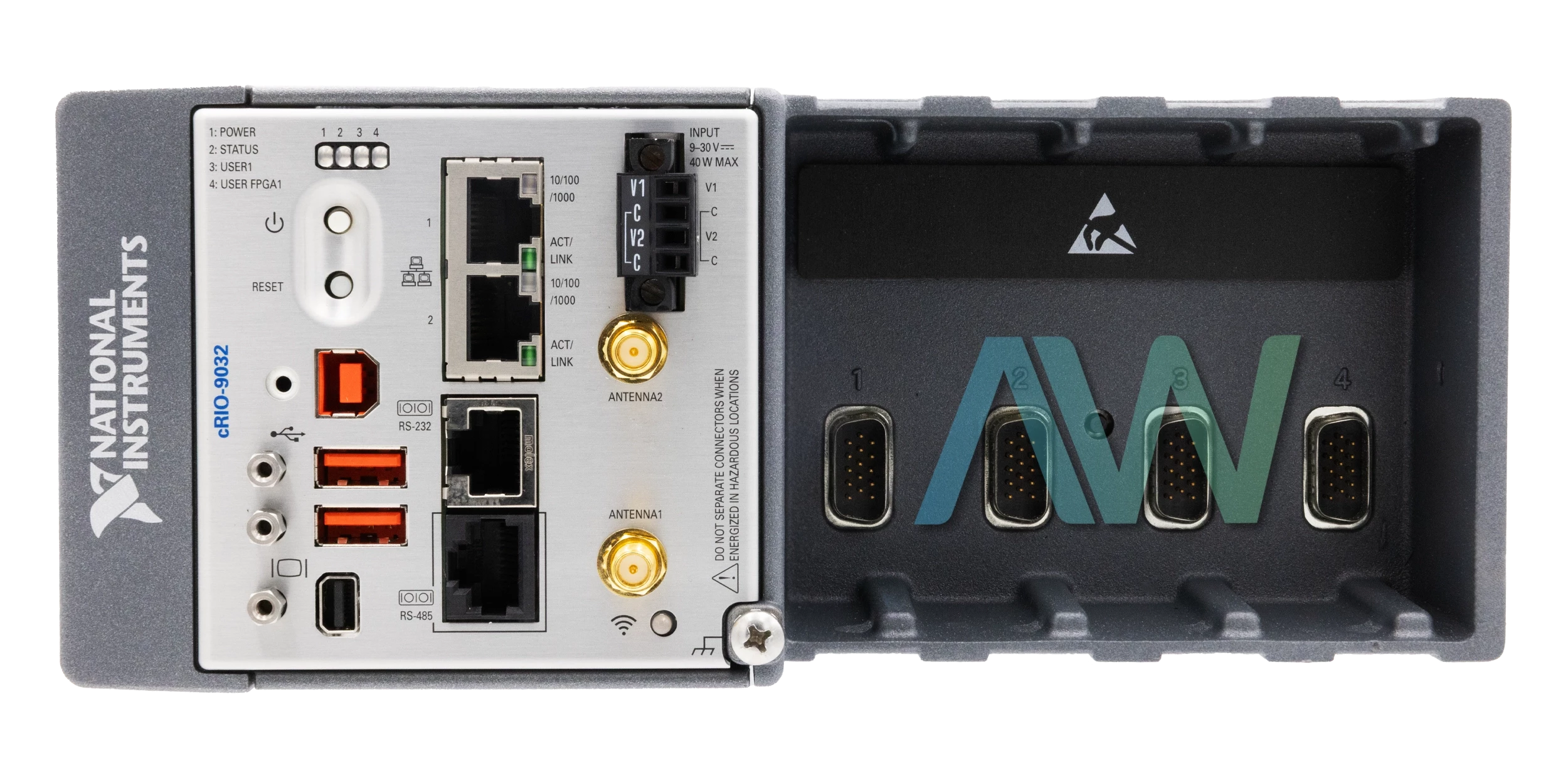

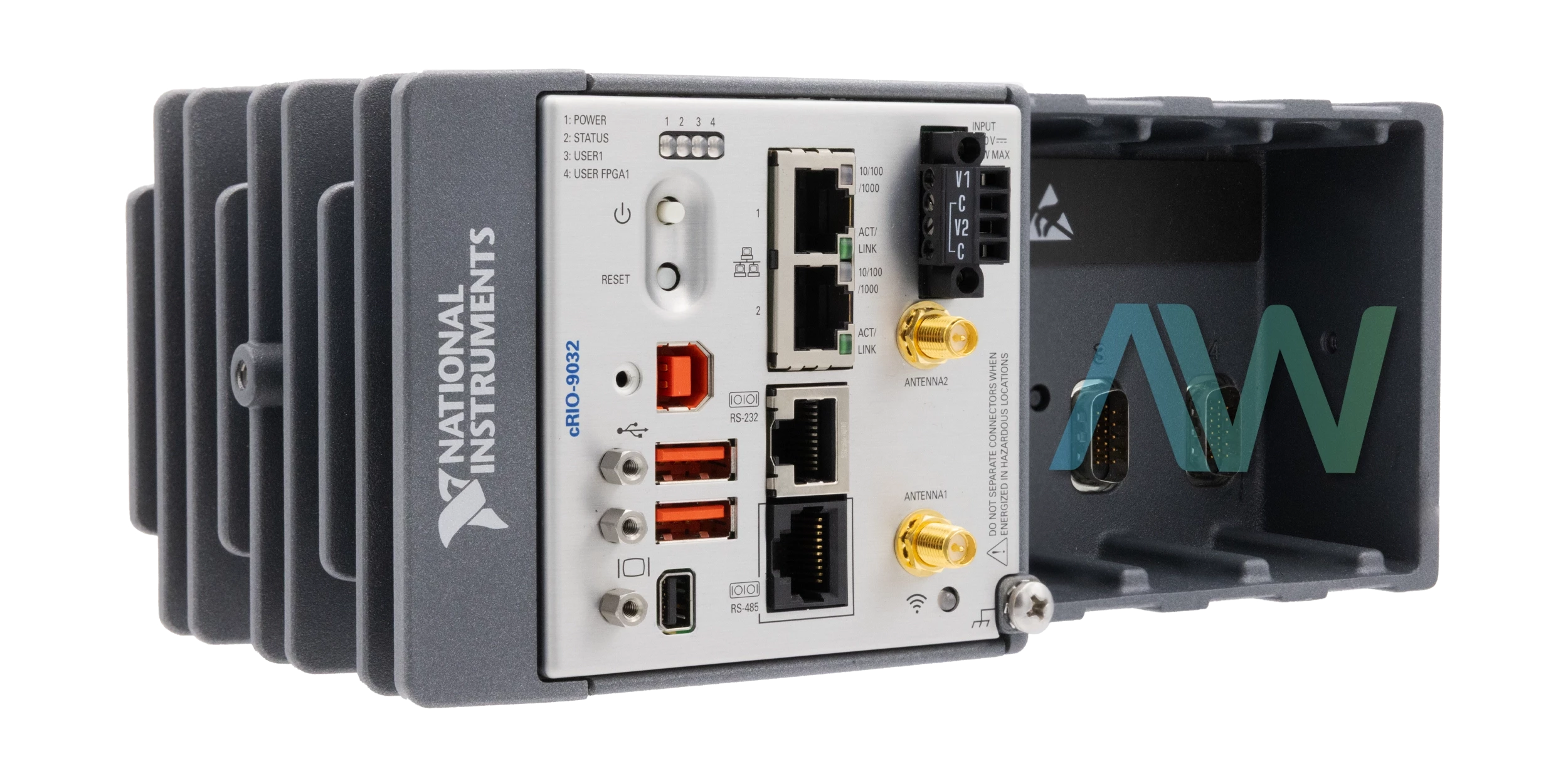

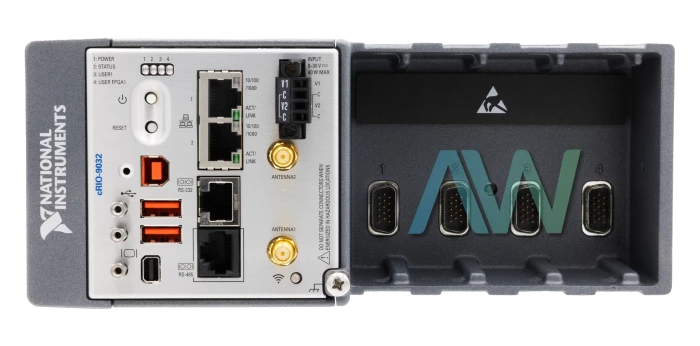

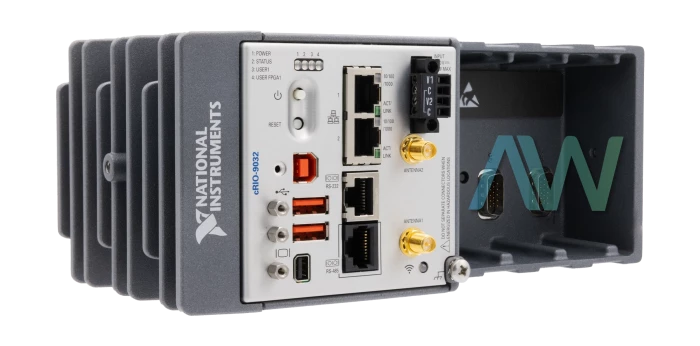

Part 784548-01 is the identification number for the National Instruments cRIO-9032 CompactRIO Controller. This gadget is equipped with a 1.33 GHz dual-core Intel Atom E3825 processor and an on-die 1 MB shared L2 cache. It has two gigabytes of DDR3L system memory and eight gigabytes of solid-state drive nonvolatile memory.

The 784548-01 has two network ports and is compatible with 10Base-T, 100Base-TX, and 1000Base-T Ethernet interfaces. These adhere to IEEE 802.3 standards and have a maximum cabling distance of 100 meters per segment. Communication rates are tunable between 10 Mbit/s, 100 Mbit/s, and 1000 Mbit/s. The gadget also has two USB 2.0 Hi-Speed host connectors and one USB 2.0 Hi-Speed device port. It also has an RS-485/422 serial port and an RS-232 serial port with a maximum baud rate of 115,200 bps.

The 784548-01 features a Xilinx Kintex-7 7K160T FPGA with 202,800 flip-flops, 101,400 6-input LUTs, and 600 DSP slices. It provides 16 DMA channels and 32 logical interrupts. Likewise, it includes an SD card slot supporting SD and SDHC standards. It features a Mini DisplayPort with a maximum resolution of 2560 × 1600 at 60 Hz. The device also includes wireless capabilities supporting IEEE 802.11 a/b/g/n standards in both 2.4 GHz and 5 GHz bands. The device supports input voltage ranges from 9 V to 30 V DC, with a maximum power consumption of 40 W. The recommended power supply is 100 W, 24 VDC.

With physical dimensions of 8.64 in. × 3.47 in. × 4.67 in. and a weight of 1,762 g (3 lbs, 14 oz), the 784548-01 weighs 1. It can be used with copper conductor wire sized between 20 and 14 AWG. Operation temperatures range from -20 °C to 55 °C, with non condensing relative humidity levels of 10% to 90%. Alternatively, it can be kept in storage at -40 °C to 85 °C and 5% to 95% non condensing relative humidity. Up to a maximum height of 5,000 meters, it is intended for indoor usage.
