Part Number NI-9146
Manufacturer/Brand National Instruments
Description: NI-9146, 4-Slot, Ethernet CompactRIO Chassis
In Stock | Ships in 5-10 Days
(expedited shipping options available)
Fast Quote
Quoted Price
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for additional information:

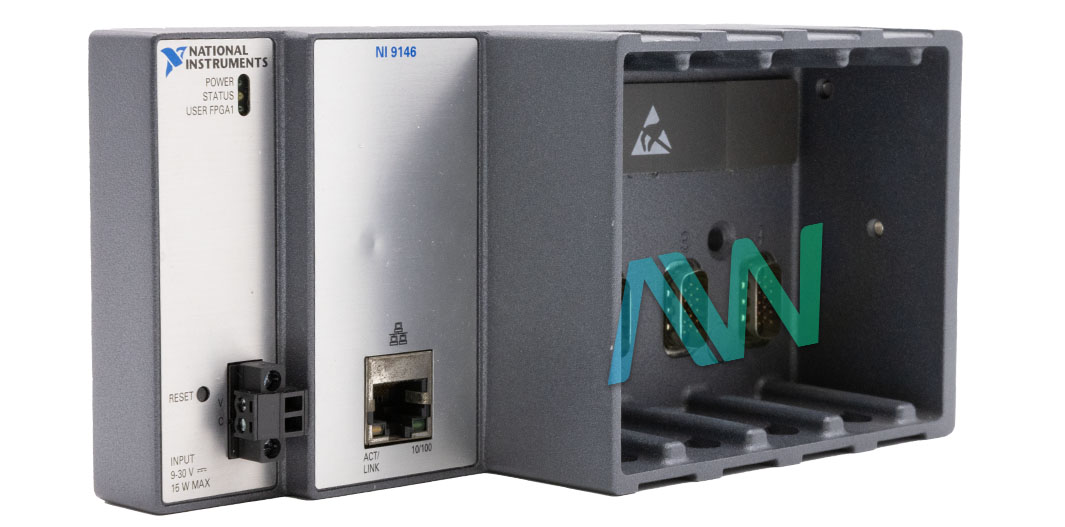

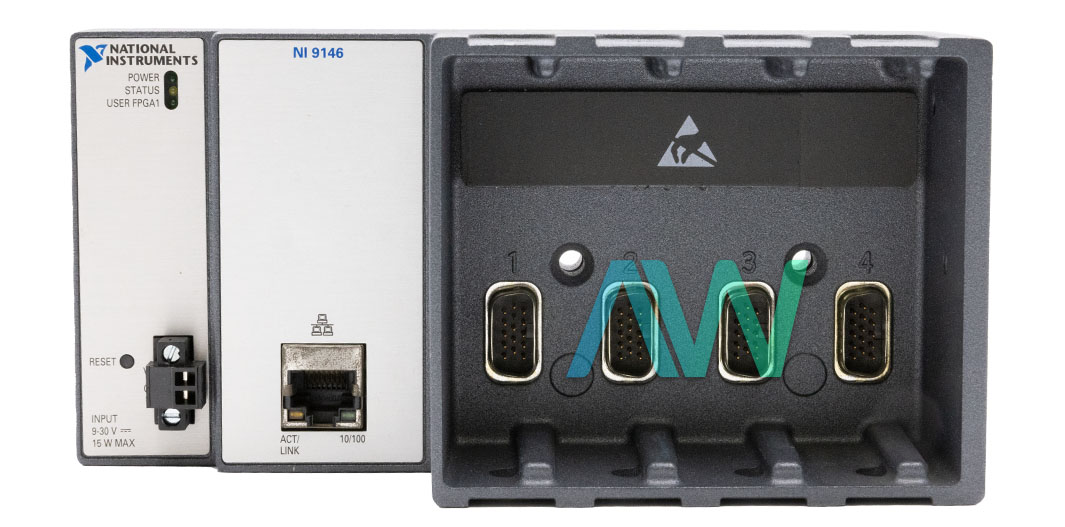

National Instruments NI-9146 CompactRIO Chassis

The NI 9146 (Part Number: 782445-01) Ethernet RIO has 4 slots and is designed to add distributed industrial C Series I/O to the user’s 10/100 Ethernet network. This CompactRIO Chassis provides a simple software, which allows the user to access their I/O with the NI RIO Scan Interface or the user-programmable FPGA from any Windows-based or LabVIEW Real-Time system. The NI-9146 does not need the LabVIEW Real-Time Module to access C Series I/O in Windows-based systems.

The LabVIEW FPGA Module can be utilized to program the Spartan-6 LX45 FPGA without experience in FPGA digital design. The FPGA on this Chassis offers dependable high-speed I/O, customizable timing, and advanced processing algorithms for the user’s high-speed control applications. Also, the user does not have to utilize the LabVIEW FPGA Module if they want to access the I/O only through the NI RIO Scan Interface.

The NI 9146 Ethernet RIO Chassis can be mounted horizontally on a flat, vertical, metallic surface like a panel or wall. For this configuration, the highest ambient temperature allowed for operation is 70 °C. Other mounting options for the NI-9146 are on a panel or wall in other configurations, on a non-metallic surface, in an enclosure, on a desktop, on a rack, or on a 35 mm DIN rail. The installation of the NI 9146 CompactRIO Chassis must have 1 inch on the top and bottom of the Chassis allowed for air circulation, as well as 2 inches in front of the modules for cabling clearance.

ModelNI-9146
ManufacturerNational Instruments
Part Number782445-01
TypeCompactRIO Chassis
Slots4
FPGASpartan-6 LX45
Bus ConnectorEthernet
Power Consumption15 W maximum
Weight22.7 oz.
Warranty2-3 Year Warranty
NI-9146 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for NI-9146:

151880A-03L, 151880B-03, 151880E-03L, 151880F-03L, 151880G-03L, 151880H-03L, 152811A-03L, 152811B-03L, 199800B-03L, 199800G-03L, 199800H-03L, 199800J-03L, 199800K-03L, 782445-01

National Instruments NI-9146 Frequently Asked Questions



Question: What type of network compatibility does the NI 9146 Ethernet RIO have?



Answer: The NI 9146 Ethernet RIO has IEEE 802.3 network compatibility.



Question: What is the power supply input range for the NI-9146?



Answer: The power supply input range for the NI-9146 is 9 V to 30 V.



Question: What are the communication rates of the NI 9146?



Answer: The communication rates of the NI 9146 are 10 Mbps, 100 Mbps, and auto-negotiated.



Question: Is the NI-9146 conformal coated?



Answer: No, the NI-9146 is not conformal coated.
