Part Number NI-9151
Manufacturer/Brand National Instruments
Description: NI-9151, 4-Slot, CompactRIO Chassis
In Stock | Ships 3-5 Days
Fast Quote
Quoted Price
Lowest Price Guarantee
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing
2 year warrantyRefurbished
*What is Refurbished?
Quoted Price
Fully tested
2yr warranty
  Get Pricing

Need an Official Quote?


*Most customers receive their price in about 15 minutes.

Or speak to a sales representative for pricing & lead time:

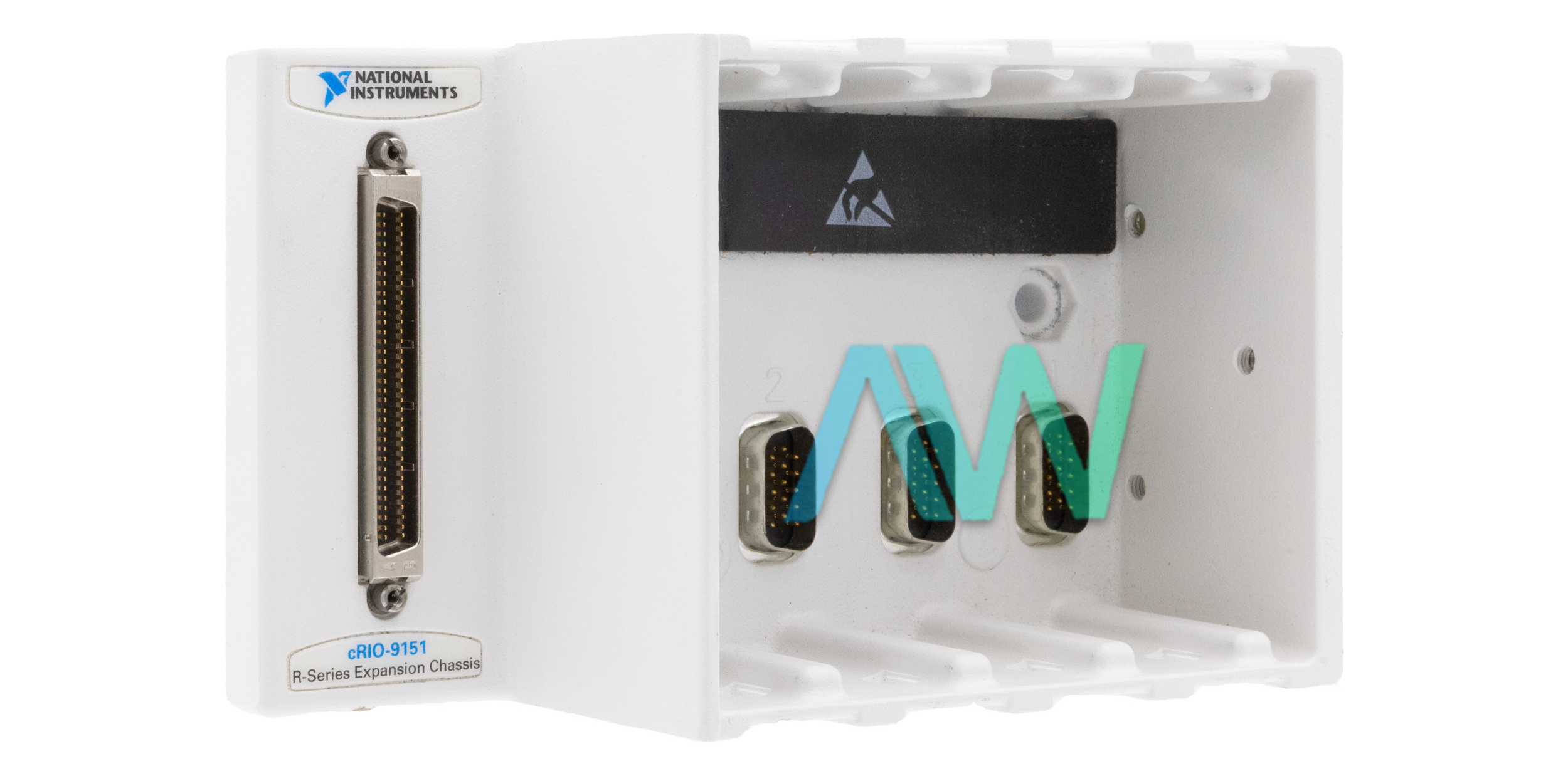

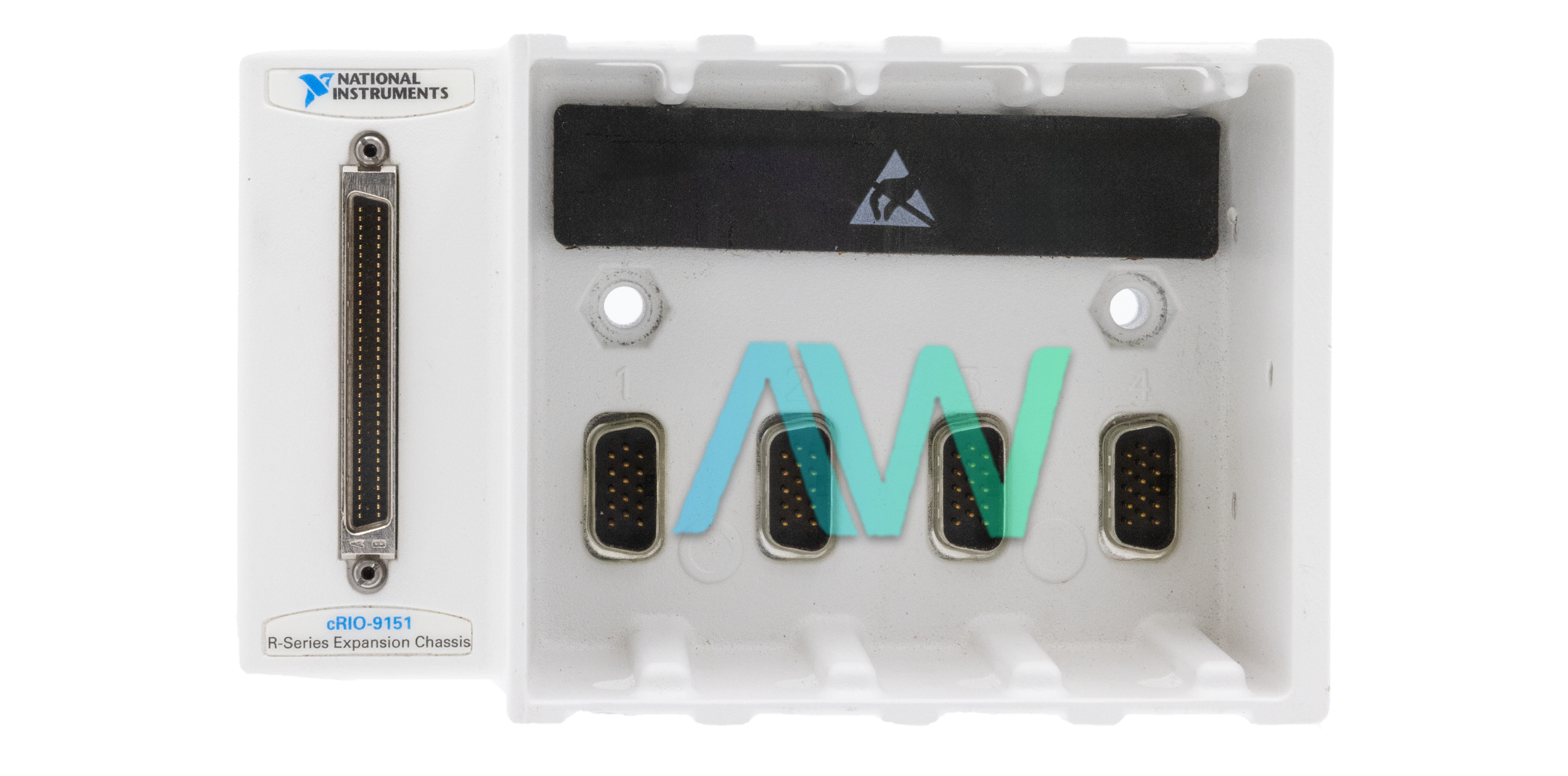

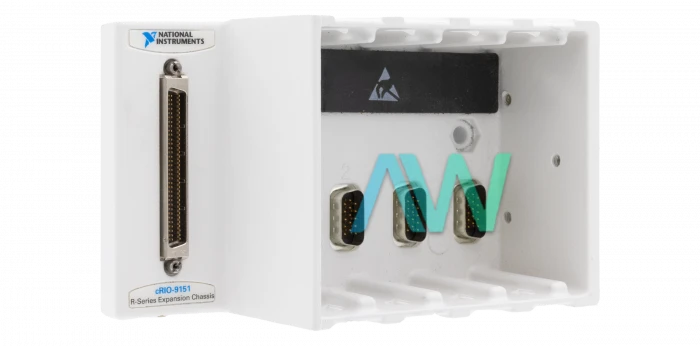

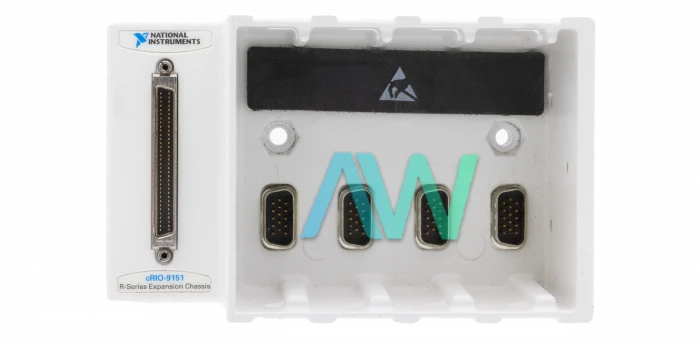

National Instruments NI-9151 CompactRIO Chassis

The NI 9151 (Part Number: 779008-01) links straight to the digital connectors on Multifunction Reconfigurable I/O Devices or PXI Reconfigurable I/O Modules and accommodates C Series I/O Modules for high-performance, industrial signal conditioning applications. This Chassis can be mounted on a 35 mm DIN rail or on a panel. The DIN rail mounting option is ideal if the user has a DIN rail configuration or if they require the capability to swiftly take the CompactRIO Chassis out of the configuration. For the DIN rail mount option, a clip is required as well. On the other hand, the panel mount option is suitable for applications involving high shock and vibration. Also, keep in mind that prior to mounting the NI-9151, the user should ensure that the cable is not attached to the Chassis.

The National Instruments NI 9151 CompactRIO Chassis must have the green panhead screw at the end connected to ground. If the user is utilizing shielded cables for the I/O module wiring, then they can link the shield to the panhead screw. To link the Chassis to an R Series Device, the user must utilize a SHC68-68-RDIO cable. To use C Series modules with the NI-9151, the user should install NI CompactRIO Module Support software on their system, as well as the NI R Series Multifunction RIO Device Drivers software. Additionally, this model comes equipped with one 68-pin connector.

Other features to keep in mind about this CompactRIO Chassis are that the NI-9151 does not support sleep mode and has an active mode chassis power consumption of 0.5 W, adds 4-slot expansion chassis to one R Series deice, and can generate any timing, triggering, and synchronization scheme with a resolution of 25 ns.

NI-9151 Obsolete Status has been announced by National Instruments, but will still be available for purchase and repairs by Apex Waves.

ModelNI-9151
ManufacturerNational Instruments
Part Number779008-01
TypeCompactRIO Chassis
Slots4
Power ConsumptionActive Mode: 0.5 W maximum
Operating Temperature Range-40 °C to 70 °C
Dimensions5.6 in. × 3.5 in. × 2.3 in.
Weight18.6 oz.
WarrantyOne Year Warranty
NI-9151 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments NI-9151 Frequently Asked Questions



Question: Does the NI 9151 support sharing timebases between modules that have Delta-Sigma ADC?



Answer: No, the NI 9151 does not support sharing timebases between modules that have Delta-Sigma ADC.



Question: Which devices can the NI-9151 connect to?



Answer: The NI-9151 can connect to any digital connector of the PXI/PCI/PCIe-781x, 783xR, 784x, and 785xR R Series devices.



Question: Which accessories can be used with the NI-9151 Chassis?



Answer: The NI-9151 Chassis can be used with the SHC68-68 RDIO Shielded cable and the NI-9977 C Series Filler Module for Empty Slot.



Question: When I connect my R Series card to the NI 9151 Chassis, my computer does not recognize the modules in the Chassis. What is the cause of this problem?



Answer: A potential cause could be a tripped fuse. This can be checked by plugging the R Series card into a breakout board (ex: the SCB-68) and measuring the voltage between the +5V and ground pin. If the voltage is +5V, then the fuse is fine. However, if the voltage is 0, then the fuse has been tripped and needs to be replaced.
