National Instruments cRIO-9002 CompactRIO Real-Time Controller

The cRIO-9002 (Part Number: 779000-01) is an advanced CompactRIO Real-Time Controller from National Instruments. This model is an ideal instrument for advanced control and monitoring applications. The National Instruments cRIO-9002 cRIO Real-Time Controller comes equipped with built-in 195 MHz CPU, 32 MB DRAM, and 64 MB storage. The storage type is nonvolatile flash to store the files. It also has the capability to execute algorithms for a powerful floating-point, as well as the power to execute deterministic LabVIEW real-time applications. The instrument is specifically designed to be rugged, reliable, and low power, which makes it suitable for industrial requirements.

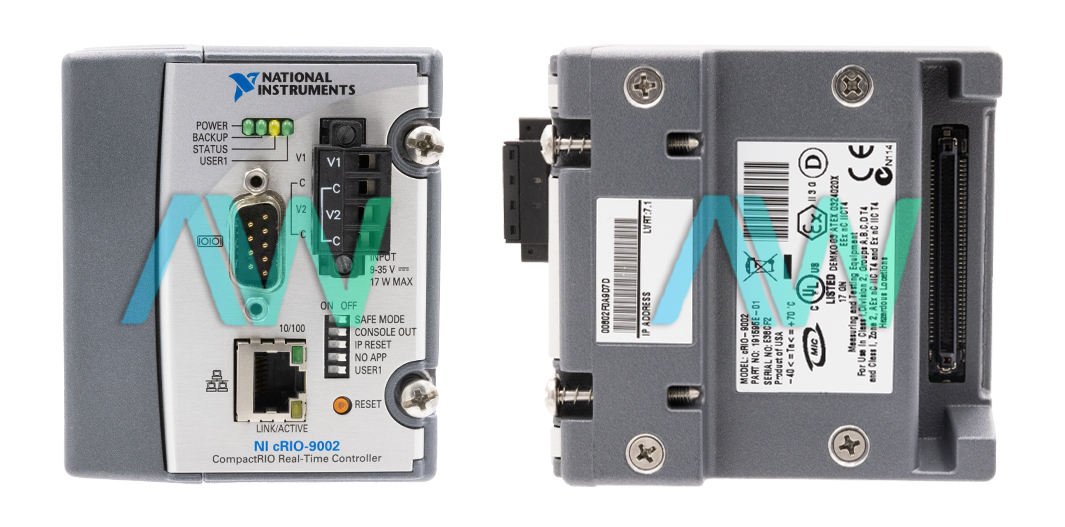

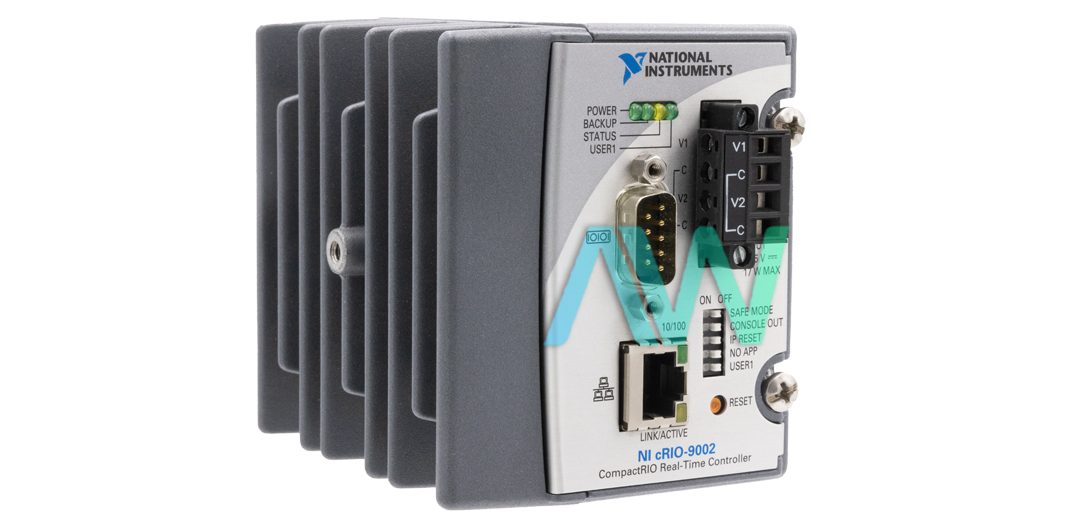

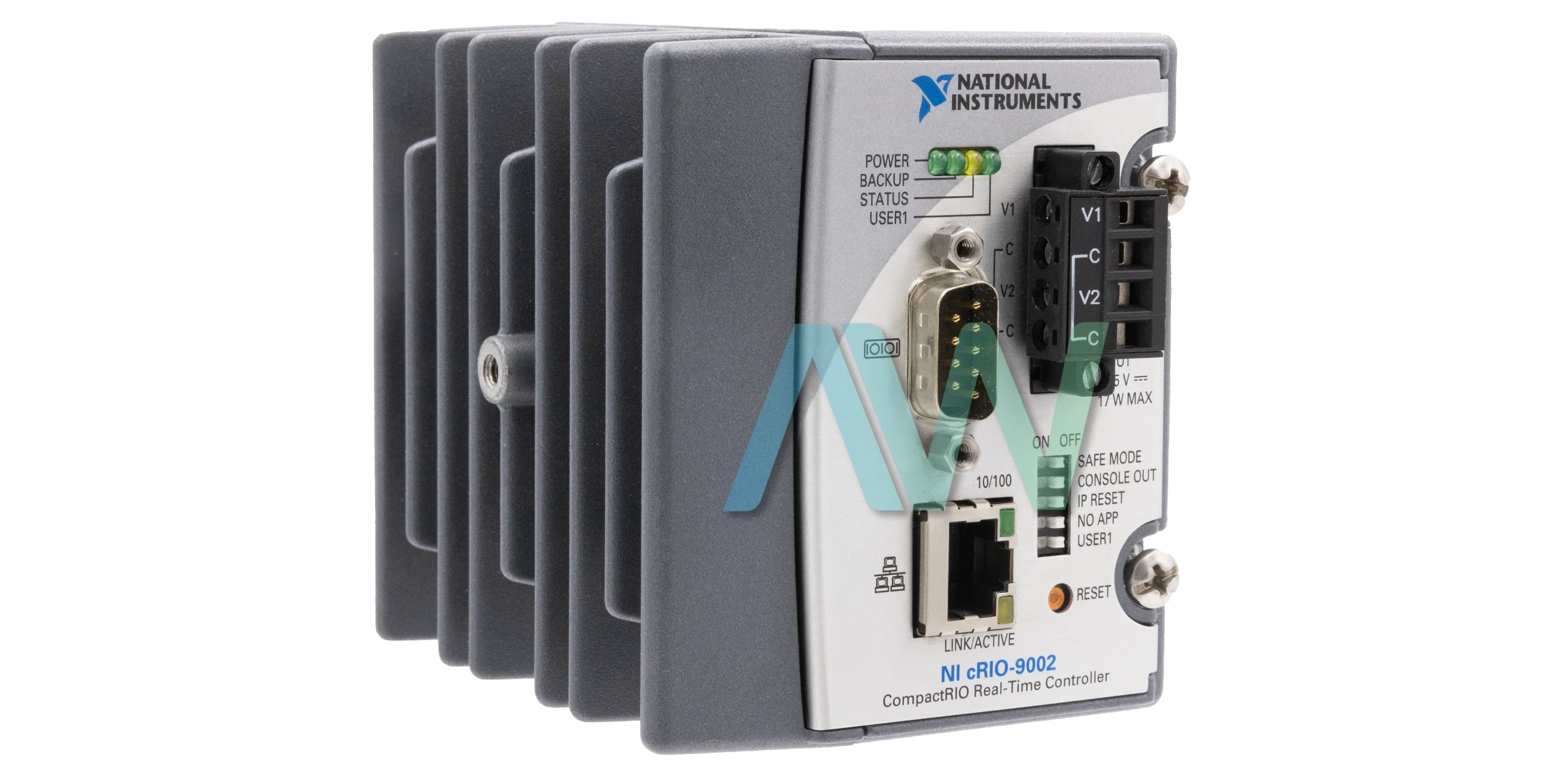

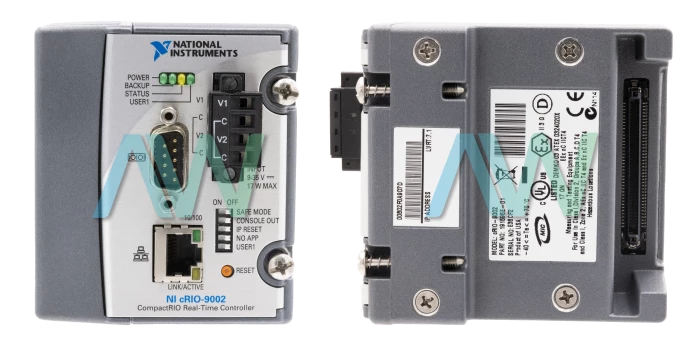

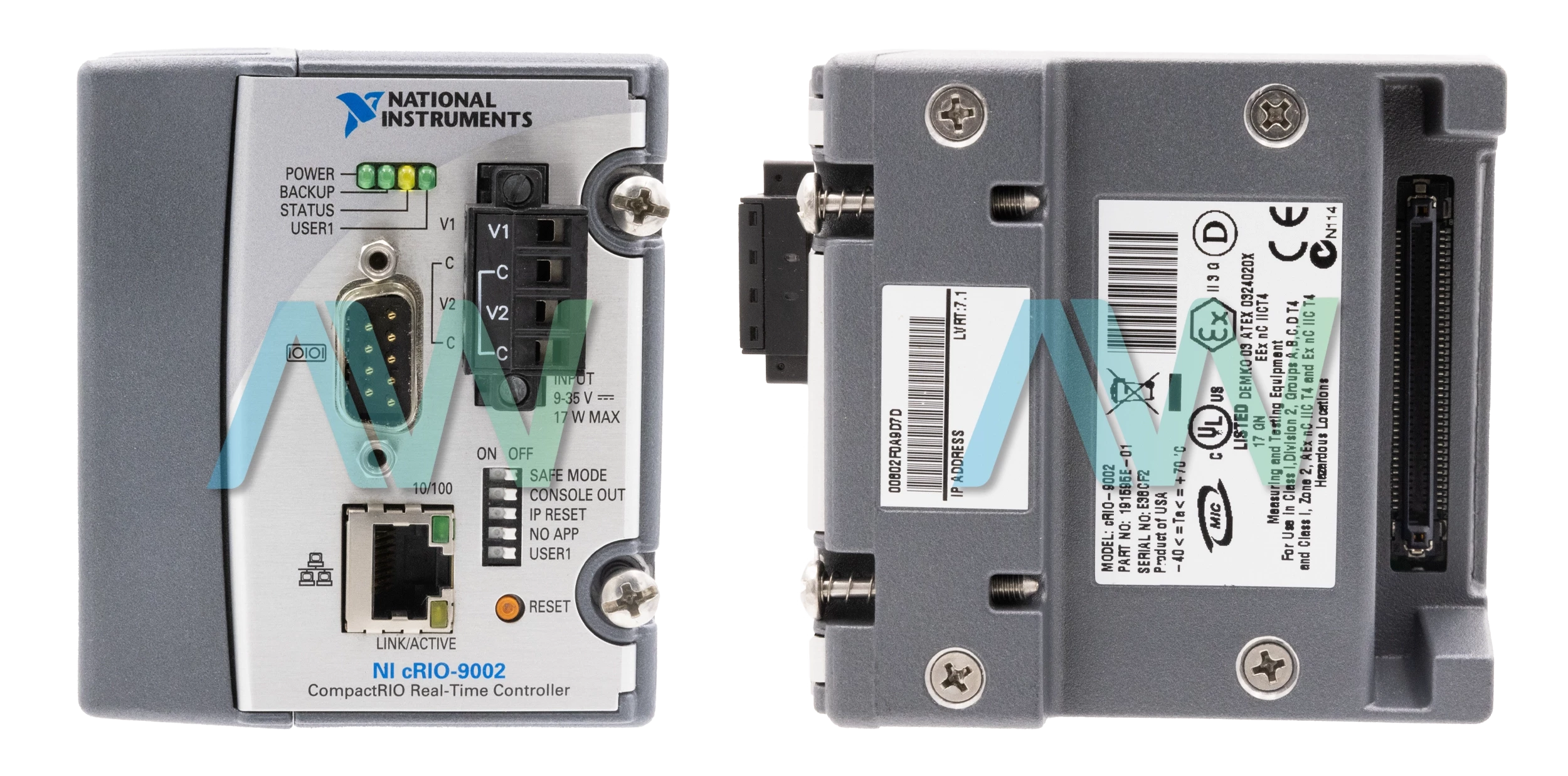

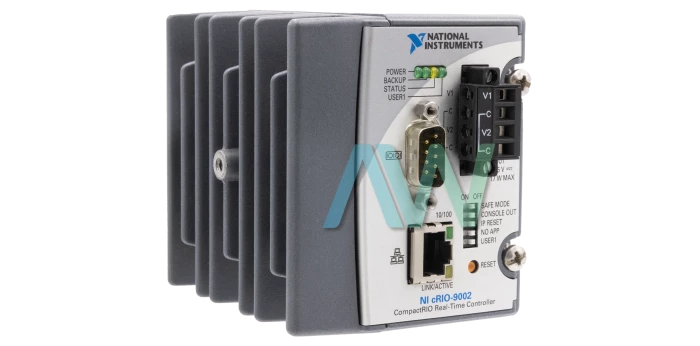

The National Instruments cRIO 9002 offers various interfaces and indicators, which includes LEDs, a power connector, DIP switches, a reset button, an RJ-45 port, and an RS-232 port. The variety of interfaces and indicators enhances the measurement flexibility for the users. The RS-232 serial port enables the user to connect the controller to display or input devices. The DIP switches offer various modes of operation or capabilities, such as safe mode, console out, IP reset, No App, and User1. This model also offers exceptional MTBF specifications. This model can provide 1,253,788 hours of operation at 25 degrees Celsius.

The National Instruments cRIO-9002 cRIO Real-Time Controller incorporates four LEDs, which indicate the various operational states of the device. There are LEDs for power, backup, status, and user1 indicators. This model supports the network interface ports for 10Base-T and 100Base-TX Ethernet and complies with the compatibility standard specifications of IEEE 802.3. The model offers the communication rates of 10 Mbps and 100 Mbps. These rates are negotiated automatically for communication with peer devices. The NI cRIO 9002 can be used with the NI-RIO driver, ETS OS, and LabVIEW, LabVIEW FPGA Module, LabVIEW Real-Time Module, or LabVIEW Professional Development System software.

The NI device weighs 17.2 oz. It has a recommended operating temperature range of -40 °C to 70 °C, a storage temperature range of -40 °C to 85 °C, an operating and storage humidity range of 10% RH to 90% and 5% RH to 95% respectively, and a random and sinusoidal operating vibration of 5 grms and 5 g respectively–all at a frequency range of 10 to 500 Hz.
