cRIO-9063
Modular Systems > National Instruments > CompactRIO Controllers
Description: | cRIO-9063, 4-Slot, 667 MHz Dual-Core CPU, 512 MB Storage, Embedded CompactRIO Controller |
Need an Official Quote?
Or speak to a sales representative for additional information:
National Instruments cRIO-9063 CompactRIO Controller

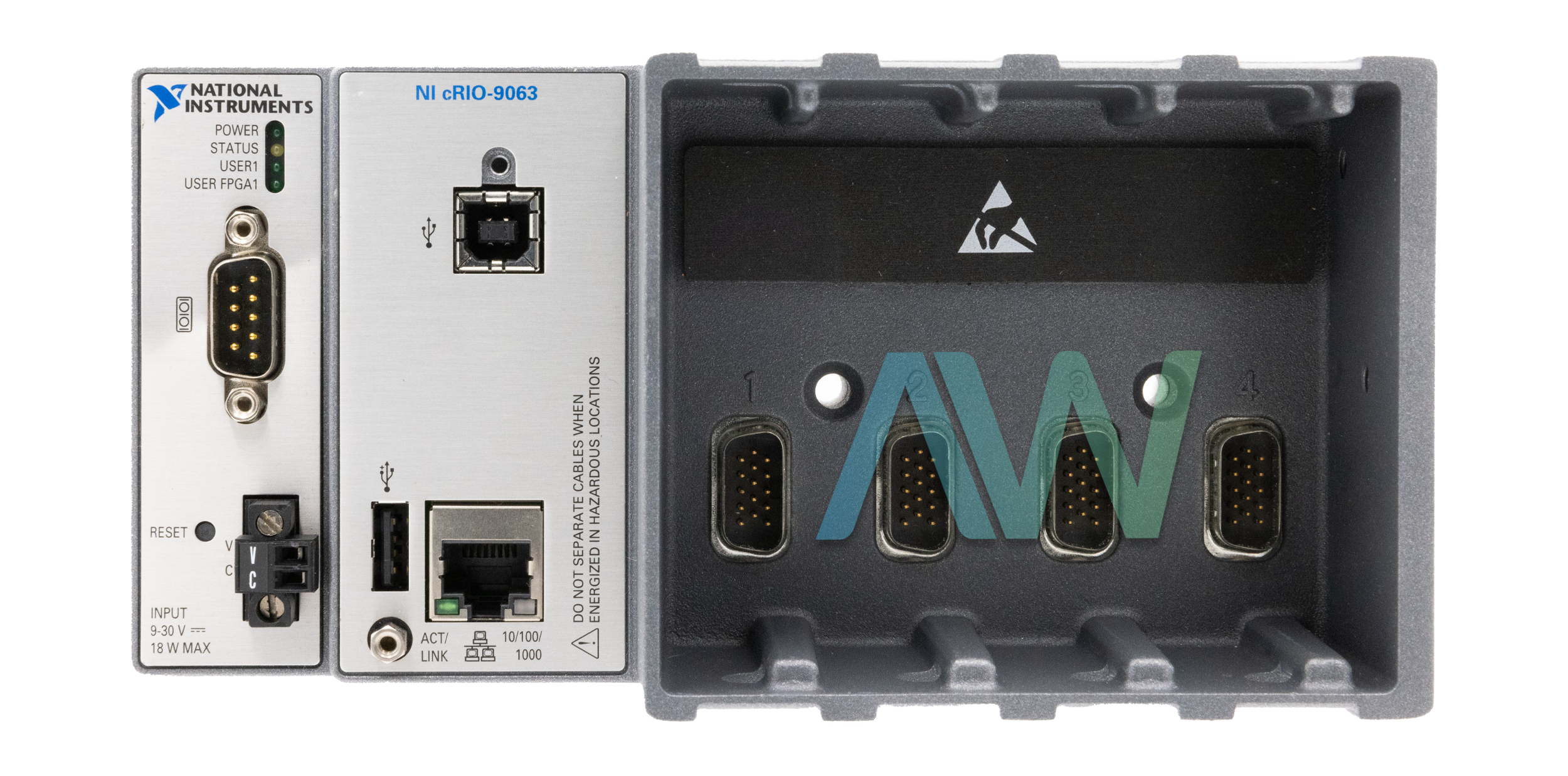

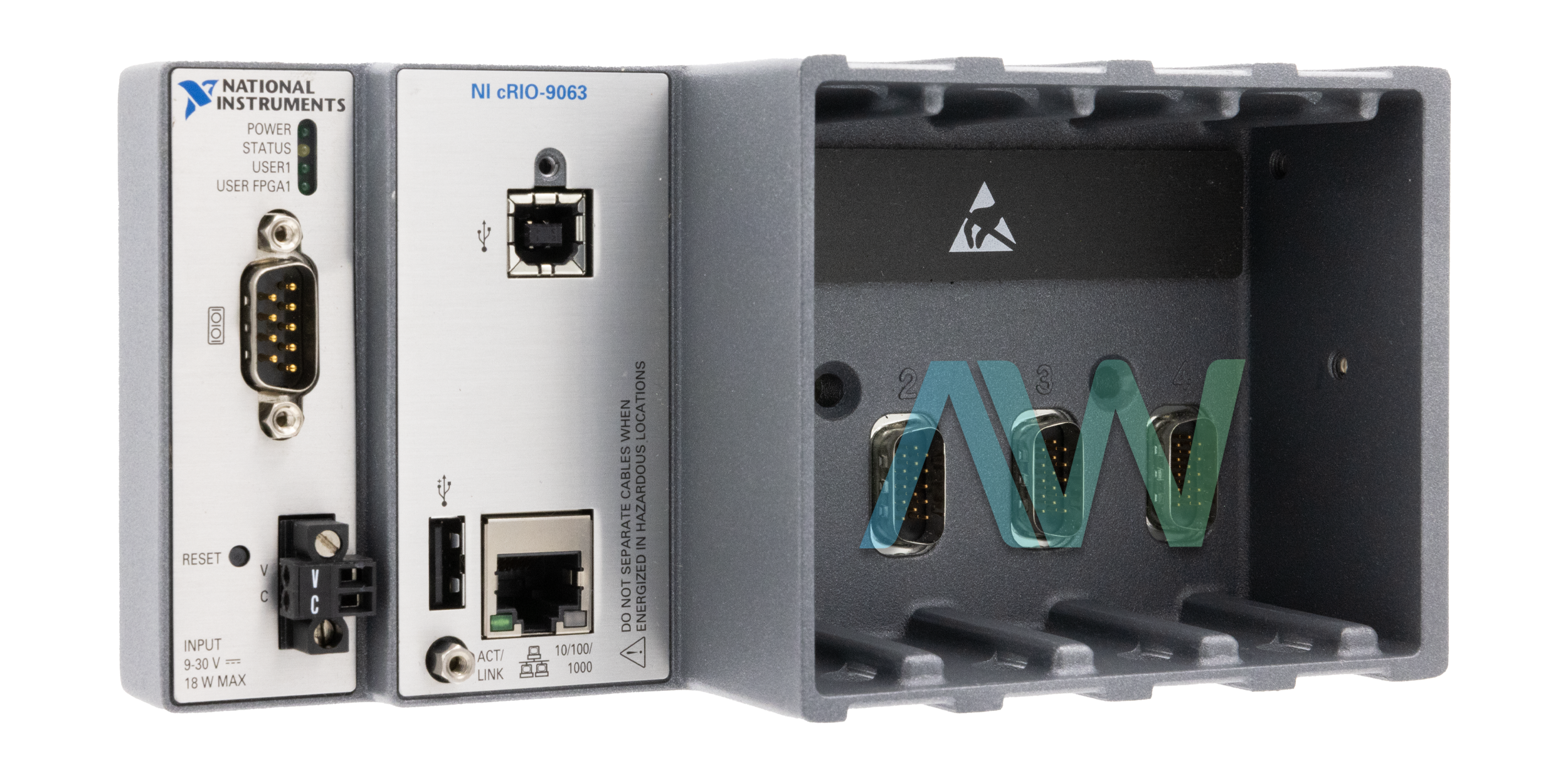

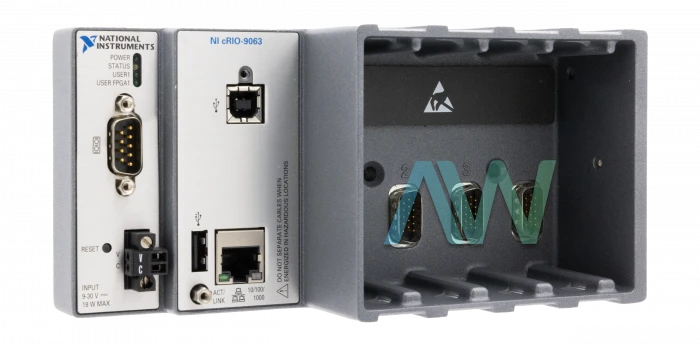

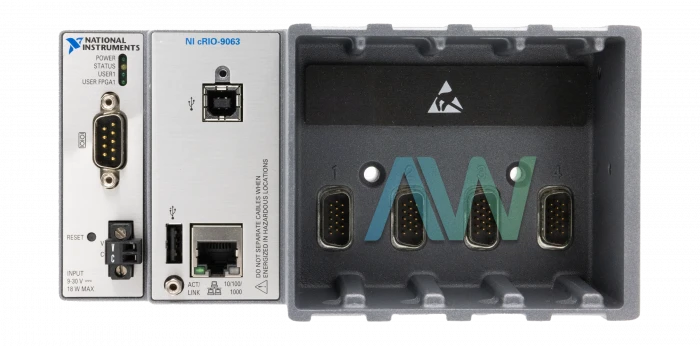

The cRIO‑9063 (Part Number: 783830-01) is an Embedded Controller perfect for cutting edge control and observing applications. This durable Controller includes a FPGA and an ongoing processor running the NI Linux Real‑Time OS. This tough, fan-less CompactRIO Controller offers an assortment of network ports, including one Gigabit Ethernet port, one USB host port, one USB device port, and one serial port.
Rebooting the cRIO 9063 with a certain setting on begins the NI cRIO 9063 without propelling LabVIEW Real-Time or any startup applications. In protected mode, the NI cRIO-9063 dispatches just the administration essentials for refreshing design and introducing programming. Rebooting the cRIO-9063 with this setting on diverts the comfort yield to the RS-232 serial port. Ensure the following settings on the serial-port terminal program are arranged: 115,200 bits for each second, eight information bits, no equality, one stop bit, and no stream control. This Controller comes with four slots, a Zynq-7020 FPGA, a 667 MHz Dual-Core ARM Cortex A9 Processor Core, and is not conformal coated. The device has a voltage input range of 9 VDC to 30 VDC, and a reverse-voltage protection of 30 VDC maximum. It has a storage of 512 MB.
A tri-speed RJ-45 Gigabit Ethernet port is included with this model. This National Instruments CompactRIO Controller includes an empowered and arranged Ethernet port to acquire an IP address naturally. The Ethernet port can be designed in the Measurement & Automation Explorer (MAX) tool. This Controller has an RS-232 serial port to which the user can associate gadgets. These gadgets include show or information gadgets. The user can utilize the Serial VIs to peruse from and keep in touch with the serial port. The device has a typical battery life of 10 years when used with a power connector, and a battery life of 5 years in storage at 55 °C.
The NI device weighs 24.10 oz, and measures 7.01 x 3.44 x 2.63 in. in physical dimensions. It has a recommended operating temperature range of -20 °C to 55 °C, a storage temperature range of -40 °C to 85 °C, and a random and sinusoidal operating vibration of 5 grms and 5 g respectively–all at a frequency range of 10 to 500 Hz.
Associated Part Numbers: 156285A-02L, 156839-02L, 156839A-02L, 783830-01
Model | cRIO-9063 |
---|---|
Manufacturer | National Instruments |
Part Number | 783830-01 |
Type | CompactRIO Controller |
Slots | 4 |
CPU Frequency | 667 MHz |
Storage | 512 MB |
Dimensions | 7.01 x 3.44 x 2.63 in. |
Weight | 24.10 oz. |
Warranty | Three Year Warranty |
cRIO-9063 Manual | User Manual and Maintenance Manual Available for Download |
Price | Contact a sales representative for a quote. |
National Instruments cRIO-9063 Frequently Asked Questions
Question: Can I read .csv files with my cRIO-9063?
Answer: Yes, you can read data from a spreadsheet or a data file by placing the file on the cRIO-9063.
Question: Why am I getting timing violation errors with my FPGA code on the cRIO 9063 NI?
Answer: If you’re getting timing violation errors on the cRIO 9063 NI, try to optimize the FPGA code for speed and then optimize the FPGA code for size. Larger FPGA bitfile sizes can negatively affect routing on the FPGA which can cause timing violations.
Question: What type of controller is the cRIO-9063 Controller?
Answer: The cRIO-9063 Controller is a 4-slot Artix-7 FPGA controller for custom I/O timing, control, and processing.
cRIO-9063 PDF Manuals
ARCHIVED CRIO 9063 LETTER OF VOLATILITY.PDF
CARRYING HANDLE FOR COMPACTRIO AND COMPACTDAQ USER GUIDE.PDF
COMPACTRIO CONTROLLERS PRODUCT FLYER.PDF
CRIO 9063 LETTER OF VOLATILITY.PDF
INDUSTRIAL RACK MOUNT KIT FOR COMPACTRIO AND COMPACTDAQ INSTALLATION GUIDE.PDF
MODULE IMMOBILIZATION ACCESSORY INSTALLATION GUIDE.PDF
NI CRIO 9063 GETTING STARTED GUIDE.PDF
NI CRIO 9063 SPECIFICATIONS.PDF
