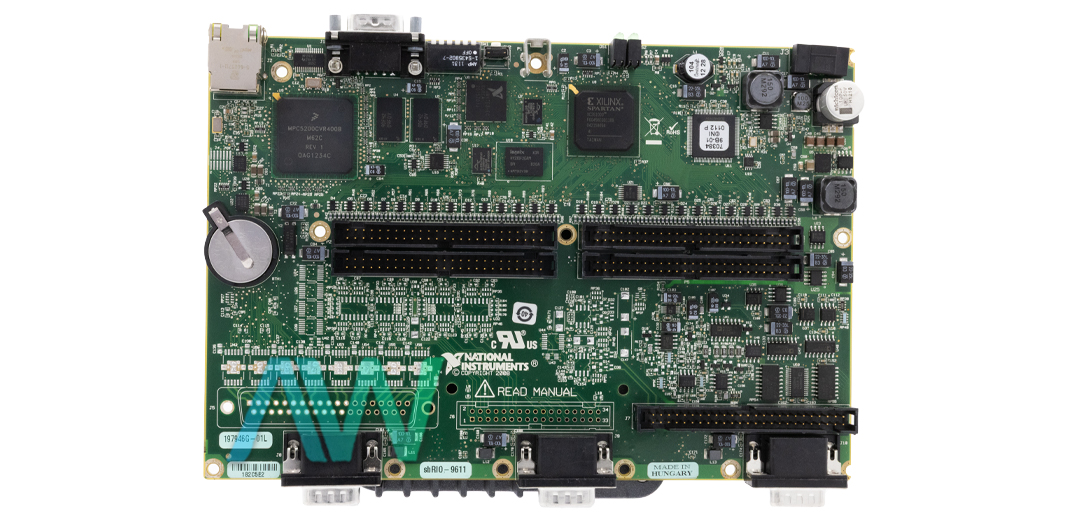

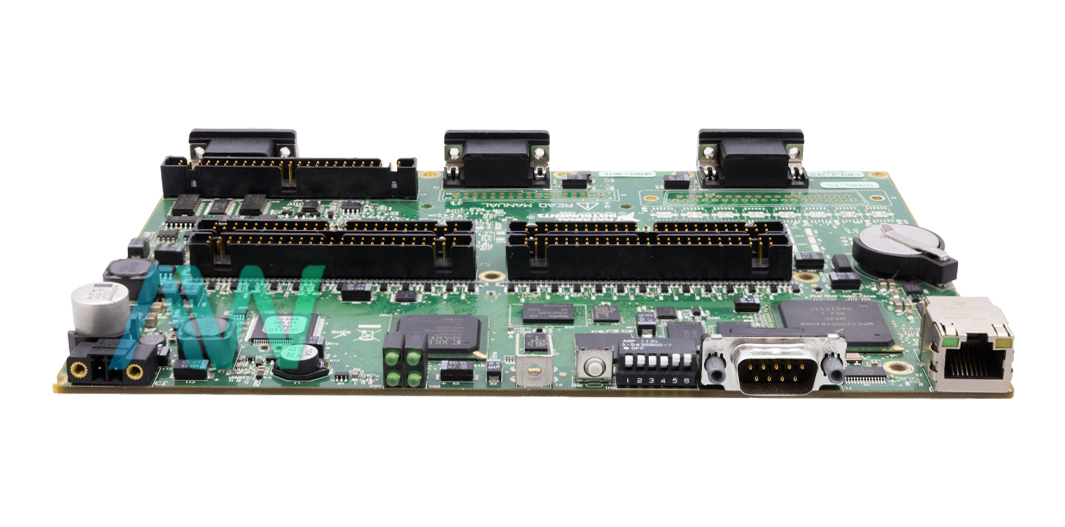

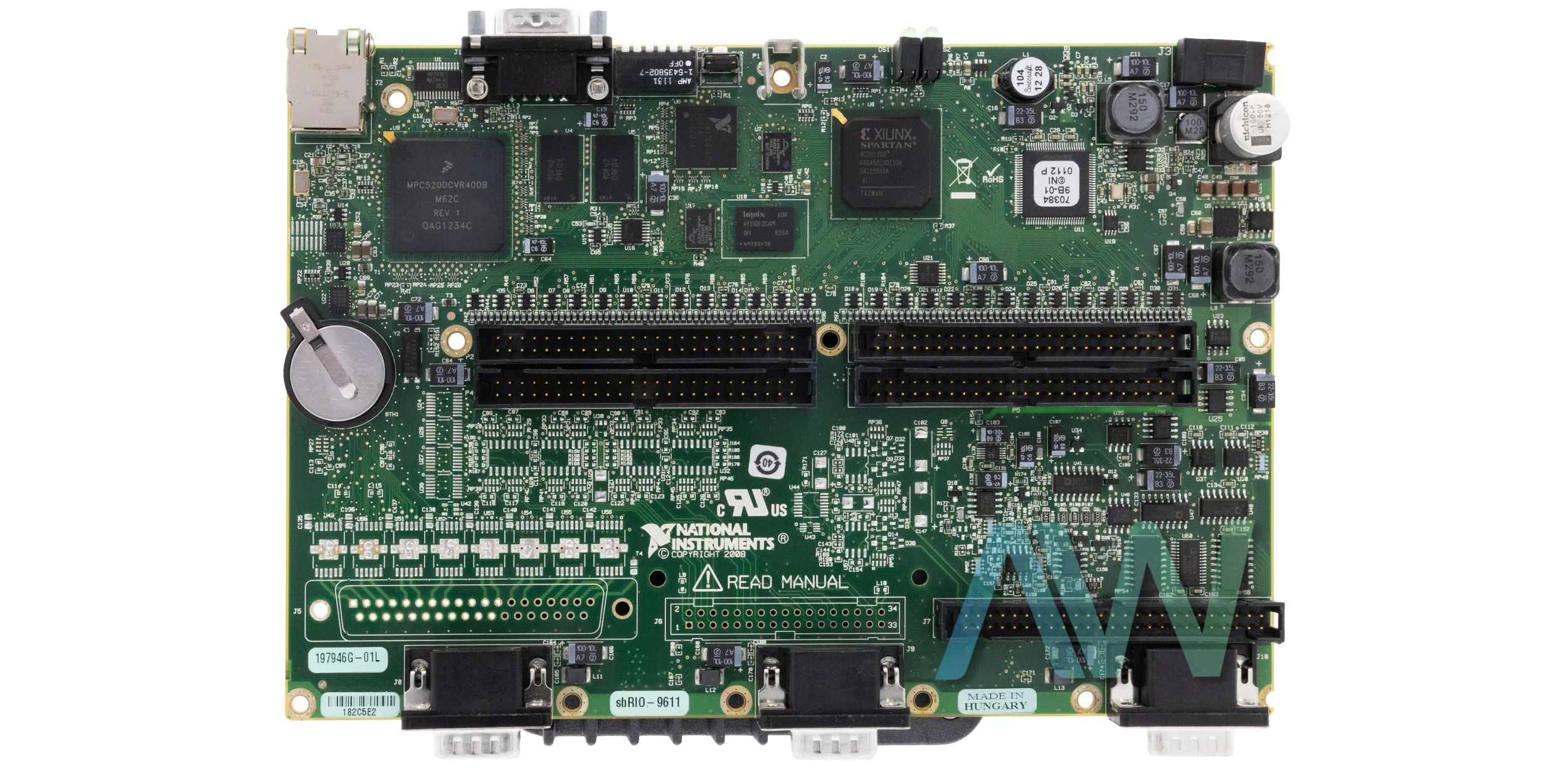

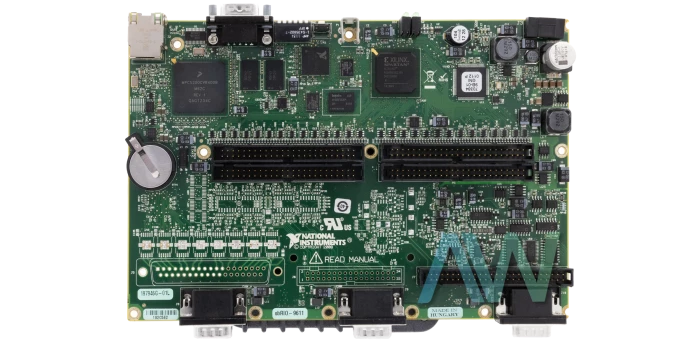

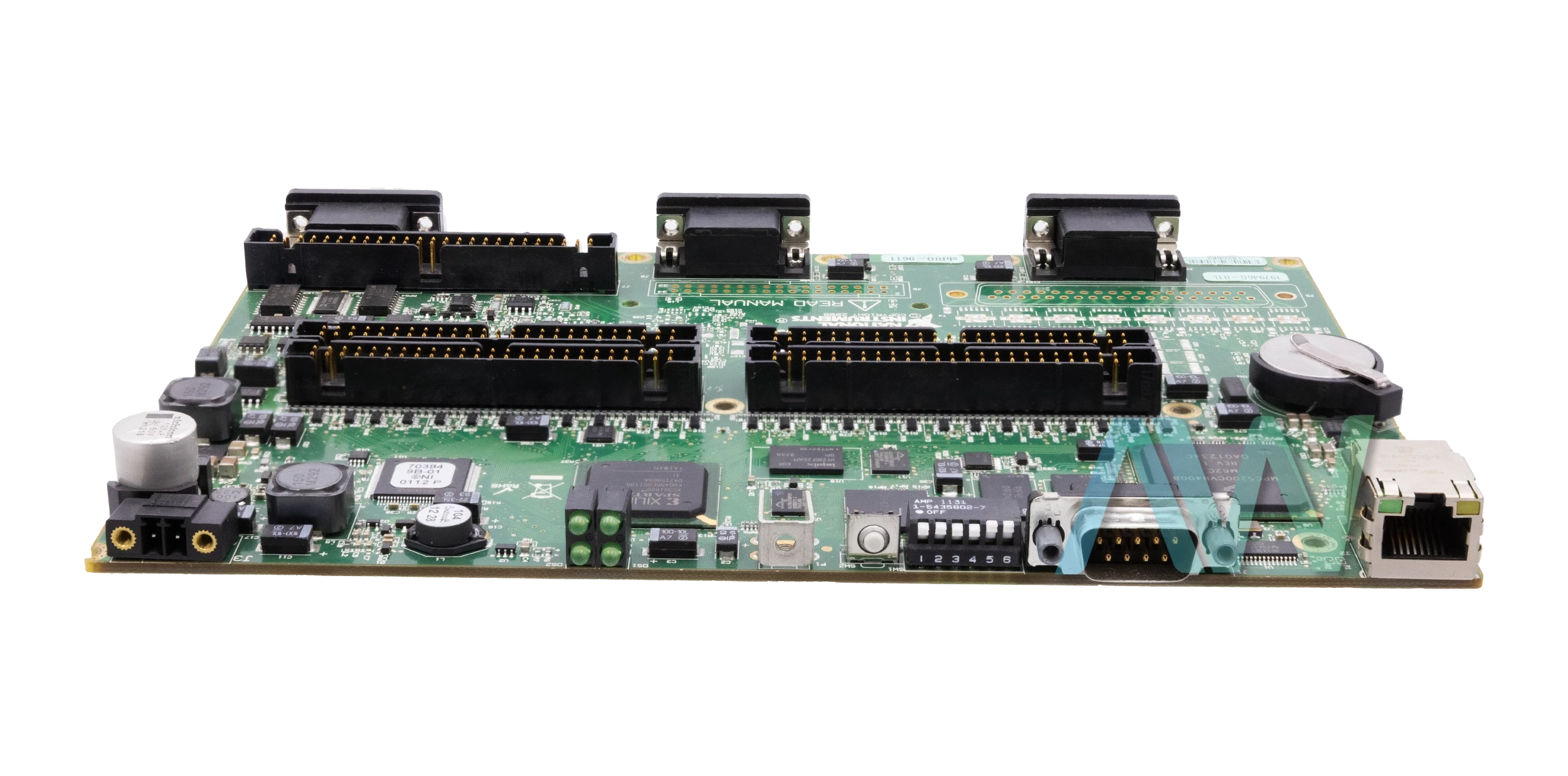

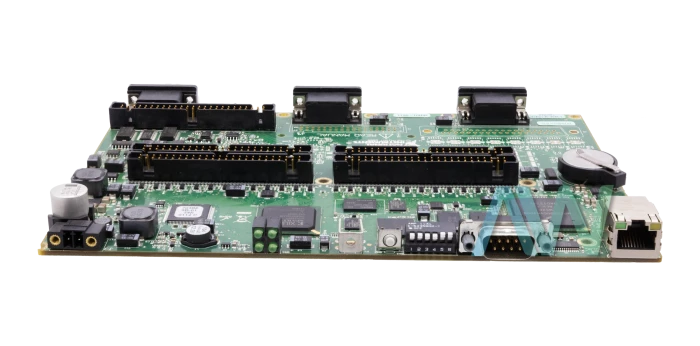

National Instruments sbRIO-9611 CompactRIO Single-Board Controller

Featured with 128 MB Storage and 64 MB DRAM, the NI sbRIO-9611 is a CompactRIO Single-Board Controller. This Controller offers easy integration for high-volume applications where high-performance, flexibility, and reliability are required. The sbRIO-9611 incorporates an Intel processor and a user-configurable FPGA, various digital I/O interfaces, and 3 connectors for non-enclosed I/O modules from the C Series. Moreover, it has 110 digital channels (3.3 V) and 32 analog input channels (16-bit). All the hardware and control circuitries incorporated in this Controller are printed on a single board. This CompactRIO Controller features a Xilinx Spartan-3 FPGA, which has 17,280 logic cells and a 1M FPGA gate.

The 110 digital I/O channels are tested to carry up to 3 mA maximum current at 10 MHz maximum digital I/O frequency. The NI sbRIO-9611 operates with 432 kbits of available embedded RAM. The microprocessor used in the construction of this Controller is designed to operate with a processor speed of 266 MHz. This CompactRIO Single-Board Controller comes with a dedicated power connector. The sbRIO-9611 requires a standalone, 19 to 30 Volt DC power supply.

The NI sbRIO-9611 offers stable connectivity options. You can connect this CompactRIO Single-Board Controller to multiple kind of external devices via serial, ModbusTCP, TCP/IP, and UDP protocols. This built-in real-time Controller features files (FTP) and Web (HTTP) servers as well. Therefore, you can easily access and configure this Controller over Ethernet through your routine PC and web browser. The NI sbRIO-9611 consumes up to 7.50 watts of power while operating in the unload condition.

sbRIO-9611 Obsolete Status has been announced by National Instruments, but the CompactRIO Single-Board Controller will still be available for purchase and repairs by Apex Waves.
