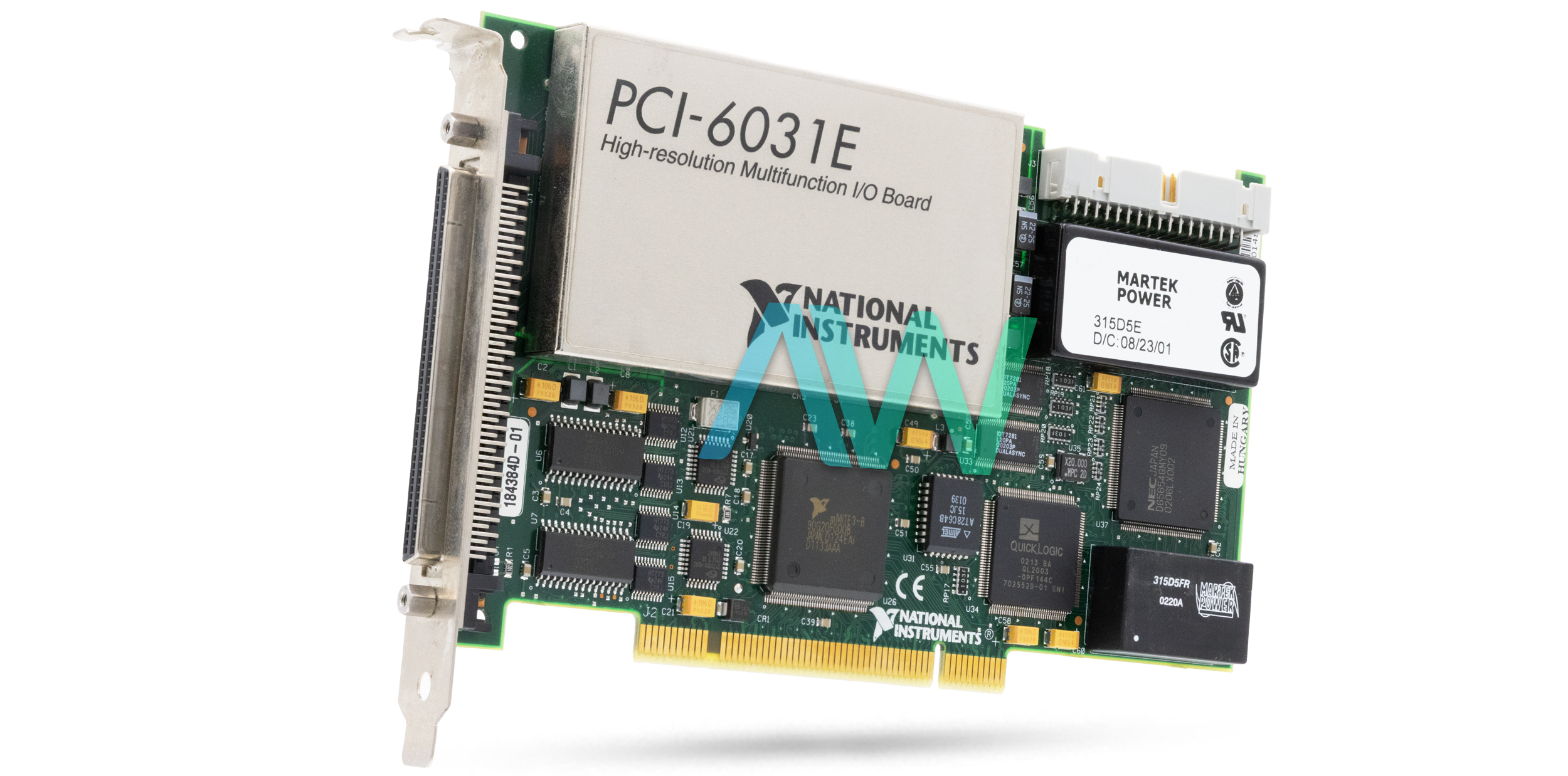

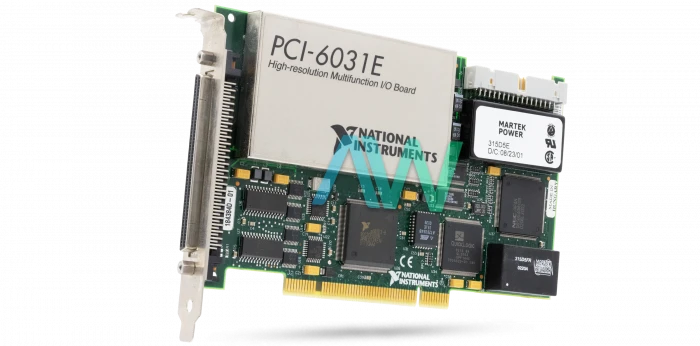

National Instruments 777514-01 Multifunction I/O Device

The 777514-01 is an incredibly versatile Multifunction I/O Device from National Instruments that is the descriptive part number for the PCI-6031 with NI-DAQ software. This PCI-based board has two 16-bit analog outputs, eight digital I/O lines, two 24-bit counters, and 64 single-ended or 32 differential analog inputs. The 777514-01 is a versatile device that may be used in a variety of settings, including production test environments, research, design verification, and automation in laboratories.

With its outstanding DAQ capabilities, this board provides dependable performance for a wide range of applications. It improves measurement flexibility by offering the option to add sensor and high-voltage measurement capabilities utilizing SCC or SCXI signal conditioning modules. The user-friendly NI-DAQmx driver and configuration tool make it easier to set up and carry out measurements.

The National Instruments MITE bus interface chip, which links the board to the PCI I/O bus, makes the 777514-01 completely switch- and jumper-free. Because the MITE chip complies with the PCI Local Bus Specification, software can configure base memory locations and interrupts. This design decision simplifies the installation procedure by doing away with the requirement for manual configuration.

Central to the board's functionality is the National Instruments DAQ-STC system timing controller. This controller manages time-related functions through three timing groups, handling analog input, analog output, and general-purpose counter/timer operations. The DAQ-STC facilitates advanced applications such as buffered pulse generation, equivalent time sampling, and dynamic sampling rate adjustments.

Syncing various measurement functions to a single trigger or timing event is a major problem with DAQ boards. An RTSI bus interface and a ribbon cable are included with the 777514-01 to handle this problem. These allow timing and trigger signals to be sent between up to five DAQ boards in a single computer. This feature makes sure that various boards and functions are precisely synchronized.

Users can obtain more than 3,000 analog signals from a variety of sensors, including as thermocouples, RTDs, strain gauges, voltage sources, and current sources, by utilizing the 777514-01's ability to interface with a SCXI system. It is perfect for difficult data collecting activities that require a large channel count and a variety of signal sources because of its vast input capacity.

Part Number777514-01
Model NamePCI-6031
Part TypeMultifunction I/O Device
Analog Inputs64 Single-Ended / 32 Differential
Analog Outputs2 (16-bit)
Digital I/O Lines8
Counters2 (24-bit)
Maximum Sampling Rate100 kS/s
Analog TriggeringYes
Interface TypePCI
