PCI-6503
Modular Systems > National Instruments > DIO Series
| Description: | PCI-6503, 50-Pin, Digital I/O Device |
Need an Official Quote?
Or speak to a sales representative for additional information:
Phone:1-800-915-6216
Email:sales@apexwaves.com

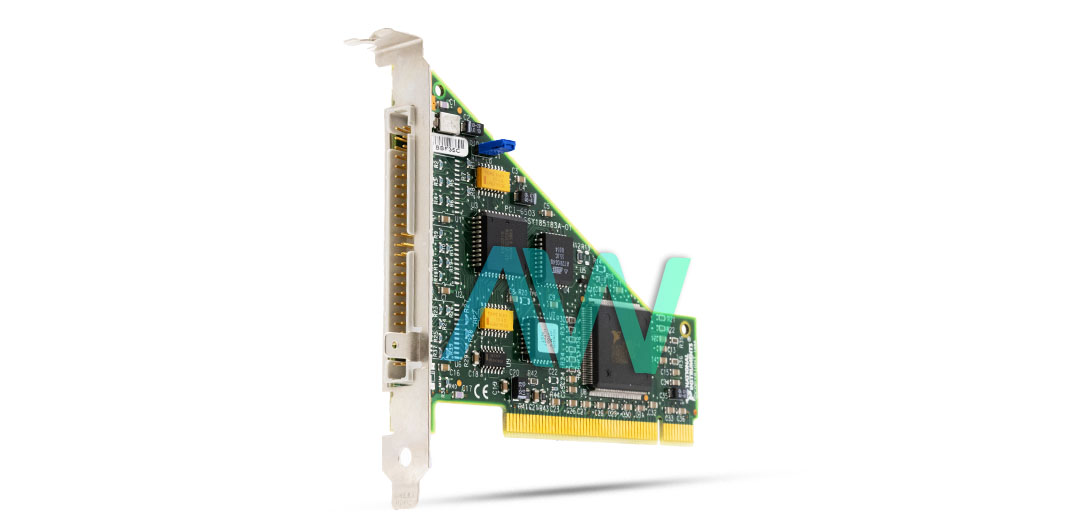

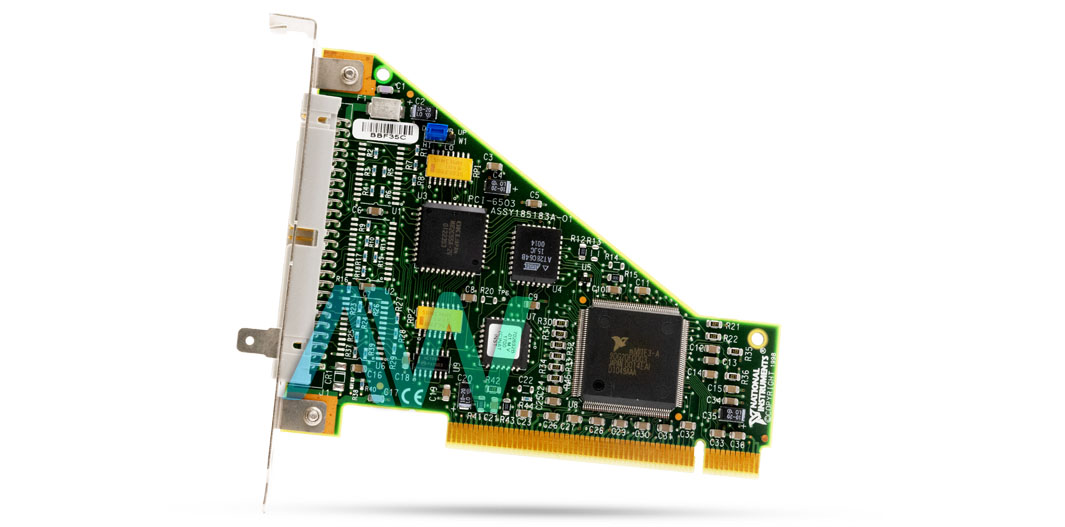

National Instruments PCI-6503 Digital I/O Device
The National Instruments PCI-6503 (Part Number: 777690-01) board is a parallel, digital I/O interface, which can be used with PCI bus computers. This 24-bit model comes equipped with 1 x 82C55A PPI chip, which is designed to operate in unidirectional, handshaking, or bidirectional mode, and can issue interrupt requests to your personal computer. The digital input/output lines of this model are all accessible through a male connector (50-pin).
The National Instruments PCI-6503 is a completely jumpless and switchless DAQ board. At the time of startup, all of its resources are allocated completely automatically. Thus, the user does not have to set base addresses or interrupt levels manually. With this board, the user can operate their personal computer as a complete digital I/O solution and system controller in a variety of applications, such as production testing, laboratory testing, and process controlling. The NI PCI-6503 offers remarkable transfer rates up to 50 kbytes per second (max) with the help of NI-DAQ software and the constant sustainable rate (typical) offered is 1 to 10 bytes per second. The device is equipped with a 50-pin male ribbon-cable I/O connector. The PCI-6503 has 24 bidirectional digital I/O channels with a TTL compatibility.
The National Instruments PCI-6503 is designed to receive 2.2 V (Min) and 5.3 V (Max) input logic high voltage. This mode can work with −0.3 V (Min) and 0.8 V (Max). Whereas it generates 1.0 A (max) output signals through Pin 49 (at +5 V). With this board, the user can draw 2.5 mA (typical) output current. This board requires 400 mA at +5 VDC (±5%) power to operate, and the power provided at the I/O connector remains around +4.65 to +5.25 V.
The DIO device can be programmed using software packages/application development environments (ADEs) such as LabVIEW, LabWindows/CVI, or Measurement Studio. Additionally, it weighs 1.9 oz, and measures 4.8 x 3.7 in. in physical dimensions. The NI device has a recommended operating temperature range of 0 °C to 55 °C, a storage temperature range of –20 °C to 70 °C, an operational random vibration of 0.31 grms (5 to 500 Hz), and a nonoperational random vibration of 2.5 grms (5 to 500 Hz).
Associated Part Numbers: 185183-01, 185183A-01, 185183B-01, 185183C-01, 185183E-01, 185183J-01L, 185185-01, 185185A-01, 777690-01
| Model | PCI-6503 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 777690-01 |
| Series | DIO Series |
| Type | Digital I/O Device |
| Pins | 50 |
| Channels | 24 I/O |
| Compatibility | TTL |
| Dimensions | 4.8 × 3.7 in. |
| Weight | 1.9 oz. |
| Warranty | Three Year Warranty |
| PCI-6503 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
National Instruments PCI-6503 Frequently Asked Questions
Question: Does the PCI 6503 National Instruments require a separate card manager for configuration?
Answer: The PCI 6503 National Instruments is Plug and Play compatible and does not require a separate card manager for configuration.
Question: Which ports on the PCI-6503 NI DAQ are for digital data?
Answer: On the PCI-6503 NI DAQ, Ports A and B are used for digital data I/O. Port C can be configured for digital data I/O also.
Question: How can I select whether the NI PCI-6503 powers up in a low or high state?
Answer: You can use a jumper to select whether the lines of the NI PCI-6503 device power up in the high or low state.
PCI-6503 PDF Manuals
DAQ GETTING STARTED GUIDE FOR PCI PCI EXPRESS.PDF
DAQ GETTING STARTED READ ME FIRST NI DAQMX AND DAQ DEVICE INSTALLATION GUIDE.PDF
PCI-6503 LETTER OF VOLATILITY.PDF
PCI DIO 96 PXI 6508 PCI-6503 USER MANUAL.PDF
