PCIe-6535

Modular Systems > National Instruments > DIO Series

Part Number PCIe-6535
Manufacturer/Brand National Instruments
Description PCIe-6535 10 MHz Digital I/O Device

Speak to a sales representative for pricing & lead time:

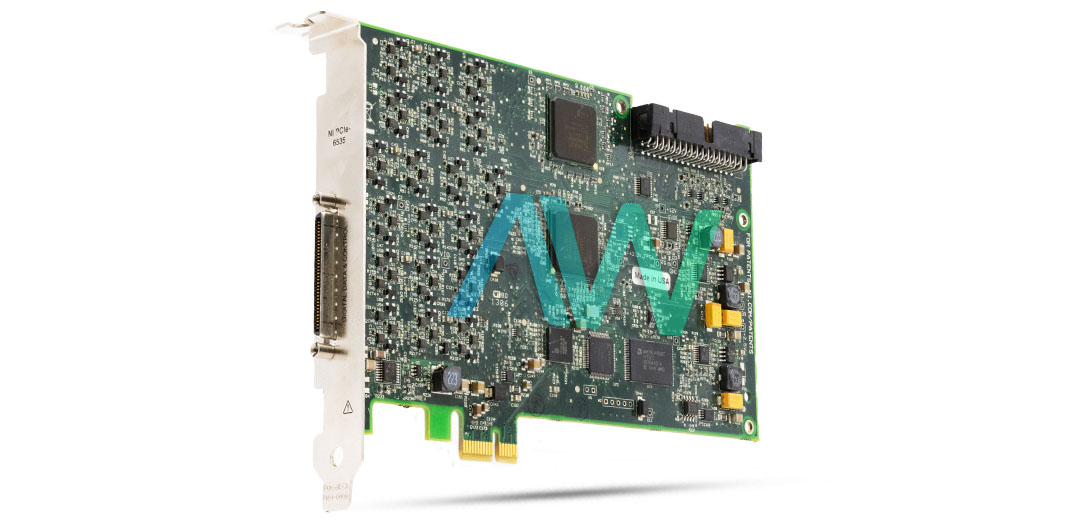

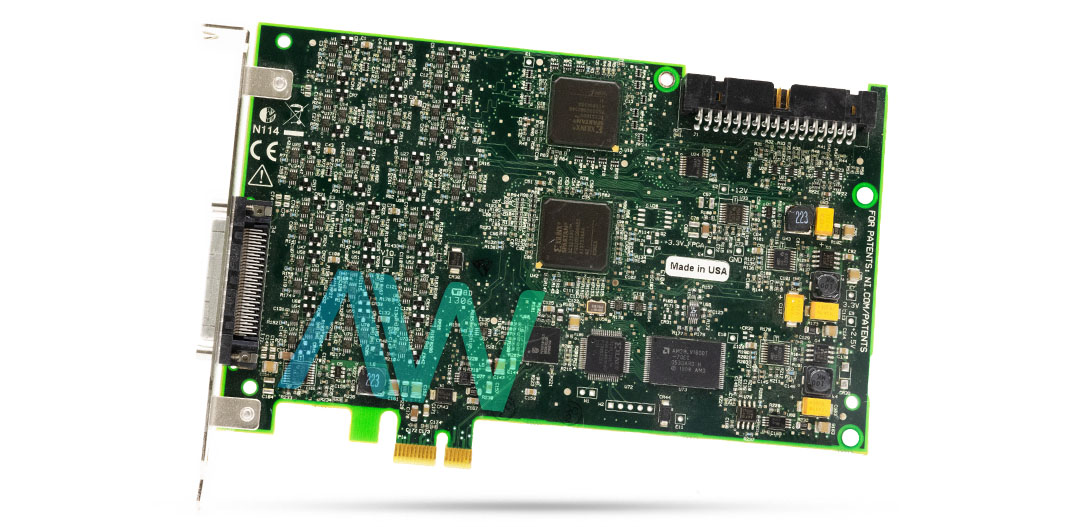

National Instruments PCIe-6535 Digital I/O Device

The PCIe-6535 is an advanced Digital I/O Device developed by National Instruments. The part number of the PCIe-6535 device is 780694-01. The PCIe-6535 is a high-speed DAQ that offers continuous data streaming over the PCI bus. The PCIe-6535 supports NI-DAQ driver software. Using this software, digital waveforms can be created. These waveforms can also be edited and imported into this device. The PCIe-6535 can be synchronized with many devices using the PXI or RTSI bus.

The PCIe-6535 Digital I/O Device has 32 data channels and six PFI channels. The direction of the channels is independently programmable. The supported voltage levels are 2.5 Volts and 3.3 Volts. The generation signal channels are single-ended channels. The output impedance is 50 Ω. The output channels can sustain a maximum voltage level of 5 V without getting damaged. The PCIe-6535 has an input impedance of 50 kΩ. The acquisition channels have an overvoltage protection of -1 V to +6V. The PCIe-6535 can stream data at a maximum throughput rate of 40 MB/sec. The clock rate is from 48 Hz 10 MHz. The PCIe-6535 is compatible with NI-DAQmx version 8.8 or newer. The supported application software includes: LabVIEW, LabWindows, and Microsoft Visual Studios.

The PCIe-6535 Digital I/O Device is a low-cost device with high-bandwidth architecture. These features make it ideal to interface and test image sensors and display panels.  Since the PCIe-6535 is a digital DAQ, it is mainly suitable for digital applications. These applications include custom digital interfacing, pattern I/O, and change detection. The PCIe-6535 is also used for protocol emulation, communications applications, and semiconductor and electronics applications.

ModelPCIe-6535
ManufacturerNational Instruments
Part Numbers780694-01
TypeDigital I/O Device
Number of Data Channels32
On Board Clock Frequency Range48 Hz to 10 MHz
Onboard Memory Size2,048 samples (S)
Power Requirements+3.3 VDC, +12 VDC - 750 mA, 300 mA
Power Consumption6.1 W
Dimensions7.13 in. × 0.85 in. × 4.93 in.
Weight0.24 lb.
Driver SoftwareNI-DAQmx Version 8.8 or later
WarrantyOne Year Warranty
PCIe-6535 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PCIe-6535 Frequently Asked Questions



Question: Can I use the HSDIO VI driver to program the NI PCIe-6535?



Answer: The NI PCIe-6535 uses the DAQmx driver and is not compatible with the HSDIO driver.



Question: What is the maximum clock rate for the PCIe-6535?



Answer: The maximum clock rate for the PCIe-6535 is 10 MHz.



Question: What are the voltage levels for the PCIe-6535?



Answer: The selectable voltage levels for the PCIe-6535 are 2.5 and 3.3 V.

PCIe-6535 Technical Specifications:


Manufacturer:National Instruments
Model:PCIe-6535
Part Number:780694-01
Type:Digital I/O Device
Repair Evaluation:$150
