PCIe-6535B
Modular Systems > National Instruments > DIO Series
| Description: | PCIe-6535B, 32-Channel, 40 MB/s, 10 MHz, Digital I/O Device |
(expedited shipping options available)
Need an Official Quote?
Or speak to a sales representative for additional information:
Phone:1-800-915-6216
Email:sales@apexwaves.com

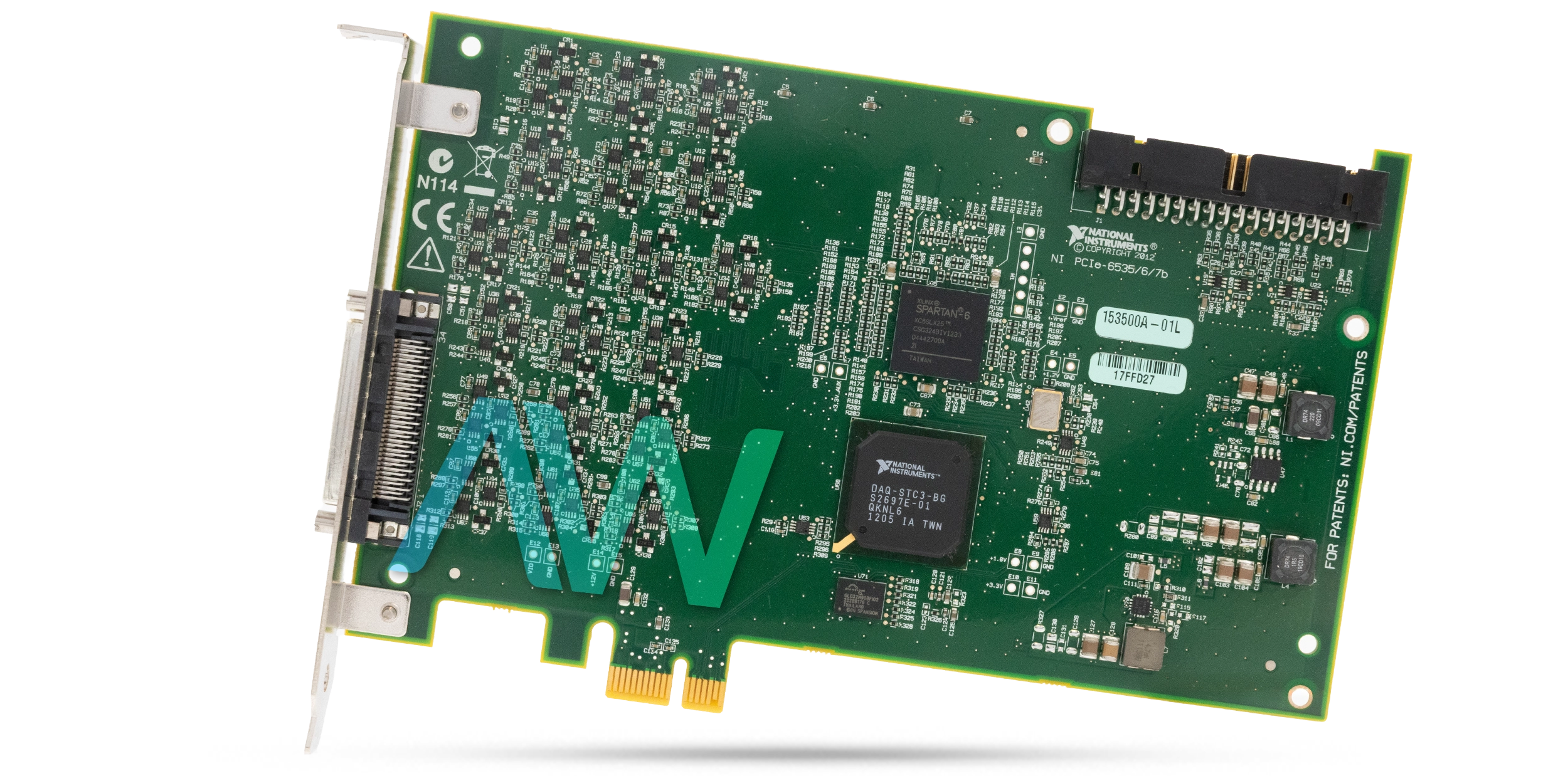

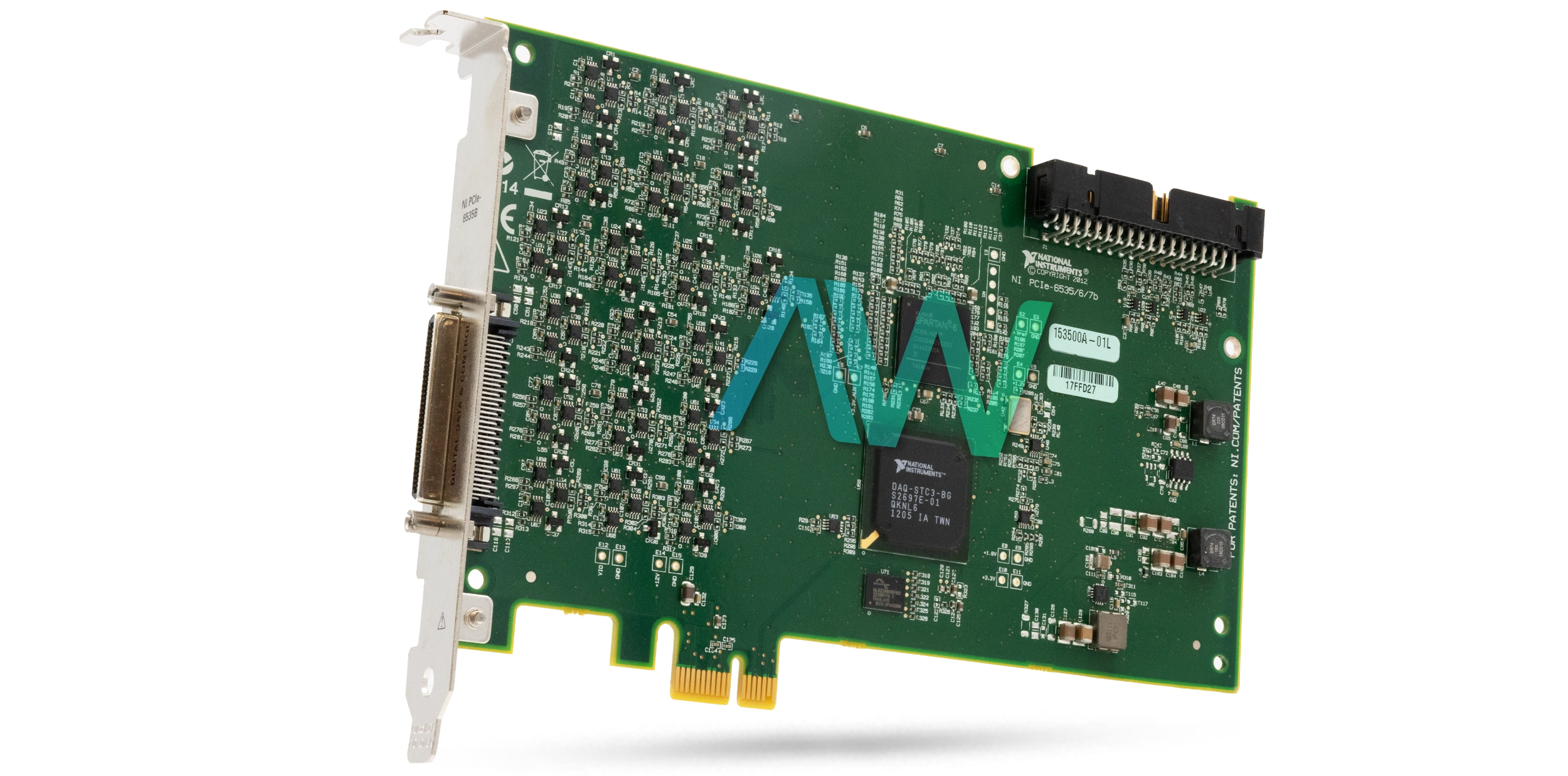

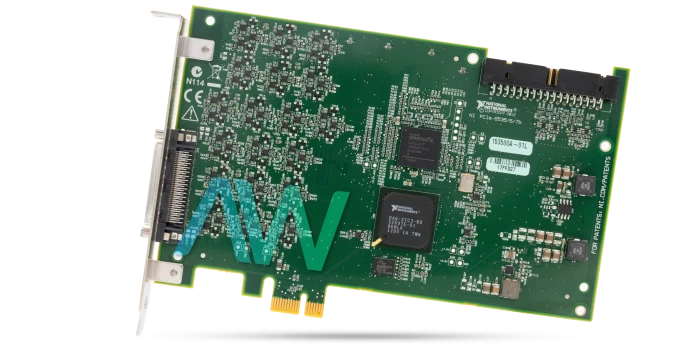

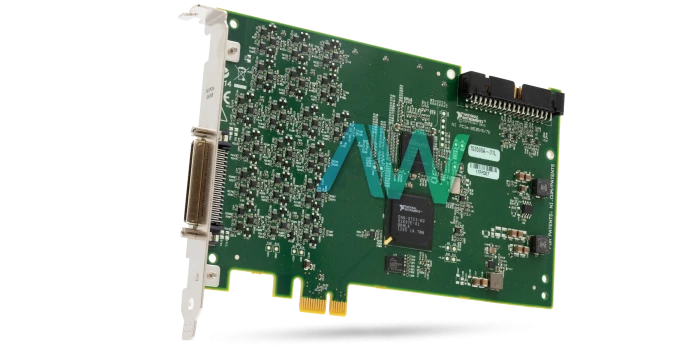

National Instruments PCIe-6535B Digital I/O Device
The PCIe-6535B (Part number: 782629-01) is a Digital I/O Device from National Instruments. The instrument comes with built-in smart and advanced characteristics. The NI PCIe-6535B device offers extraordinary clock rate and throughput. Their values are 10 MHz and 40 MB per second respectively. It also includes 32 digital channels. The user can control the direction of each channel as an input or output channel. It also offers the flexibility to select between the various voltage levels. The user can select between 2.5 and 3.3 volts. The device has a power consumption value of 6 W.
The NI PCIe-6535B Digital I/O Device offers different timing modes, which includes synchronous and asynchronous modes of operation. It also has the current drive value of 32 mili-amperes for the single-ended I/O channel that is digital. The maximum rate for toggling the data channel is 5 MHz. These data channels can operate in different modes, such as active edge and inactive edge modes of operation. The NI PCIe-6535B device comes with built-in memory. The memory can hold 2,048 samples at a time. Additionally, the device has an onboard clock frequency range of 48 Hz to 10 MHz. It comes with the version 9.6.1 or later of NI-DAQmx driver software, and can be programmed using software packages or application development environments (ADEs) such as LabVIEW, LabWindows/CVI, or Measurement Studio. It can be configured using the Measurement & Automation Explorer (MAX) tool.
The NI PCIe-6535B Digital I/O Device is a low-cost solution for operations. The high throughput enables applications in sensitive areas. These areas of applications require high accuracy. It includes testing of the display panels. The instrument is also compatible to operate with different operating systems. It also features the capability to transfer patterns of the data with the clock signal. It is provided to the NI PCIe-6535B using an internal or external source.
The NI device weighs 0.24 lb, and measures 7.13 x 0.85 x 4.93 in. in physical dimensions. It has recommended operating and storage temperature ranges of 0 ºC to +45 ºC and -20 ºC to +70 ºC respectively, non-condensing operating and storage humidity ranges of 10% to 90% RH and 5% to 95% RH respectively.
| Model | PCIe-6535B |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 782629-01 |
| Type | Digital I/O Device |
| Number of Data Channels | 32 |
| On Board Clock Frequency Range | 48 Hz to 10 MHz |
| Onboard Memory Size | 2,048 samples (S) |
| Power Requirements | +3.3 VDC, +12 VDC - 1A, 225 mA |
| Power Consumption | 6 W |
| Dimensions | 7.13 in. × 0.85 in. × 4.93 in. |
| Weight | 0.24 lb. |
| Driver Software | NI-DAQmx Version 9.6.1 or later |
| Warranty | Three Year Warranty |
| PCIe-6535B Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PCIe-6535B:
153500A-01L, 782629-01
National Instruments PCIe-6535B Frequently Asked Questions
Question: How do I delay a digital generation after the trigger is initiated on the PCIe-6535B?
Answer: Since the PCIe-6535B does not support the start delay property node, you will need to write 0s in the buffer to generate a delay.
Question: Does the NI PCIe-6535B have the capability to test image sensors?
Answer: The NI PCIe-6535B works with interfacing and testing image sensors or display panels.
Question: Will the NI PCIe-6535B allow custom digital interfacing?
Answer: Yes, the NI PCIe-6535B will allow custom digital interfacing.
Question: Is it preferable to use C or LabVIEW when using the PCIe-6535B in Linux RHEL7?
Answer: You can use C to call DAQmx functions to control your PCIe-6535B.
PCIe-6535B PDF Manuals
DAQ GETTING STARTED GUIDE FOR PCI PCI EXPRESS.PDF
DAQ GETTING STARTED READ ME FIRST NI DAQMX AND DAQ DEVICE INSTALLATION GUIDE.PDF
GUIDE D_INITIATION DAQ POUR PCI PCI EXPRESS.PDF
NIC2A0PXIE PCIE 6535 6536 6537 AND NIC2A0PCIE 6535B 6536B 6537B SPECIFICATIONS.PDF
PCIE 6535B 6536B 6537B LETTER OF VOLATILITY.PDF
C3A0 LIRE EN PREMIER GUIDE DE28099INSTALLATION DE NI DAQMX ET DES PC3A9RIPHC3A9RIQUES DAQ.PDF
