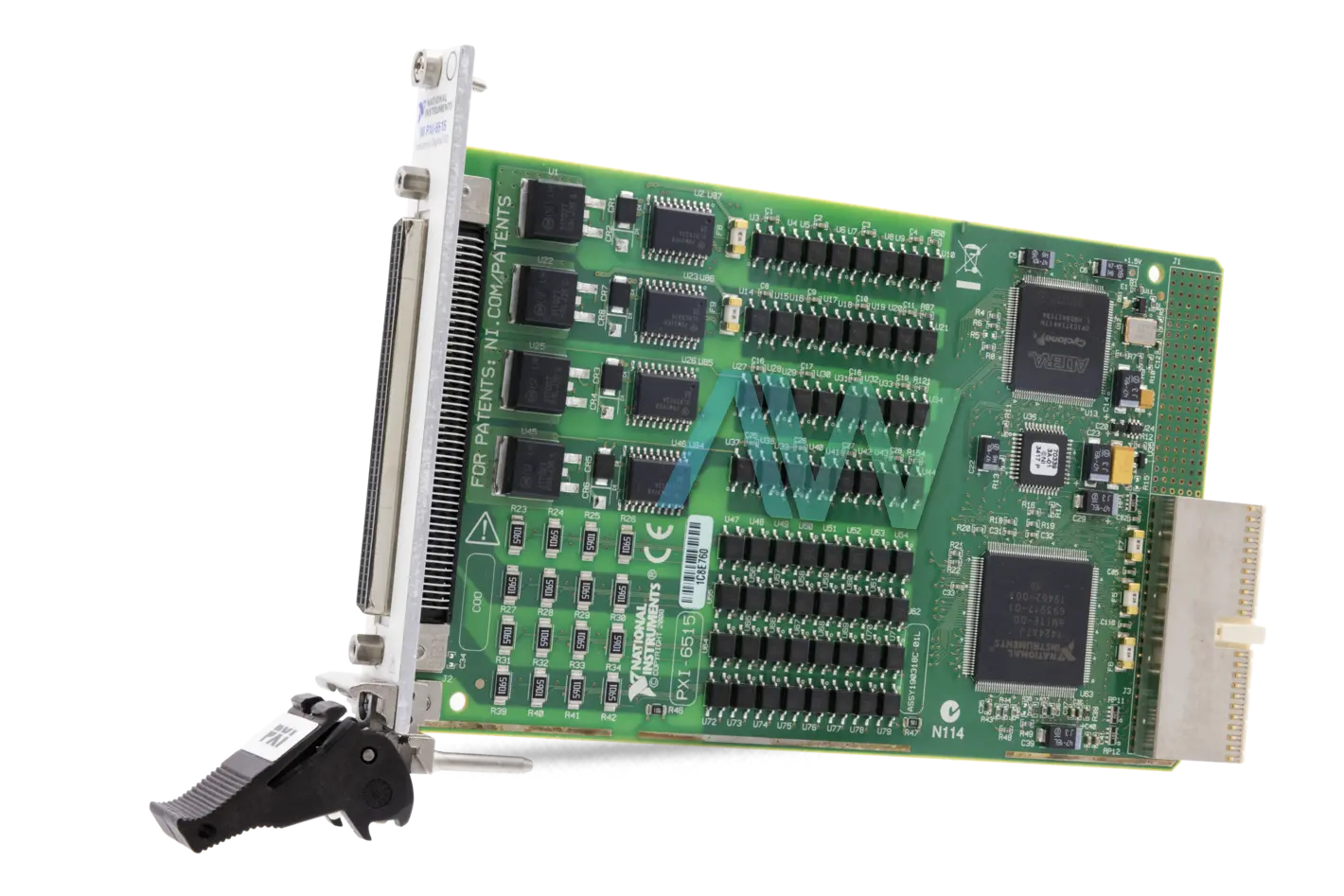

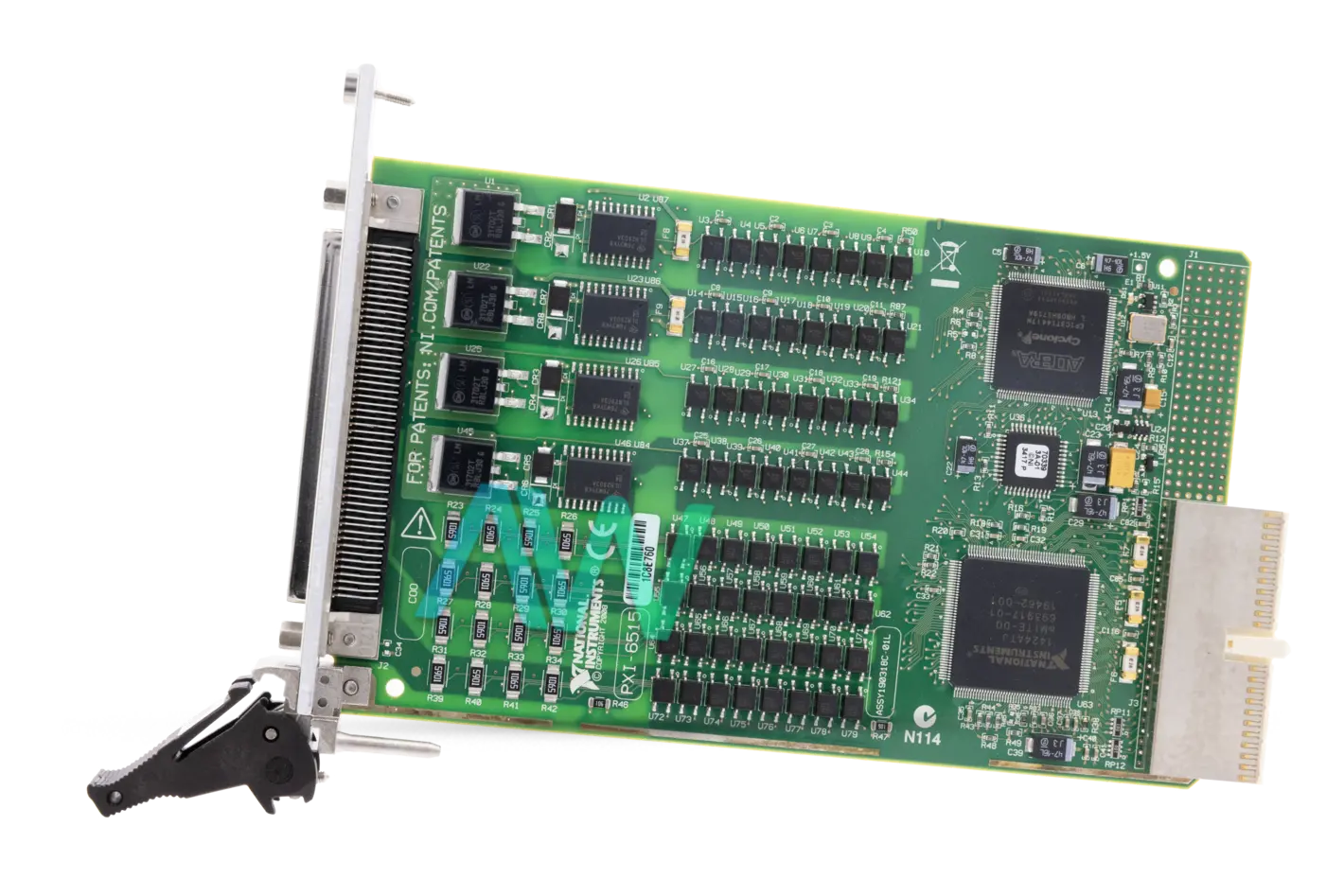

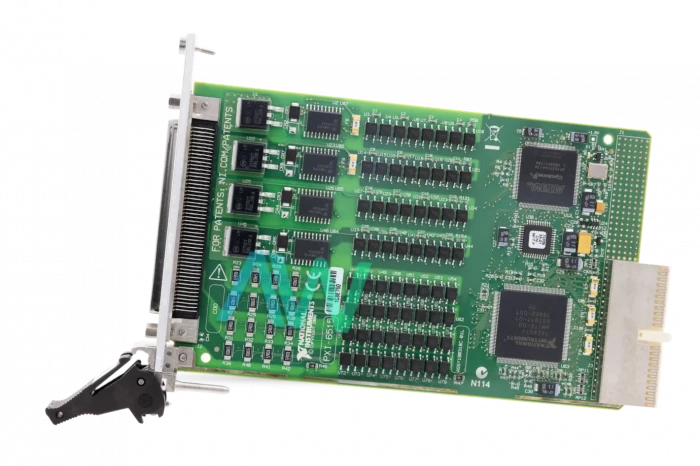

National Instruments PXI-6515 PXI Digital I/O Module
The PXI-6515 (Part Numbers: 778964-01, 190318C-01L) is a 64-channel, ±30 VDC, PXI digital I/O module with eight isolated channels (eight banks). The user can wire each input bank in a sink or source configuration. This module is an industrial digital I/O interface featuring programmable power-up states, enabling the user to set up the initial output states to guarantee safe operation when coupled to industrial actuators. To ensure reliable recovery from fault conditions, the digital I/O watchdogs of the PXI 6515 can automatically switch to a secure output state.
The NI PXI-6515 features 32 source/sink inputs and 32 sink outputs. This model comes with a 100-pin keyed female SCSI D-Type connector, which connects to shielded cables or 100-pin ribbon cables. This module offers 125 mA for all channels per port, 500 mA for one channel per port, and 24 V logic thresholds. Programmable input filters, high-current drive, programmable power-up states, and input filters are a few of its features worthy of being mentioned. The programmable input filters on this model can be used for removing noise and eliminating spikes/glitches. The integrated NI-DAQmx measurement services software can be used to program the NI digital I/O device in different software environments.
This low-cost yet efficient industrial digital I/O module is fully compatible with a broad range of software programs such as LabVIEW, VISUAL C#, Visual Studio.NET, Measurement Studio, LabWindows/CVI, ANSI C/C++, etc. This model is compatible with Microsoft Windows XP and Windows Vista x64/x86. The PXI-6515 provides ample protection against fault conditions like PCI bus failure, application crash, driver crash, and computer crash (total OS crash).
| Model | PXI-6515 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 778964-01, 190318C-01L |
| Type | PXI Digital I/O Module |
| Inputs | 32 source/sink |
| Outputs | 32 sink |
| Connector Type | 100-pin keyed female SCSI |
| Maximum Input Voltage | 30 VDC |
| PXI-6515 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a quote |
Associated part numbers for PXI-6515:
National Instruments PXI-6515 Frequently Asked Questions
Question: Is there a way to pick up on computer programming or application errors with the PXI 6515?
Answer: The PXI 6515 has a digital I/O watchdog to detect computer or application errors and ensure safe recovery.
Question: Does the NI PXI-6515 work with industrial sensors or actuators?
Answer: Yes, the NI PXI-6515 has a direction connection to industrial sensors and actuators.
Question: How can I use the NI PXI 6515 to eliminate glitches?
Answer: The NI PXI 6515 has programmable input filters to eliminate glitches and spikes.
