National Instruments PXI-6527 Digital I/O Module

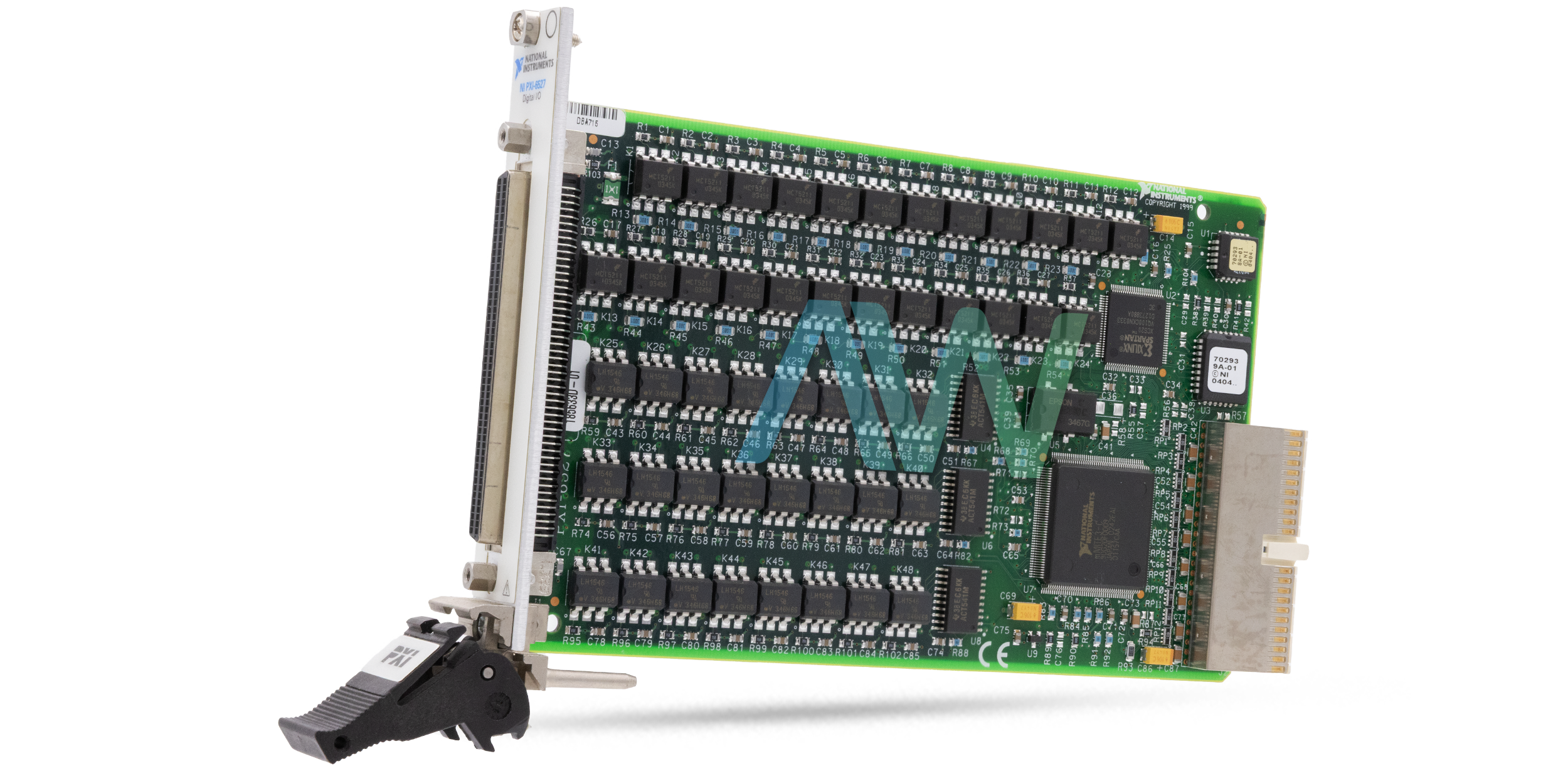

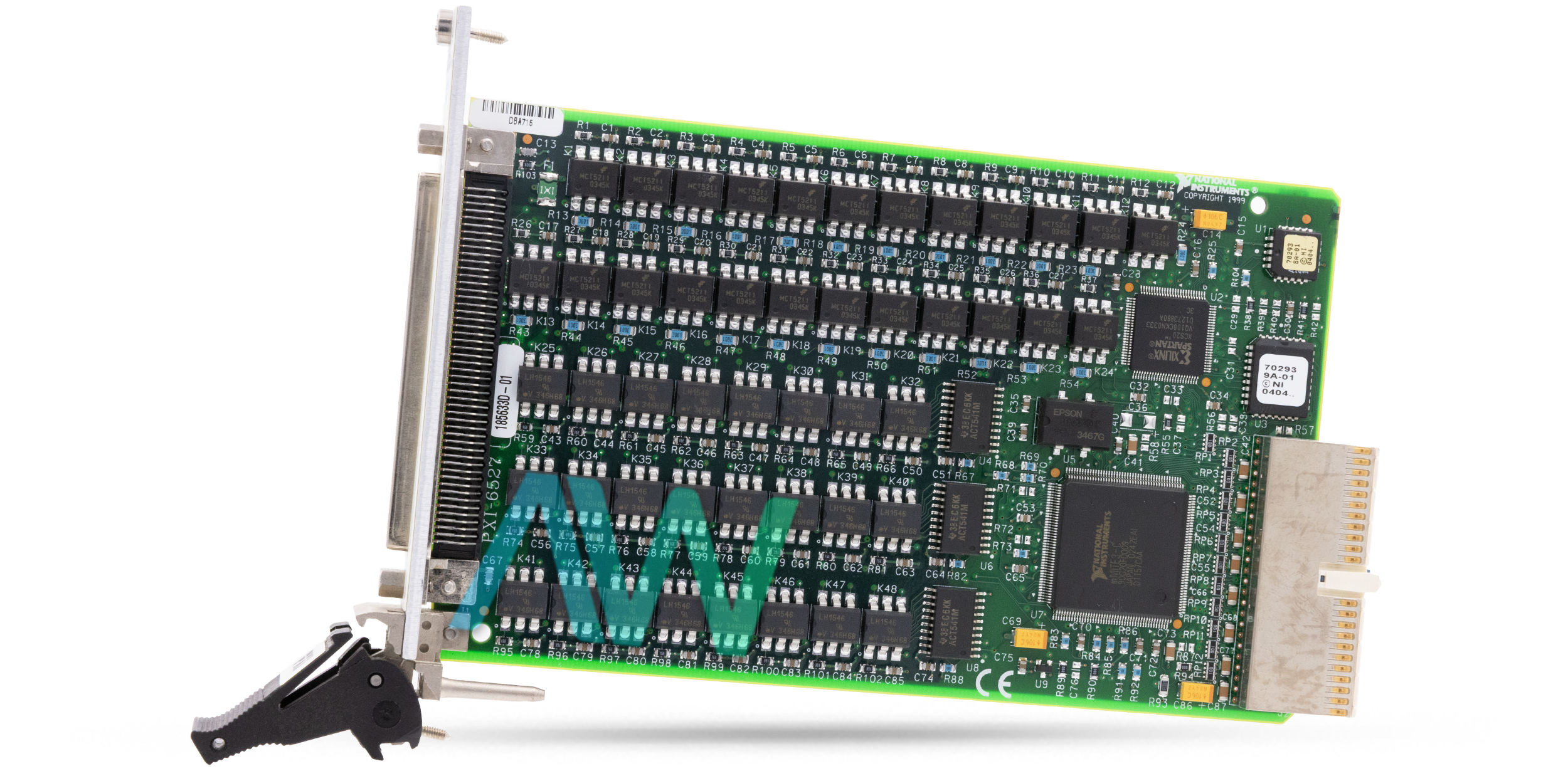

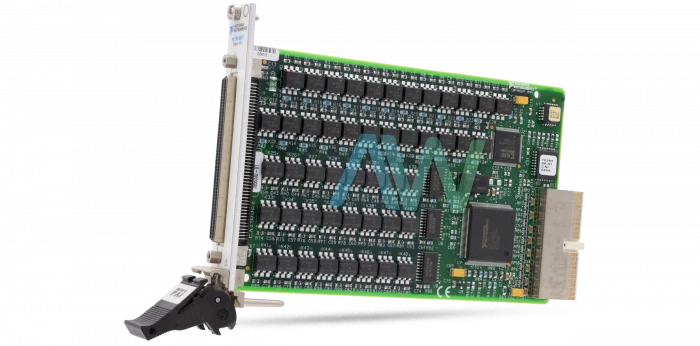

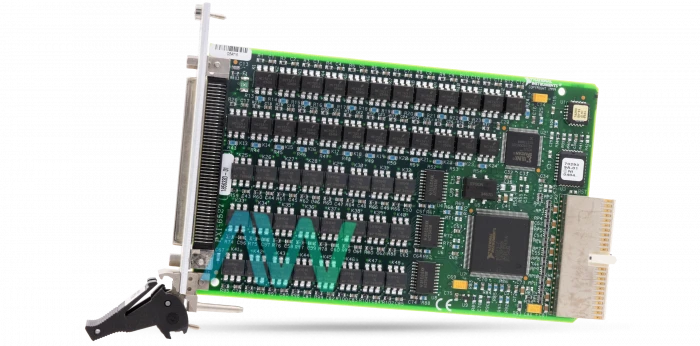

The NI PXI-6527 (Part Number: 777802-01) is a 48-bit, isolated Digital I/O Module. This module offers 24 solid state relay digital outputs and 24 optically isolated digital inputs. With this model, the user can switch up to 120 mA currents and sense digital levels to 28 VDC. The PXI-6527 operates on Windows 2000/NT/XP and is fully compatible with a broad range of software programs, including LabVIEW, Lab Windows/CVI, and Measurement Studio, etc. This device is a parallel DIO interface and features channel-to-channel isolated I/O’s to reduce noise, protect the user’s system, and break ground loops.

The NI PXI-6527 tends to read the condition of external logic at both TTL levels and non-TTL levels. Each of its input channels has a couple of differential isolated terminals for the signal and its reference. A potential difference within 2 VDC to 28 VDC in-between the two terminals of the PXI-6527 registers as a logic high. On the other hand, the module considers a logic low between 0 V and 1 V. The inputs of this module provide 60 VDC isolation from the PC and between channels.

This Digital I/O Module can generate a message against one or more user opted input line changes, either from high to low, low to high, or both. Once informed of a change in state, the NI-DAQ can read other input line’s status, perform other user-programmed operations, or set outputs. The 24 solid-relay outputs on the NI PXI-6527 can switch external devices with those requiring control digital logic levels at TTL, as well as non-TTL levels and high input currents.

PXI-6527 Obsolete Status has been declared by National Instruments, but the module will still be available for purchase and repairs by Apex Waves.

ModelPXI-6527
ManufacturerNational Instruments
Part Number777802-01
TypePXI Digital I/O Module
Digital Input Channels24
Digital Output Channels24
Digital I/O Logic Levels28 VDC
Dimensions6.3 x 3.9 in.
I/O Connector100-pin keyed female cable connector
WarrantyOne Year Warranty
PXI-6527 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXI-6527 Frequently Asked Questions



Question: Which driver software should be used with the NI PXI-6527?



Answer: NI-DAQ 7 should be used with the NI PXI-6527.



Question: What is the maximum rate of the PXI-6527?



Answer: The maximum rate of the PXI-6527 is software timed.



Question: What is the output capacitance of the NI PXI-6527?



Answer: The NI PXI-6527 has an output capacitance of 55 pF at 1 V.



Question: Where can I find the PXI 6527 manual?



Answer: The PXI 6527 manual can be downloaded from the product page on apexwaves.com.

PXI-6527 PDF Manuals & Diagrams

  PXI-6527 PDF Manuals

  PXI-6527 Diagrams
