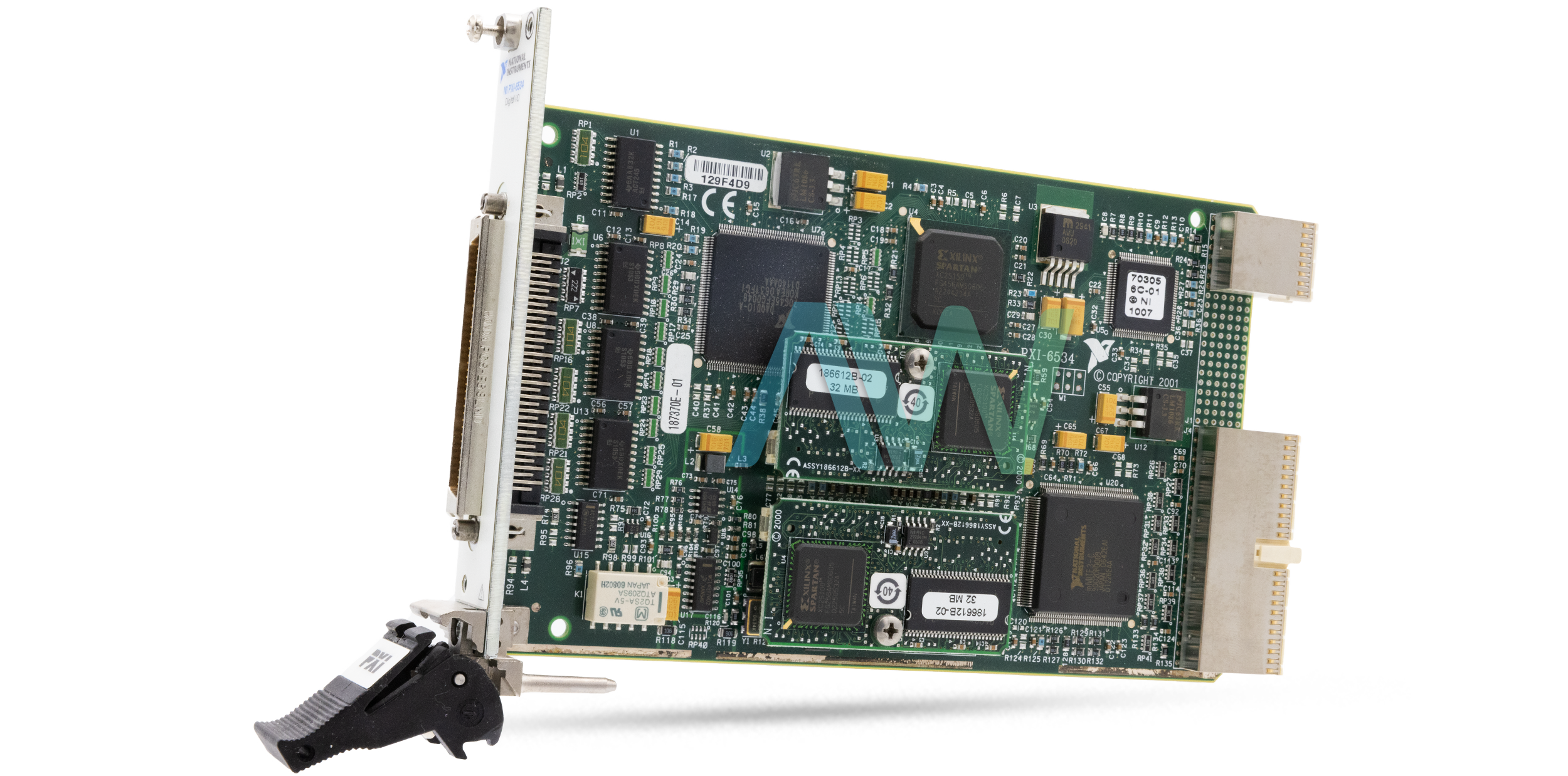

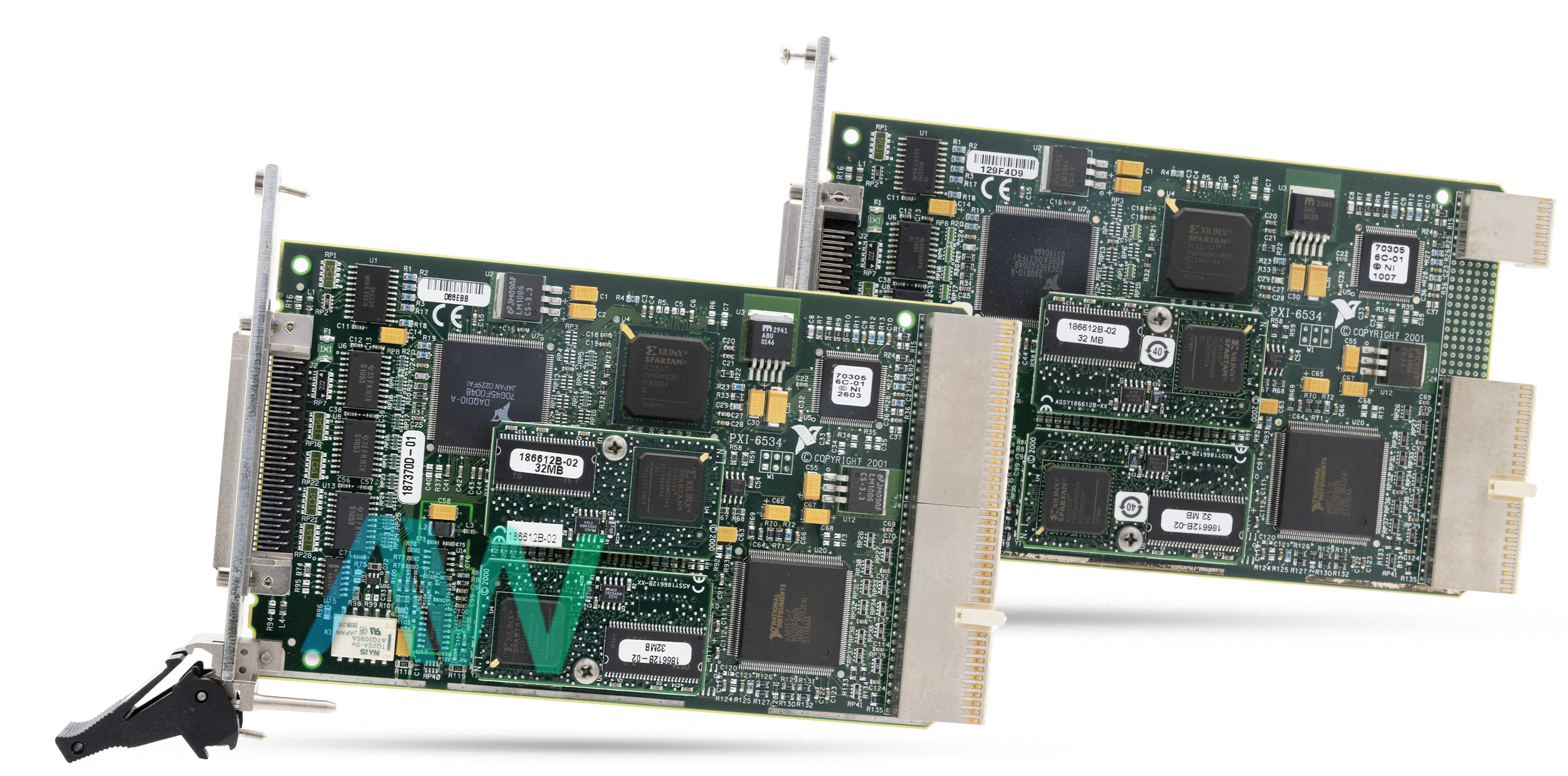

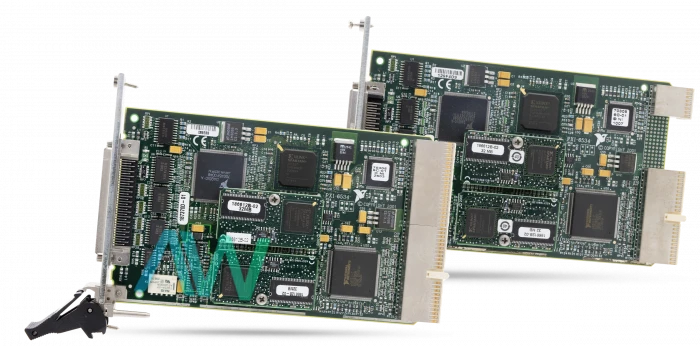

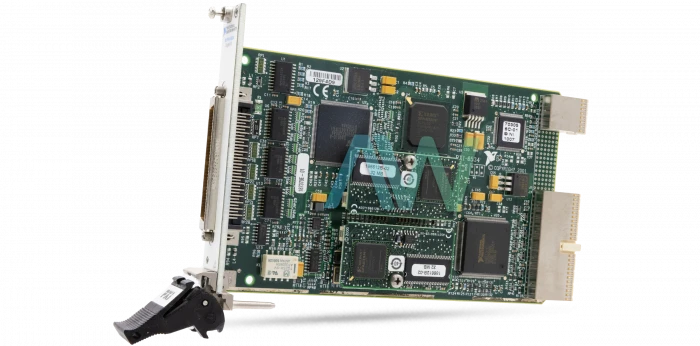

PXI-6534 National Instruments PXI Digital I/O Module | Apex Waves | Image PXI-6534 National Instruments PXI Digital I/O Module | Apex Waves | ImagePXI-6534
PXI-6534 National Instruments PXI Digital I/O Module | Apex Waves | Image
PXI-6534 National Instruments PXI Digital I/O Module | Apex Waves | Image
PXI-6534 New

PXI-6534

4.6/5 | 13 ratings

Modular Systems > National Instruments > DIO Series

Part Number PXI-6534
Manufacturer/Brand National Instruments
Description: PXI-6534, 32-Channel, PXI Digital I/O Module
Available | 1-2 Week Lead Time
Fast Quote
Quoted Price
Lowest Price Guarantee
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing
2 year warrantyRefurbished
*What is Refurbished?
Quoted Price
Fully tested
2yr warranty
  Get Pricing

Need an Official Quote?


*Most customers receive their price in about 15 minutes.

Or speak to a sales representative for pricing & lead time:


National Instruments PXI-6534 PXI Digital I/O Module

The National Instruments PXI-6534 (Part number: 778288-01) is a fast, 32-bit, parallel computerized I/O interface, perfect for interfacing to 5V TTL/CMOS devices. It performs pattern I/O and fast data transfer utilizing an extensive variety of handshaking conventions at speeds up to 80 MB/s. The NI PXI-6534 Digital I/O Module conveys computerized I/O combined with huge locally available memory. It highlights client characterized power-up states, start and stop triggering, pattern matching, and change detection. The user can operate the 32 lines as exclusively configurable single-line I/O or as 8, 16, or 32-bit ports for pattern I/O and handshaking.

On the PXI-6534, the 32 digital I/O lines are separated into four 8-bit ports. For pattern I/O or handshaking, the ports can be gathered into two 8-bit or 16-bit groups, or a single 32-bit group. When they are configured for output, every datum line can sink or source up to 24 mA when set as logic low or high, respectively. When they are configured as inputs, the PXI-6534 data lines are diode-terminated to dampen the input signals at TTL levels. When performing static or unstrobed I/O, the user can exclusively configure each of the 32 I/O lines as input or output. With pattern I/O, the user can input or output patterns under the timing control of a clock signal. When utilizing handshaking I/O to interface the NI PXI-6534 Digital I/O Module to a peripheral gadget, data is transferred when both the NI PXI-6534 and the peripheral are prepared.

ModelPXI-6534 (778288-01)
ManufacturerNational Instruments
TypePXI Digital I/O Module
Channels32
Maximum Rate20 MHz
Voltage Levels5 V TTL/CMOS
Dimensions6.4 x 3.9 in.
I/O Connector68-pin male SCSI-II type
WarrantyOne Year Warranty
PXI-6534 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXI-6534 Frequently Asked Questions



Question: What is the change-detection resolution of the NI PXI-6534?



Answer: The NI PXI-6534 has a change-detection resolution of 150 ns.



Question: What is the power requirement for the PXI-6534 at +5 VDC?



Answer: The PXI-6534 has a power requirement of 2.0 A at +5 VDC.



Question: What is the power-on state for the output channels on the PXI-6534?



Answer: The power-on state for the output channels on the PXI-6534 is high-impedance, with the capability to be pulled up or down.



Question: What is the absolute maximum input voltage range for the NI PXI-6534?



Answer: The absolute maximum input voltage range is -0.3 to 5 V for the NI PXI-6534.

PXI-6534 PDF Manuals & Diagrams

  PXI-6534 PDF Manuals

  PXI-6534 Diagrams


PXI-6534 Technical Specifications:

Manufacturer:National Instruments
Model:PXI-6534
Part Number:778288-01
Type:PXI Digital I/O Module
Repair Evaluation:$150

Why Buy From Apex Waves:




Delivery:
UPS, FedEX and DHL – Free Fedex Ground on all orders
Overnight, Next Day Air or Expedited shipping options available
International delivery available
Same day shipping for in-stock on location
Warranty: All of our products are covered by our Apex Waves Warranty.
3 Year Warranty - New Surplus Parts
2 Year Warranty - Refurbished Parts
Returns: No hassle return policy.
Dedicated customer service team.
Payment:
Quick Quotes: Receive Price & Availability Today!
Calibration: Ask About Our Tiered Calibration Levels
Option & Modules: Confirm Your Requirements or Versions
Repair: Cost & Lead Time Available Upon Request for Service
Share this page:
Common Typos: OXI-6534, PAI-6534, PXO-6534, PXI-U534, PXI-65R4

PXI-6534


PXI-6534

PXI-6534, 32-Channel, PXI Digital I/O Module

Available | 1-2 Week Lead Time
Lowest Price Guarantee
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing













Call now for best pricing
1-800-915-6216

National Instruments PXI-6534 PXI Digital I/O Module

The National Instruments PXI-6534 (Part number: 778288-01) is a fast, 32-bit, parallel computerized I/O interface, perfect for interfacing to 5V TTL/CMOS devices. It performs pattern I/O and fast data transfer utilizing an extensive variety of handshaking conventions at speeds up to 80 MB/s. The NI PXI-6534 Digital I/O Module conveys computerized I/O combined with huge locally available memory. It highlights client characterized power-up states, start and stop triggering, pattern matching, and change detection. The user can operate the 32 lines as exclusively configurable single-line I/O or as 8, 16, or 32-bit ports for pattern I/O and handshaking.

On the PXI-6534, the 32 digital I/O lines are separated into four 8-bit ports. For pattern I/O or handshaking, the ports can be gathered into two 8-bit or 16-bit groups, or a single 32-bit group. When they are configured for output, every datum line can sink or source up to 24 mA when set as logic low or high, respectively. When they are configured as inputs, the PXI-6534 data lines are diode-terminated to dampen the input signals at TTL levels. When performing static or unstrobed I/O, the user can exclusively configure each of the 32 I/O lines as input or output. With pattern I/O, the user can input or output patterns under the timing control of a clock signal. When utilizing handshaking I/O to interface the NI PXI-6534 Digital I/O Module to a peripheral gadget, data is transferred when both the NI PXI-6534 and the peripheral are prepared.

ModelPXI-6534 (778288-01)
ManufacturerNational Instruments
TypePXI Digital I/O Module
Channels32
Maximum Rate20 MHz
Voltage Levels5 V TTL/CMOS
Dimensions6.4 x 3.9 in.
I/O Connector68-pin male SCSI-II type
WarrantyOne Year Warranty
PXI-6534 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXI-6534 Frequently Asked Questions



Question: What is the change-detection resolution of the NI PXI-6534?



Answer: The NI PXI-6534 has a change-detection resolution of 150 ns.



Question: What is the power requirement for the PXI-6534 at +5 VDC?



Answer: The PXI-6534 has a power requirement of 2.0 A at +5 VDC.



Question: What is the power-on state for the output channels on the PXI-6534?



Answer: The power-on state for the output channels on the PXI-6534 is high-impedance, with the capability to be pulled up or down.



Question: What is the absolute maximum input voltage range for the NI PXI-6534?



Answer: The absolute maximum input voltage range is -0.3 to 5 V for the NI PXI-6534.

PXI-6534 PDF Manuals & Diagrams

  PXI-6534 PDF Manuals

Connecting a 6534 with a Terminal Block_1.pdf

NI PXI-6534 Letter of Volatility.pdf

  PXI-6534 Diagrams

CU_PXI-6534.pdf


PXI-6534 Technical Specifications:


Manufacturer:National Instruments
Model:PXI-6534
Part Number:778288-01
Type:PXI Digital I/O Module
Repair Evaluation:$150
