780217-01, 24-Bit, 326 g, 16-Input, PXIe-4496 Sound and Vibration Module
4.6/5 | 17 ratings
Fast Quote
Quoted Price

Need an Official Quote?

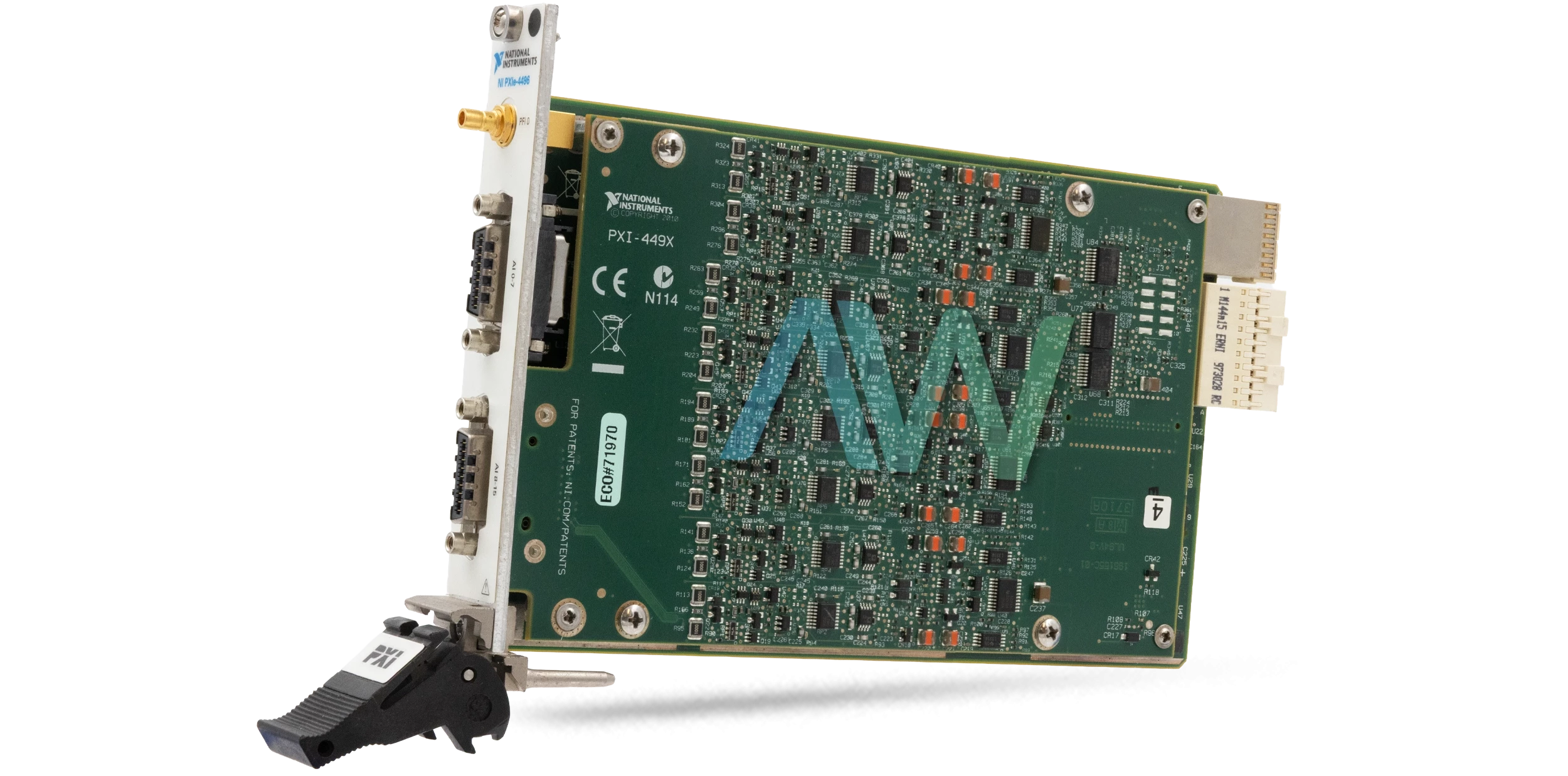

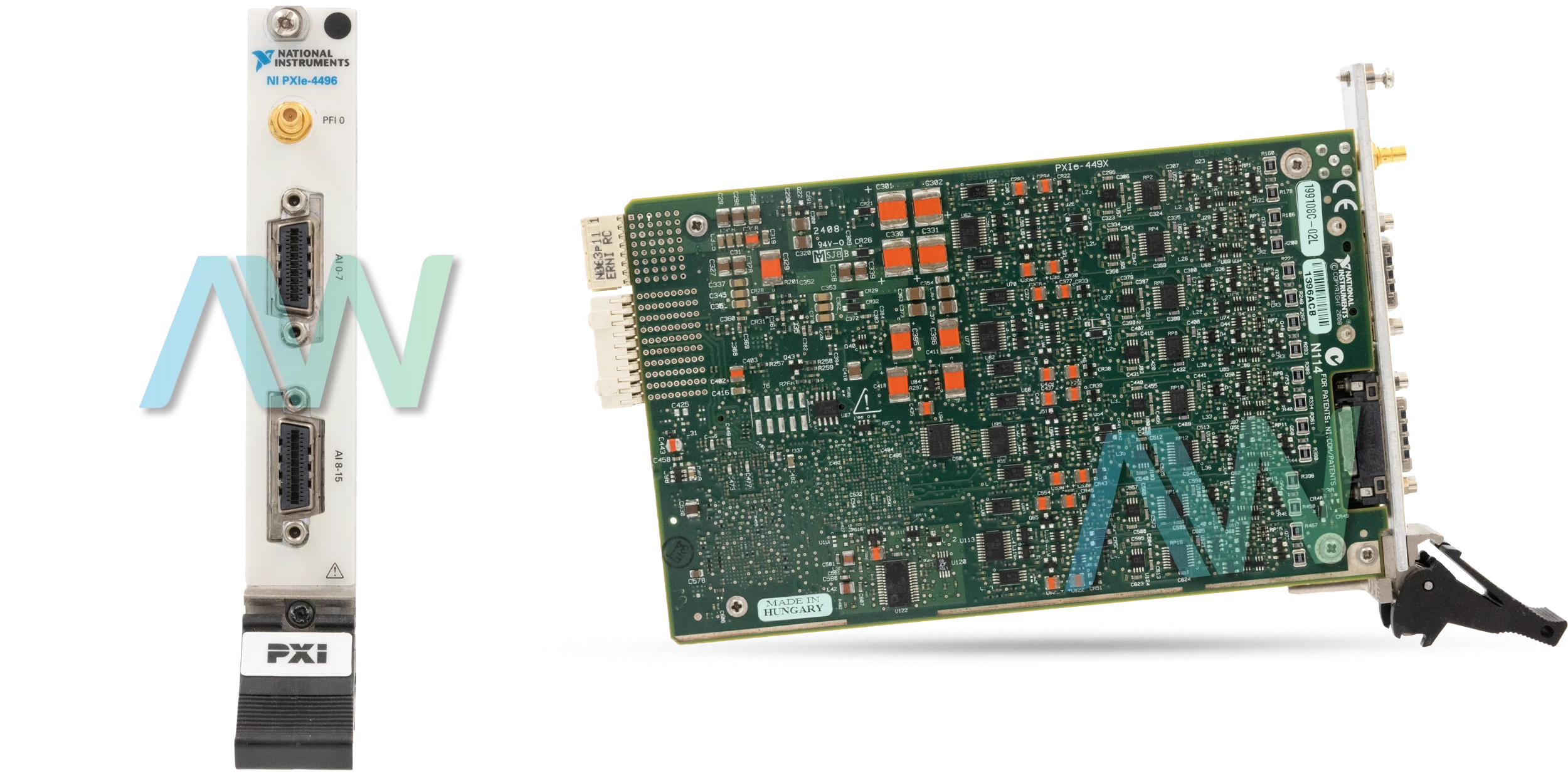

National Instruments 780217-01 16- Input Sound and Vibration Module

The National Instruments 780217-01 is a high-end 16-input sound and vibration module. It is also known as the PXIe-4496 unit and is designed for applications requiring precise and simultaneous data acquisition. This module supports 24-bit analog inputs and features IEPE constant current signal conditioning that makes it ideal for use with transducers like microphones and accelerometers. The 780217-01 excels in high-channel-count scenarios, such as noise, vibration, and harshness (NVH) analysis, as well as dynamic structural testing.

One of the standout features of the 780217-01 is its ability to deliver simultaneous sampling across all channels that ensure accurate time alignment in data collection. The module is equipped with built-in anti-aliasing filters that automatically adjust according to the sampling rate while providing high-fidelity data capture without the risk of aliasing. This sound and vibration module offers software-selectable input gains up to 20 dB and supports Transducer Electronic Data Sheet (TEDS) technology that simplifies sensor setup and minimizes configuration errors. The NI 780217-01 is engineered with a pseudodifferential input configuration that provides 50 Ω between the negative input and chassis ground. It features a Delta-sigma A/D converter with a resolution of 24 bits and is capable of sample rates ranging from 100 S/s to 204.8 kS/s. The module also includes a FIFO buffer size of 4,095 samples and supports direct memory access (DMA) for efficient data transfers.

The input impedance between the positive and negative inputs is 10 MΩ || 35 pF along with a common-mode rejection ratio of 40 dB for input frequencies below 20 kHz.This 780217-01 sound and vibration module is designed for robust operation under varying environmental conditions. It is designed to perform functions under the operating temperature range of 0 °C to 55 °C and it can be stored between -20 °C to 70 °C. It meets several international safety and electromagnetic compatibility (EMC) standards that include IEC 61010-1 and EN 61326-1. This unit ensures reliable performance in laboratory and industrial settings. The dimensions of this NI 780217-01 unit, excluding connectors, are 16 cm × 10 cm (6.3 in. × 3.9 in.) and it also features InfiniBand 4 x analog I/O connectors. The unit weighs only 326 g (11.5 oz.) and it can be installed at the maximum altitude of 2000 MSL.


Part Number

780217-01

Model Name

PXIe-4496

Part Type

16-input Sound and Vibration Module

Resolution

24-bit

Analog Input Coupling

AC Only

Analog Input Voltage Range

±1V and ±10V

Maximum Sample Rate

204.8 kS/s

Dimensions

16 cm x 10 cm (6.3 in. x   3.9 in.)

Weight

326 g (11.5 oz.)

Warranty

2 - 3 years


Why Buy From Apex Waves:

Apex Waves Youtube Video

"Hand carrying parts to fedex directly to make sure I get them overnight. Great service"


"They were very helpful to get me the test equipment that I need."



Delivery:
UPS, FedEX and DHL – Free Ground on all orders
Overnight, Next Day Air or Expedited shipping options available
International delivery available
Same day shipping for in-stock on location
Warranty: All of our products are covered by our Apex Waves Warranty.
3 Year Warranty - New Surplus Parts
2 Year Warranty - Refurbished Parts
Returns: No hassle return policy.
Dedicated customer service team.
Payment: Authorize.net Visa Master Card American Express BB&T Better Business Bureau Dun & Bradstreet
Quick Quotes: Receive Price & Availability Today!
Calibration: Ask About Our Tiered Calibration Levels
Option & Modules: Confirm Your Requirements or Versions
Repair: Cost & Lead Time Available Upon Request for Service
Repair Evaluation: $150
Share this page: Facebook Icon Twitter Icon LinkedIn Icon
Common Typos: Y80217-01, I80217-01, 780W17-01, 78021Y-01, 78021I-01

780217-01



Modular Systems > National Instruments > DSA Devices

780217-01, 24-Bit, 326 g, 16-Input, PXIe-4496 Sound and Vibration Module
4.6/5 | 17 ratings

Call now for best pricing
1-800-915-6216

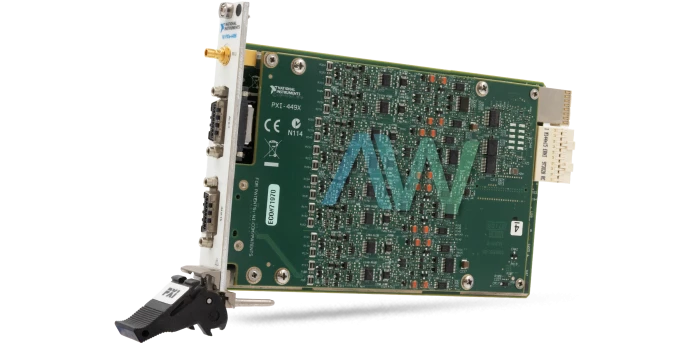

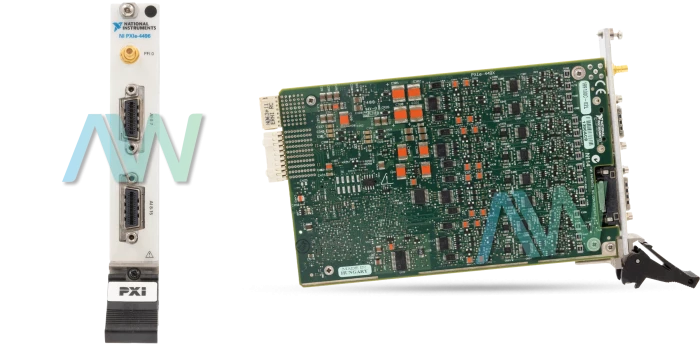

National Instruments 780217-01 16- Input Sound and Vibration Module
