PCI-4474, 110 dB, 4-Input, Sound and Vibration Device
Need an Official Quote?
National Instruments PCI-4474 Sound and Vibration Device

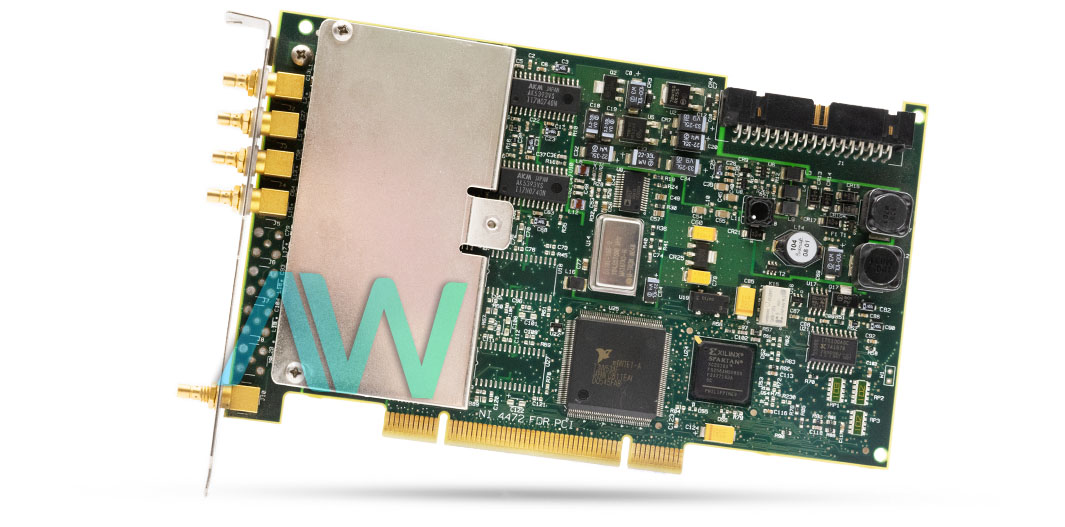

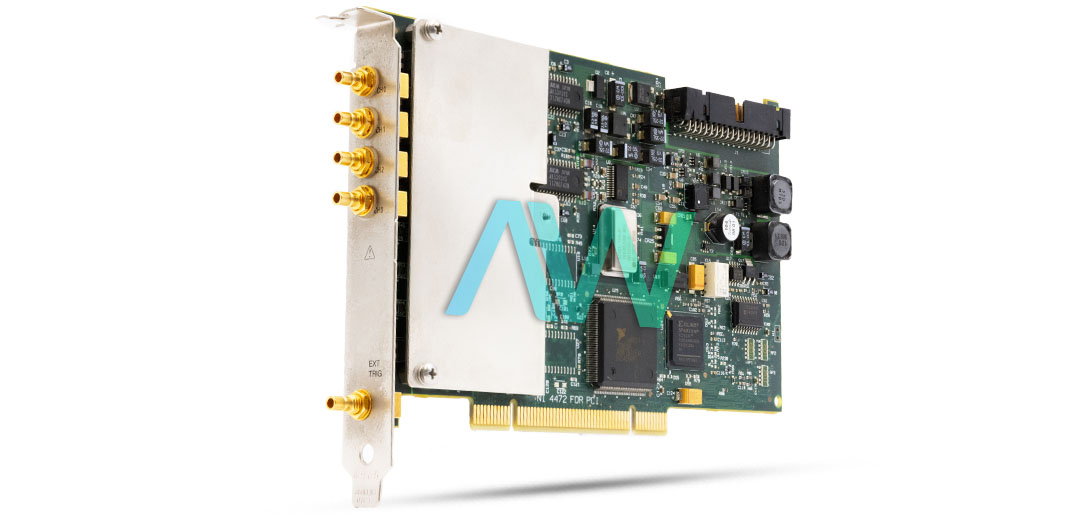

The National Instruments PCI‑4474 (Part numbers: 778729-01 and 778778-01) Sound and Vibration Device has four simultaneously sampled differential analog input channels with 24-bit determination ADCs that are inspected at a programmable rate. The high determination gives the essential precision to make the NI PCI‑4474 device appropriate for sound and vibration examination applications. Remarkable estimations can be accomplished with a NI PCI‑4474. For instance, when examining at 51.2 kS/s and utilizing a 16 k FFT, a dynamic range more prominent than 110 dB can be accomplished. The device has a maximum sampling rate of 102.4 kS/s. Utilizing cutting edge delta-sigma adjusting ADCs, the NI PCI-4474 Sound and Vibration Device accomplishes low noise and low contortion. Since these ADCs utilize a 1-bit quantifier oversampled at a different of the predefined inspecting rate, they create exceptional linearity. To a great degree level, direct stage, lowpass computerized channels shape the quantization noise from the band of interest. Utilizing the delta-sigma balancing ADCs, the PCI‑4474 is safe to the DNL twisting related with customary information securing gadgets.
The user can also apply arranged examination to dynamic signals produced by a powered system that will offer rotating or rejoining parts, including: turbines, blowers, pumps, and motors. With the additional ability for online processing, the user can effortlessly make adaptable applications for condition-based checking and prescient support. The National Instruments PCI 4474 Sound and Vibration Device also has software-selectable AC/DC coupling, no analog output channels, 3.4 Hz High Pass Filter Cutoff Frequency, and SMB front connectors. The device has a recommended warm-up time of 15 minutes and is self-calibrated on software command. External calibration also is advised to be carried out at least once a year. The PCI-4474 is run using the NI-DAQmx driver software which is compatible with software packages like LabVIEW, LabWindow/CVI, or Measurement Studio.
The AC/DC coupled device weighs 6.5 oz., and measures 6.9 x 4.2 in. in physical dimensions. It has a recommended operating temperature range of 0 to 50 °C, a storage temperature range of –20 to 70 °C, an operating random vibration of 5 to 500 Hz (0.3 grms), and a non-operating random vibration of 5 to 500 Hz (2.4 grms).
Model | PCI-4474 |
---|---|
Manufacturer | National Instruments |
Part Numbers | 778729-01 and 778778-01 |
Type | Sound and Vibration Device |
Differential Analog Input Channels | 4 |
Maximum Sample Rate | 102.4 kS/s |
Analog Input Coupling | AC/DC |
Dimensions | 6.9 x 4.2 in. |
Weight | 6.5 oz. |
Warranty | Three Year Warranty |
PCI-4474 Manual | User Manual and Maintenance Manual Available for Download |
Price | Contact a sales representative for a quote. |
Associated part numbers for the PCI-4474:
187611J-03L, 187611K-03L, 187611L-03L, 187611M-03L, 189545A-01, 189545C-01, 189545D-01L, 778729-01, 778778-01
National Instruments PCI-4474 Frequently Asked Questions
Question: Are any accessories required for the NI PCI-4474?
Answer: The NI PCI-4474 requires an SMB Cable.
Question: What is the PCI 4474 driver?
Answer: The PCI 4474 driver is NI-DAQmx.
Question: Which applications can the NI PCI-4474 be used for?
Answer: The NI PCI-4474 can be used for pass-by noise, audio test and measurement, noise and vibration diagnostics, structural vibration, telecommunications testing, machine condition monitoring, and sound power applications.
Question: Why does the PCI-4474 have two part numbers?
Answer: The PCI-4474 has one version that is just the device (Part Number: 778729-01) and another version that comes with the Sound and Vibration Toolkit (Part Number: 778778-01).
PCI-4474 PDF Manuals
ARCHIVED TRADITIONAL NI DAQ USER MANUAL.PDF
DAQ GETTING STARTED GUIDE FOR PCI PCI EXPRESS.PDF
DAQ GETTING STARTED READ ME FIRST NI DAQMX AND DAQ DEVICE INSTALLATION GUIDE.PDF
GUIDE D_INITIATION DAQ POUR PCI PCI EXPRESS.PDF
MAINTAIN FORCED AIR COOLING NOTE TO USERS.PDF
NI 4472 4472B 4474 LETTER OF VOLATILITY.PDF
NI 447X CALIBRATION PROCEDURE.PDF
NI DYNAMIC SIGNAL ACQUISITION USER MANUAL.PDF
PXI SOUND AND VIBRATION MODULES.PDF
C3A0 LIRE EN PREMIER GUIDE DE28099INSTALLATION DE NI DAQMX ET DES PC3A9RIPHC3A9RIQUES DAQ.PDF
