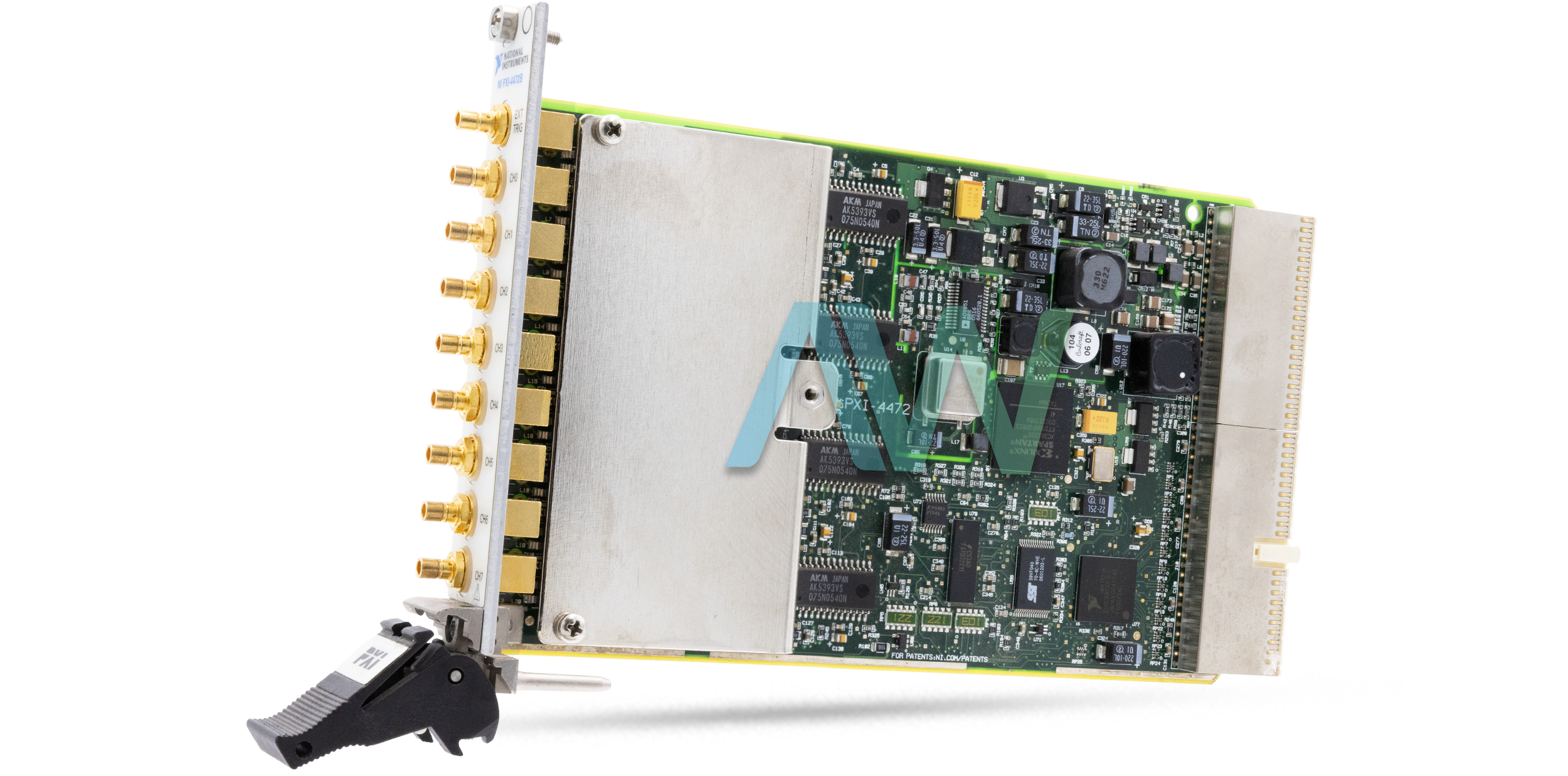

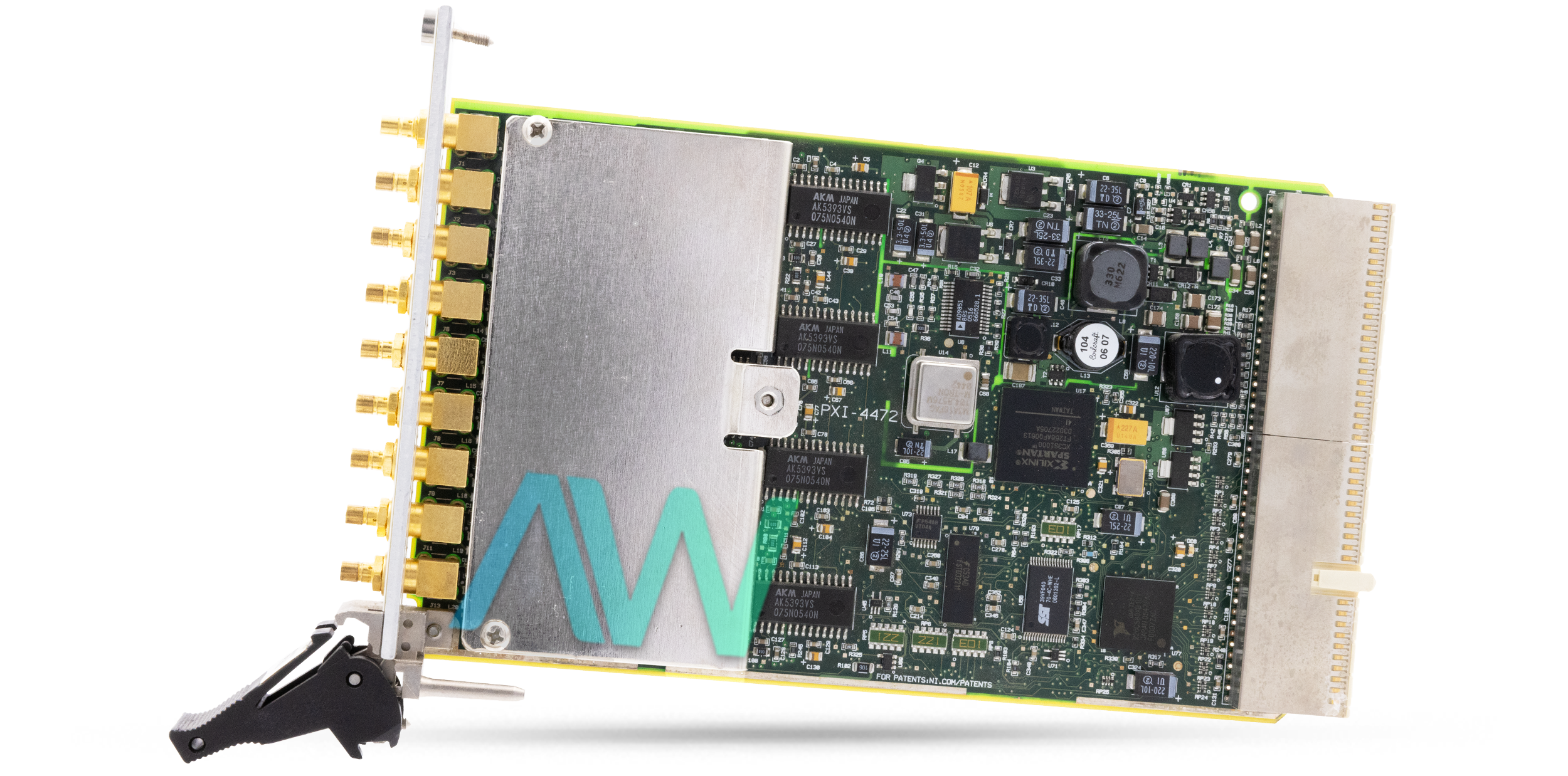

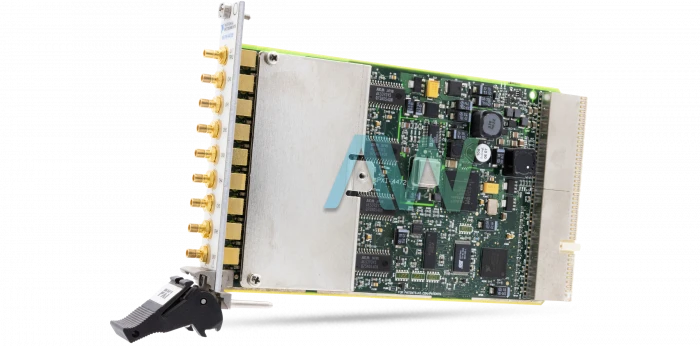

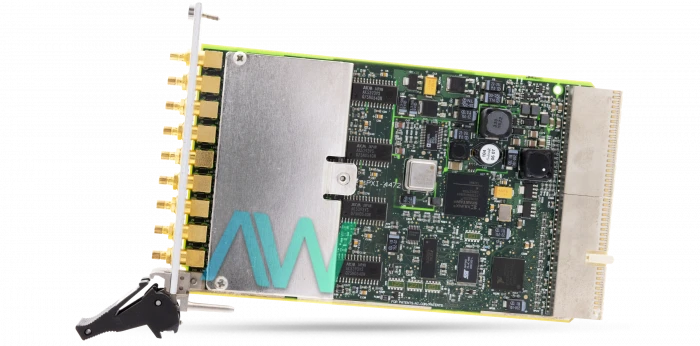

National Instruments PXI-4472B PXI Sound and Vibration Module

The PXI-4472B (Part number: 778279-02) is a Sound and Vibration Module manufactured by National Instruments with eight simultaneously sampled analog input channels, 24 bits resolution, AC/DC coupling, and 0.5 Hz cutoff frequency. This module utilizes a conversion technique called delta-sigma modulation, which means if the desired data rate is 51.2 kS/s, then every ADC will sample the input signal at 6.5536 MS/s. Several more steps follow, but the outcome is a wide dynamic range.

The analog trigger circuitry on the PXI-4472B can be constructed to keep track of any input channel which the user has obtained information from. If the user designates an input channel as the trigger channel, then it will not affect the input channel’s procurement capabilities. Additionally, the user can arrange their Sound and Vibration Module to begin gathering samples after the input signal reaches a certain point.

A few analog triggering modes are available on the National Instruments PXI-4472B, including: window triggering, analog edge, and analog edge with hysteresis. Firstly, window triggering happens when an analog signal arrives or leaves a window determined by two levels. The user can designate the levels by choosing a value for the top and bottom window limitations. For analog edge triggering, the module can be arranged to discover a specific Level and slopes for signals. On the other hand, analog edge triggering with hysteresis allows the user to add a window over or under the trigger level. This trigger type is most commonly implemented to decrease inaccurate triggering caused by noise or jitter in the signal.

PXI-4472B Mature Status has been announced by National Instruments, but the module will still be available for purchase and repairs by Apex Waves.

ModelPXI-4472B (778279-02)
ManufacturerNational Instruments
SeriesDSA Devices
TypePXI Sound and Vibration Module
Analog Input Channels8
High-Pass Filter Cutoff Frequency0.5 Hz
Maximum Sample Rate102.4 kS/s
WarrantyOne Year Warranty
PXI-4472B ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXI-4472B Frequently Asked Questions



Question: What is the difference in the AC cutoff frequency of the NI PXI-4472B and the NI PXI-4472?



Answer: The NI PXI-4472 AC cutoff frequency is 3.4 Hz, while the NI PXI-4472B AC cutoff frequency is .5 Hz.



Question: Is the PXI 4472B considered to be vibration-optimized?



Answer: Yes, the PXI 4472B is vibration-optimized.



Question: Can you synchronize the operation of two or more NI PXI 4472B devices?



Answer: Yes, you can synchronize the operation of two or more NI PXI 4472B devices using the PXI star trigger bus.
