PXIe-4492, 8-Input, 204.8 kS/s, PXI Sound and Vibration Module
Need an Official Quote?
National Instruments PXIe-4492 PXI Sound and Vibration Module

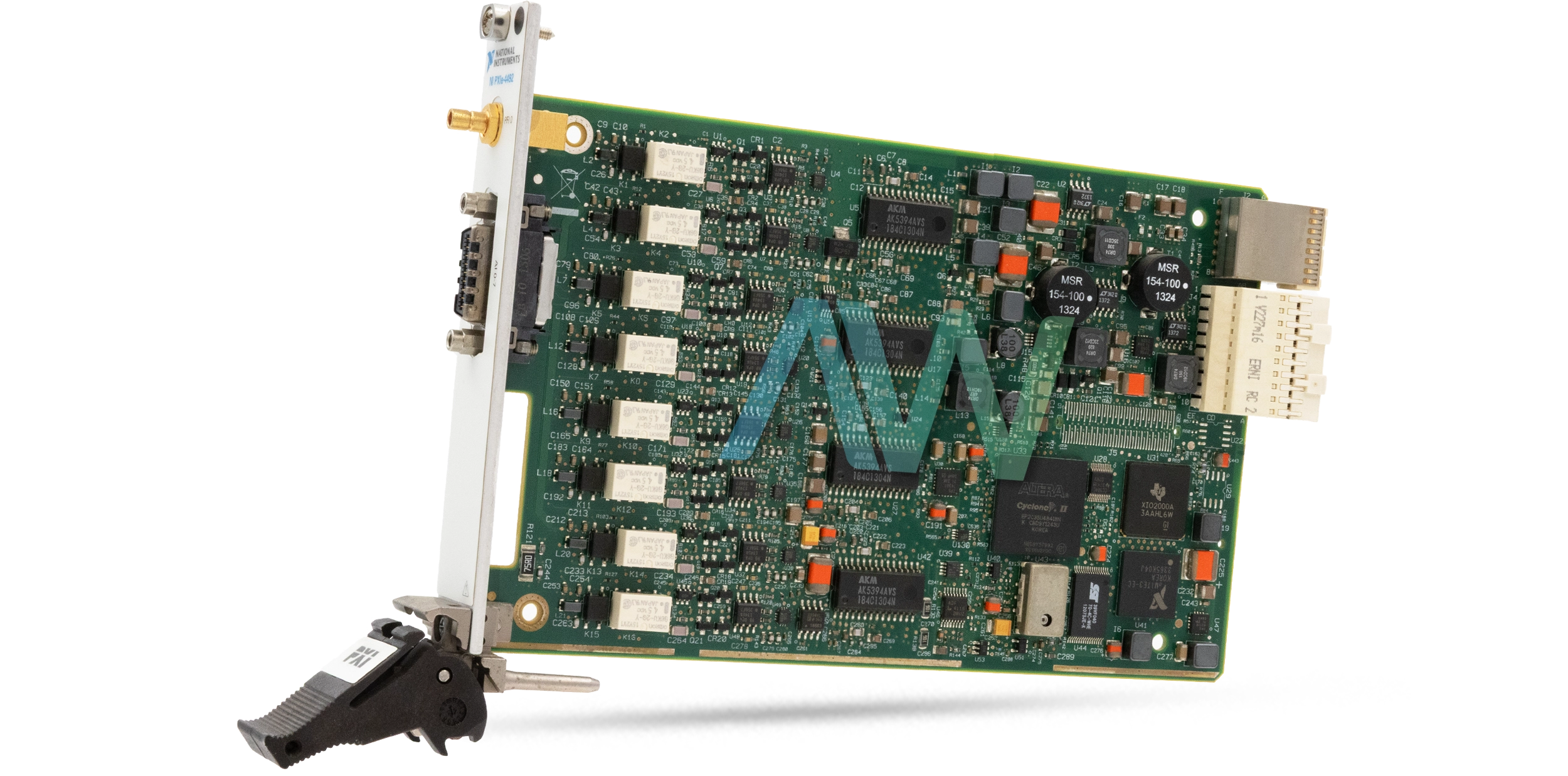

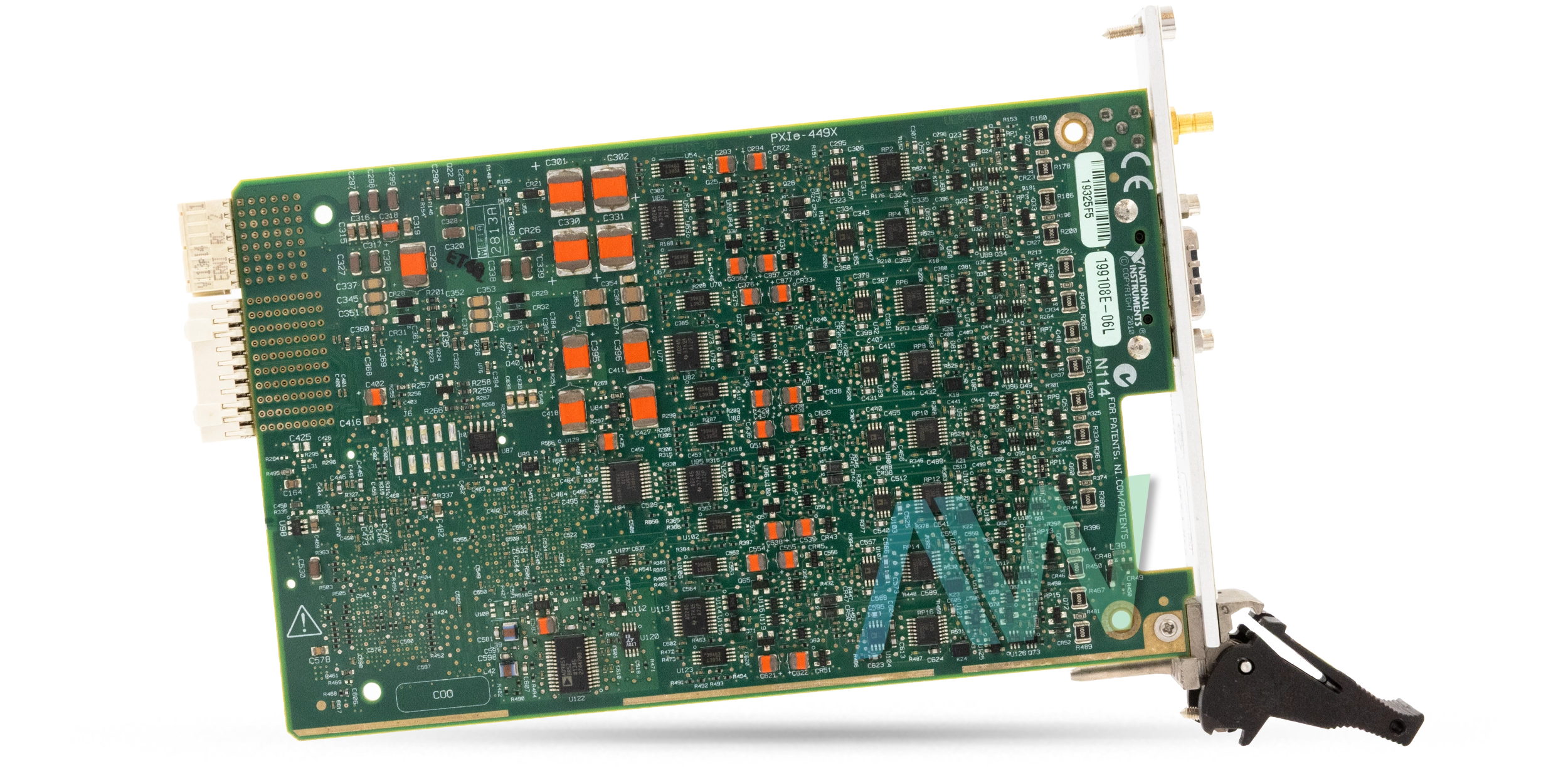

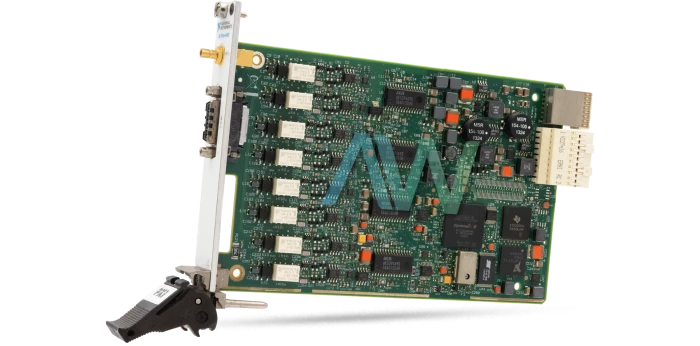

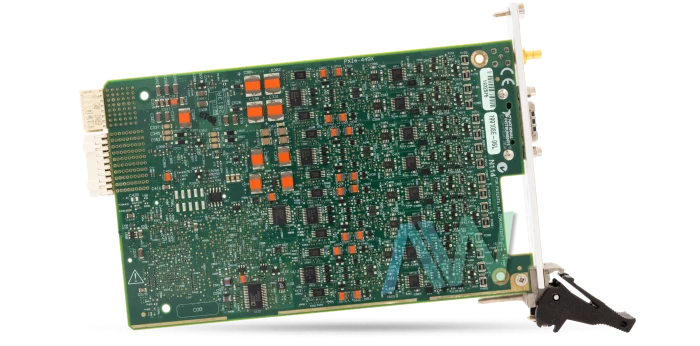

The PXIe-4492 (Part Number: 781490-01) is a highly precise data acquisition (DAQ) module particularly intended for sound and vibration applications. With eight simultaneously sampled analog input channels in a single PXI Express module, the NI PXIe-4492 has adaptable channel arrangement. This module provides satisfactory channels to most single-framework noise, vibration, and harshness (NVH) tests. In addition, if the module is modified with NI-DAQmx driver software, then the data acquisition code is the same for 1 channel, 16 channels, or 272 channels. This means the user can demonstrate ideas and expand later to bigger frameworks if required. For much bigger noise mapping microphone arrays, dynamic structural test, or data streaming applications, the user can synchronize more than 13,000 channels in a multi-chassis PXI Express framework. The device has a high pass filter cutoff frequency of 0.5 Hz.
The NI PXIe-4492 Sound and Vibration Module includes 4X InfiniBand analog I/O connectors. The 4X InfiniBand is generally utilized as a part of elite processing applications, since it gives superb signal integrity with a shield plate between the input signal pairs. NI offers two cabling options for this module: a shielded breakout cable with 8 BNC connectors and a 19 in. rack-mount adapter with 32 BNC connectors. The rack-mount connector acknowledges signals from as many as four NI PXIe-4492 modules.
This PXI Sound and Vibration Module has 204.8 kS/s maximum sample rate, two gain settings, and AC/DC analog input coupling. AC coupling is best for when the source has a great amount of undesired offset. On the other hand, DC coupling is suitable when the signal source only has tiny amounts of offset voltage or if the DC content of the obtained signal is significant.
The NI PXIe-4492 module is customized with NI-DAQmx and is optimized for use with the NI Sound and Vibration Measurement Suite. This suite gives signal preparing usefulness to performing sound estimations, partial octave examination, frequency investigation, transient investigation, and order tracking.
The AC/DC coupled device weighs 5.9 oz, and measures 6.3 x 3.9 in. in physical dimensions. It has a recommended operating temperature range of 0 °C to 55 °C.
The PXIe-4492 has a "Last Time Buy" date of March 28, 2024 from NI- but it will remain available for purchase and repair with Apex Waves.
Model | PXIe-4492 |
---|---|
Part Number | 781490-01 |
Manufacturer | National Instruments |
Type | PXI Sound and Vibration Module |
Differential Analog Input Channels | 8 |
Analog Input Coupling | AC/DC |
High Pass Filter Cutoff Frequency | 0.5 Hz |
Dimensions | 6.3 x 3.9 in. |
Weight | 5.9 oz. |
Warranty | Three Year Warranty |
PXIe-4492 Manual | User Manual and Maintenance Manual Available for Download |
Price | Contact a sales representative for a quote. |
Associated part numbers for the PXIe-4492:
156340A-01L, 199108D-06L, 199108E-06L, 199108F-06L, 199108H-06L, 781490-01, 781490-02
National Instruments PXIe-4492 Frequently Asked Questions
Question: How many gain settings are on the PXIe-4492?
Answer: The PXIe-4492 has 2 gain settings.
Question: What is the maximum sample rate of the NI PXIe-4492?
Answer: The maximum sample rate of the NI PXIe-4492 is 204.8 kS/s.
Question: What is the FIFO buffer size of the PXIe-4492?
Answer: The FIFO buffer size of the PXIe-4492 is 4,095 samples.
Question: What type of ADC is on the NI PXIe-4492?
Answer: The NI PXIe-4492 has a Delta-sigma ADC.
PXIe-4492 PDF Manuals
DAQ GETTING STARTED GUIDE FOR PXI PXI EXPRESS.PDF
DAQ GETTING STARTED READ ME FIRST NI DAQMX AND DAQ DEVICE INSTALLATION GUIDE.PDF
MAINTAIN FORCED AIR COOLING NOTE TO USERS.PDF
NI 4492 LETTER OF VOLATILITY.PDF
NI 449X CALIBRATION PROCEDURE.PDF
NI DYNAMIC SIGNAL ACQUISITION USER MANUAL.PDF
