National Instruments USB-4431 Sound and Vibration Device

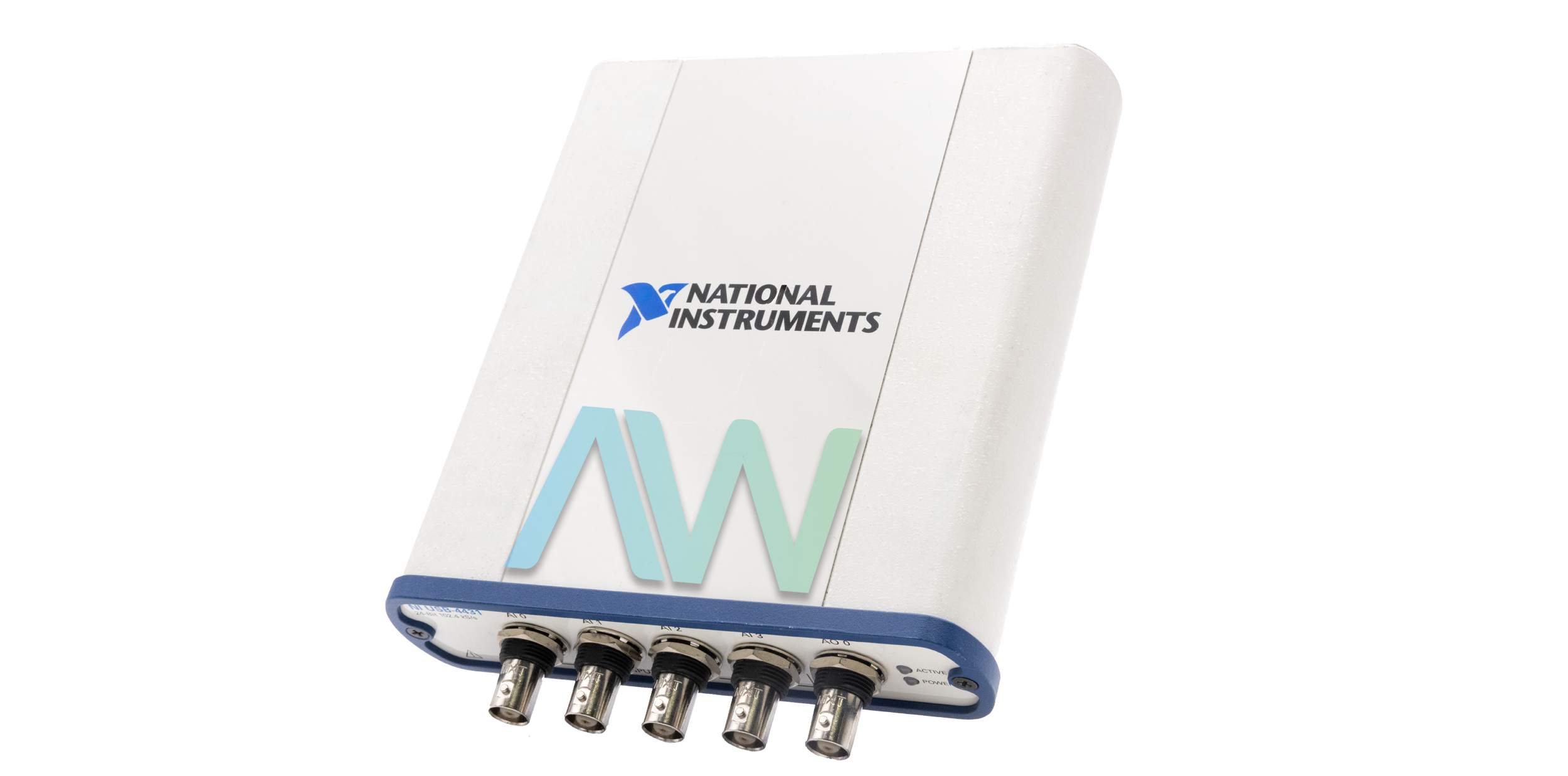

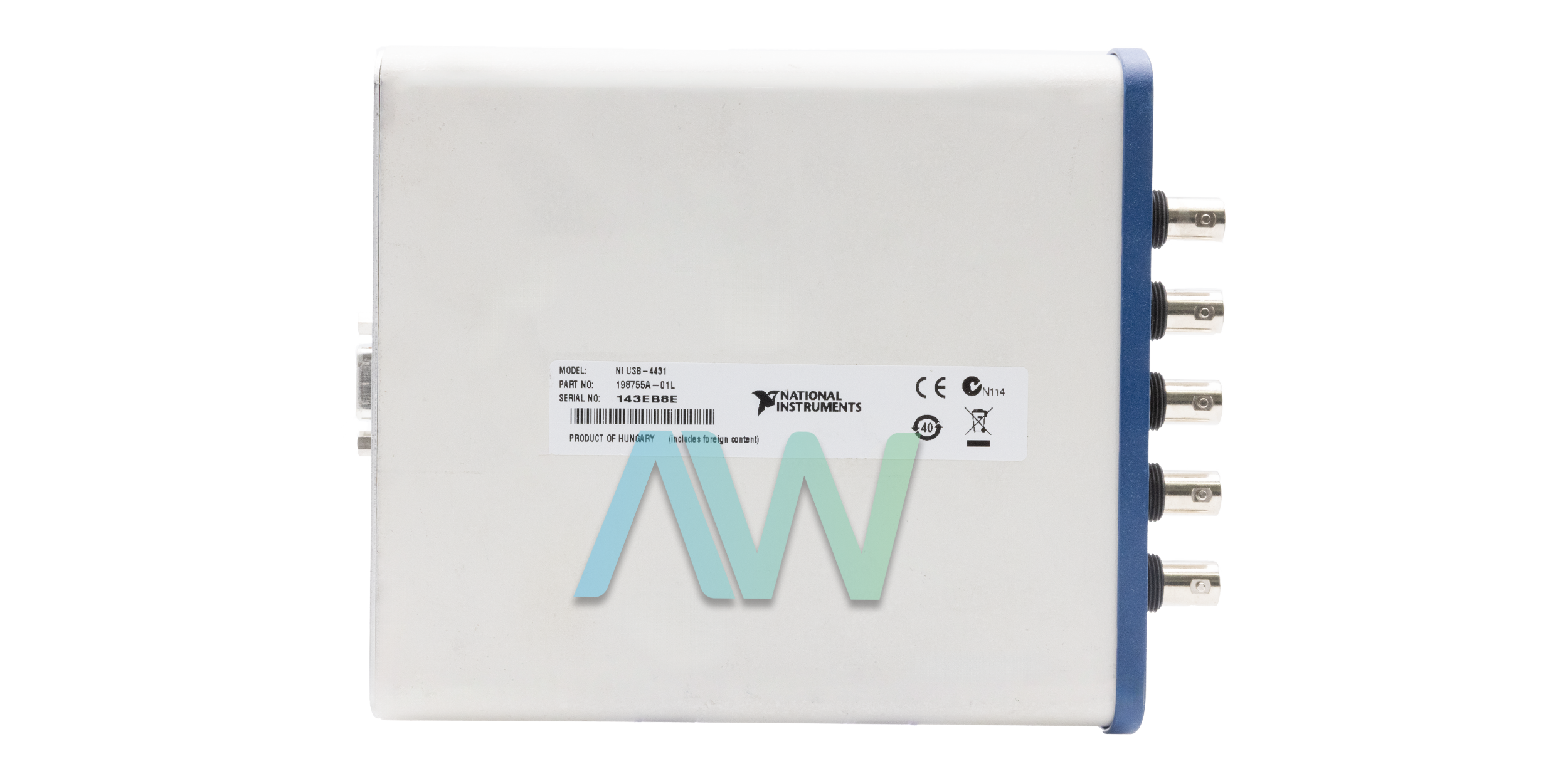

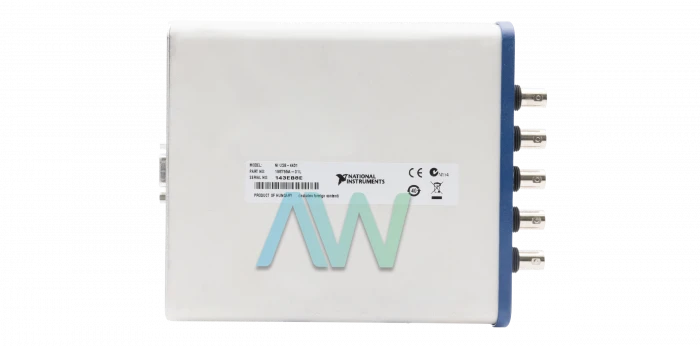

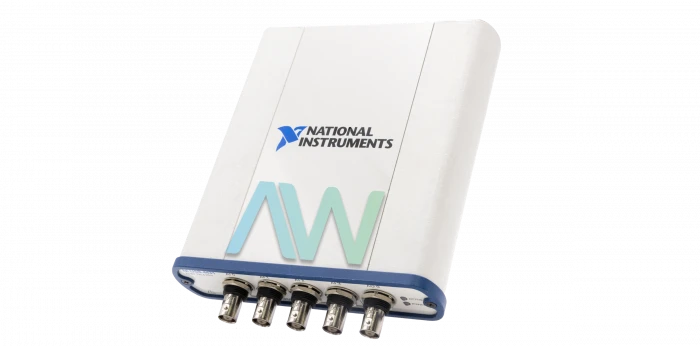

The USB-4431 (Part Number: 780164-01) from National Instruments is a dynamic Sound and Vibration Device that features 4 analog input channels and 1 analog output channel. By utilizing IEPE sensors, the NI USB-4431 delivers high accuracy measurements with an analog input dynamic range of 100 dB. The four differential analog input channels of the device have a sample rate range that measures from 2 kS/s up to 102.4 kS/s simultaneously. With a maximum power consumption of 2.5 W, the USB-4431 sound and vibration device is an excellent choice for portable test applications- such as frequency response audio tests.
The channels of the NI USB-4431 device are each equipped with 1 BNC input connector and 24 bits of ADC resolution. The analog output of the device boasts a frequency range of DC to 43.5 kHz, and it is safeguarded against damage with indefinite short circuit protection capabilities. The USB-4431 offers an input range up to ±10V, as well as input protection of ±60V.
This Sound and Vibration Device also has a single output channel, with a resolution of 24-bits, and 1 BNC signal connector. The output signal range of the analog output channel is ±3.5V. This model additionally provides an uncertain short circuit protection. The value of the minimum working load for this channel is 1 kΩ and the output resistance is 50 kΩ. This device has an immense range of analysis capabilities, including Power Spectra, Zoom FFTs, and Fractional-Octave analysis.
In addition to analog input and analog output, the NI USB-4431 is equipped with digital I/O lines for start or reference trigger importing. Compatible with 5V TTL (transistor - transistor logic), these lines offer +5.6 V/–0.5 V of input protection.
By using the NI-DAQmx driver software, the NI USB-4431 is compatible with software packages including LabVIEW, Measurement Studio, and LabWindows. Measuring physical dimensions of 142 mm × 180 mm × 38 mm (5.6 in. × 7.1 in. × 1.5 in.) and weighing in at 675 g (1.5 lbs), the USB-4431 sound and vibration device has a recommended temperature range of –30 °C to 70 °C for both operation and storage.
| Model | USB-4431 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 780164-01 |
| Type | Sound and Vibration Device |
| Analog Input Channels | 4 |
| Analog Output Channels | 1 |
| Maximum Sample Rate | 102.4 kS/s |
| Dimensions | 5.6 in. × 7.1 in. × 1.5 in. |
| Weight | 1.5 lbs. |
| Warranty | Three Year Warranty |
| USB-4431 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
