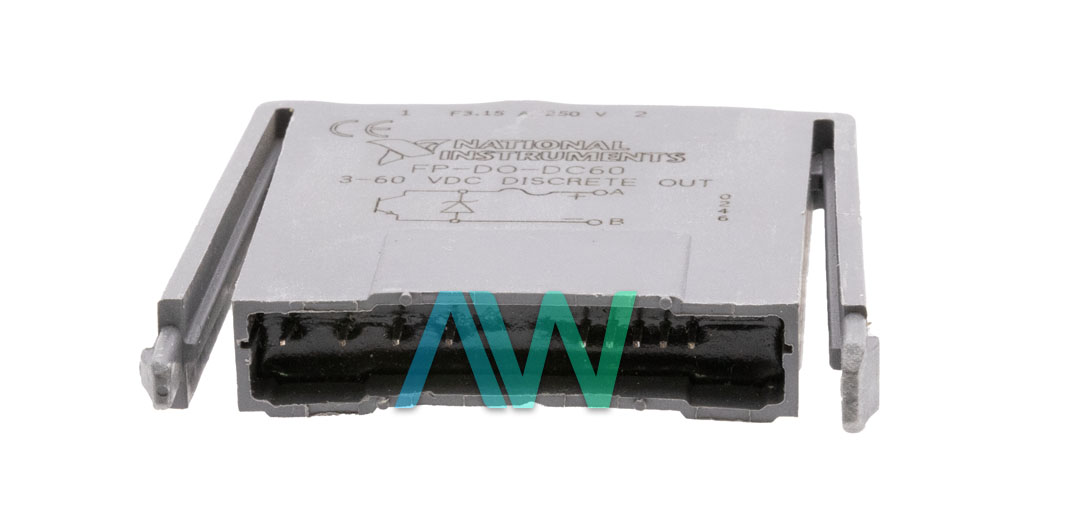

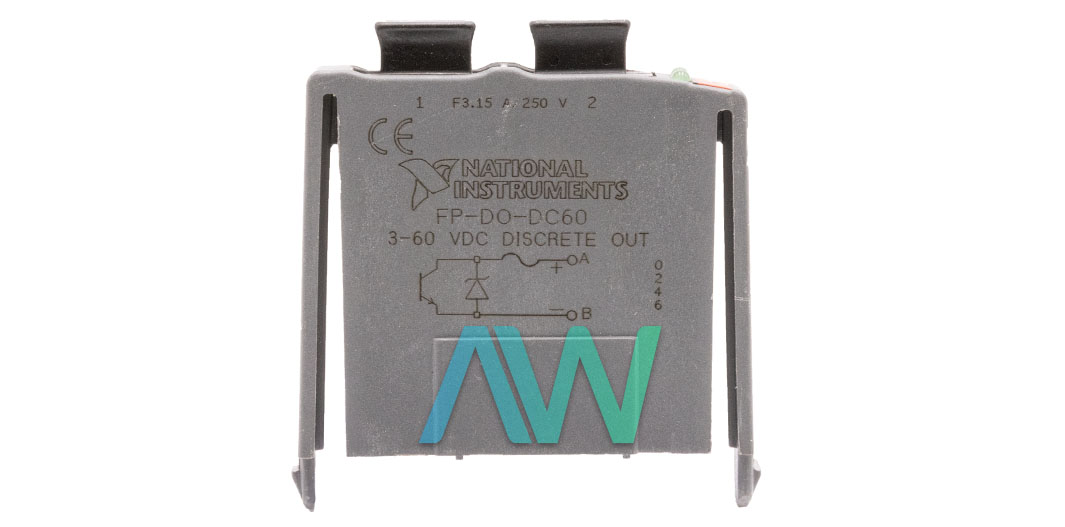

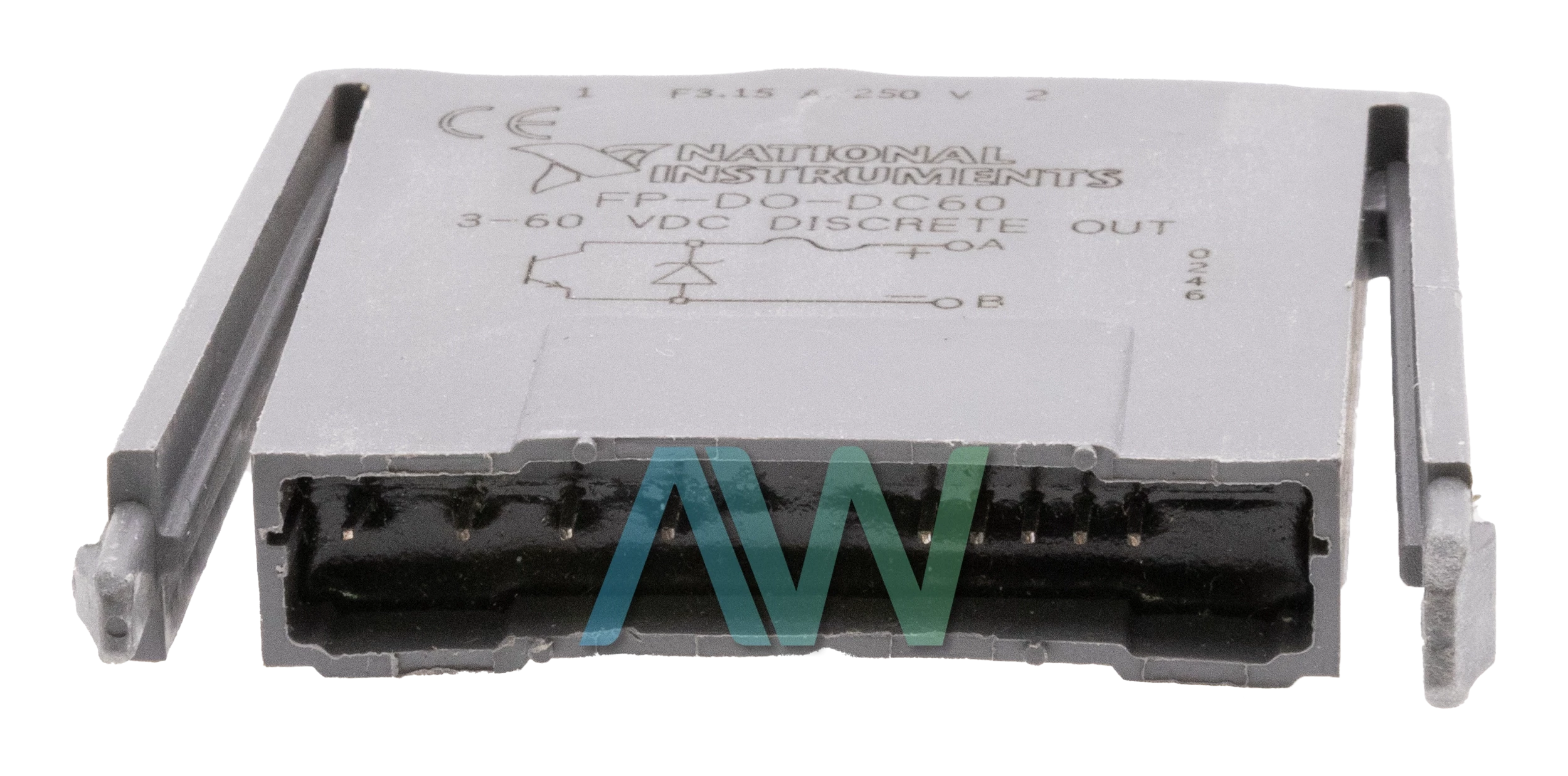

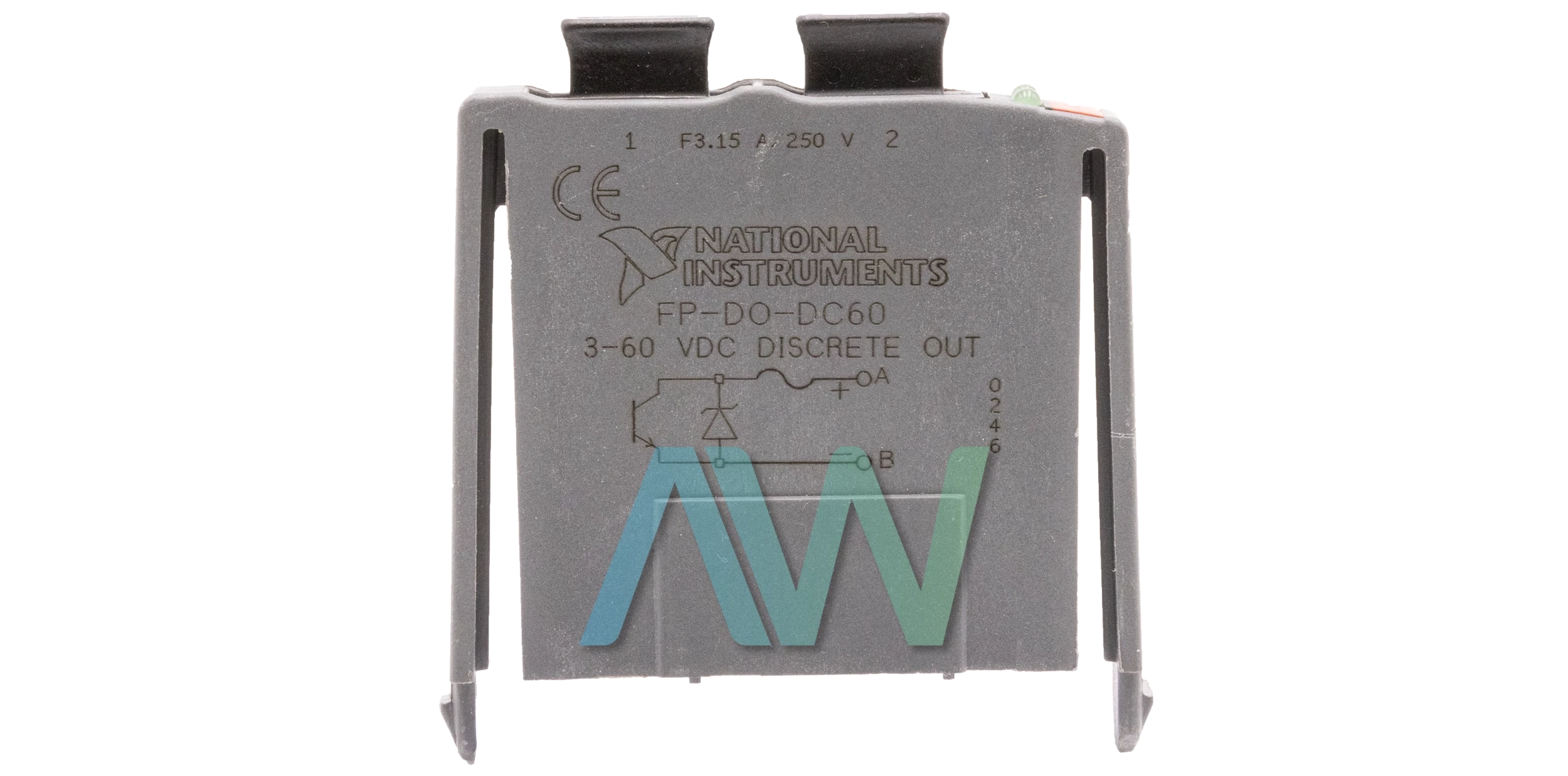

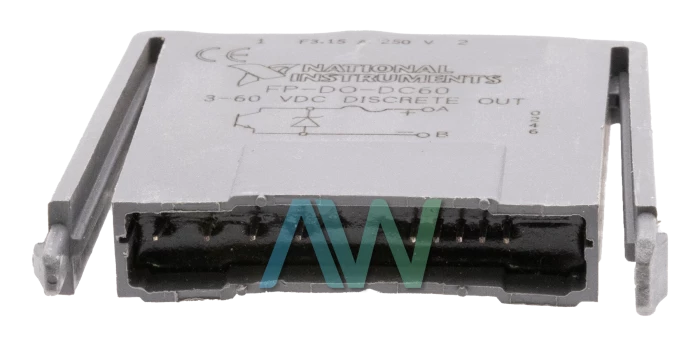

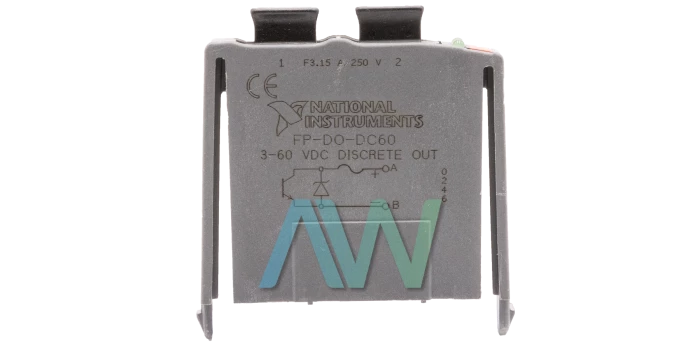

National Instruments FP-DO-DC60 Discrete Output Module
The FP-DO-DC60 is a FieldPoint Discrete Output Module, manufactured by National Instruments. It is available for order under part number 778071-13. The FP-DO-DC60 offers isolation between its output channels. This module is compatible with sinking as well as sourcing devices.
The NI FP-DO-DC60 can be connected to the FP-TB-10 terminal base. The FP-TB-10 can mount up to six FP-DO-DC60 modules simultaneously. A single network interface module can facilitate up to 9 FP-TB-10 models. In addition, if your application does not need channel-to-channel isolation, then you can utilize the C and V terminals on the FP-TB-10 terminal base to bus-connect power supplies to your loads.
This discrete output module is an efficient dual-channel module. The NI FP-DO-DC60 FieldPoint module supports the voltage range from 3 – 60 VDC. The corresponding current rating of the FP-DO-DC60 depends upon the ambient temperature. The device has a power requirement of 70 mW and a voltage drop of 1.3 V at 0.75 A.
The National Instruments FP-DO-DC60 module features two LEDs. These LEDs specify the state of each channel. When a channel is in the active state, the corresponding LED will be lit up. The LEDs installed on this module are green. The channels on the National Instruments FP-DO-DC60 are also equipped with two fuses. Each channel of the module has an independent fuse. The NI FP-DO-DC60 is a fast scanning module with a scan time of 0.2 ms.
The I/O module weighs 2.1 oz and has a field-wiring diameter of 24 to 12 AWG. It has recommended operating and storage temperature ranges of -40 to 70°C and -55 to 85°C, respectively, and a non-condensing relative humidity range of 10 to 90%. The NI device is designed to comply with the following electrical safety standards: IEC 61010-1, EN 61010-1, UL 3121-1, UL 61010C-1, and CAN/CSA C22.2 No. 1010.1.
| Model | FP-DO-DC60 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 778071-13 |
| Type | Discrete Output Module |
| Output Channels | 2 |
| Voltage Range | 3 to 60 VDC |
| Isolation | Eqch channel is optically isolated. |
| Power Requirement | 70 mW |
| Voltage Drop | 1.3 V at 0.75 A |
| FP-DO-DC60 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a quote |
Associated part numbers for FP-DO-DC60:
National Instruments FP-DO-DC60 Frequently Asked Questions
Question: Can the FP-DO-DC60 be used with both sinking and sourcing devices?
Answer: Yes, the module sinks current into the “a” terminals and sources current out of the “b” terminals.
Question: Does the FP-DO-DC60 have replaceable fuses?
Answer: Yes, it has two replaceable fuses—one for each channel.
Question: What is the voltage range of the FP-DO-DC60?
Answer: The voltage range is 3 to 60 VDC.
