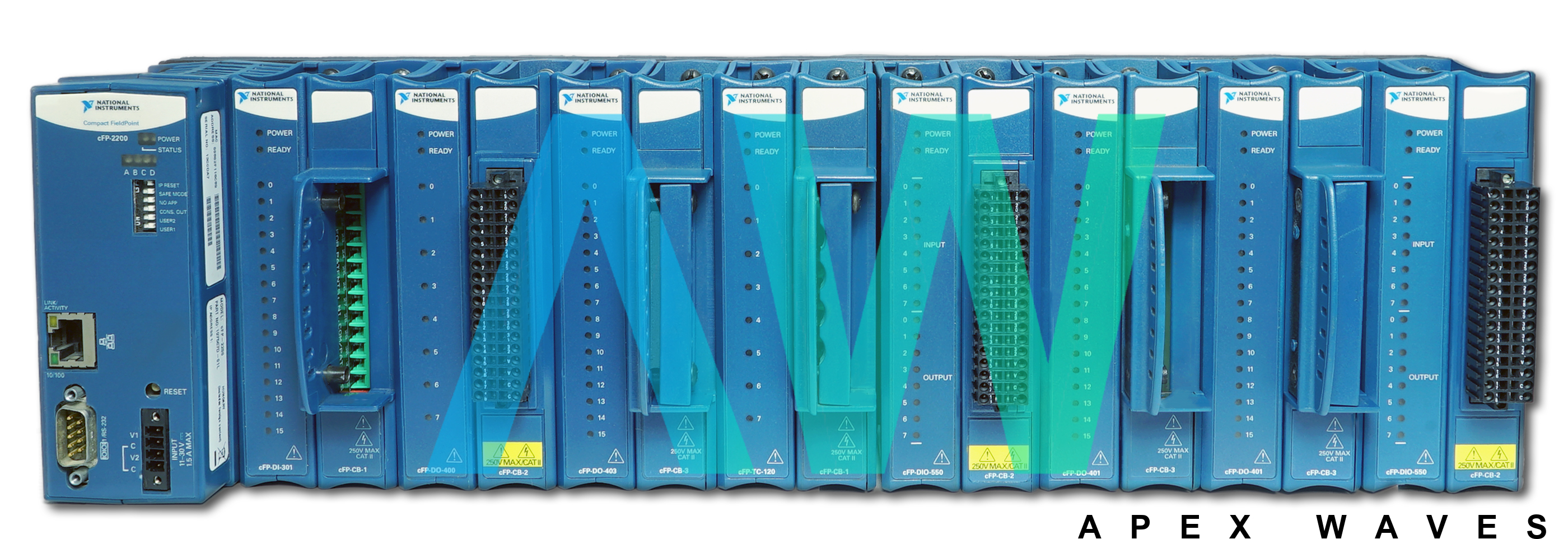

National Instruments FP-PWM-520 Pulse-Width Modulation Output Module
The NI FP-PWM-520 (Part Number: 777518-520) is a FieldPoint Pulse-Width Modulation (PWM) Output Module equipped with eight pulse-width modulation sourcing output channels. This module offers an independent output period configuration for each channel from 1 millisecond to 65535 milliseconds in 1-millisecond increments. With a user-provided power supply, output sources of 5 VDC or 10-30 VDC can be acquired from this module.
The NI FP-PWM-520 is designed to be mounted on the FP-TB-x (FieldPoint terminal base). The entire process of installation and uninstallation of this module is quick and straightforward since it can be added or removed from a live system. The output channels of this module operate in complete optical isolation from the remaining FieldPoint bank. For additional safety, the output channels are offered with special short-circuit protection gear. Resetting a tripped channel does not require physical interruption since it can be done through FieldPoint software.
During the ON state, a transistor is used to complete the circuit between Vsup and Vout. This transistor remains off during the OFF state, allowing only a minimum amount of leakage current to flow. With Pulse-Width Modulation Output Module, the user can set the duty cycle for each of the output channels independently. The user can set any channel to operate at a duty cycle for 0 % to 100 %. Each output of the NI FP-PWM-520 can drive up to 1 A. This module has 8 PWM output terminals (or digital output terminals), 16 common terminals (COM), and 8 power supply terminals (Vsup).
| Model | FP-PWM-520 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 777518-520 |
| Type | Pulse-Width Modulation Output Module |
| Channels | 8 |
| Output Type | Sourcing |
| Output Voltage | Supply voltage – (Output current × Output impedance) |
| Supply Voltage | 5 VDC or 10 to 30 VDC, user-provided |
| Weight | 4.9 oz. |
| Warranty | 2-3 Year Warranty |
| FP-PWM-520 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for the FP-PWM-520:
18571.5, 185712F-01, 185712G-01L, 185715A-01, 185715B-01, 185715C-01, 185715D-01, 777518-520
National Instruments FP-PWM-520 Frequently Asked Questions
Question: What is the output frequency of the FP-PWM-520?
Answer: The output frequency of the FP-PWM-520 is 1 kHz maximum.
Question: What is the power required from the network module for the NI FP-PWM-520?
Answer: For the NI FP-PWM-520, 1 W is required from the network module.
Question: What is the resolution of the FP-PWM-520?
Answer: The resolution of the FP-PWM-520 is 12 bits.
Question: What type of protection does the NI FP-PWM-520 have?
Answer: The NI FP-PWM-520 has short-circuit protection.
