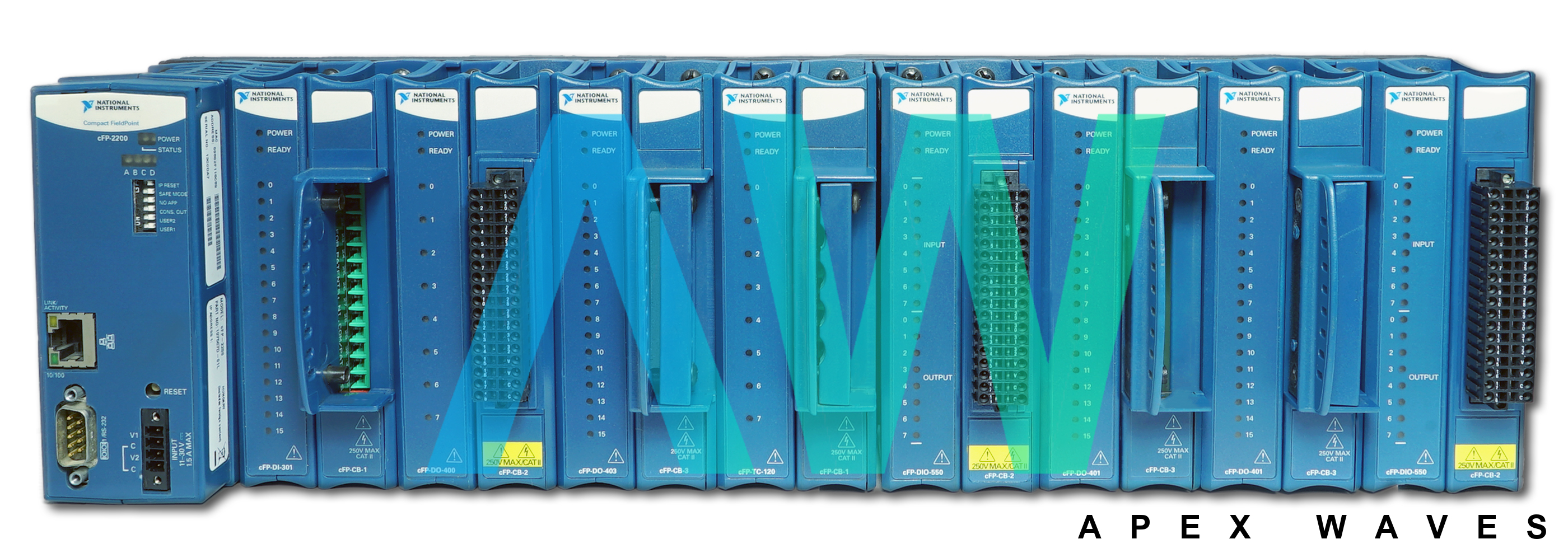

FP-Quad-510 National Instruments Quadrature Encoder Input Module | Apex Waves | Image
FP-Quad-510 National Instruments Quadrature Encoder Input Module | Apex Waves | Image
FP-Quad-510 New
FP-Quad-510 Refurbished

✔ 2 Year Warranty Included

✔ Free Domestic Ground Shipping

✔ NIST Calibration Available

Get Price & Availability for the FP-Quad-510

Fast response from an Apex Waves specialist.

Fast Response Avg. 15 min
ISO 9001 Quality 2 Year Warranty
In Stock Ships in 5-7 Days

National Instruments FP-Quad-510 Quadrature Encoder Input Module

The National Instruments FP-Quad-510 (Part Number: 777518-510) is a 4-Axis Quadrature Encoder Input Module. This FieldPoint module offers four position counters, as well as velocity measurement. The four position counters are provided with Phase A, B, and index input terminals. Moreover, with LabVIEW RT, the NI FP-Quad-510 can offer 32-bit counters also. The inputs of this Quadrature Encoder Input Module are compatible with differential encoders and TTL.

 Like other FieldPoint modules, the NI FP-Quad-510 can easily be mounted on any available FieldPoint terminal base from where it draws power. For position counter inputs, there is a circuit provided that consists of a comparator. This comparator supports a current-limited input function, whereas the comparators output drives an ob. When a voltage above the threshold voltage is applied to the input terminal, the optoisolator is turned on by the comparison and an ON state is registered.

This Quadrature Encoder Input Module supports X4 encoding as well. The X4 encryption consumes four counts per period. Operating with four counts per period enables each axis to count as many as 1 Million counts per second. To determine each channel`s velocity, the NI FP-QUAD-510 comes with a time base counter for each axis. Channels 8 to 11 are four data registers provided to record velocity data related to axes 0 to 3 respectively. Each of these four registers contains the velocity of its respective channel in the format of "number of counts per ms (microsecond)." The National Instruments FP-QUAD-510 also comes with two status LEDs, READY and POWER.

ModelFP-Quad-510
ManufacturerNational Instruments
Part Number777518-510
TypeQuadrature Encoder Input Module
Encoder Input Channels4
Input Bandwidth250 kHz for each input
Encoder Frequency1 million counts/second
Power from Network Module1.2 W maximum
Weight5.1 oz.
FP-Quad-510 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for FP-Quad-510:

National Instruments FP-Quad-510 Frequently Asked Questions



Question: What is the resolution of the FP-Quad-510 module?



Answer: The resolution of the FP-Quad-510 module is 32 bit for the position resolution and 16 bit for the velocity resolution.



Question: What is the regulated power output of the FP-Quad-510?



Answer: The regulated power output of the FP-Quad-510 is 5 V at 600 mA.



Question: What is the minimum input pulse width of the NI FP-Quad-510?



Answer: The minimum input pulse width of the NI FP-Quad-510 is 2 µs.



Question: Which types of instruments are the inputs of the NI FP-Quad-510 compatible with?



Answer: The inputs of the NI FP-Quad-510 are compatible with differential encoders and TTL.
