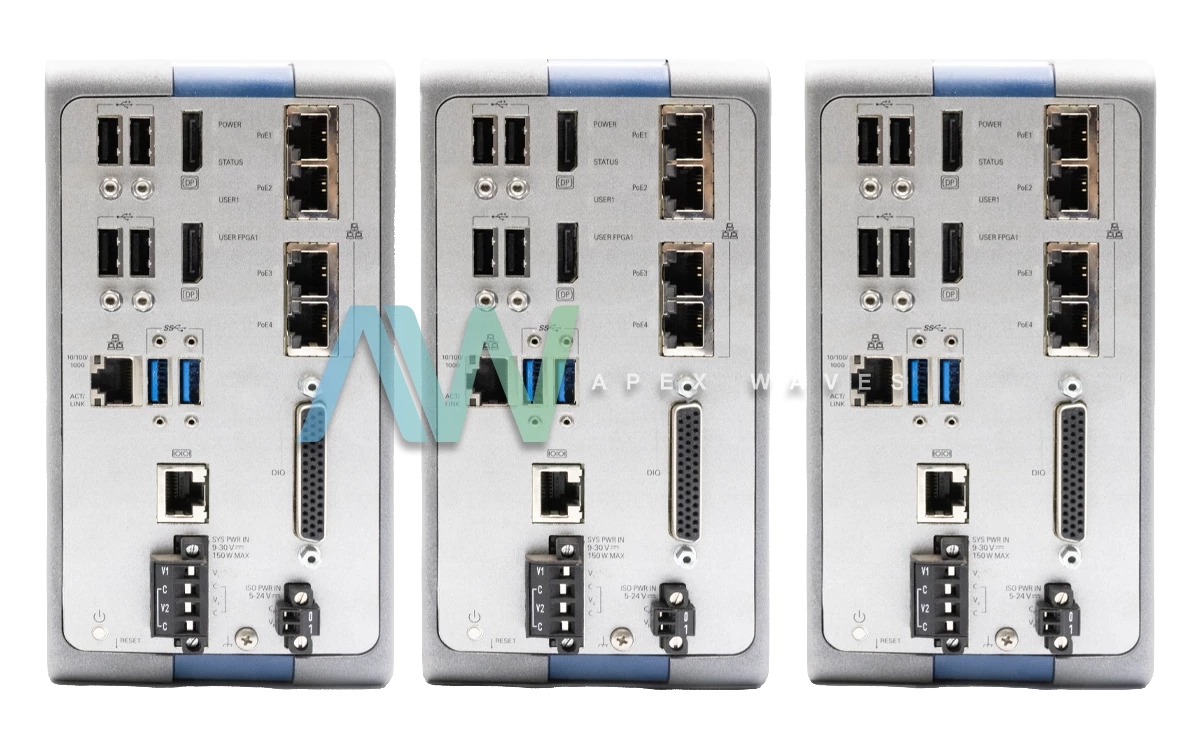

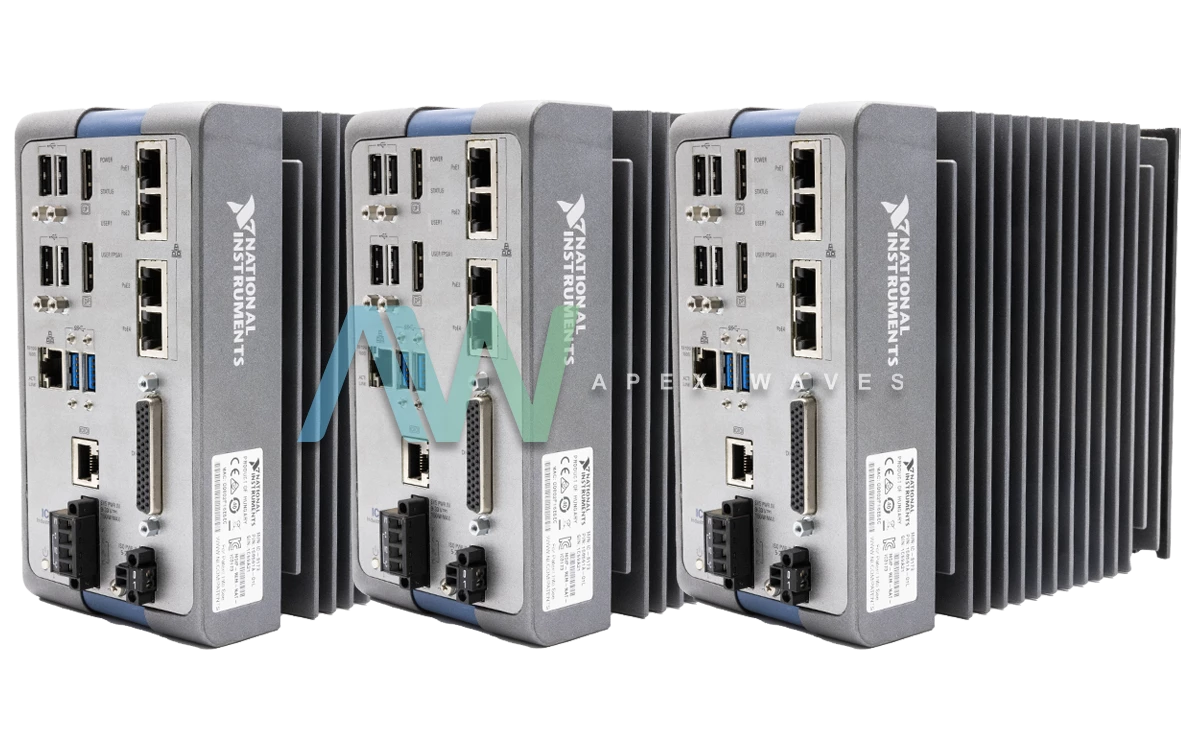

Pictures shown are a representation. Actual item may vary if no part number is provided on quote request.

Same Day Calibration Available

2-3 Year Warranty Included

Free Ground Shipping

Or speak to a sales representative for additional information:

IC-3120 Request for Availability

IC-3120, 1.91 GHz, Industrial Controller

Rated 4.6/5 | 6 ratings

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments IC-3120 Industrial Controller

The NI IC-3120 (Part Numbers: 784959-01 and 784960-01) is a durable, small Industrial Controller. This model features a 1.91 GHz, Quad-Core Intel Atom processor. The IC-3120 offers two GigE Ports with PoE (Power over Ethernet) technology, network connectivity, and FPGA-based I/O capabilities for distributed control applications.

This Industrial Controller comes with DDR3L type 4 GB RAM that can operate at a speed of 1333 MT/s. This model also has 2 GB nonvolatile storage. The reconfigurable FPGA incorporated in the NI IC-3120 is a Spartan-6 LX25, which offers 30,064 flip-flops, 15,032 6-input LUTs, 38 DSP48A1 slices, and 52 (936 Kbits) RAM blocks. This controller does not have a synchronization feature.

For networking and connectivity, this National Instruments Industrial Controller comes with a standard Ethernet port (RJ45). There are two PoE-Capable Network Ports provided as well. Each of the PoE ports is designed to supply 15.4 Watts of power. The NI IC-3120 comes featured with eight Isolated Inputs (current sinking types). There are also eight Isolated Output Channels (current sourcing type). For video output, the front panel of the IC-3120 NI contains a VGA port that can be accessed through any standard VGA cable.

The single seral port featured on this Industrial Controller can be configured to operate in either RS-232 mode or RS-485/422 mode. Users can configure the serial port mode by utilizing the BIOS setup utility. The single serial port is a RJ50, 10-position modular jack, which can connect to various serial devices, such as scanners, PLCs, and lighting devices.

ModelIC-3120
ManufacturerNational Instruments
Part Numbers784959-01 and 784960-01
TypeIndustrial Controller
Processor Core1.91 GHz Quad Core Intel Atom
FPGASpartan-6 LX25
RAM Size4 GB
Dimensions4.3 in. × 2.4 in. × 5.1 in.
Weight2.01 lb.
Warranty2-3 Year Warranty
IC-3120 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for IC-3120:

National Instruments IC-3120 Frequently Asked Questions



Question: What is the difference between the part numbers for the IC-3120?



Answer: Part number 784959-01 for the IC-3120 has NI Linux Real Time Controller OS and part number 784960-01 has Windows Embedded Standard 7 Controller OS.



Question: What is the IP Rating of the NI IC-3120?



Answer: The NI IC-3120 has an IP Rating of IP 40.



Question: Which power supplies are suggested for use with the IC-3120 NI?



Answer: The power supplies suggested for use with the IC-3120 NI are the PS-15 Industrial Power Supply to power the system or isolated outputs, a 48 V, DIN Rail, Industrial Power Supply for Power over Ethernet, or a 48 V, Desktop Power Supply for Power over Ethernet.



Question: Which type of interface does the network port on the NI IC-3120 have?



Answer: The network port on the NI IC-3120 has an RJ45 interface.
