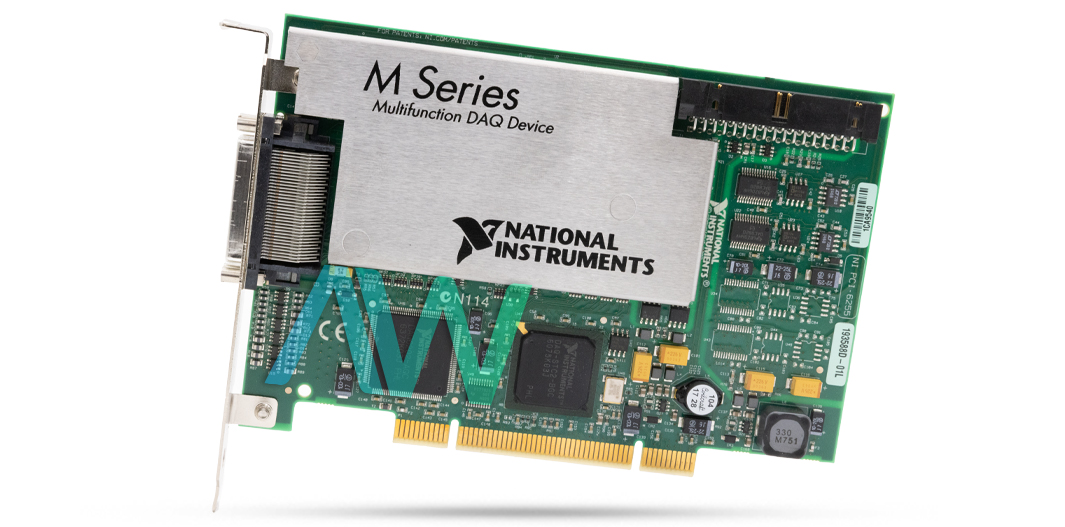

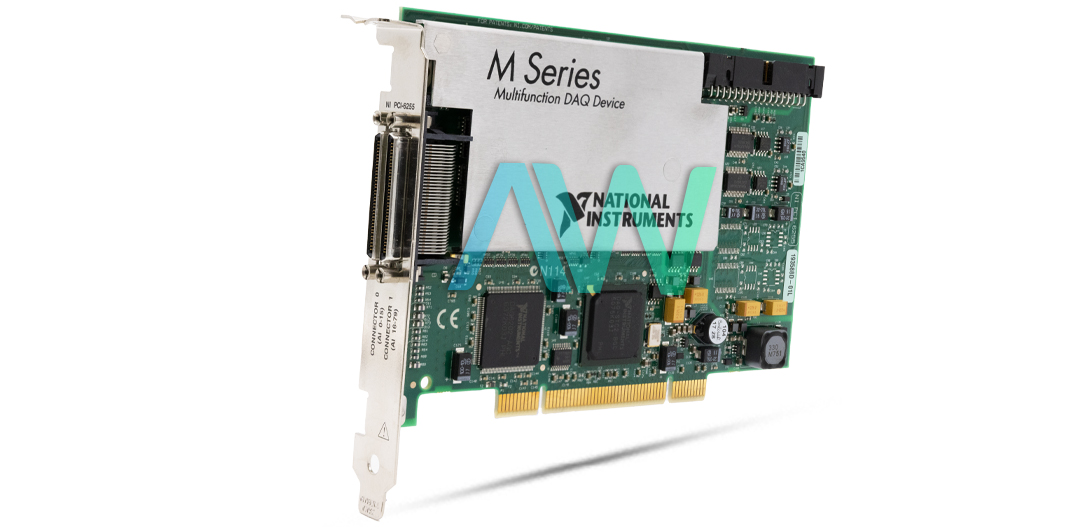

National Instruments PCI-6255 Multifunction DAQ
The PCI-6255 is a Multifunction DAQ designed by National Instruments. The PCI-6255 device is available under part number 779546-01. This device offers several features for computer-based systems in a single device. The PCI 6255 can fulfill many basic measurement requirements. DAQExpressTM companion software is provided in the PCI-6255 device. This software is used for basic measurement and analysis functions. The supported driver for the PCI-6255 is NI-DAQmx, which enables the device to design customized automated control application.
The PCI-6255 Multifunction DAQ has 40 differential analog channels as inputs. These inputs are programmable to be selected as single-ended. The input terminal is 16-bit resolution. The CMRR of the device is 100 dB. The maximum rate of sampling depends on the mode of input channels used. The single-channel mode has a rate up to 1.25 MS/sec. For multichannel mode, the sampling rate is up to 750 kS/s. The NI PCI-6255 has an input voltage range of +0.1 V to +10 V. The bias current of the input is +100 pA. The NI PCI-6255 M Series DAQ has two 16-bit output analog channels. The impedance of the output channel is 0.2 Ω. The analog channels of this device are DC-coupled. 2 counters/timers are also installed in the device. The PCI-6255 I/O device also has 24 digital channels. These channels are individually programmable. The digital channels have voltage protection of +20 V.
The PCI-6255 is suitable for various applications, such as research and industry applications. It is used in lab automation and manufacturing tests. This device is also used to verify and test new designs. The PCI-6255 supports SCC/SCXI signal conditioning modules. The engineers can add sensor reading options.
| Model | PCI-6255 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 779546-01 |
| Series | M Series |
| Type | Multifunction DAQ |
| Analog Input Channels | 80 (16-Bit, 1.25 MS/s) or 40 differential |
| Analog Output Channels | 2 (16-Bit, 2.86 MS/s) |
| Digital Input/Output | 24 |
| Timing I/O | 2 Counter/Timer I/O (32 bits, 80 MHz) |
| I/O Connector | 2 68-pin VHDCI |
| Power Requirements | +5 V, +3.3 V, +12 V -- 0.03 A, 0.725 A, 0.35 A |
| Dimensions | 3.8 × 6.1 in. |
| Weight | 5.8 oz. |
| Driver Software | NI-DAQmx, NI-DAQmx Base |
| Warranty | One Year Warranty |
| PCI-6255 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
National Instruments PCI-6255 Frequently Asked Questions
Question: Why does the PCI 6255 require different cables for Connector 0 and Connector 1?
Answer: The PCI 6255 requires the SCH68-68-EPM for Connector 0 and SHC68-68 for Connector 1.
Question: How long is the PCI-6255 calibration interval?
Answer: The PCI-6255 calibration interval is 2 years.
Question: Why is the maximum sampling rate stated as 1.25 MS/s and 750 kS/s in the PCI 6255 datasheet?
Answer: The maximum sampling rate for the PCI 6255 is 1.25 MS/s for a single channel and 750 kS/s for multiple channels.
Question: Is the DAQmx API for the NI PCI-6255 capable of controlling more than one DAQ device at a time?
Answer: Yes, the DAQmx API for the NI PCI-6255 can control more than one DAQ device at a time, but it will be synchronized on a software basis by default.
PCI-6255 PDF Manuals
DAQ GETTING STARTED GUIDE FOR PCI PCI EXPRESS.PDF
DAQ GETTING STARTED READ ME FIRST NI DAQMX AND DAQ DEVICE INSTALLATION GUIDE.PDF
NI 6255 DEVICE SPECIFICATIONS.PDF
NI 62XX 63XX PINOUT LABELS FOR THE SCB 68 NOTE TO USERS.PDF
NI 62XX 63XX PINOUT LABELS FOR THE SCB 68A NOTE TO USERS.PDF
PCI PXI 625X LETTER OF VOLATILITY.PDF
