PXI-6238 National Instruments Multifunction I/O Module | Apex Waves | Image PXI-6238 National Instruments Multifunction I/O Module | Apex Waves | ImagePXI-6238PXI-6238 | Legacy, Refurbished and New Surplus
PXI-6238 National Instruments Multifunction I/O Module | Apex Waves | Image
PXI-6238 National Instruments Multifunction I/O Module | Apex Waves | Image
PXI-6238 New
PXI-6238 | Legacy, Refurbished and New Surplus

PXI-6238

4.9/5 | 10 ratings

Modular Systems > National Instruments > M Series

Part Number PXI-6238
Manufacturer/Brand National Instruments
Description: PXI-6238, 250 kS/s, Multifunction I/O Module
Available | 1-2 Week Lead Time
Fast Quote
Quoted Price
Lowest Price Guarantee
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing
2 year warrantyRefurbished
*What is Refurbished?
Quoted Price
Fully tested
2yr warranty
  Get Pricing

Need an Official Quote?


*Most customers receive their price in about 15 minutes.

Or speak to a sales representative for pricing & lead time:

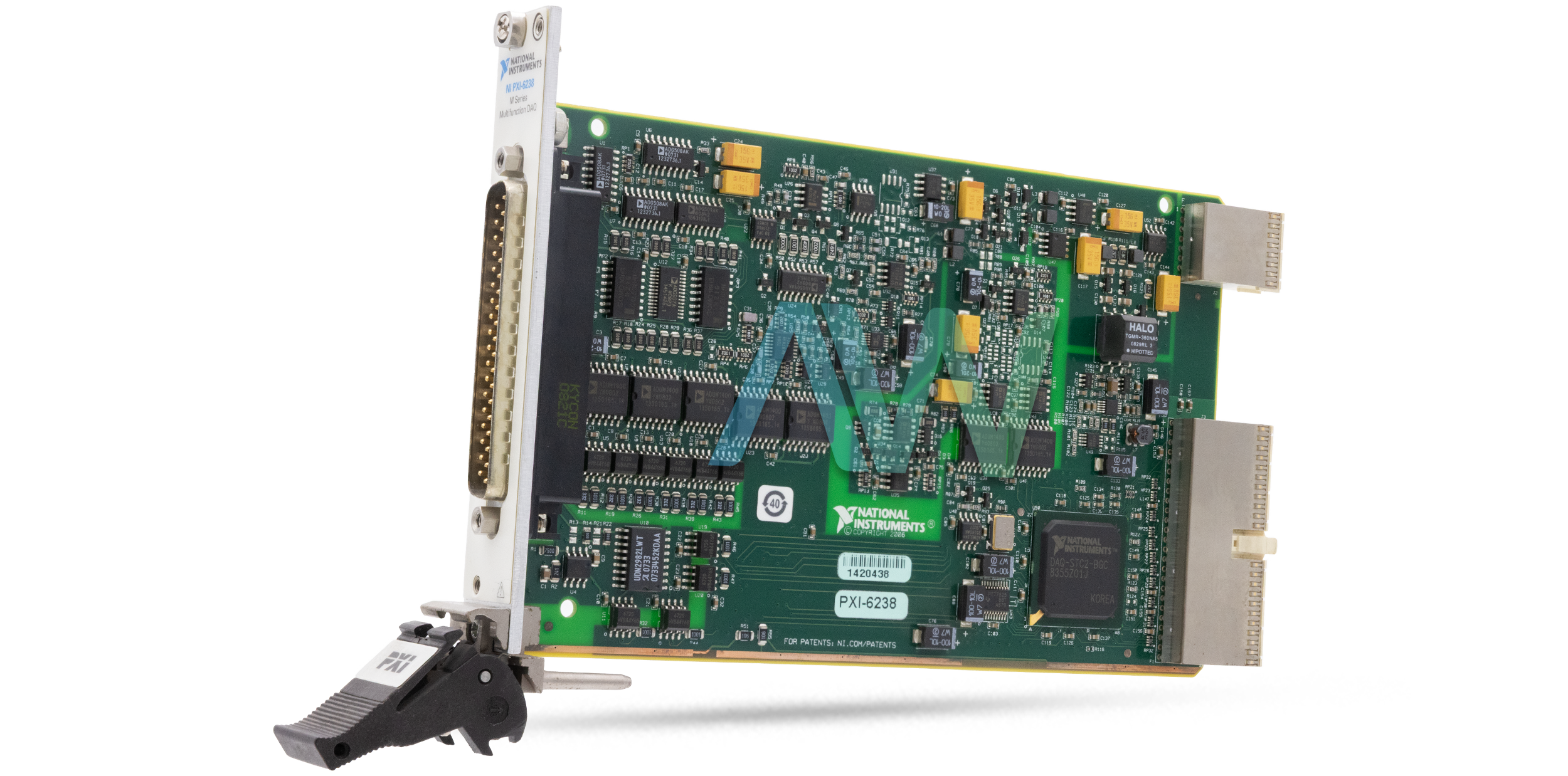

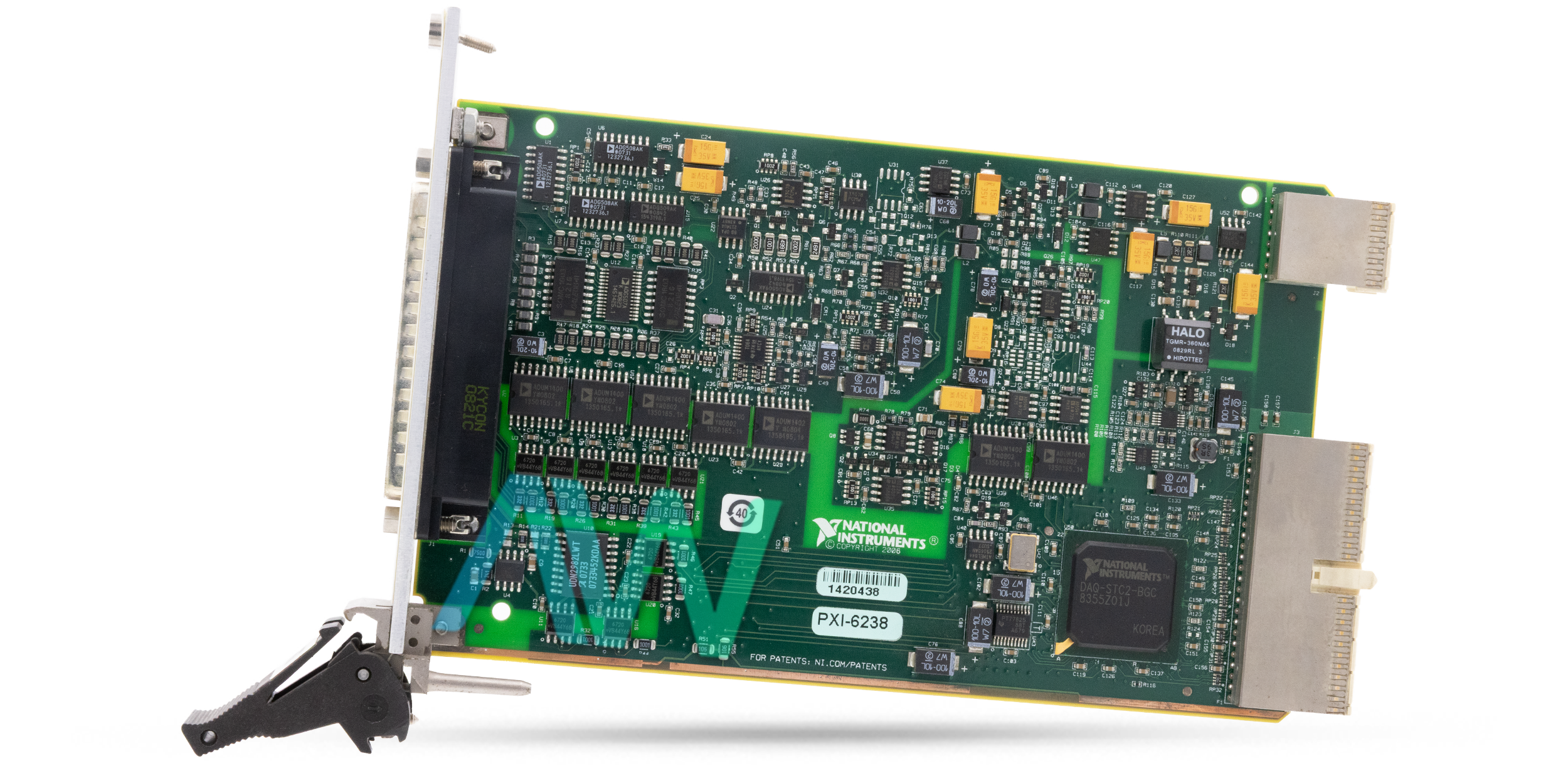

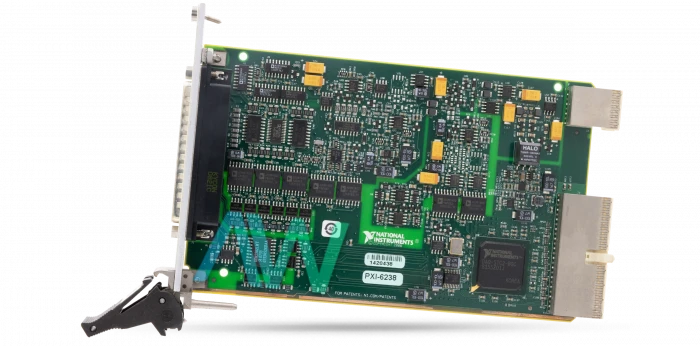

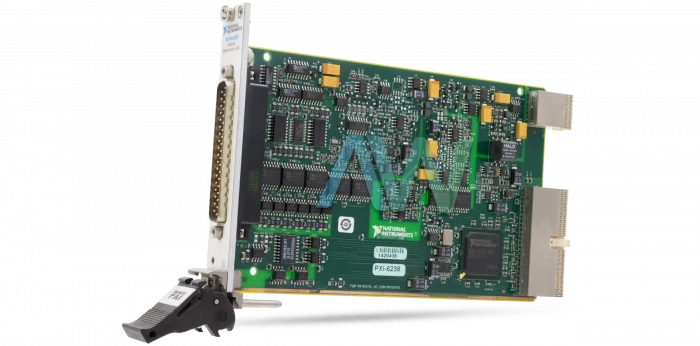

National Instruments PXI-6238 Digital Multifunction I/O Module

The NI PXI-6238 Digital Multifunction I/O Module (Part Number: 779624-01) comes with features such as Bank Isolation, 16 AI (16 Bits, 1.25 MS/s), 2 AO, 6 DI, and 4 DO. Sourcing can auto-calibrate to correct displacement and adjust mistakes. The user can align the gadget to limit the AI and the errors caused by the drift of time and temperature at the time of execution. No outside circuit is vital; an inward reference guarantees high accuracy and solidness after some time and temperature changes.

Factory-calibration constants in this model are stored in an onboard EEPROM and cannot be changed. When the user self-adjusts the gadget, software stores new constants in a client modifiable area of the EEPROM. To restore a gadget to its initial industrial facility alignment settings, the software can duplicate the factory-calibration constants to the client modifiable area of the EEPROM.

In this model, sensors can produce electrical signals to quantify physical phenomena, such as temperature, force, sound, or light. Some regularly utilized sensors are strain gauges, thermocouples, thermistors, rakish encoders, straight encoders, and resistance temperature identifiers (RTDs).

The NI PXI-6238 Multifunction I/O Module has one analog- to-digital converter (ADC). The multiplexers (MUX) route one AI channel at a time to the ADC through the NI-PGIA. The NI programmable gain instrumentation intensifier (PGIA) is an estimation and instrument class intensifier that limits settling times for all information ranges. The NI-PGIA can open or lessen an AI signal to guarantee that the maximum resolution of the ADC is used.

ModelPXI-6238 (779624-01)
ManufacturerNational Instruments
SeriesM Series
TypePXI Multifunction I/O Module
Single-Ended Analog Input Channels8
Maximum Sample Rate250 kS/s
DimensionsStandard 3U PXI
Weight5.1 oz.
WarrantyOne Year Warranty
PXI-6238 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXI-6238 Frequently Asked Questions



Question: What is the analog input timing accuracy of the NI PXI-6238?



Answer: The analog input timing accuracy of the NI PXI-6238 is 50 ppm of the sample rate.



Question: How many differential analog input channels does the PXI-6238 have?



Answer: The PXI-6238 has 4 differential analog input channels.



Question: What is the input range of the PXI-6238?



Answer: The input range of the PXI-6238 is ±20 mA.



Question: What is the minimum sample rate of the NI PXI-6238?



Answer: The NI PXI-6238 does not have a minimum sample rate.
