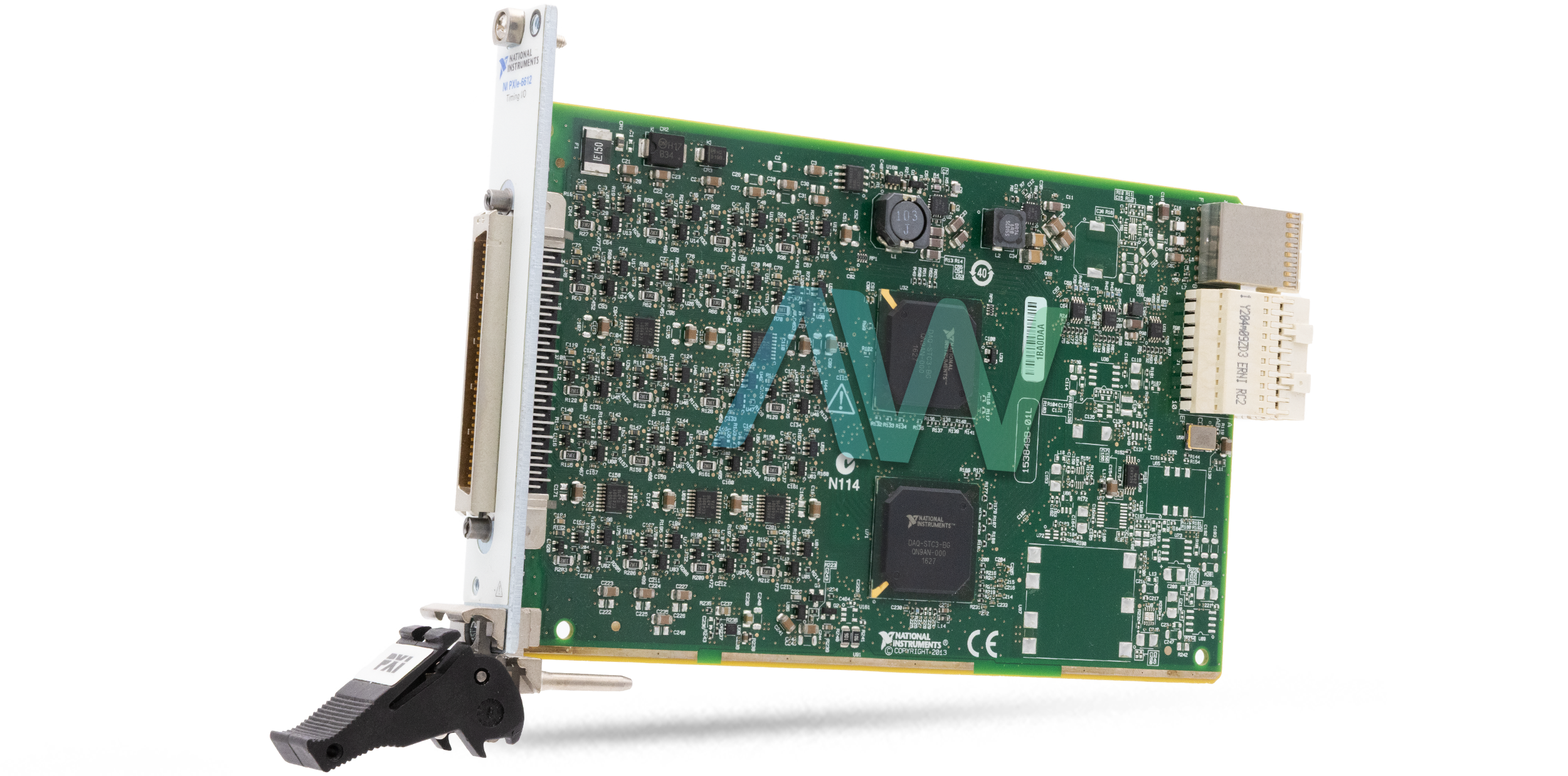

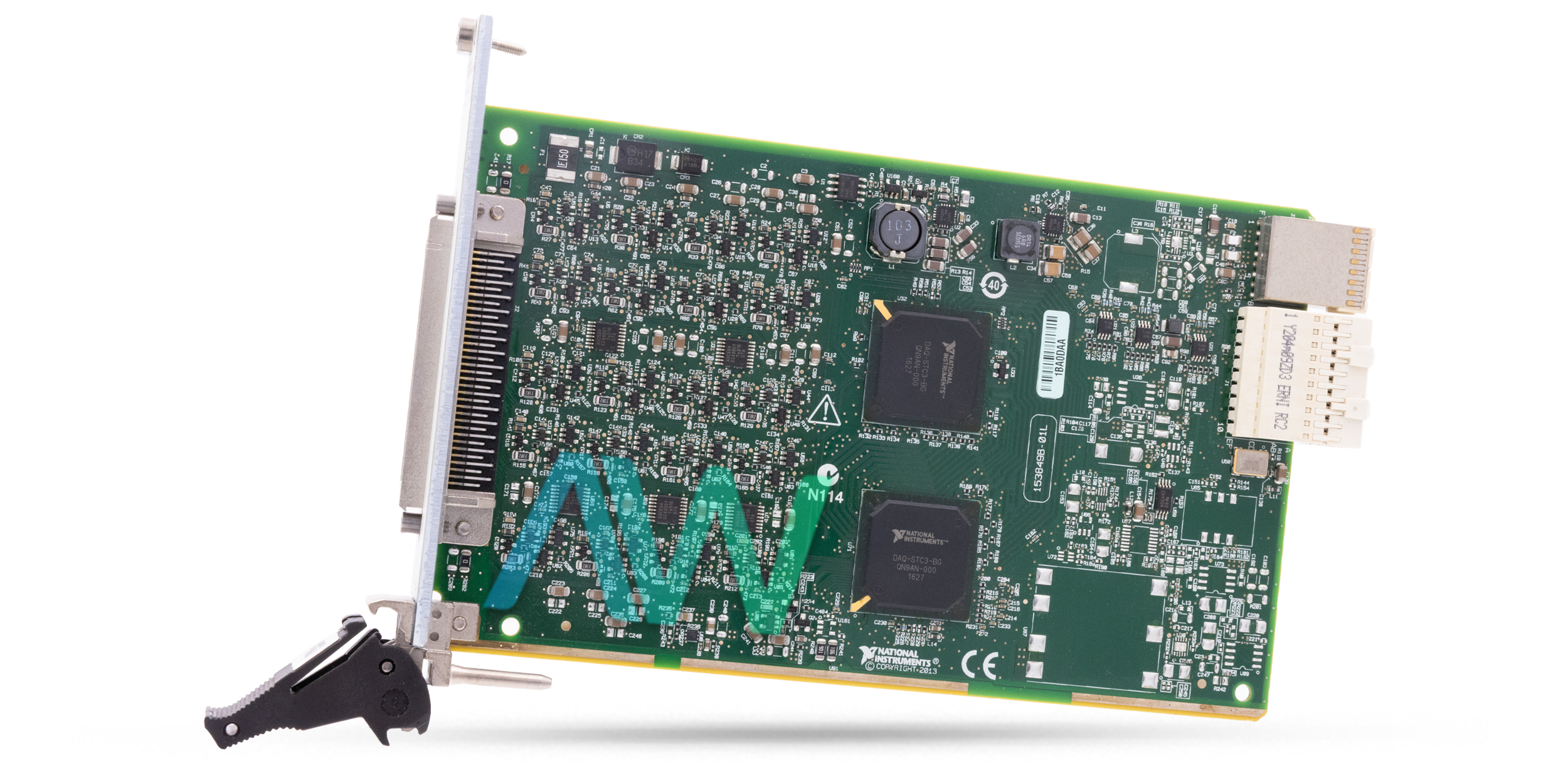

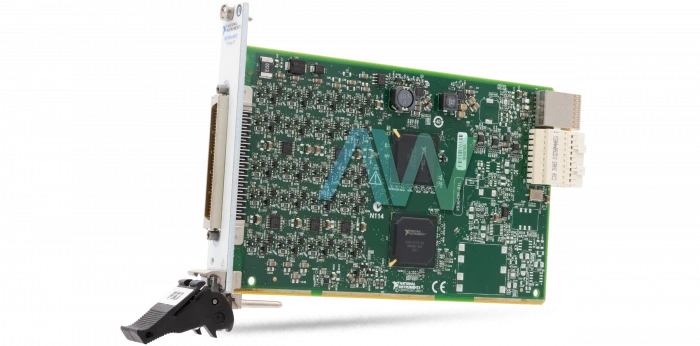

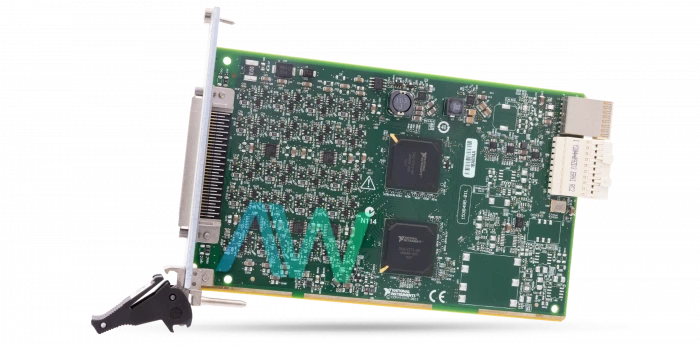

National Instruments PXIe-6612 PXI Counter/Timer Module

The PXIe-6612 (Part Number: 782352-01) is a 5 V, 8 Channel Counter/Timer Module that completes the estimation of position of encoders, the count of events, the estimation of pulse width, the periodic estimation, the pulse generation, the generation of series of pulse, and the measure of frequency. This module has eight counters/clocks, digital anti-rebound filters, and digital I/O compatible with TTL/CMOS.

The NI PXIe-6612 can perform two types of digital input measurements: hardware-timed or software-timed acquisitions. During hardware-timed acquisitions, a digital hardware signal controls the rate of the acquisition. Hardware-timed acquisitions have a shorter amount of time between samples, can use hardware triggering, and have deterministic timing between samples. For software-timed acquisitions, software manages the rate of the acquisition. Software-timed acquisitions are additionally called static or immediate acquisitions; they are normally utilized for reading one sample of data. The PXIe-6612 can be programmed using software packages such as the NIDAQmx driver software, LabVIEW, and LabWIndows/CVI.

This PXI Counter/Timer Module also comes with 40 Programmable Function Interface (PFI) signals. The PFI signals can work as timing input, timing output, or DIO signals. The 40 PFI signals are organized into a 32-bit Port 0 and an 8-bit Port 1. When a terminal is utilized for digital I/O, it is referred to as Px.y, where x is the port number and y is the line number. For instance, P1.3 alludes to Port 1, Line 3. When a terminal is utilized for timing information or output, it is called PFI x, where x is a number between 0 and 39 communicating to the PFI line number. The same physical pin has two different names based upon if it is utilized for digital I/O (Px.y) or timing I/O (PFI x).

On the PXIe-6612 module, CI represents extra input capacitance. This capacitance gives several filtering and slew-rate control advantages. Although, the capacitance confines the most extreme input frequency. CI is populated on every one of the lines except for the default counter source input pins.

The PXIe-6612 weighs 175 g. It has recommended operating and storage temperature ranges of 0 to 55 °C and -40 to 71 °C respectively.

ModelPXIe-6612
Part Number782352-01
ManufacturerNational Instruments
TypePXI Counter/Timer Module
Counters/Timers8
Measure/Source Frequency80 MHz
Resolution32 bits
PFI Signals40
Weight175 g.
WarrantyThree Year Warranty
PXIe-6612 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXIe-6612 Frequently Asked Questions



Question: Does the PXIe-6612 have an onboard high precision oscillator?



Answer: No, the PXIe-6612 does not have an onboard high precision oscillator.



Question: Which digital input triggering actions are supported by the NI PXIe-6612?



Answer: The digital input triggering actions supported by the NI PXIe-6612 are: pause trigger, start trigger, and reference trigger.



Question: What type of ground reference do the digital I/O PFI lines for the PXIe-6612 have?



Answer: The PXIe-6612 digital I/O PFI lines have a GND ground reference.



Question: What is the output impedance for the NI PXIe-6612?



Answer: The NI PXIe-6612 has an output impedance of 75 Ohms.
