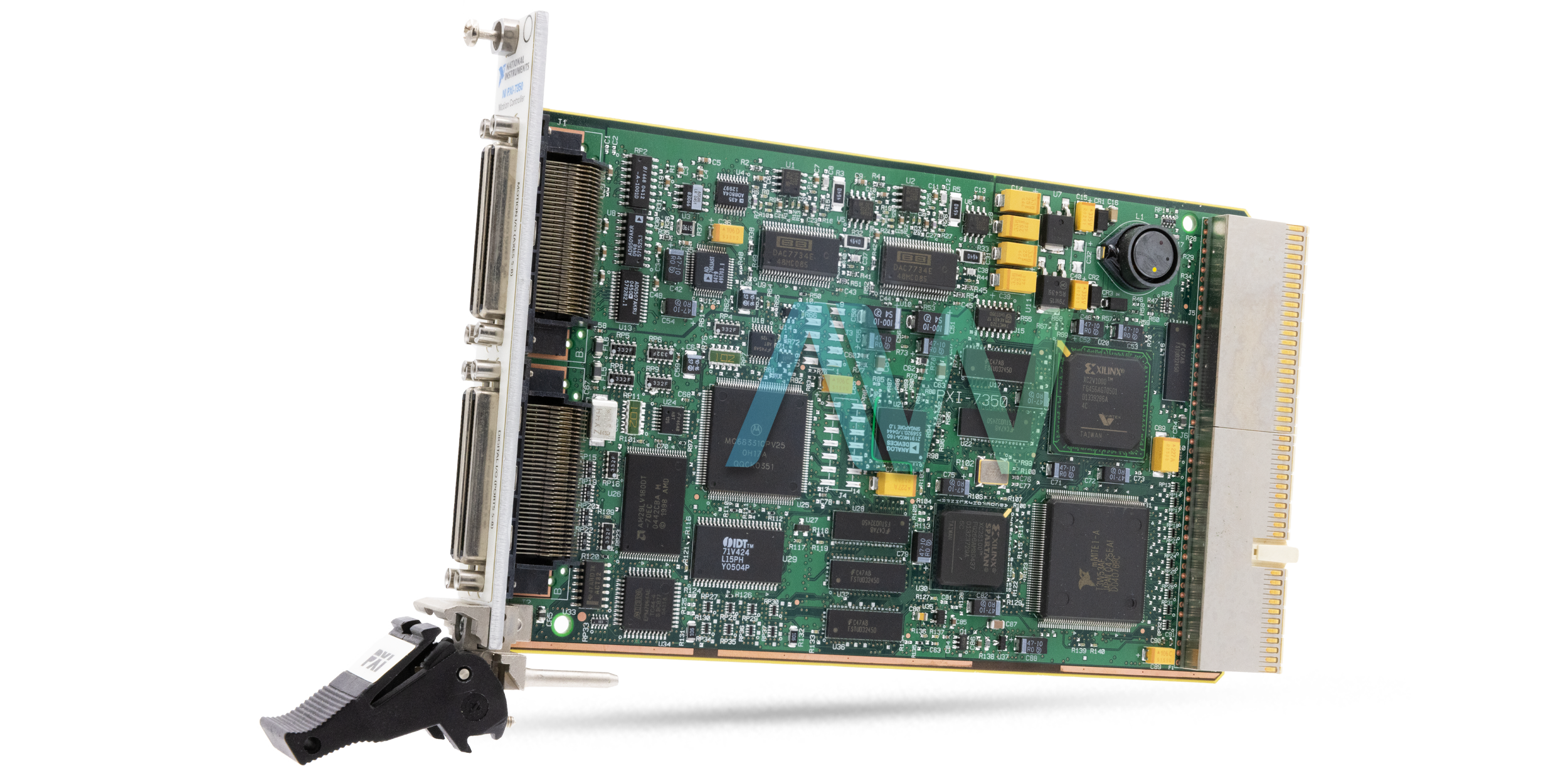

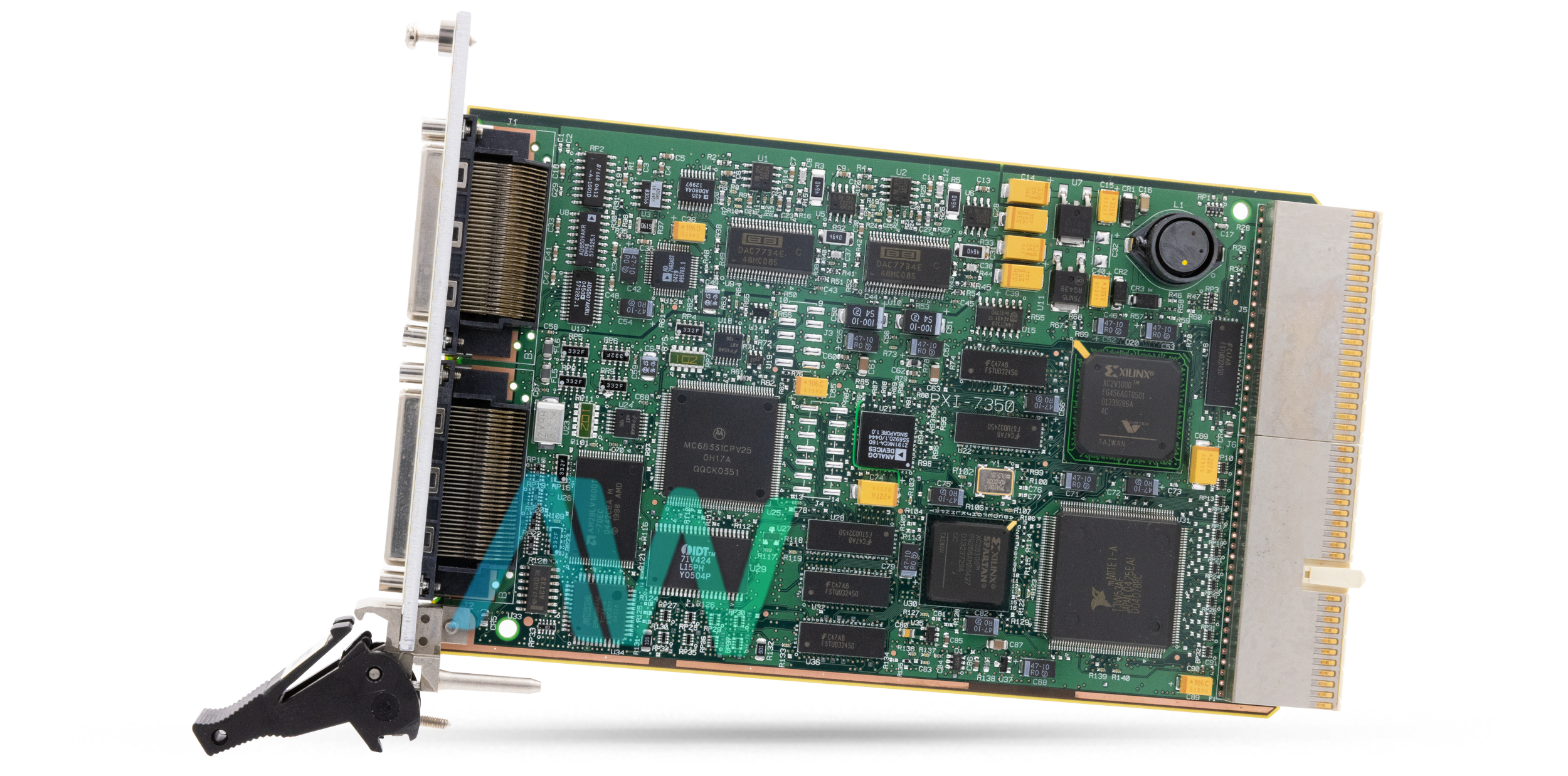

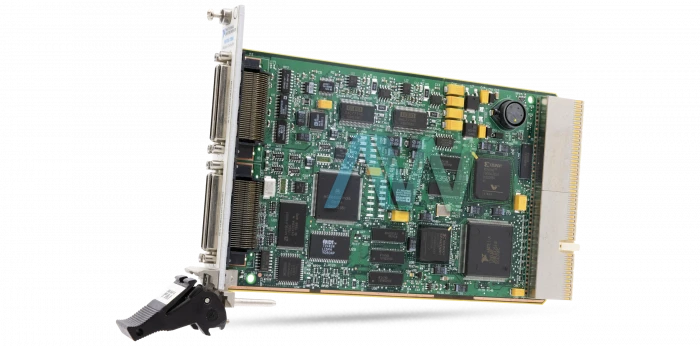

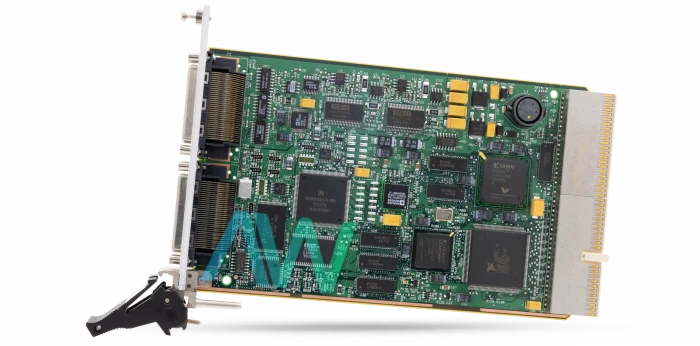

National Instruments PXI-7350 Servo/Stepper Motion Controller Module

The PXI-7350 (Part Numbers: 778540-02, 778540-04, 778540-06, and 778540-08) Servo/Stepper Motion Controller Module is suited for straightforward and complex motion applications and is equipped with 2 to 8 axes. This module offers combined motion path control and circular, linear, point-to-point, and completely coordinated vector control in inserted constant task or programming conditions. The NI PXI-7350 incorporates eight 32-bit analog-digital converters for inner data acquisition and a server for advanced motion and trigger path features. The module also offers sinusoidal switching, which makes it a brushless motor controller.

The PXI-7350 Motion Controller Module provides buffered breakpoints for exact timing between motion and measurements or vision. With this feature, the user can transmit a buffer of position breakpoints to the controller that trigger a digital signal after reaching the positions in the buffer.

The ANSI C-based LabWindows/CVI is one of the software choices for the NI PXI-7350, which includes intuitive graphics and a state-of-the-art UI. Utilizing LabWindows/CVI, the user can create C code for custom data acquisition, test, estimation, and mechanization arrangements. The NI-Motion programming incorporates a progression of example programs for utilizing LabWindows/CVI with National Instruments motion control hardware.

The NI PXI 7350 can also be used with NI Motion Assistant, which offers a point-and-click interface for making movement control arrangements rapidly and effectively. When the user has made a motion assignment, they can utilize Motion Assistant to output the task in LabVIEW code or code creations. The NI PXI-7350 Controller Module utilizes the DSP for all closed-loop control, including position tracking, PID control closed-loop, and motion trajectory generation. The DSP chip is supported by a custom FPGA that performs the fast encoder interfacing, position catch and breakpoint (position compare) functions, motion I/O processing, and stepper pulse generation for hard real-time functionality.

The installed CPU in this module runs a multitasking real-time working framework and handles host communications, command processing, multi-axis interpolation, onboard program execution, error handling, general-purpose digital I/O, and overall motion framework integration capacities.

ModelPXI-7350
ManufacturerNational Instruments
TypePXI Motion Control Module
PID Update Rate Range62.5 us/sample to 5 ms/sample
Analog InputsUp to 8, multiplexed, single-ended
Bandwidth234 kHz
Dimensions6.3 x 3.9 in.
Weight6 oz.
WarrantyOne Year Warranty
PXI-7350 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXI-7350 Frequently Asked Questions



Question: What type of I/O connectors does the PXI-7350 have?



Answer: The PXI-7350 has two 68-pin female high-density VHDCI motion I/O connectors and two 68-pin female high-density VHDCI 32-bit digital I/O connectors.



Question: What is the maximum working voltage for the NI PXI 7350?



Answer: The maximum working voltage for the NI PXI 7350 is 11 V, Installation Category I (channel-to-earth) and 22 V, Installation Category I (channel-to-channel).



Question: How many analog outputs does the PXI-7350 have?



Answer: There are a maximum of 8 single-ended analog outputs on the PXI-7350.



Question: What is the NI PXI 7350 driver software?



Answer: The NI PXI 7350 driver software is NI-Motion.
