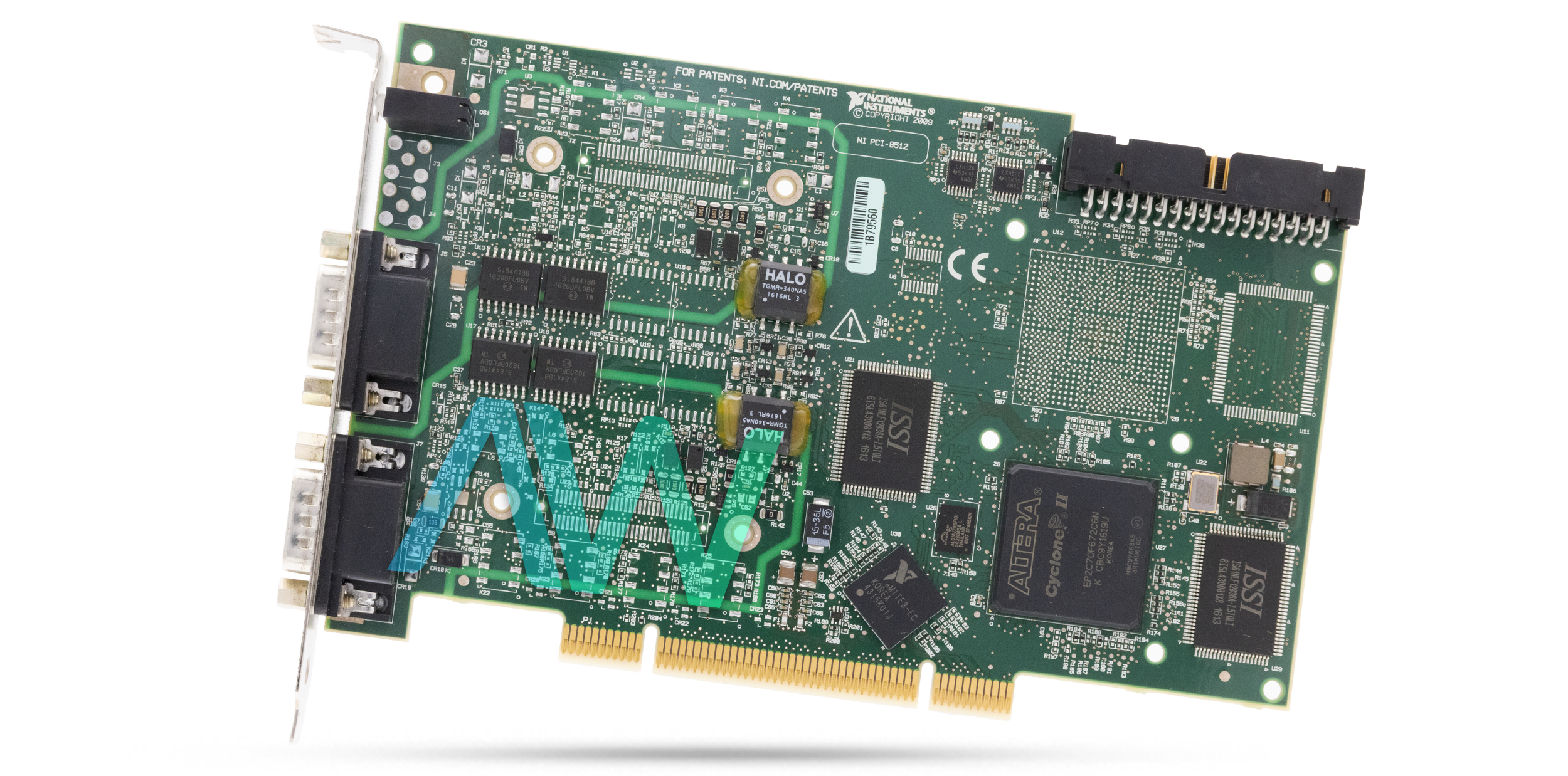

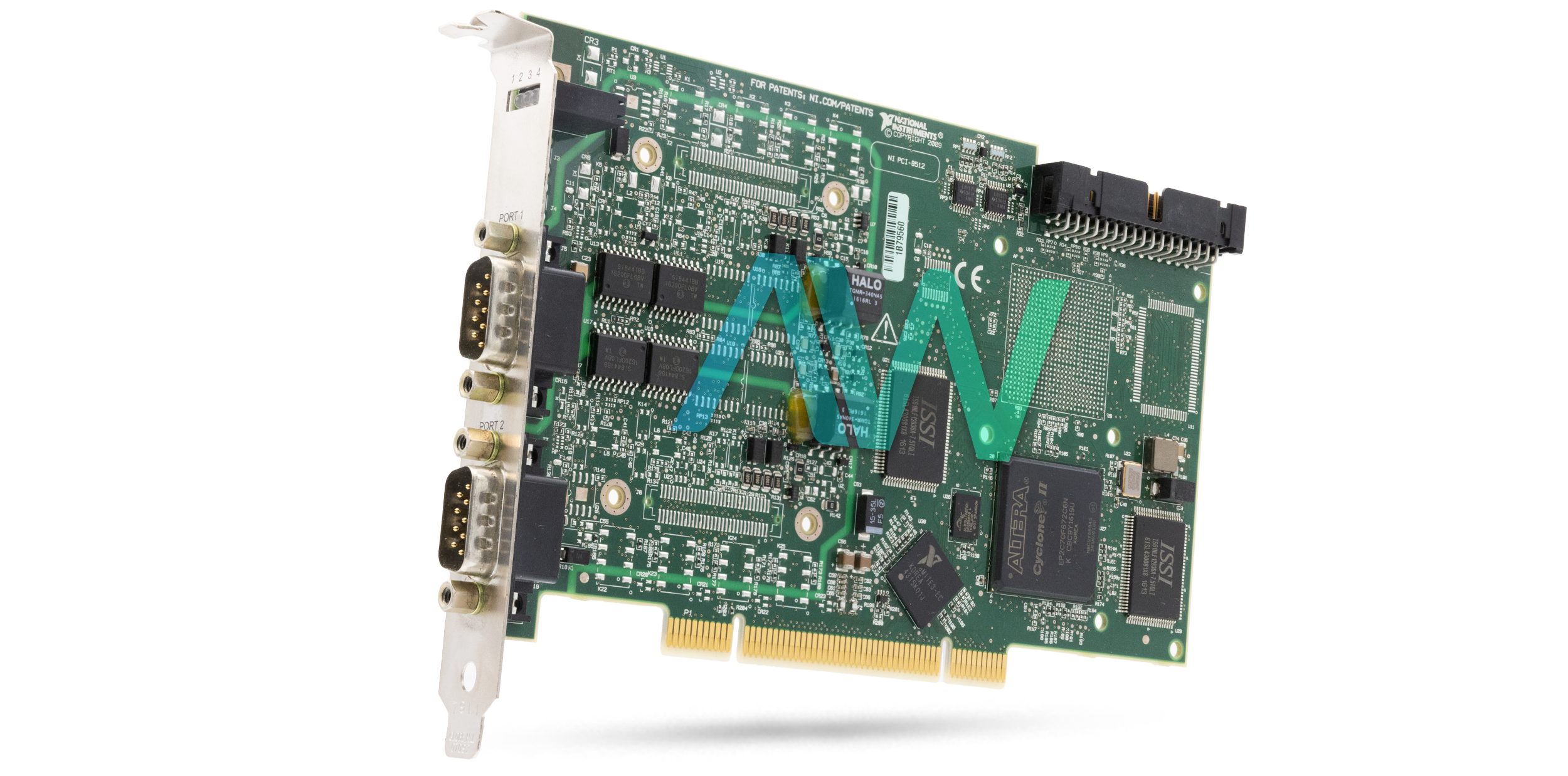

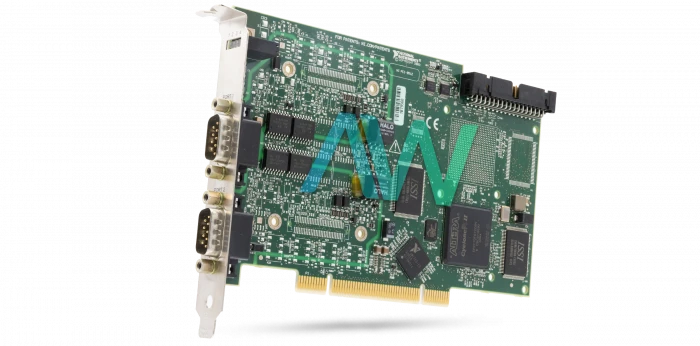

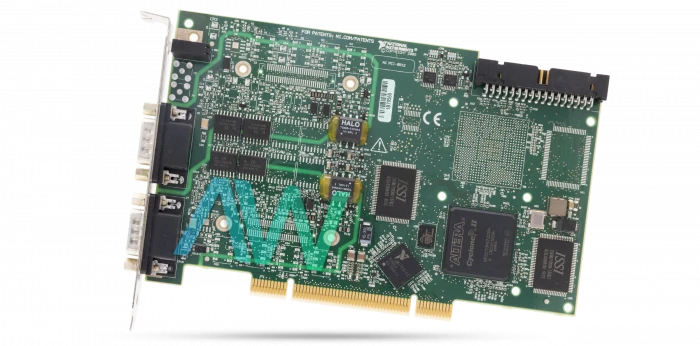

National Instruments PCI-8512/2 CAN Interface Device
The PCI‑8512/2 (Part number: 780683-02) comes with a NI-XNET Database Editor, which is a solitary instrument for making and keeping up inserted arranged files that comes with parameters related to frames, signals, and systems. NI-XNET items utilize the ASAM FIBEX (FIeld Bus EXchange) basic function as an essential database stockpiling design. Notwithstanding FIBEX, the NI-XNET Database Editor can ingress the NI-CAN file arrange (.NCD) and CANdb organize (.DBC) and change them to FIBEX. It is important to know that all the NI-XNET lines are perfect with most heritage NI-CAN Channel API and NI-CAN Frame API applications composed for inheritance USB CAN and NI Series 2 CAN interfaces. This instrument comes with a similarity layer that works right in the driver level, guaranteeing a drop-in execution lift to build up in-house functions. The NI-XNET driver programming locally works with FIBEX, CANdb (.DBC), LDF, and NI-CAN (.NCD) signal database documents. The database incorporated with the driver makes possible the monotonous assignment of casings into genuine building units that are offloaded from the principal program. This improves programming and keeps up steady outcomes as system setups advance over the outline of the framework. The subsequent less complex code is more intelligible, less demanding to keep up, and more adaptable between ages of frameworks.
The NI PCI-8512/2 comes with hardware coordination, 1 μs timestamps to mix with NI information obtaining, digitizers, switches, and vast frameworks, integrated, locally available handsets for less difficult setup, better unwavering quality, and dedicated processors capable of overseeing more than 192 equipment quickened outlines, diminishing host framework load and programming many-sided quality.
| Model | PCI-8512/2 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 780683-02 |
| Type | CAN Interface Device |
| Ports | 2 |
| Transceiver | NXP TJA1041 or TJA1043 |
| CAN Physical Layer | High-Speed CAN, Flexible Data Rate |
| Maximum Baud Rate | 1 Mbps |
| Minimum Baud Rate | 40 kbps |
| CAN_H, CAN_L Bus Lines Voltage | -27 VDC To +40 VDC |
| Trigger Lines | 7 Input/Output |
| Clock Lines | 1 Input/Output |
| I/O Compatibility | TTL |
| Power Requirements | +5 VDC, +3.3 VDC -- 640 mA, 940 mA |
| Dimensions | 4.2 in. x 6.6 in. (10.67 cm x 16.76 cm |
| Weight | 3.6 oz. (102 g) |
| Software Driver | NI‑XNET |
| PCI-8512/2 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PCI-8512-2:
National Instruments PCI-8512/2 Frequently Asked Questions
Question: What are the environmental specifications for the PCI-8512/2?
Answer: The device has an operating temperature range of 0 °C to 55 °C and a storage temperature range of -20 to 70 °C.
Question: What is the baud rate of the CAN Interface Device?
Answer: The PCI-8512/2 has a maximum baud rate of 1 Mbps and a minimum baud rate of 40 kbps.
Question: What is the I/O compatibility of the PCI-8512/2?
Answer: The interface device has TTL I/O compatibility
Question: Why does the PCI-8512/2 have isolation?
Answer: The isolation features of the PCI-8512/2 are intended to prevent ground loops
