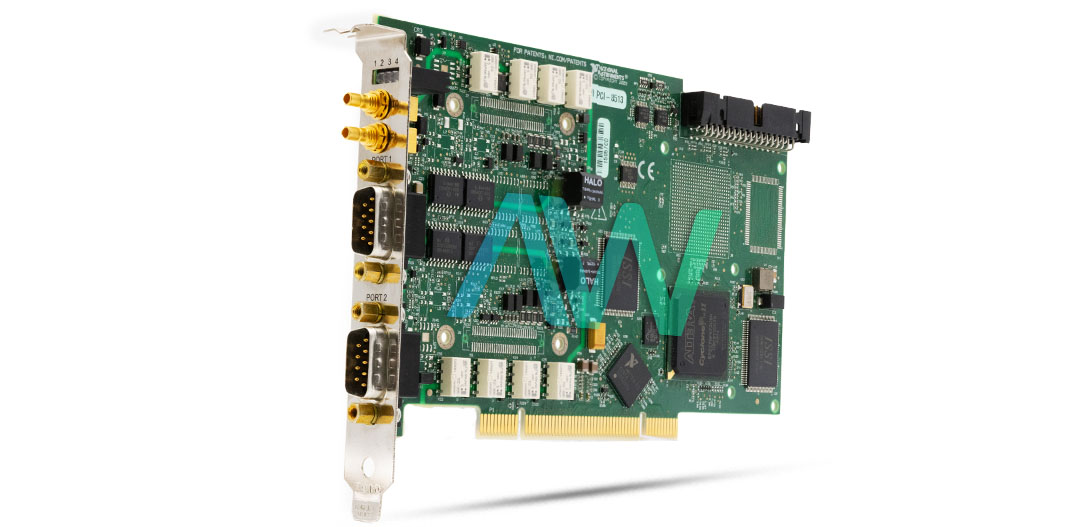

National Instruments PCI-8513 CAN Interface Device
The PCI-8513 (Part Number: 780684-01) comes with 1 port and is a software selectable FD CAN device which has a device simulator called NI CAN. When connecting with NI CAN and the DAQ equipment on a PC, this gives an apparatus to show the concepts of CAN communication, DAQ, and CAN/DAQ management. This instrument simulator comes with an advanced volume creator, a fast CAN line, fast CAN connector, and computerized input switches.
The NI CAN breakout box on the NI PCI-8513 device highlights 14 parallel wired ports for stretching extra CAN gadgets to a NI CAN interface or other CAN arrangement. Seven connectors utilize standard NI CAN D-SUB pinouts for associations with NI CAN links and gadgets. At the same time, there are seven other connectors which are screw-terminal removable connectors for simple associations with exposed wires. The installed control supply applies capacity to the V+ sticks on the bus, which is required for some handsets, and switchable 120 Ω, 60 Ω, or no-end disentangles associations with most CAN gadgets. NI-XNET interfaces highlight installed programming empowered end, which disposes of the requirement for end resistors in CAN or LIN links. NI suggests no-end CAN and LIN links for use with NI-XNET CAN and LIN interfaces. For NI-XNET FlexRay interfaces, utilize 9-stick D-SUB links to associate with ECUs and FlexRay gadgets. The NI CAN to OBD-II link associates a NI fast CAN interface to the standard J1962 indicative connector found in late-show cars for analytic applications.
| Model | PCI-8513 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 780684-01 |
| Type | CAN Interface Device |
| Ports | 1 |
| Transceiver | TJA1054A, TJA1041, AU5790 |
| CAN Physical Layer | Software-Selectable/FD |
| Maximum Baud Rate | 125 kbits/s, 8 Mbit/s, 83.3 kbits/s |
| Minimum Baud Rate | 40 kbits/s, 33.3 kbits/s |
| Trigger Lines | 7 Input/Output |
| Clock Lines | 1 Input/Output |
| I/O Compatibility | TTL |
| CAN_H, CAN_L Bus Lines Voltage | -27 VDC to +40 VDC |
| I/O Connector | 9-Pin Male D-sub |
| Power Requirements | +5 VDC, +3.3 VDC -- 640 mA, 940 mA |
| Dimensions | 4.2 in. x 6.6 in. |
| Weight | 0.22 lb. |
| Software Driver | NI‑XNET, NI-CAN |
| PCI-8513 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PCI-8513:
National Instruments PCI-8513 Frequently Asked Questions
Question: What driver is used by the interface device?
Answer: The NI PCI-8513 uses the NI-XNET driver.
Question: Can I connect the PCI-8513 with a CAN interface that has a different baud rate?
Answer: If you connect the device with a CAN network that runs at a different baud rate, you will get a bus error.
Question: What size is the NI PCI-8513 card?
Answer: The card is ½ the size of a normal PCI card.
PCI-8513 PDF Manuals
NI-PCI-8513-AND-NI-PCI-8513-2-REVISION-NOTIFICATION.PDF
NI-XNET-HARDWARE-AND-SOFTWARE-MANUAL.PDF
NI-XNET-HARDWARE-AND-SOFTWARE-USER-MANUAL-AND-SPECIFICATIONS.PDF
Driver Downloads for PCI-8513
