PXI-8460-1

4.5/5 | 20 ratings

Modular Systems > National Instruments > PXI-CAN Interface Series

Part Number PXI-8460-1
Manufacturer/Brand National Instruments
Description: PXI-8460/1, 1-Port, PXI CAN Interface
In Stock | Ships Today
Fast Quote
Quoted Price
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for additional information:


National Instruments PXI-8460/1 PXI-CAN Interface

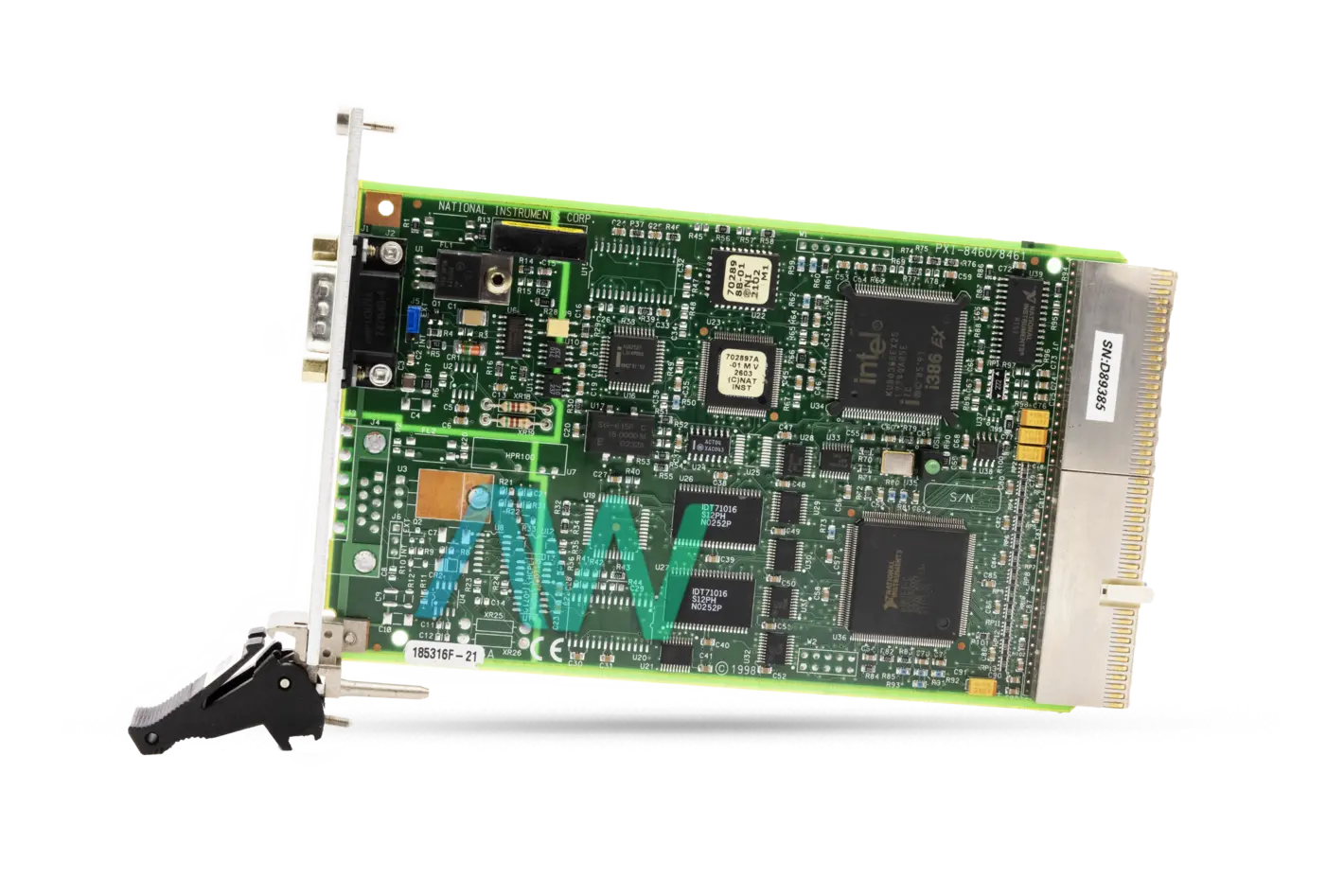

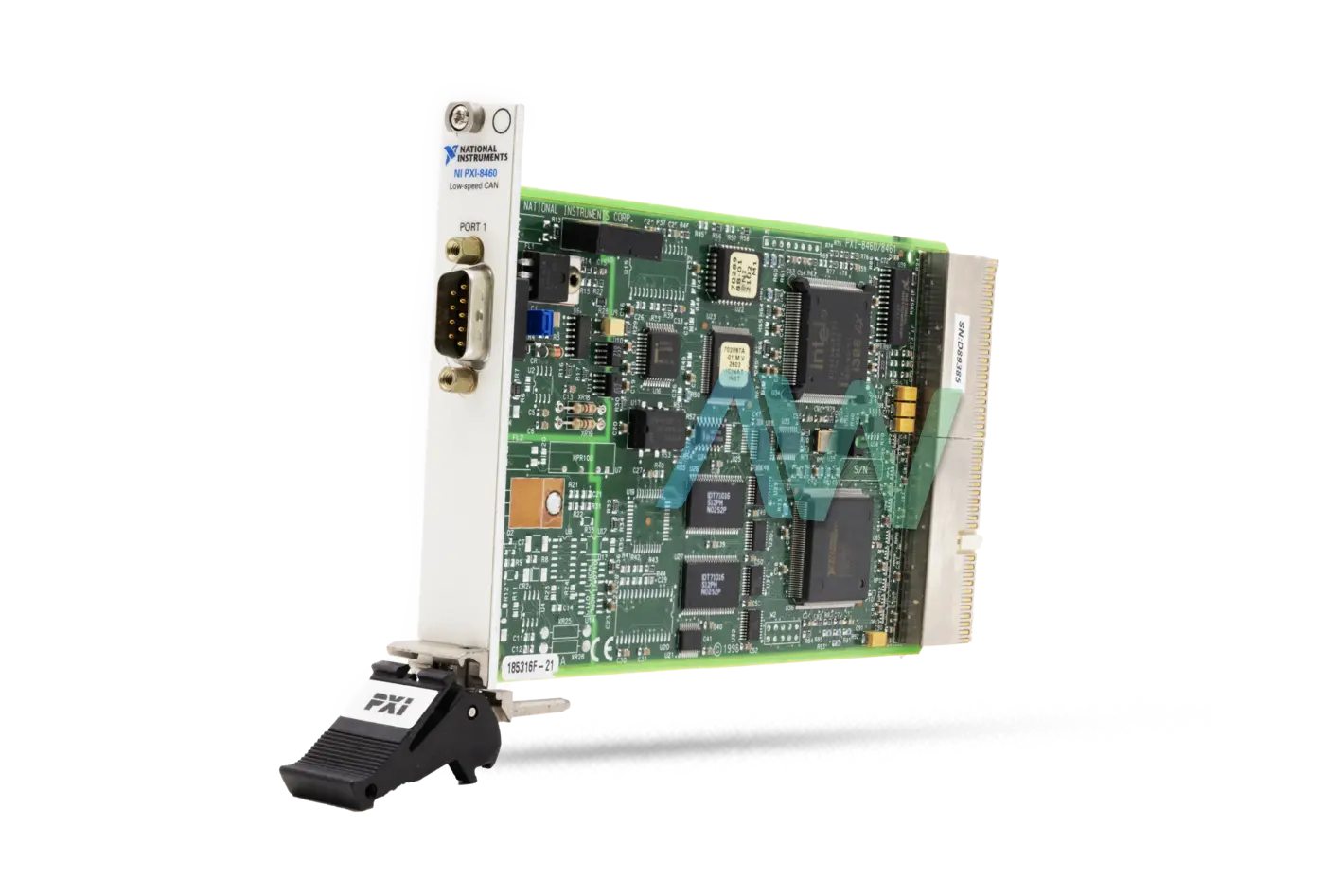

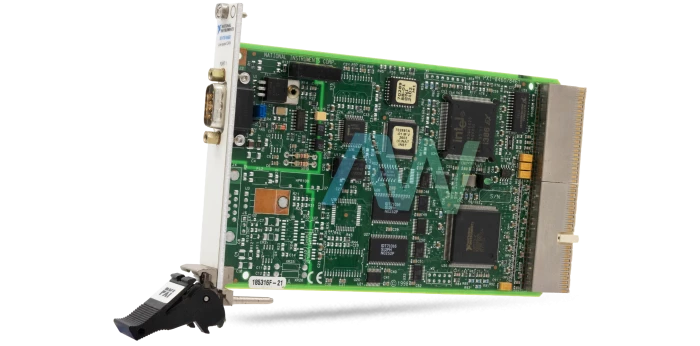

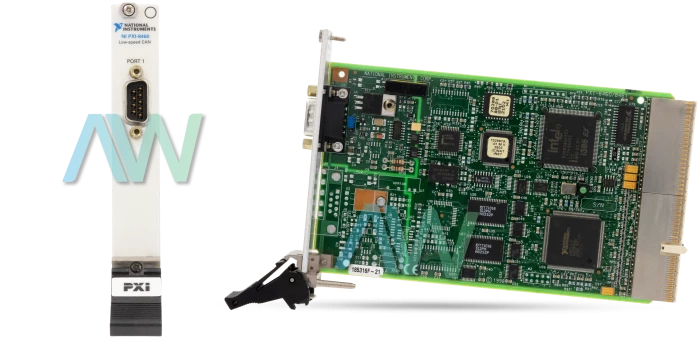

The PXI-8460/1 (Part Number: 778008-01) is a low-speed 1-port Controller Area Network Interface (CAN) intended to communicate with low-speed CAN gadgets up to 125 kb/s. NI PXI-CAN modules utilize the Philips SJA1000 CAN controller for advanced functionality features, such as listen only, personal reception (echo) and advanced filtering modes, and new transceivers that offer rest/wakeup mode. Each CAN interface is sold with the NI-CAN gadget programming. The user can synchronize CAN, DAQ, vision, and motion modules by utilizing the PXI trip bus. The PXI-8460/1 module is intended to work with LabVIEW Real-Time for deterministic control applications. All NI CAN interfaces meet the physical and electrical necessities for CAN (automotive) vehicle systems.

Ongoing advances in car test applications request more integration of CAN and other estimation gadgets. In numerous applications, the user must synchronize the physical parameters estimated to associate the information. The user can program this synchronization in software. However, OS latency in some cases presents unsuitable deferrals for certain car test applications. National Instruments CAN, information securing, vision, and motion sheets for PCI are prepared to share timing and triggering signals. In a framework, a CAN board can impart timing and triggering signals to data acquisition, image acquisition, or motion control boards, basing their activities on these signals.

Determinism is kept up between the trigger signal and the desired reaction since timing and triggering signals are handled in hardware. The host PC software collaborates just to recover the information once it is gained or to compose new information.

ModelPXI-8460/1 (778008-01)
ManufacturerNational Instruments
TypePXI-CAN Interface
Ports1
Maximum Transfer Rate125 kb/s
Typical Current800 mA
Dimensions6.3 x 3.9 in.
I/O ConnectionsDB9 male for each channel
Warranty2-3 Year Warranty
PXI-8460/1 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXI-8460/1 Frequently Asked Questions



Question: Which transceiver does the PXI-8460/1 have?



Answer: The PXI-8460/1 has a TJA1054A transceiver.



Question: What type of processer is in the NI PXI-8460/1?



Answer: The NI PXI-8460/1 has an Intel 80386 processor.



Question: Does the PXI-8460/1 have LabVIEW Real-Time Support?



Answer: Yes, the PXI-8460/1 does have LabVIEW Real-Time Support.



Question: Which application software is included with the NI PXI-8460/1?



Answer: The NI PXI-8460/1 has bus monitor utility included for application software.
