782555-01, Intel® Core™ i7-3610QE, 2.3 GHz Quad-Core, PXI-8119 Embedded PXI Controller
Need an Official Quote?

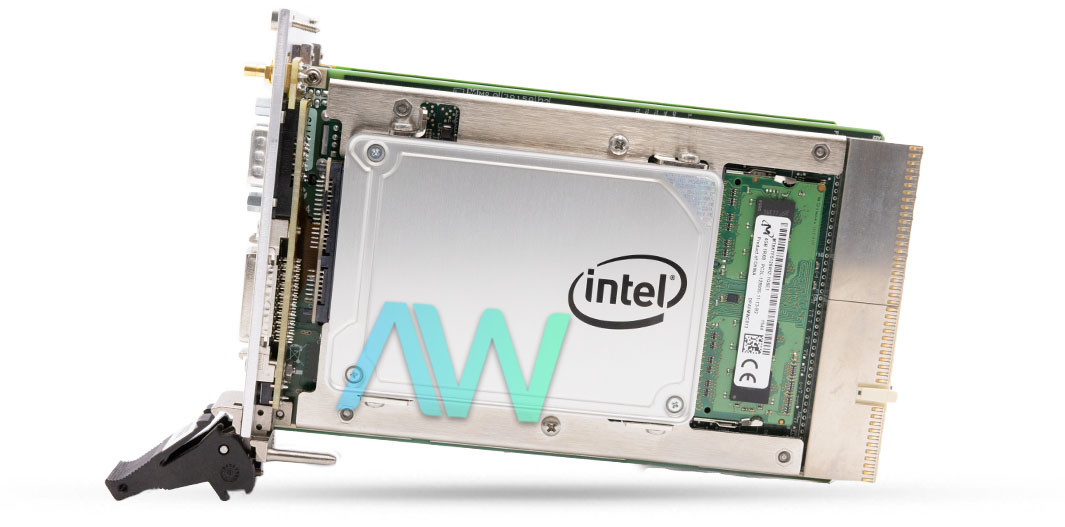

National Instruments 782555-01 PXI Controller
The National Instruments PXI-8119 model range includes the embedded controller 782555-01. This controller is intended for processor-intensive applications, like modular instrumentation and data acquisition. It has a 2.3 GHz quad-core Intel® CoreTM i7-3610QE processor with a 6 MB cache. Because of its sturdy design, which offers excellent performance in a small, durable package, it is perfect for integration into PXI systems.

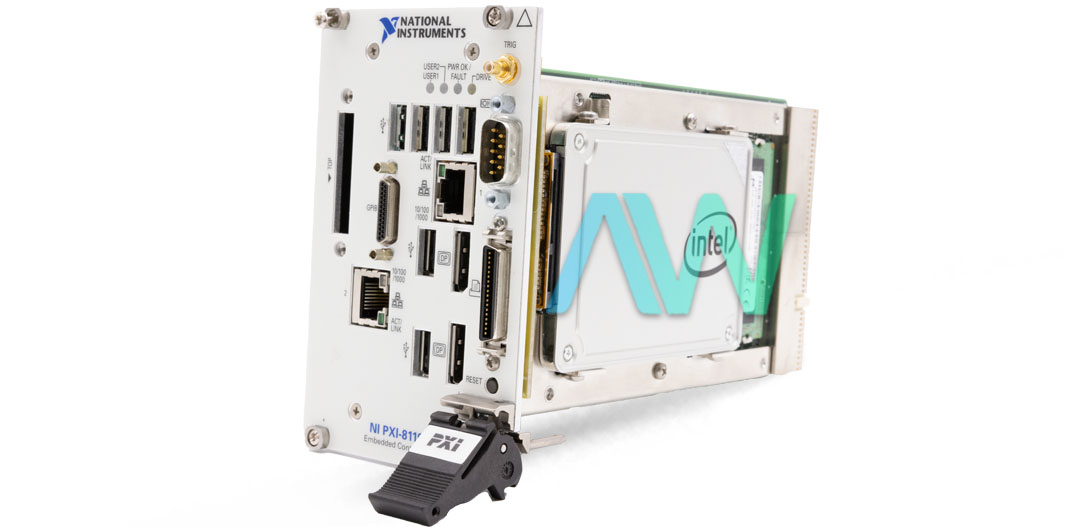

Many common I/O functionalities are included with this controller. It features six high-speed USB 2.0 ports, a parallel port, a serial connector (RS-232), two Gigabit Ethernet ports (10/100/1000BASE-TX), and a parallel port. It offers two DisplayPort video connectors for video output. In order to connect and control GPIB-enabled instruments, the controller also includes a PCI-based GPIB (IEEE 488) controller. The 782555-01's flexibility for different peripheral extensions is further enhanced with the ExpressCard/34 expansion slot.
A maximum of 8 GB of Single-Channel DDR3 RAM can be added to the system's 4 GB of RAM. With a minimum capacity of 250 GB for a Serial ATA hard drive, it provides sufficient storage for applications requiring a lot of data. PXI triggers provide accurate timing and synchronization, which are necessary for intricate measurement and automation activities.
The 782555-01 controller forms a complete PC-compatible computer system when paired with a PXI-compatible chassis, such as the NI PXI-1042. As a result of this integration, a strong and long-lasting solution that is appropriate for demanding industrial and laboratory settings is produced.
A number of software tools are available from National Instruments to enhance the hardware features of the 782555-01. These comprise software development environments such as LabVIEW, Measurement Studio, and LabWindowsTM/CVITM, as well as hardware drivers like NI-DAQmx that enable smooth control and automation of NI devices. Users may fully utilize the controller's capabilities for their particular applications thanks to the hardware and software working together in harmony.
| Part Number | 782555-01 |
|---|---|
| Model Name | PXI-8119 |
| Part Type | Embedded PXI Controller |
| Processor | Intel® Core™ i7-3610QE, 2.3 GHz quad-core |
| Cache | 6 MB L2 |
| Memory | 4 GB Single-Channel DDR3, expandable to 8 GB |
| Hard Drive | Minimum 250 GB Serial ATA |
| Ethernet Ports | 2 x 10/100/1000BASE-TX (Gigabit) |
| USB Ports | 6 x Hi-Speed USB 2.0 |
| Video Output | 2 x DisplayPort |
782555-01 PDF Manuals
COMBUSTION ANALYSIS SYSTEM SOFTWARE USER MANUAL.PDF
PXI 8119 DIMENSIONAL DRAWING.PDF
PXI 8119 INSTALLATION GUIDE.PDF
PXI 8119 LETTER OF VOLATILITY.PDF
PXI 8119 USER MANUAL AND SPECIFICATIONS.PDF
