PXI-8105

4.9/5 | 17 ratings

Modular Systems > National Instruments > PXI Controllers

Part Number PXI-8105
Manufacturer/Brand National Instruments
Description: PXI-8105, 2.0 GHz Dual-Core, Embedded PXI Controller
In Stock | Ships Today
Fast Quote
Quoted Price
Lowest Price Guarantee
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing
2 year warrantyRefurbished
*What is Refurbished?
Quoted Price
Fully tested
2yr warranty
  Get Pricing

Need an Official Quote?


*Most customers receive their price in about 15 minutes.

Or speak to a sales representative for pricing & lead time:


National Instruments PXI-8105 PXI Controller

Featured with an Intel Core Duo Processor T2500 (2.0 GHz Dual-Core) CPU, 667 MHz Front-side Bus, and 512 MB Dual-channel 667 MHz DDR2 RAM, the National Instruments PXI-8105 (Part Numbers: 779917-01, 779917-00, 779918-00, 779918-01) is a high-performance embedded controller for use in PXI systems. This controller comes with extensive hardware resources which makes it an ideal choice for intensive applications. The processor incorporated in the PXI-8105 has two computing engines or cores located in one physical package.

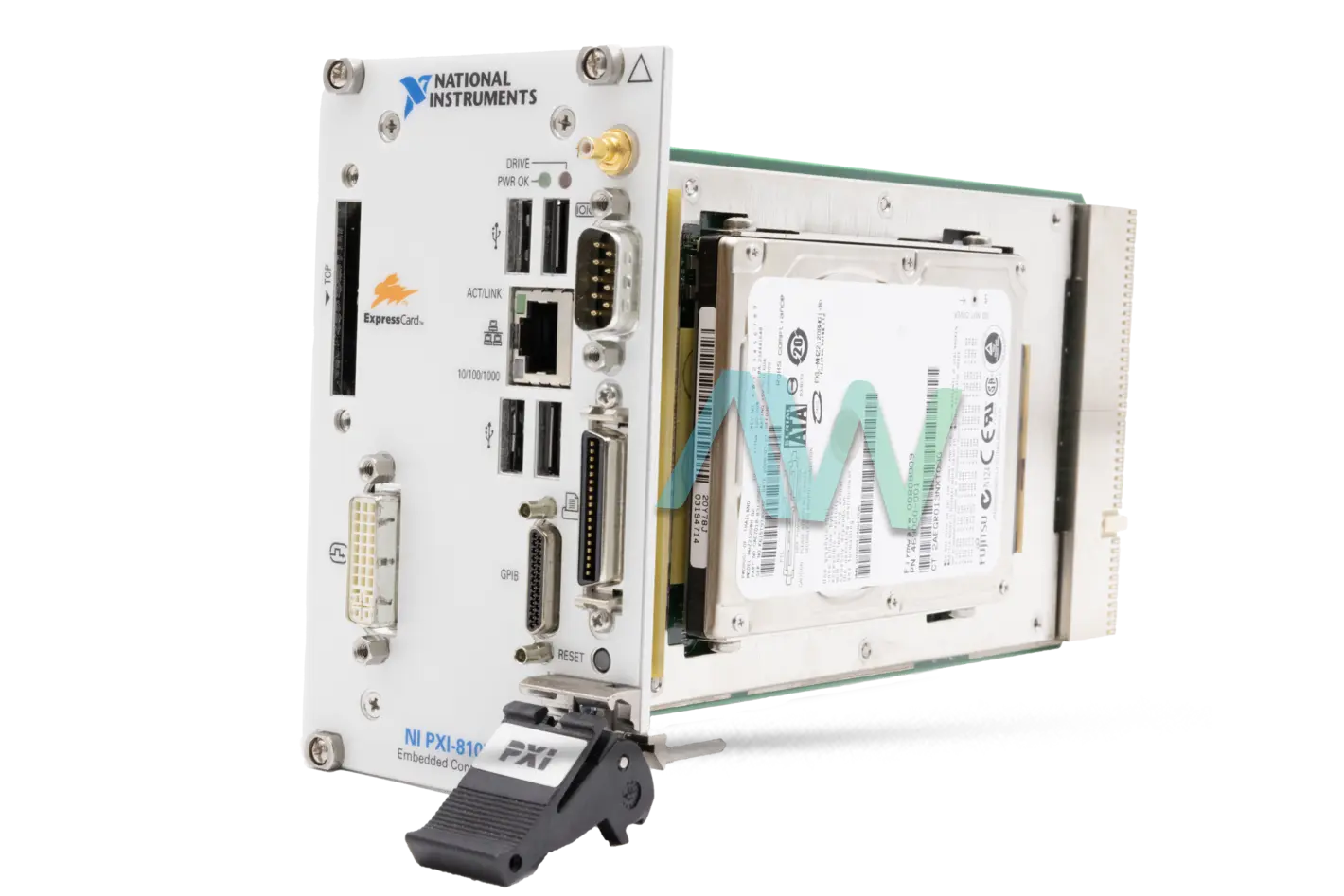

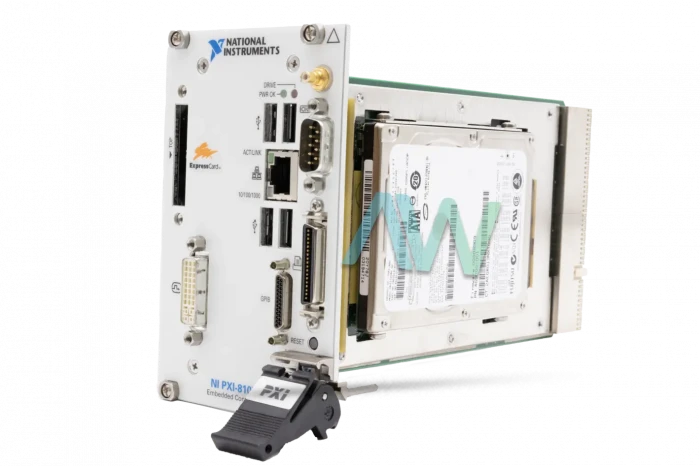

The dual-core processor incorporated in this controller can execute two computing tasks simultaneously. This makes it possible - the execution of two applications such as Microsoft Excel and NI LabVIEW. However, this feature can only be used in environments where multiple applications can run in parallel such as Windows XP. To deliver maximum flexibility, performance, and stability the NI PXI-8105 has incorporated the Intel 945GM Express chipset. As far as its I/O capabilities are concerned, this model has 4 x Hi-Speed USB ports, 1 x Serial port (RS232), 1 x GPIB (IEEE 488) controller, 1 x 10/100/1000 BASE-TX Ethernet, 1 x ExpressCard/34 slot, and 1 x Watchdog/trigger SMB.

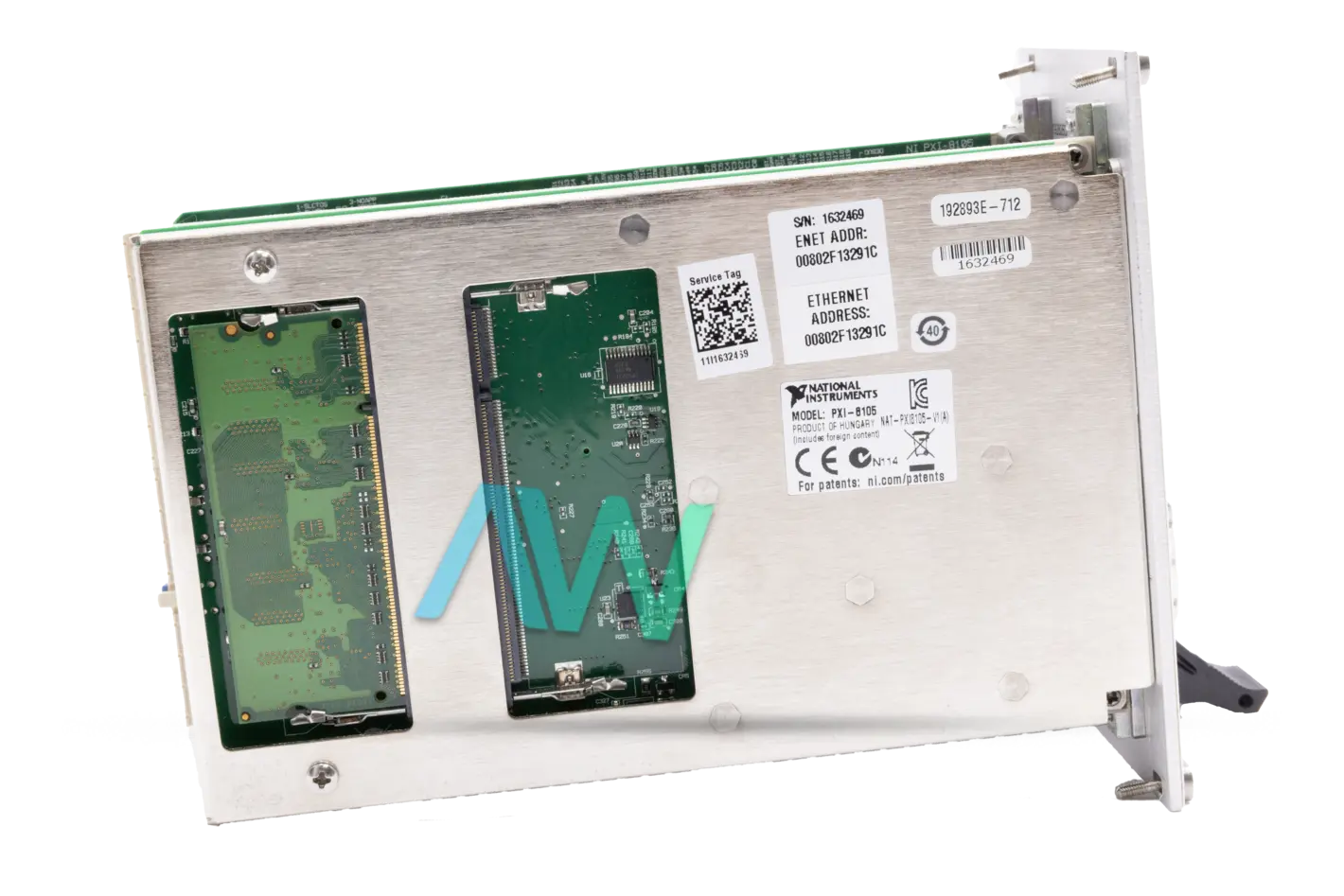

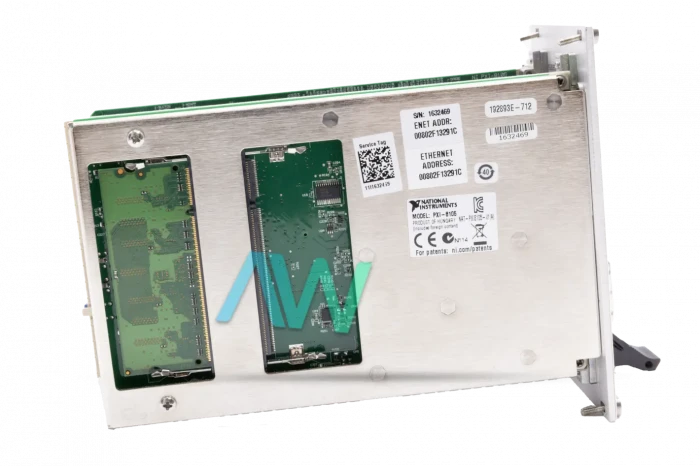

 In its default configuration, the National Instruments PXI-8105 is offered with Windows XP Professional preloaded. However, this embedded controller allows the installation of user-defined or multiple operating systems as well. By using the ExpressCard/34 slot, users can also add another gigabit Ethernet port to their system. The NI PXI-8105 has two SO-DIMM sockets with upgrade options to 4 GB. For its deployment, this model requires one system slot and three controller expansion slots.

PXI-8105 Obsolete Status has been announced by National Instruments, but the controller will still be available for purchase and repairs by Apex Waves.

ModelPXI-8105
Part Numbers779917-00, 779917-01, 779918-00, 779918-01
ManufacturerNational Instruments
TypePXI Controller
CPUIntel Core Duo Processor T2500 (2.0 GHz dual-core)
Standard Memory512 MB
Hi-Speed USB Ports4
Dimensions3.2 x 5.1 x 8.5 in.
Weight2.1 lb.
WarrantyOne Year Warranty
PXI-8105 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXI-8105 Frequently Asked Questions



Question: What is the difference between the four part numbers for the PXI-8105?



Answer: The first part number, 779917-00, is the base model with Localized Windows XP or another OS. The next part number, 779917-01, has Windows XP Professional (English) installed. Part number 779918-00 is the extended temperature model with Localized Windows XP or another OS installed. Finally, part number 779918-01 is the extended temperature model with Windows XP Professional (English). The basic models have an operating temperature range from 5 to 50 degrees C and a storage temperature ranging from -40 to 65 degrees C. The extended temperature models have an operating temperature range from 0 to 55 degrees C and a storage temperature ranging from -40 to 85 degrees C.



Question: Are there certain Chassis that the NI PXI-8105 is not compatible with?



Answer: The NI PXI-8105 will not work in the PXI-1020 or PXI-1025 Chassis.



Question: Does the Ethernet Controller on the PXI-8105 need crossover cables?



Answer: No, the Ethernet Controller on the PXI-8105 does not need crossover cables because it can accomplish a crossover automatically.



Question: What is the part number for the parallel port adapter cable compatible with the PXI 8105?



Answer: The parallel port adapter cable compatible with the PXI 8105 is part number 777169-01.
