PXI-8109 National Instruments PXI Controller | Apex Waves | ImagePXI-8109 National Instruments PXI Controller | Apex Waves | ImagePXI-8109 NewPXI-8109 | Legacy, Refurbished and New Surplus
PXI-8109 National Instruments PXI Controller | Apex Waves | Image
PXI-8109 National Instruments PXI Controller | Apex Waves | Image
PXI-8109 New
PXI-8109 | Legacy, Refurbished and New Surplus

PXI-8109

5/5 | 6 ratings

Modular Systems > National Instruments > PXI Controllers

Part Number PXI-8109
Manufacturer/Brand National Instruments
Description: PXI-8109, Intel Core i7-620 M CPU, PXI Controller
In Stock | Ships in 5-10 Days
(expedited shipping options available)
Fast Quote
Quoted Price
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for additional information:

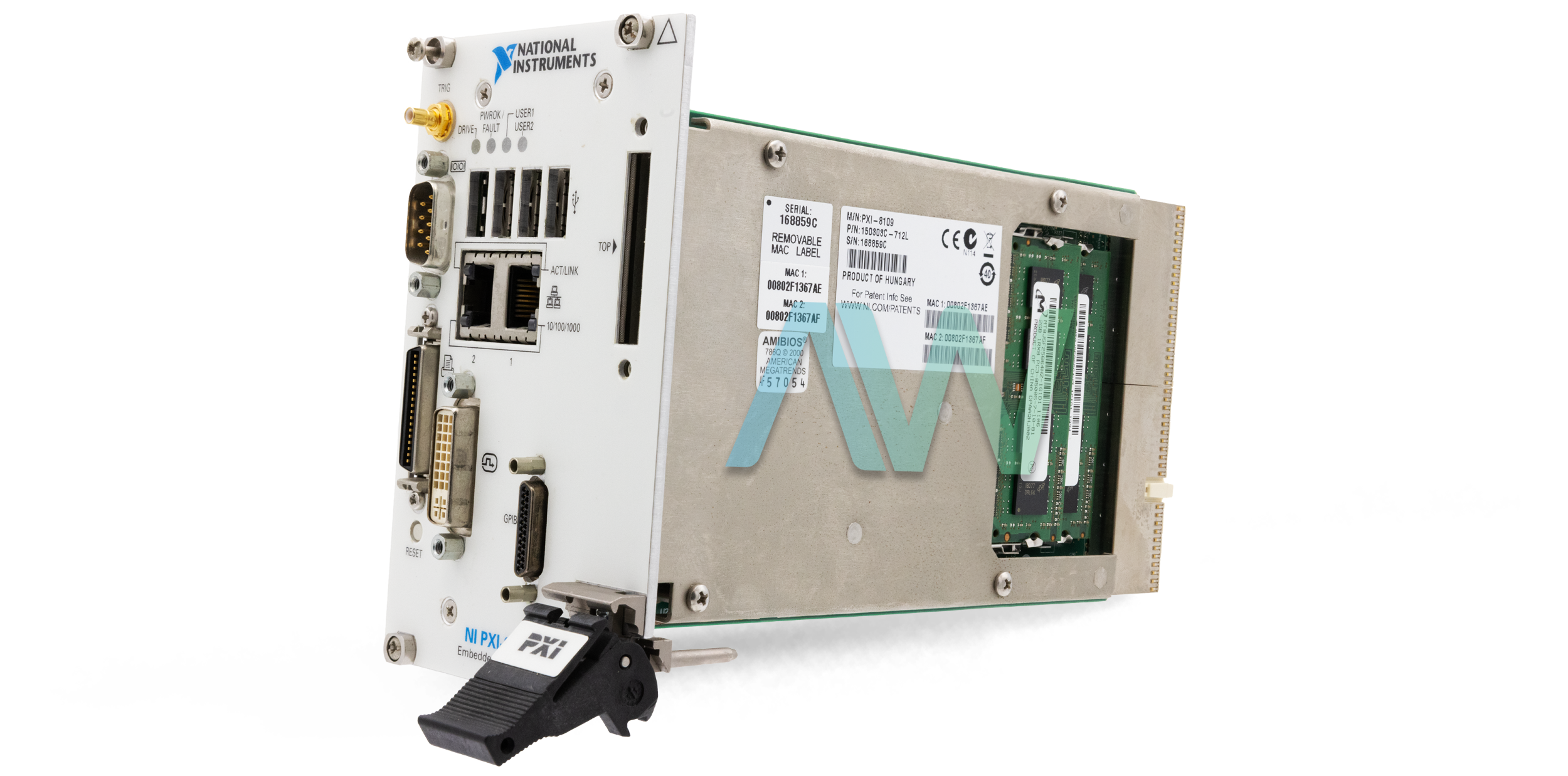

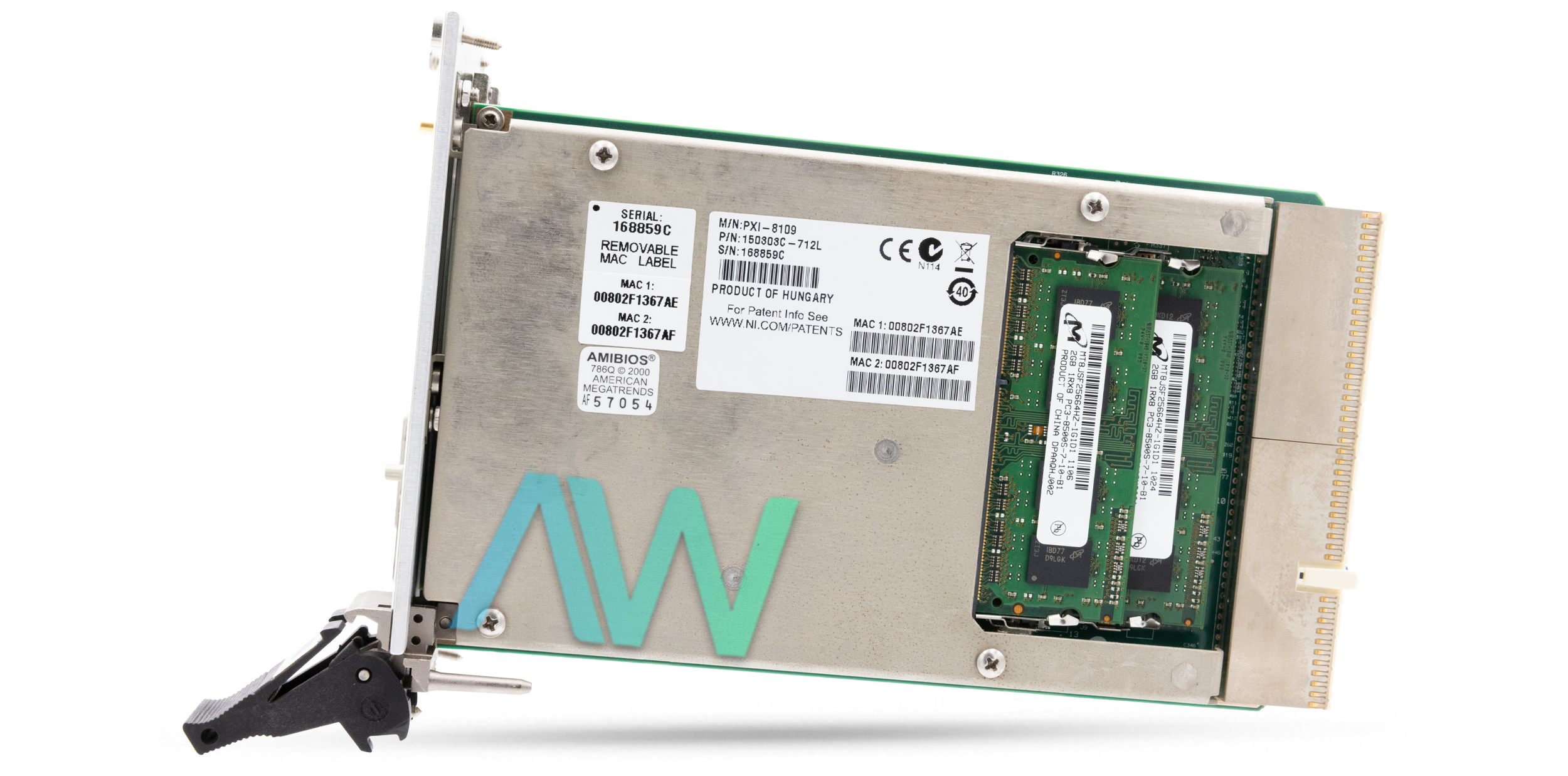

National Instruments PXI-8109 PXI Controller

Featured with a 2.66 GHz CPU and 2 Gigabit Ethernet ports, the NI PXI-8109 (Part numbers: 781453-00, 781454-00781453-01781454-01781453-04, 781454-04, 781453-33, and 781454-33) is a PXI Embedded Controller. This Controller comes with a versatile range of communication and I/O interfaces, including Ethernet and USB. This Embedded Computer is a complete package since it comes with various I/O and state-of-the-art packaging. In its standard configuration, the PXI-8109 features 1 DVI-I video port, 1 RS232 serial port, 4 high-speed 2.0 USB ports, 1 parallel port, and 1 GPIB controller. You can easily install Windows 7 on this Embedded Computer using a USB CD-ROM drive.

The processor incorporated in this PXI Controller is a dual-core Intel i7 series processor. The National Instruments PXI-8109 PXI Controller is a modular PC, which supports several onboard storage options, including an internal hard drive and ExpressCard expansion cards. This PXI Controller can easily be installed and removed from a PXI chassis through simple methods. With this PXI Controller, you can have your processor-intensive applications run smoothly, since it fully supports Intel Hyper-Threading technology. Hyper-Threading is related to the microprocessor and can be enabled or disabled through software. Moreover, users can choose to operate with either one or two CPU cores. In its default configuration, the NI PXI-8109 operates with two CPU cores.

This PXI Controller supports PXI trigger connectivity and comes with a front panel SMB connector to handle trigger signals. This model has 2 SO-DIMM sockets. You can upgrade the installed RAM by replacing the factory installed DIMMs with higher capacity, DD3 type DIMMs.

PXI-8109 Obsolete Status has been announced by National Instruments, but the PXI Controller will still be available for purchase and repairs by Apex Waves.

ModelPXI-8109
ManufacturerNational Instruments
Part Numbers781453-00, 781454-00, 781453-01, 781454-01,
781453-04, 781454-04, 781453-33, 781454-33
TypePXI Controller
CPUIntel Core i7-620 M
CPU Frequency2.66 GHz (base), 3.33 GHz (single-core Turbo mode)
On-Die L2 Cache256 KB x2 (256 KB per core)
Hard Drive120 GB or larger Serial ATA
Slot RequirementsOne system slot plus
three controller expansion slots
Dimensions3.2 in. × 5.1 in. × 8.5 in.
Weight2.87 lb.
WarrantyThree Year Warranty
PXI-8109 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for PXI-8109:

150303D-712L, 150303D-722L, 150303D-912L, 150303D-922L, 150303E-012L, 150303E-022L, 150303E-712L, 150303E-722L, 150303E-912L, 150303E-922L, 190536B-03L, 190536C-02L, 190536D-02L, 193493A-01, 199841A-01L, 199841B-01L, 781453-00, 781453-01, 781453-04, 781453-33, 781454-00, 781454-01, 781454-04, 781454-33, 150303A-01, 150303A-012L, 150303A-022L, 150303A-712L, 150303A-722L, 150303A-912L, 150303A-922L, 150303B-012L, 150303B-022L, 150303B-712L, 150303B-722L, 150303B-912L, 150303B-922L, 150303C-012L, 150303C-022L, 150303C-712L, 150303C-722L, 150303C-912L, 150303C-922L, 150303D-012L, 150303D-022L

National Instruments PXI-8109 Frequently Asked Questions



Question: What is the difference between all the part numbers of the PXI-8109



Answer: The different part numbers of the PXI-8109 are for different operating systems and conditions. Part numbers with no OS: 781453-00 and 781454-00 (external temp). Part numbers for Windows XP: 781453-01 and 781454-01 (external temp). Part numbers for 32 bit Windows 7 (in English): 781453-04 and 781454-04 (external temp). Part numbers with Real-Time Embedded Software: 781453-33 and 781454-33 (external temp).



Question: Does the PXI-8109 have a parallel port?



Answer: Yes, the PXI-8109 has one parallel port.



Question: How many USB ports does the PXI-8109 have?



Answer: The PXI-9109 has four hi-speed USB (2.0) ports.

  PXI-8109 Diagrams

Driver Downloads for PXI-8109






OS Compatibility:
Win XP 32-bit, Win 7 32-bit, Win 10 32-bit

 Download Version


Why Buy From Apex Waves:

Apex Waves Youtube Video

"The business transaction was super easy and friendly."


"Hand carrying parts to fedex directly to make sure I get them overnight. Great service"


"They were very helpful to get me the test equipment that I need."



Delivery:
UPS, FedEX and DHL – Free Ground on all orders
Overnight, Next Day Air or Expedited shipping options available
International delivery available
Same day shipping for in-stock on location
Warranty: All of our products are covered by our Apex Waves Warranty.
3 Year Warranty - New Surplus Parts
2 Year Warranty - Refurbished Parts
Returns: No hassle return policy.
Dedicated customer service team.
Payment: Authorize.net Visa Master Card American Express BB&T Better Business Bureau Dun & Bradstreet
Quick Quotes: Receive Price & Availability Today!
Calibration: Ask About Our Tiered Calibration Levels
Option & Modules: Confirm Your Requirements or Versions
Repair: Cost & Lead Time Available Upon Request for Service
Repair Evaluation: $150
Share this page: Facebook Icon Twitter Icon LinkedIn Icon
Common Typos: PSI-8109, PDI-8109, PXK-8109, PXO-8109, PXI-8W09

PXI-8109



Modular Systems > National Instruments > PXI Controllers

PXI-8109
5/5 | 6 ratings

PXI-8109, Intel Core i7-620 M CPU, PXI Controller

In Stock | Ships in 5-10 Days
(expedited shipping options available)
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Call now for best pricing
1-800-915-6216

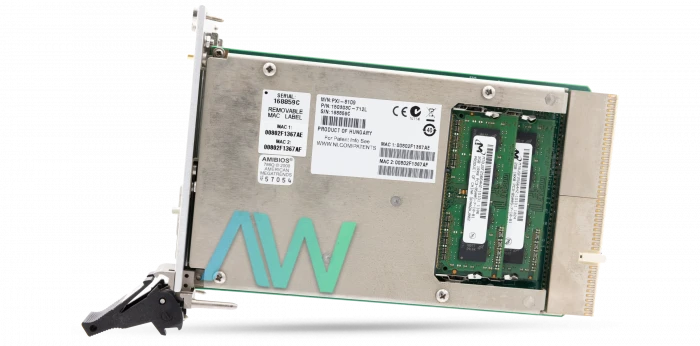

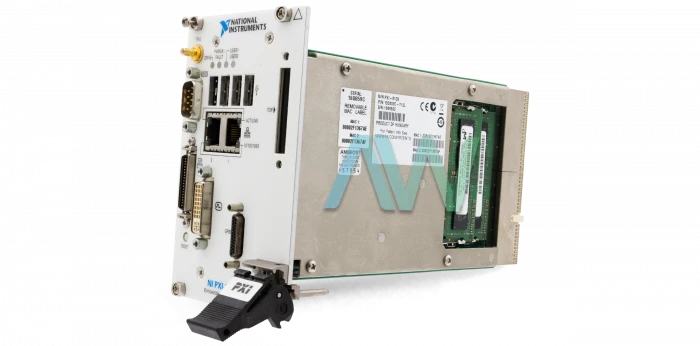

National Instruments PXI-8109 PXI Controller
