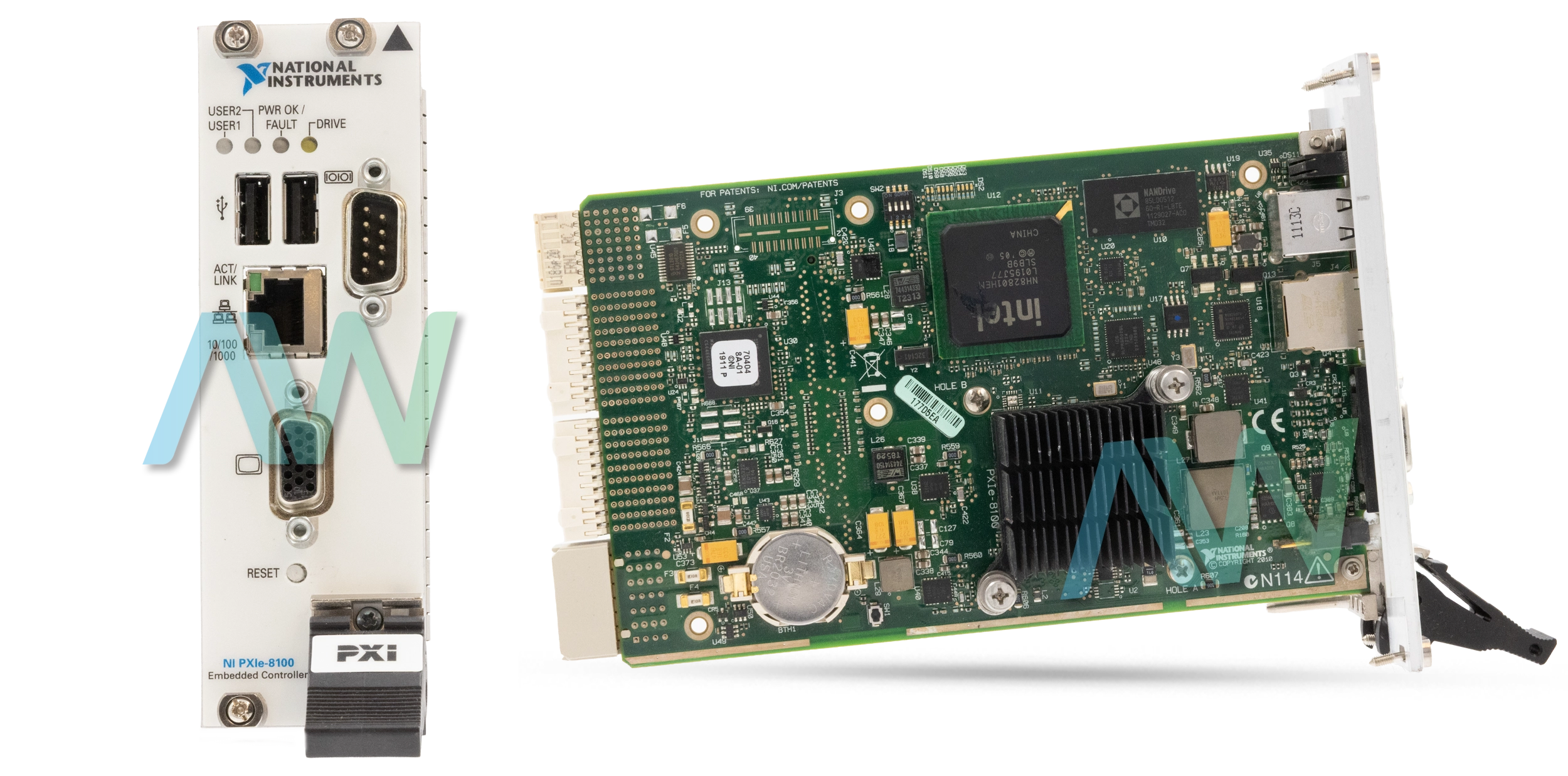

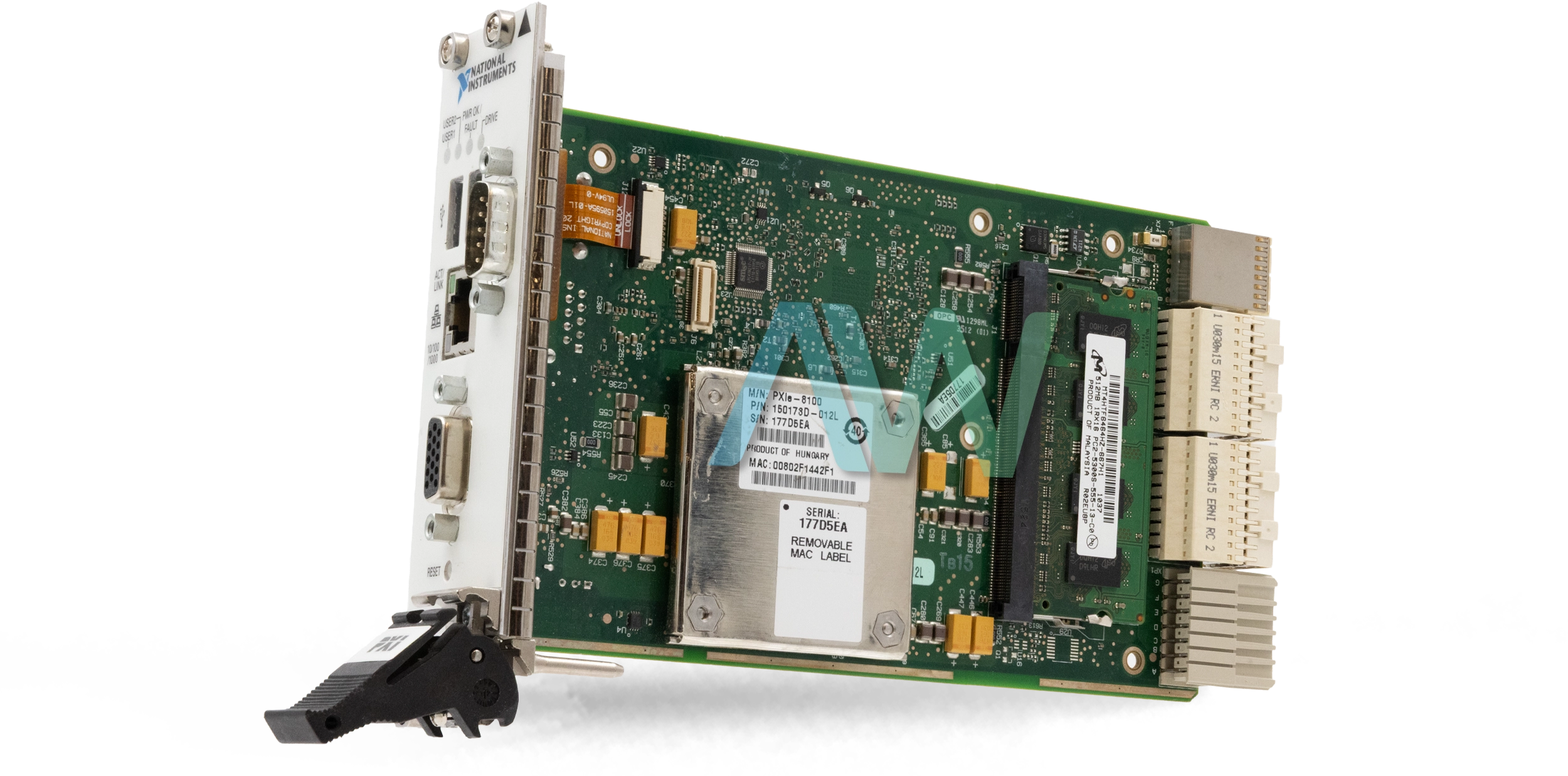

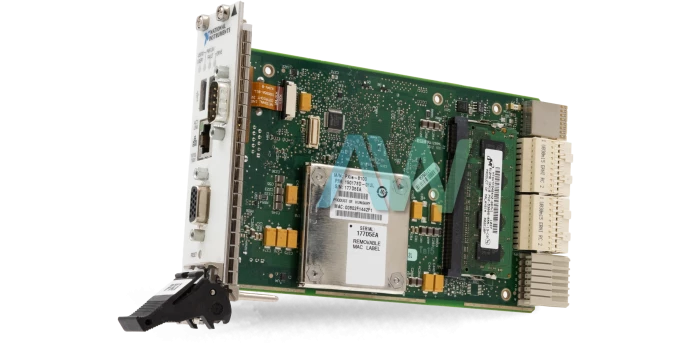

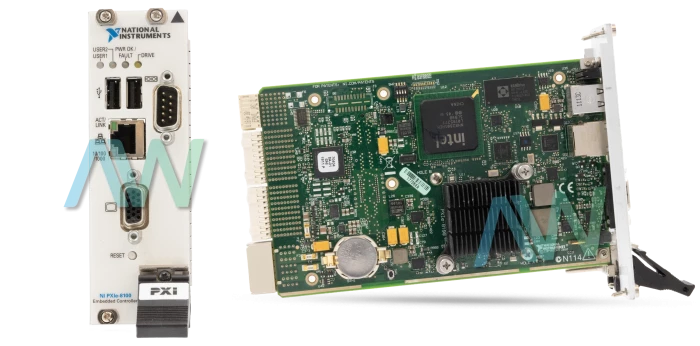

National Instruments PXIe-8100 PXI Controller
The PXIe-8100 (Part Number: 781669-33)1.66 GHz Single-Core Processor is an Embedded Controller for use in PXI Express and CompactPCI Express frameworks. It is utilized for deterministic instrumentation and data acquisition on continuous applications. The user can change the NI PXIe-8100 design settings in the BIOS setup program. The BIOS is the low-level interface between the equipment and working framework programming that arranges and tests the PXIe-8100 Controller when the user boots the framework. The BIOS setup program incorporates menus for designing settings and empowering the NI PXIe 8100 Controller highlights. Most clients do not have to utilize the BIOS setup program, since the PXIe-8100 Controller ships with default settings that function perfectly for general arrangements.
The PXI Express Controller will naturally boot into LabVIEW RT Safe Mode when no software is installed. LabVIEW RT Safe Mode loads with the essential real-time working framework and will consequently attempt to associate with the system utilizing DHCP. On the off chance that DHCP is not accessible, it will then interface with the system with a link-local IP address. The user can utilize the LabVIEW RT setup changes to design LabVIEW RT in the event that it is installed on the controller. If the user is not utilizing LabVIEW RT software, these switches ought to stay in the OFF position. The controller reads these switches simply after a framework reset.
| Model | PXIe-8100 |
|---|---|
| Part Number | 781669-33 |
| Manufacturer | National Instruments |
| Type | PXI Controller |
| Processor Core | Intel Celeron |
| Maximum Controller Bandwidth | 1 GB/s |
| CPU Frequency | 1.66 GHz |
| Board Dimensions | 2-slot 3U PXI Express module |
| Weight | 0.66 lb. |
| PXIe-8100 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PXIe-8100:
National Instruments PXIe-8100 Frequently Asked Questions
Question: What type of Controller OS does the PXIe-8100 have?
Answer: The PXIe-8100 has a LabVIEW Real-Time Controller OS.
Question: What are the slot requirements for the NI PXIe-8100?
Answer: The NI PXIe-8100’s slot requirements are one system slot and one controller expansion slot.
Question: How many Hi-Speed USB ports are on the PXIe-8100?
Answer: The PXIe-8100 has 2 Hi-Speed USB ports.
Question: What is the specification compatibility for the NI PXIe-8100?
Answer: The NI PXIe-8100 is compatible with the PXI Express Specification 1.0.
