PXIe-8108 In Stock | Ships Today
PXIe-8108, 2.53 GHz, Intel Core 2 Duo, PXI Embedded Controller
Need an Official Quote?

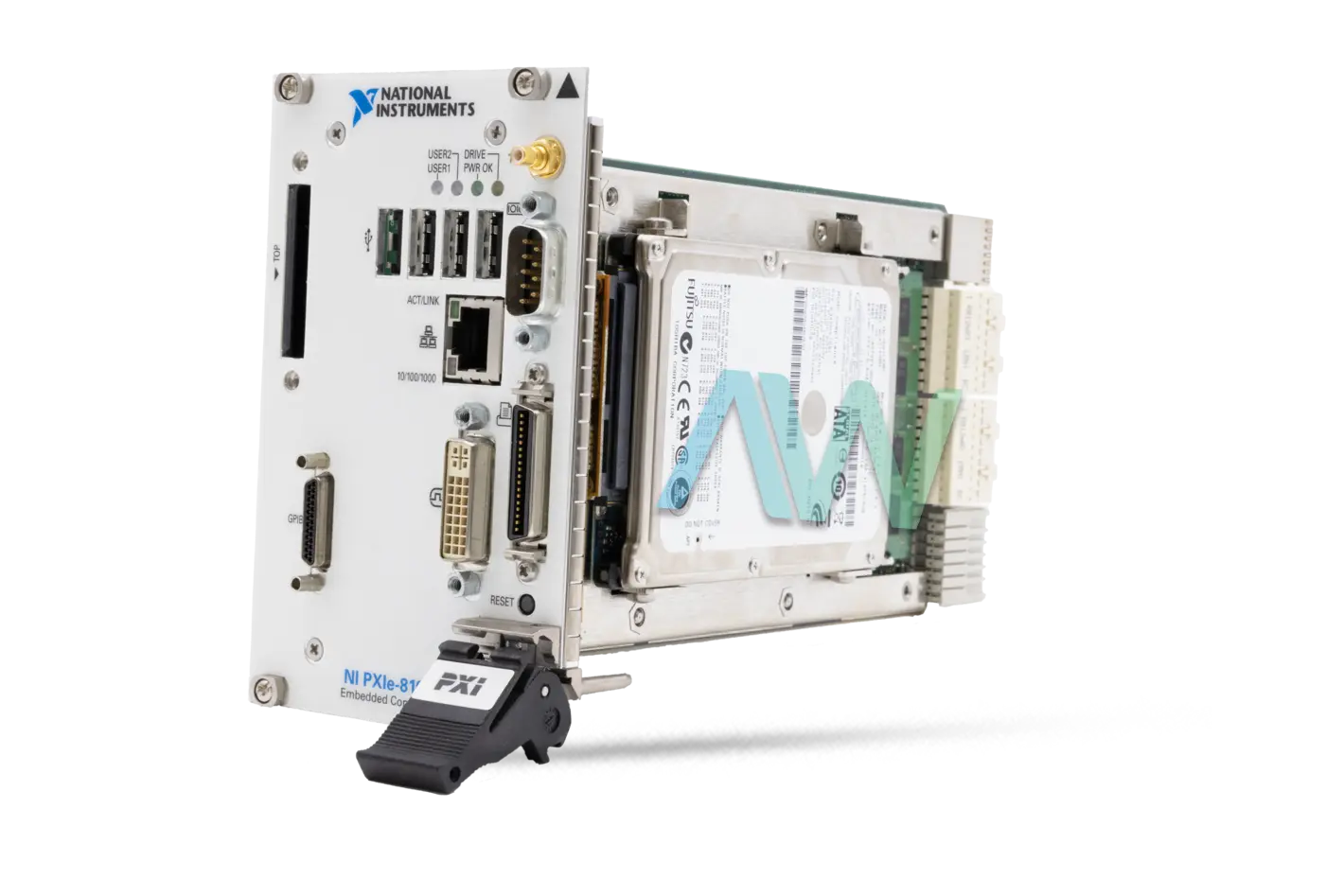

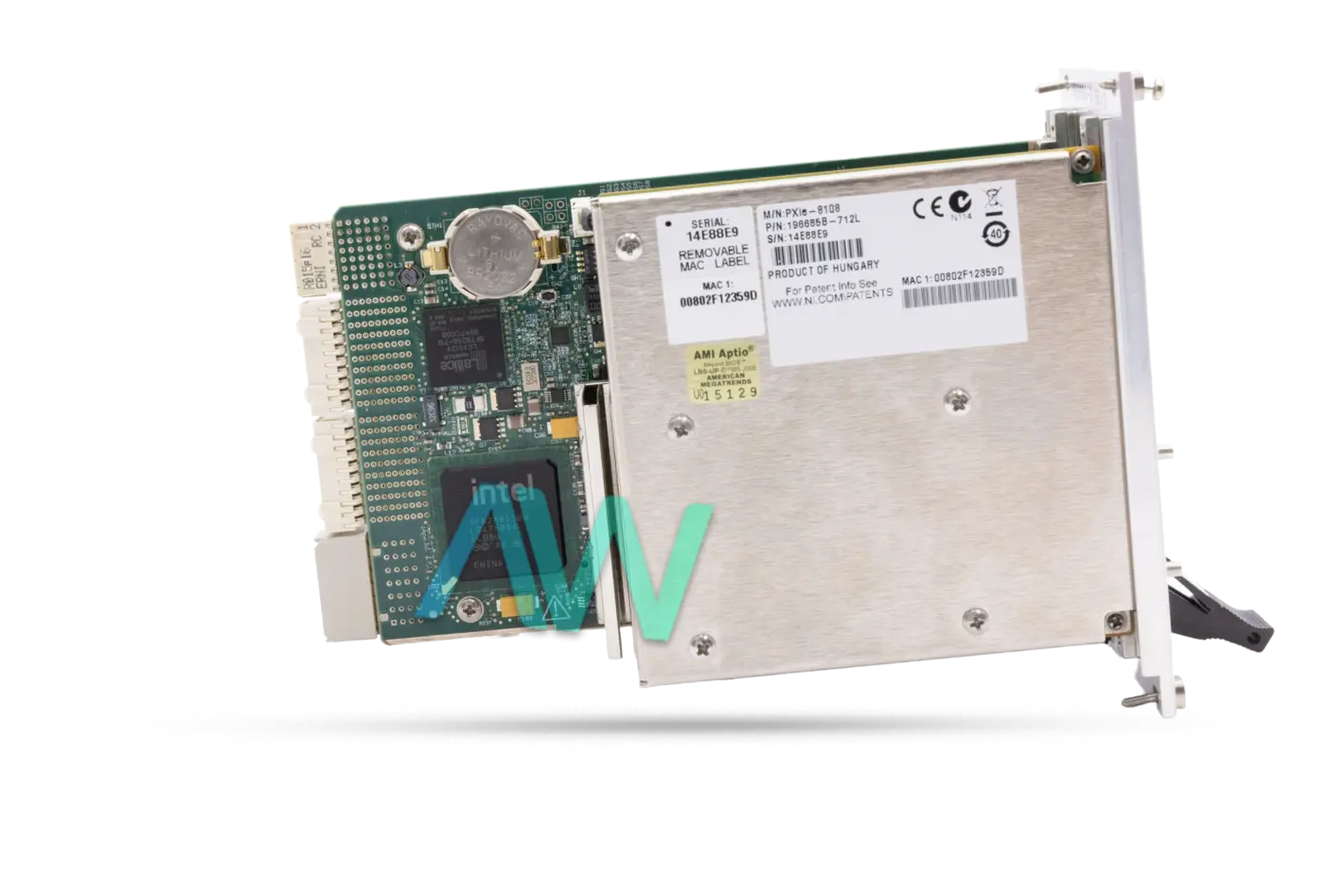

National Instruments PXIe-8108 PXI Embedded Controller
The NI PXIe-8108 (Part Numbers: 781034-02, 781033-01, 781034-01, 781034-04, 781033-04, 781033-02, 781033-00, 781034-00, 781033-33, and 781034-33 ) is intended for PXI and CompactPCI systems. This Controller can be utilized for modular instrumentation and DAQ applications, along with applications involving rigorous scrutiny or system development. When this PXI Controller is placed inside a PXI Express Chassis, the result is a small, high-performing PC platform.
The PXIe-8108 has four Hi-Speed USB ports, one 10/100/1000BASE-TX (Gigabit) Ethernet ports, 6 MB shared L2 Cache, 80 GB SATA minimum hard drive, and an Intel Core 2 Duo T9400, 2.53 GHz dual core processor. With the dual-core processor’s capability, two applications such as NI LabVIEW and Microsoft Excel can both complete on an individual core simultaneously. Multithreaded applications like LabVIEW take complete advantage of dual-core processors since they automatically isolate their tasks into individual threads. A dual-core processor can complete two of these threads at the same time.
NI has a USB-to-dual-PS/2 keyboard/mouse adapter cable, which can link a legacy PS/2 keyboard and mouse to one USB port on the PXI Embedded Controller. There are also external USB CD-ROM/DVD-ROM and USB floppy drives for the PXIe 8108. These drives can be linked to the Controller for simple software installation and upgrades. These drives are powered via the USB ports, so external power connections are not necessary. Other USB peripherals, such as USB speakers to add audio, are available from PC peripheral manufacturers. In addition, there are a variety of plug-in modules for further peripheral I/O. There are modules that add communication with serial, IEEE 1394, and SCSI, and more.
The four-wide 3U PXI Express module weighs 2.17 lb. It has a recommended operating temperature range of 5 to 50 °C with an extended option of 0 to 55 °C, a storage temperature range of –40 to 65 °C also with an extended option of –40 to 71 °C, an operating and non-operating random vibration of 0.3 grms and 2.4 grms respectively–all at a frequency range of 5 to 500 Hz.
PXIe-8108 Obsolete Status has been announced by National Instruments, but the Controller will still be available for purchase and repairs by Apex Waves.
| Model | PXIe-8108 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 781034-02, 781033-01, 781034-01, |
| Type | PXI Embedded Controller |
| Processor | 2.53 GHz Dual-Core, Intel Core 2 Duo T9400 |
| On-die L2 Cache | 6 MB |
| Ethernet | 10/100/1000 BaseTX |
| Board Dimensions | Four-wide 3U PXI Express module |
| Weight | 2.17 lb. |
| Warranty | Three Year Warranty |
| PXIe-8108 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for the PXIe-8108:
193451A-01L, 193451B-01L, 196685A-012L, 196685A-022L, 196685A-712L, 196685A-722L, 196685A-812L, 196685A-822L, 196685B-012L, 196685B-022L, 196685B-722L, 196685B-812L, 196685B-822L, 196685B-912L, 196685B-922L, 196685C-012L, 196685C-022L, 196685C-712L, 196685C-722L, 196685C-812L, 196685C-822L, 196685C-912L, 196685C-922L, 196685D-012L, 196685D-022L, 196685D-712L, 196685D-722L, 196685D-812L, 196685D-822L, 196685D-912L, 196685D-922L, 196685E-012L, 196685E-022L, 196685E-712L, 196685E-722L, 196685E-812L, 196685E-822L, 196685E-912L, 196685E-922L, 196685F-012L, 196685F-712L, 196685F-722L, 196685F-812L, 196685F-912L, 196685G-022L, 196685G-712L, 196685G-722L, 196685G-822L, 196685G-922L, 781033-00, 781033-01, 781033-02, 781033-04, 781033-33, 781034-00, 781034-01, 781034-02, 781034-04, 781034-33
Associated NSNs for the PXIe-8108:
7021015943066, 7021-01-594-3066 (7021015943066)
National Instruments PXIe-8108 Frequently Asked Questions
Question: Why does the PXIe 8108 have so many part numbers?
Answer: The PXIe 8108 has a standard version and an extended temperature version, as well as compatibility with different versions of Windows. Part number 781034-02 is the extended temperature model for Windows Vista, while part number 781033-02 is the standard version for Windows Vista. Part number 781034-04 is the extended temperature model for Windows 7 32-bit and part number 781033-04 is the standard model for Windows 7 32-bit. Part number 781033-01 is the standard model for Windows XP and part number 781034-01 is the extended temperature model for Windows XP. Part number 781033-00 is for localized OS, while part number 781034-00 is the extended temperature model for localized OS. Finally, part number 781033-33 has Real-Time Embedded software, while part number 781034-33 is the extended temperature version with Real-Time Embedded Software.
Question: Is it possible to utilize the internal Serial ATA drive and an external hard drive simultaneously for the NI PXIe-8108?
Answer: Yes, it is possible to utilize the internal Serial ATA drive and an external hard drive simultaneously for the NI PXIe-8108.
Question: What is the maximum memory configuration for the PXIe-8108?
Answer: The maximum memory configuration for the PXIe-8108 is 1 x 4 GB DIMM or 4 GB memory.
Question: Which drivers are meant for use with the PXIe-8108 Controller?
Answer: The NI-VISA and NI-488.2 drivers are meant for use with the PXIe-8108 Controller.
PXIe-8108 PDF Manuals
1.73 GHZ QUAD CORE EMBEDDED CONTROLLER FOR PXI EXPRESS DATASHEET.PDF
1.73 GHZ QUAD CORE REAL TIME EMBEDDED CONTROLLER FOR PXI EXPRESS DATASHEET.PDF
2.53 GHZ DUAL CORE EMBEDDED CONTROLLER FOR PXI DATASHEET.PDF
2.53 GHZ INTEL CORE 2 DUO REAL TIME EMBEDDED CONTROLLERS FOR PXI DATASHEET.PDF
2.53 GHZ INTEL CORE 2 DUO REAL TIME EMBEDDED CONTROLLERS FOR PXI EXPRESS DATASHEET.PDF
ARCHIVED NI PXIE 8108 INSTALLATION GUIDE.PDF
ARCHIVED NI PXIE 8108 LETTER OF VOLATILITY.PDF
ARCHIVED NI PXIE 8108 USER MANUAL AND SPECIFICATIONS.PDF
HIGH VALUE REAL TIME EMBEDDED CONTROLLERS FOR PXI EXPRESS DATASHEET.PDF
PXI EXPRESS EMBEDDED CONTROLLERS PRODUCT FLYER.PDF
Why Buy From Apex Waves:
Verified
"Hand carrying parts to fedex directly to make sure I get them overnight. Great service"
"They were very helpful to get me the test equipment that I need."
PXIe-8108
Modular Systems > National Instruments > PXI Controllers
PXIe-8108, 2.53 GHz, Intel Core 2 Duo, PXI Embedded Controller
1-800-915-6216
- Description
- Technical Specifications
- FAQ
- Manuals & PDFs

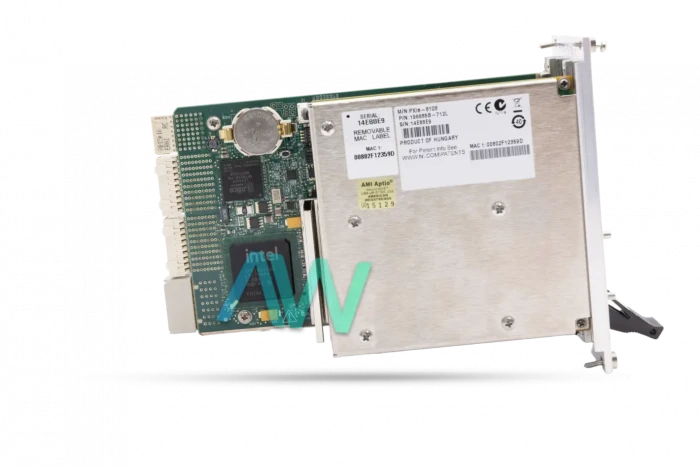

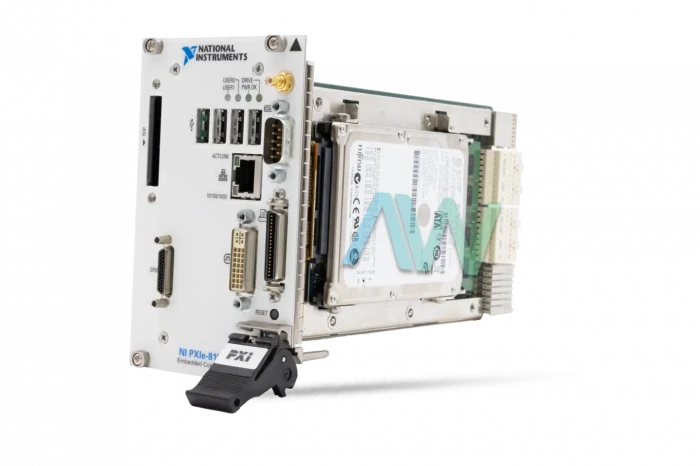

National Instruments PXIe-8108 PXI Embedded Controller
