PXIe-8861
PXIe-8861 alt2
PXIe-8861 New small
PXIe-8861 Refurb small

Pictures shown are a representation. Actual item may vary if no part number is provided on quote request.

Same Day Calibration Available

2-3 Year Warranty Included

Free Ground Shipping

Or speak to a sales representative for additional information:

PXIe-8861 Request for Availability

PXIe-8861, 2.8 GHz Quad-Core, PXI Controller

Rated 4.68/5 | 18 ratings

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

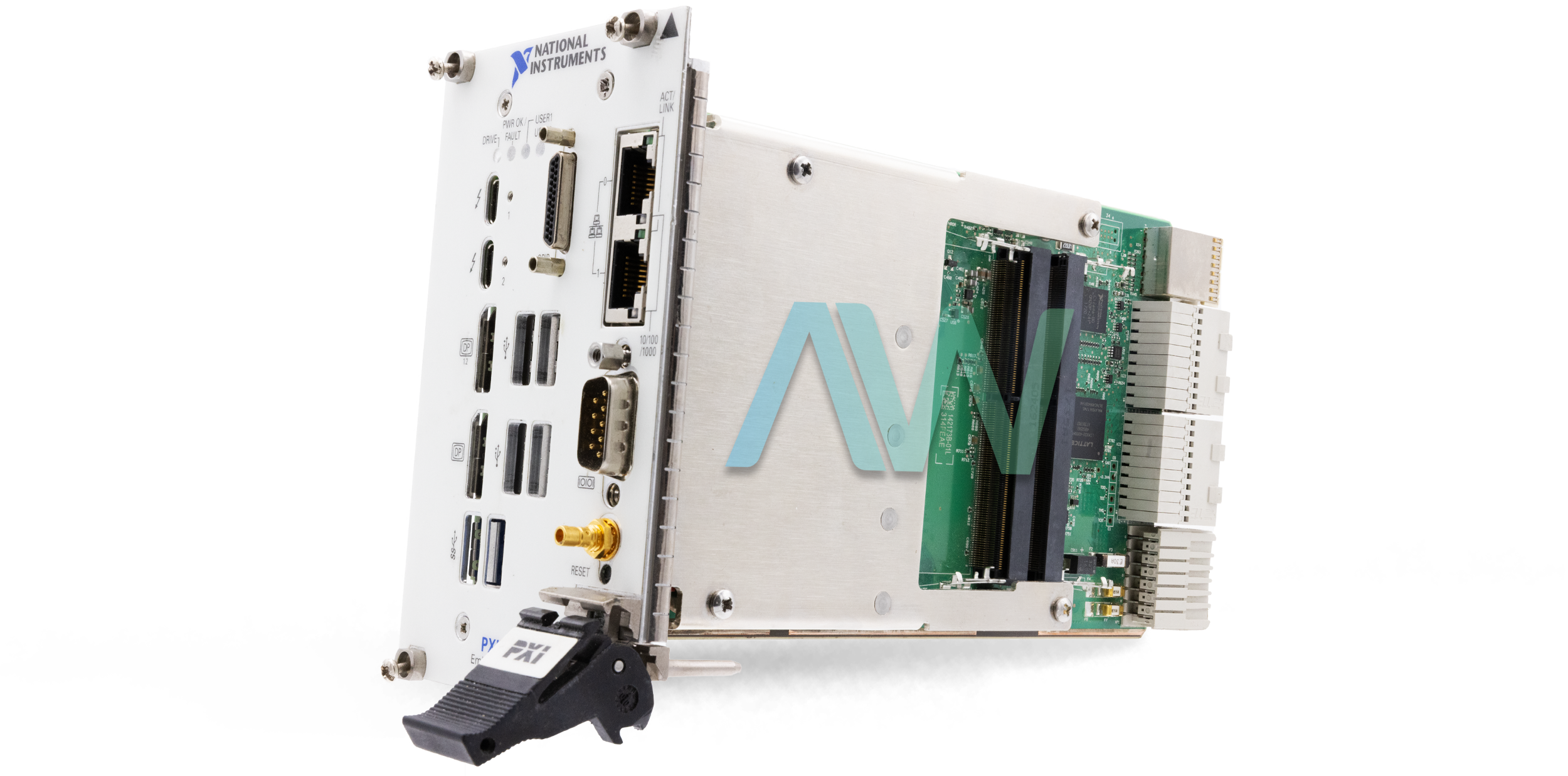

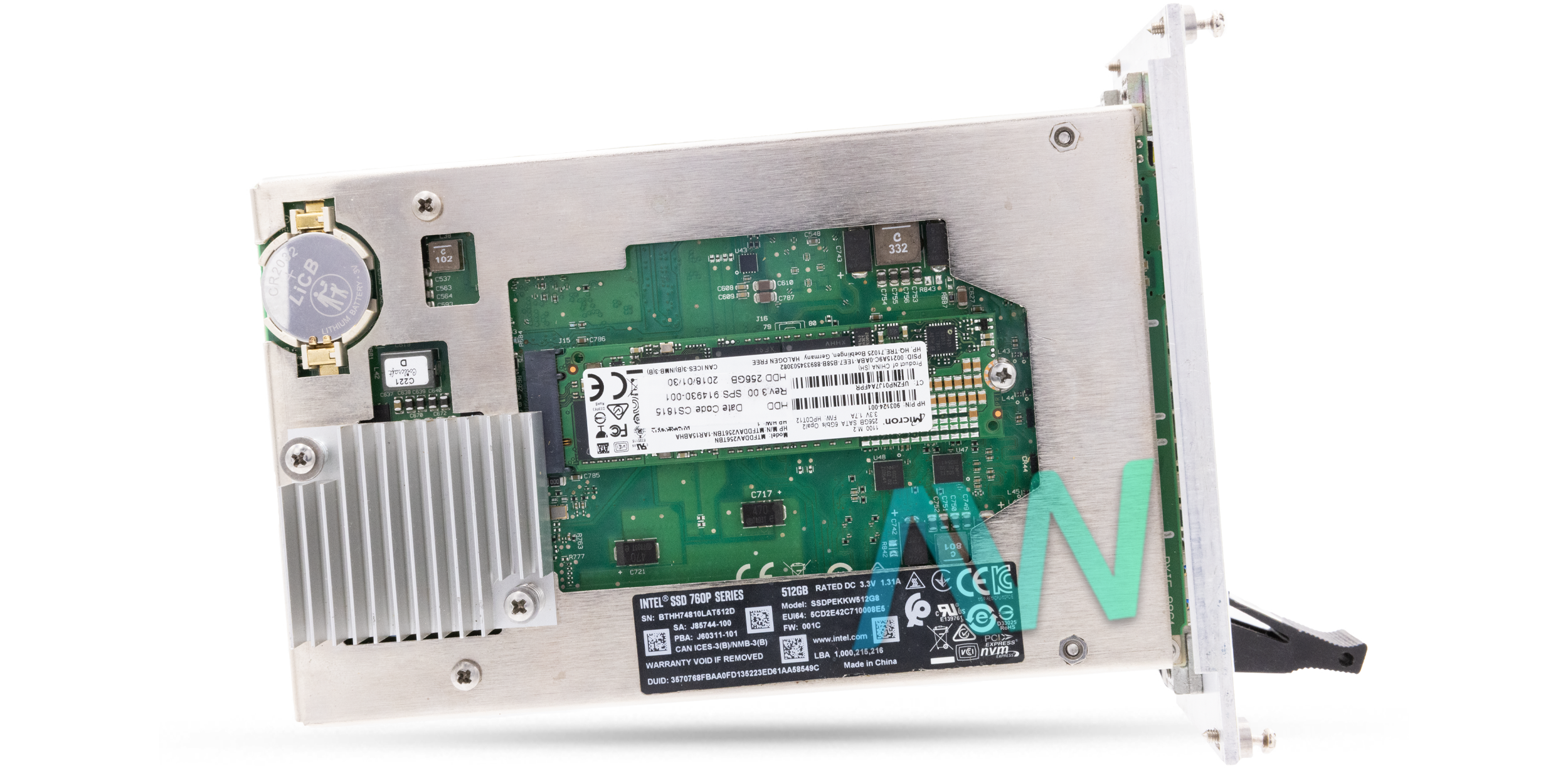

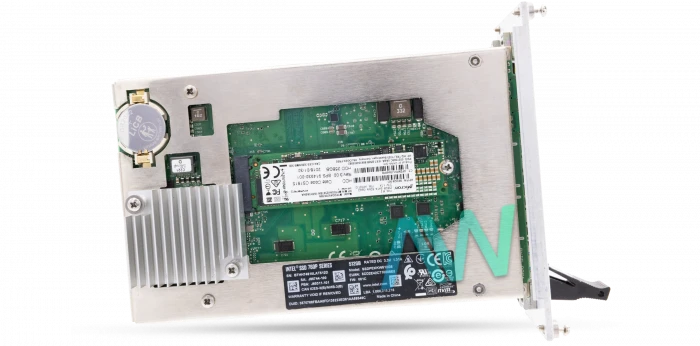

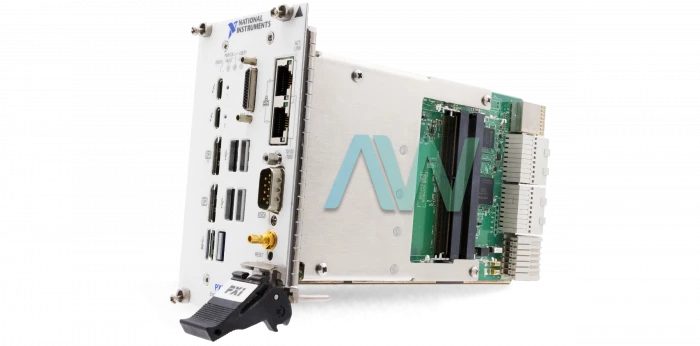

National Instruments PXIe-8861 PXI Controller

The National Instruments PXIe-8861 is a microprocessor based embedded Controller designed for PXI Express systems. This model features an Intel Xeon 4‑Core processer. For a flexible and advanced level connectivity, the NI PXIe-8861 comes equipped with two USB 3.0 ports, two Gigabit Ethernet Ports (10/100/1000BASE‑TX compatible), four USB 2.0 ports, two Thunderbolt™ 3 ports, one serial port, and other types of peripheral I/O.

The processer equipped in this PXI Controller is a Quad-Core 2.8 GHz processer. This model is an ideal choice for various applications, including data acquisition and RF modular instrumentation. The National Instruments PXIe-8861 is a high bandwidth system controller that can easily be combined with any compatible PXI Express chassis like the NI PXIe-1085.

This PXI Controller comes with user accessible RAM, enabling the user to upgrade the amount of factory installed RAM. Moreover, users can also replace the preinstalled operating system through a USB CD-ROM or DVD-ROM. Apart from offering high processing power, this Controller offers high I/O throughput, coupled with up to 24 GB of RAM and a comprehensive set of peripheral I/O ports.

The front panel of the National Instruments PXIe-8861 contains a Display Port v1.2.  The highest performance of this PXI Embedded Controller makes it an ideal solution for PXI-based control, measurement, and test systems. The integrated, differential system 100 MHz reference clock provided in this Controller offers seamless synchronization of multiple modules. Moreover, three differential star trigger busses are also provided for the distribution of precise trigger and clock signals. Thus, the demanding synchronization and timing requirements of logging and instrumentation systems are curtailed by the integrated features of the NI PXIe-8861.

ModelPXIe-8861
ManufacturerNational Instruments
TypePXI Controller
Processor2.8 GHz Quad-Core
Ethernet Ports2
USB 3.0 Ports2
USB 2.0 Ports4
Warranty2-3 Year Warranty
PXIe-8861 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for PXIe-8861:

National Instruments PXIe-8861 Frequently Asked Questions



Question: Does the NI PXIe-8861 have an integrated hard drive?

Answer: Yes, the NI PXIe-8861 has an integrated hard drive.



Question: What type of controller RAM does the PXIe 8861 have?

Answer: The PXIe 8861 has DDR4 SDRAM.



Question: Does the PXIe-8861 have battery backup?

Answer: The PXIe-8861 has battery backup for the CMOS, but not for the Controller RAM.
