PXI-2575

4.6/5 | 17 ratings

Modular Systems > National Instruments > PXI Multiplexer Modules

Part Number PXI-2575
Manufacturer/Brand National Instruments
Description: PXI-2575, Electromechanical Relay, PXI Multiplexer Switch Module
In Stock | Ships Today
Fast Quote
Quoted Price
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for additional information:

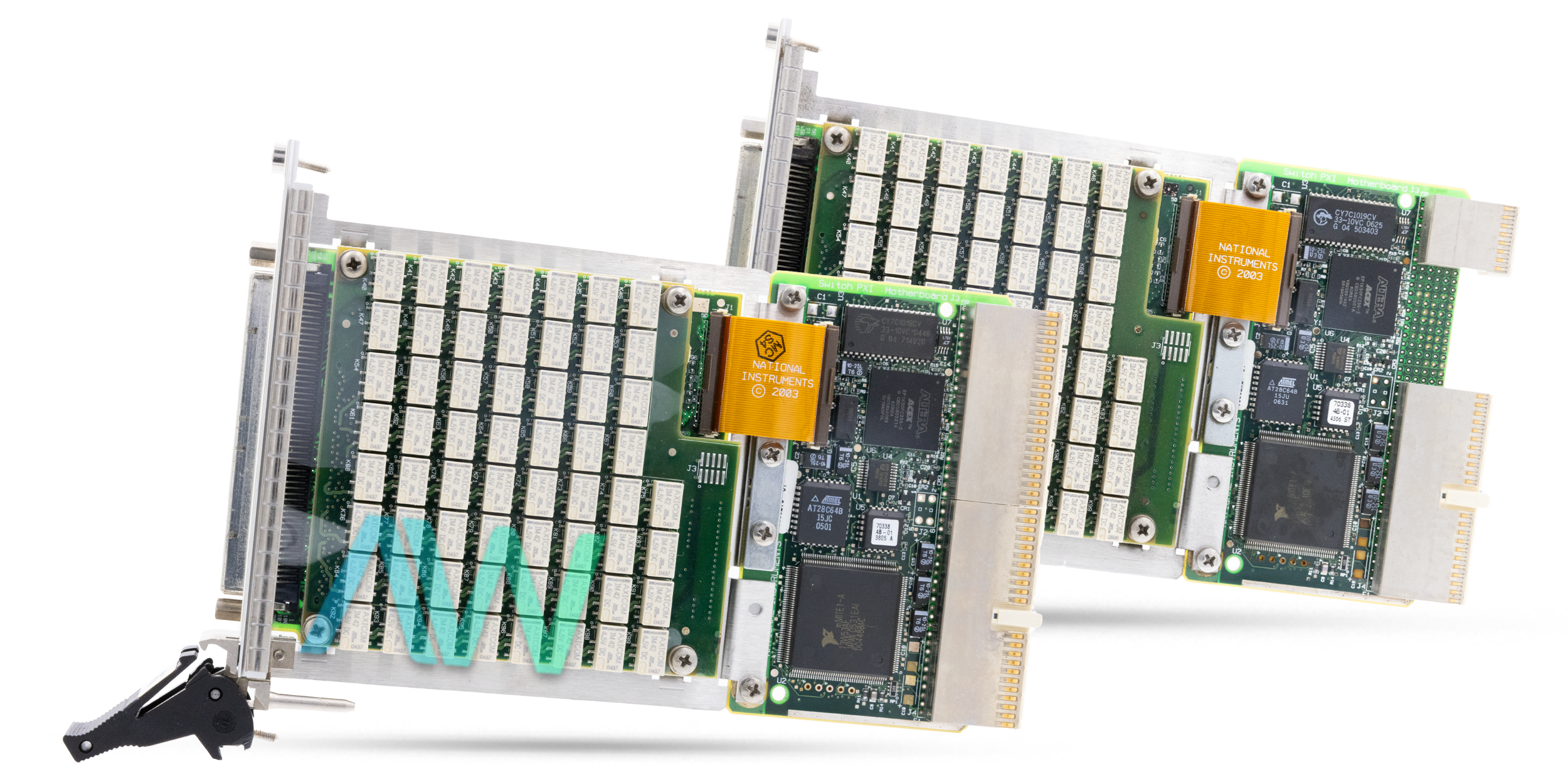

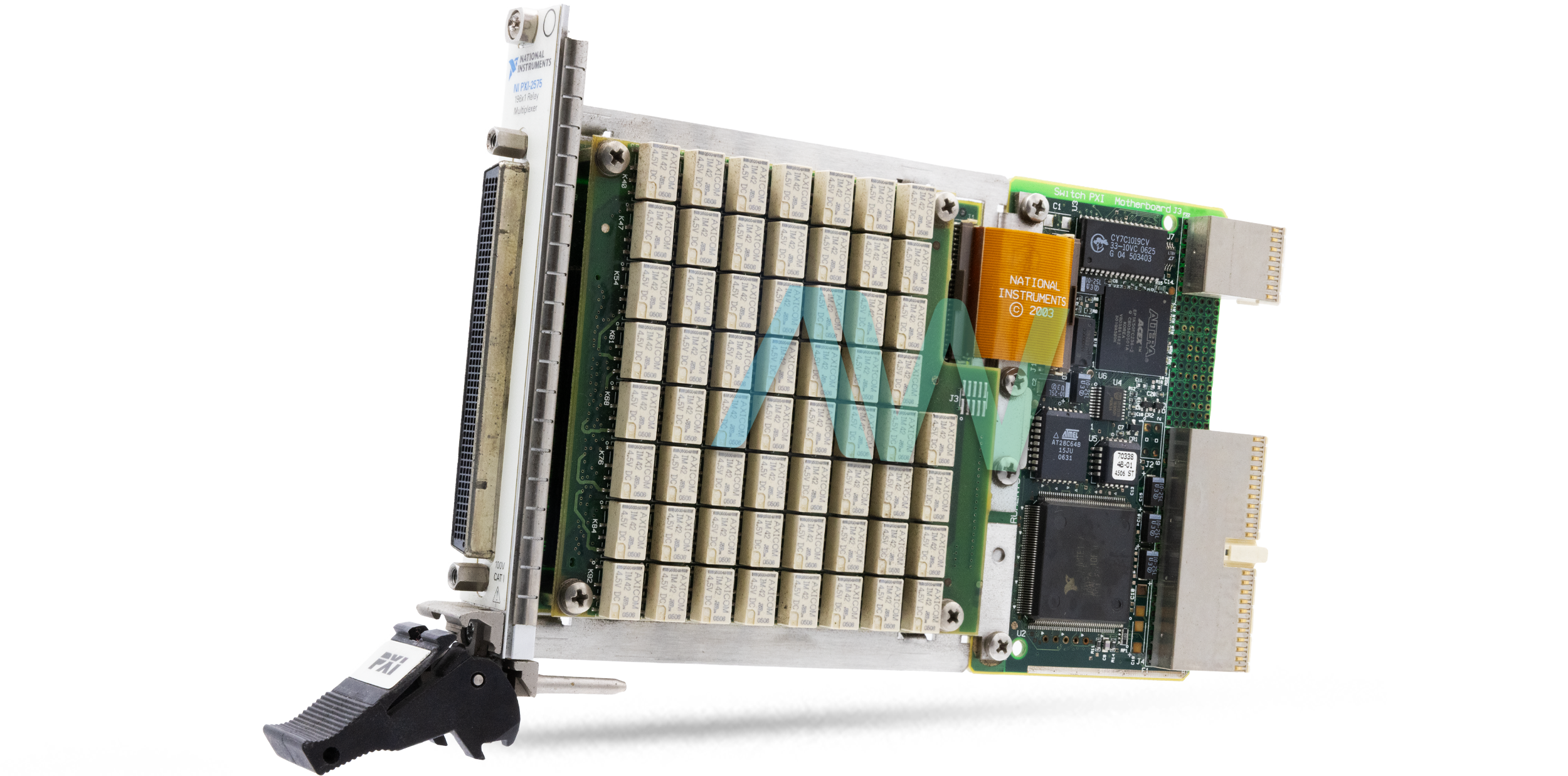

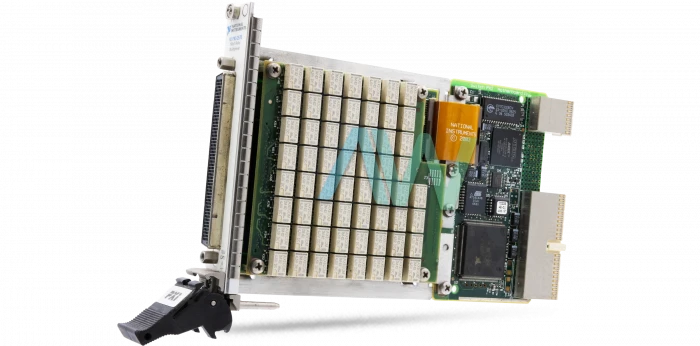

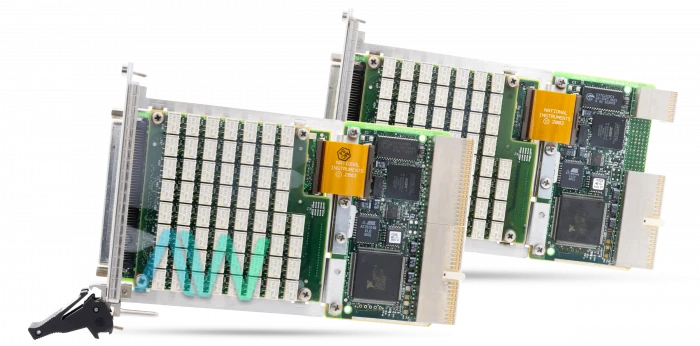

National Instruments PXI-2575 PXI Multiplexer Switch Module

The PXI-2575 (Part Number: 778572-75) is a high density PXI Multiplexer Switch Module that is perfect for a huge variety of channel robotized test applications. This module utilizes electromechanical relays and can direct many signals to measurement instruments or from source units. The PXI-2575 has an inward relay count to control relays and deterministic activity with equipment triggers to enhance test results. This module has several topologies available and can be configured as a 1-wire 196 x 1 multiplexer, a 2-wire, 95 x 1 multiplexer, or a 2-wire 98 x 1 multiplexer. The NI PXI-2575 uses socketed relays, which are simple to replace when they fail. The electrical life of the relays is approximately 105 operations when switching at the rated load. The device has a switch bandwidth of 20 MHz, a maximum switching power of 60 W, 62.5 VA (DC to 60 Hz) per channel.

This PXI Multiplexer Switch Module has a relay count tracking feature, which counts relay closures on all the independent relays. Relay counts are incremented every time a relay is activated. The counts are saved on the module and can be retrieved programmatically. This helps with predictive maintenance and minimizes unanticipated system downtime. Additionally, the device is equipped with a 200 POS LFH Matrix 50 I/O connector.

The NI PXI-2575 module is not suggested for 2-wire resistance measurements. The typical relay operating time is 1 ms, while the maximum relay operating time is 3.4 ms. The relay contact material is silver, gold covered, and the scan rate is 140 cycles per second. This PXI Multiplexer Switch Module can be used with NI-SWITCH and NI-DAQmx driver software. The device can be programmed using software packages/application development environments (ADEs) such as Measurement Studio for Visual C++, NI Switch Executive, LabWindows/CVI, and LabVIEW. This module can also be used with two cable types: the 1 m SH200LFH-4xDB50F-S: LFH200 to 50-pin D-SUB Switch Cable (CH-CH Twisted) or the 2 m SH200LFH- BAREWIRE: LFH200 Connector to Bare Wire Switch Cable. The device weighs 8.1 oz., and measures 8.5 x 0.8 x 5.1 in. in physical dimensions. It has a recommended operating temperature range of 0 °C to 55 °C.

ModelPXI-2575
ManufacturerNational Instruments
Part Number778572-75
TypePXI Multiplexer Switch Module
Channels95, 98, 196
Banks1
Switch Bandwidth20 MHz
Dimensions8.5 × 0.8 × 5.1 in.
Weight8.1 oz.
WarrantyThree Year Warranty
PXI-2575 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for the PXI-2575:

151664A-01L, 191703A-01, 191703B-01, 191703B-01L, 191703C-01L, 191706A-01, 191706B-01, 191706C-01, 191706D-01L, 191706D-02L, 191706E-01L, 191706F-01L, 191706F-02L, 191706G-01L, 200591A-01, 778572-75, 788377-01


Associated NSNs for the PXI-2575:

5998-01-650-3556 (5998016503556)

National Instruments PXI-2575 Frequently Asked Questions



Question: How many different topologies does the NI PXI-2575 have?



Answer: The NI PXI-2575 can be arranged as a 1-wire 196 x 1 multiplexer, a 2-wire 95 x 1 multiplexer, or a 2-wire 98 x 1 multiplexer.



Question: What is the scan rate of the PXI-2575?



Answer: The PXI-2575 has a scan rate of 140 cycles/s.



Question: What is the maximum switching current DC of the PXI-2575?



Answer: The maximum switching current DC of the PXI-2575 is 1 A.



Question: Which type of relays does the PXI-2575 Multiplexer Switch Module have?



Answer: The PXI-2575 Multiplexer Switch Module has electromechanical relays.
