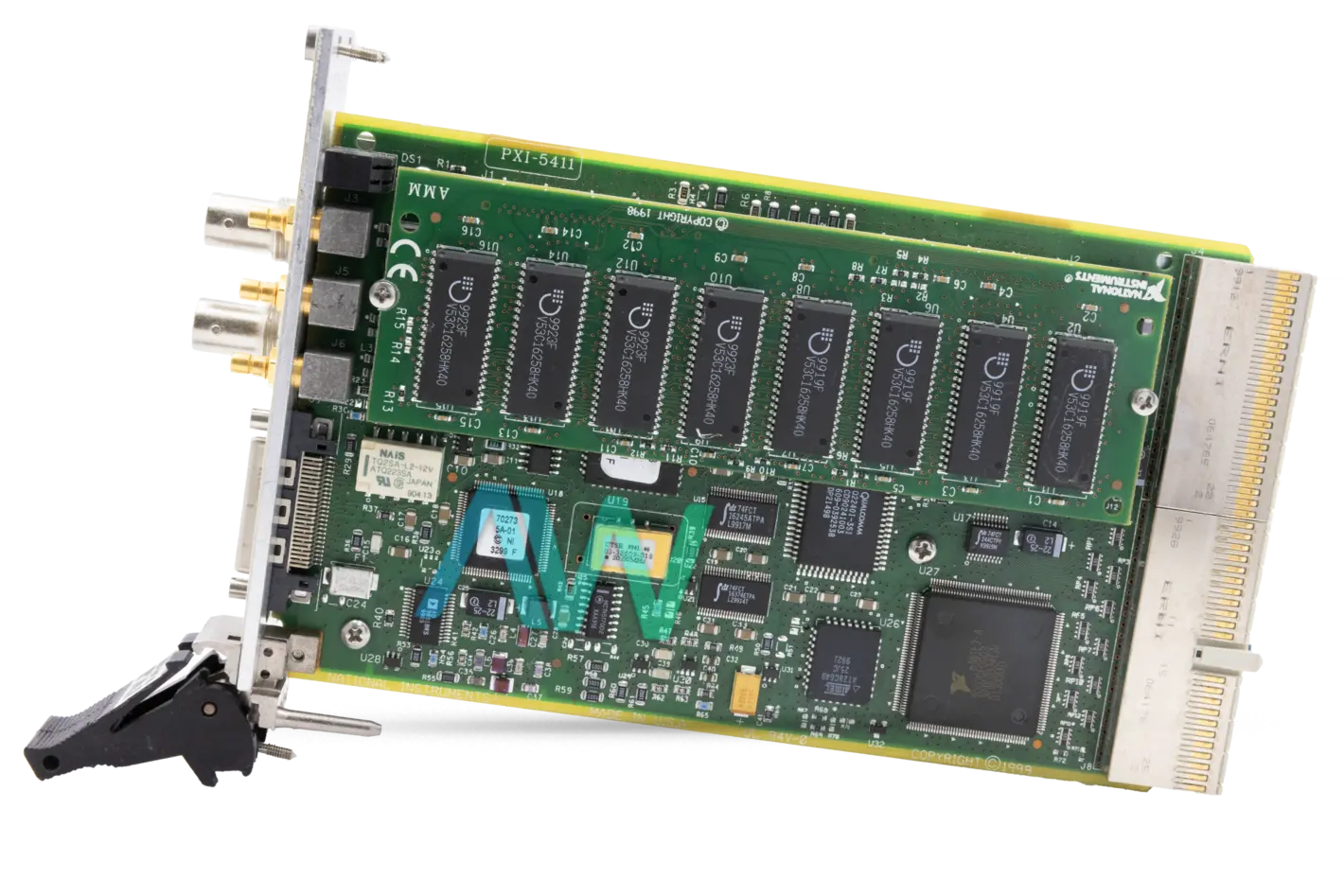

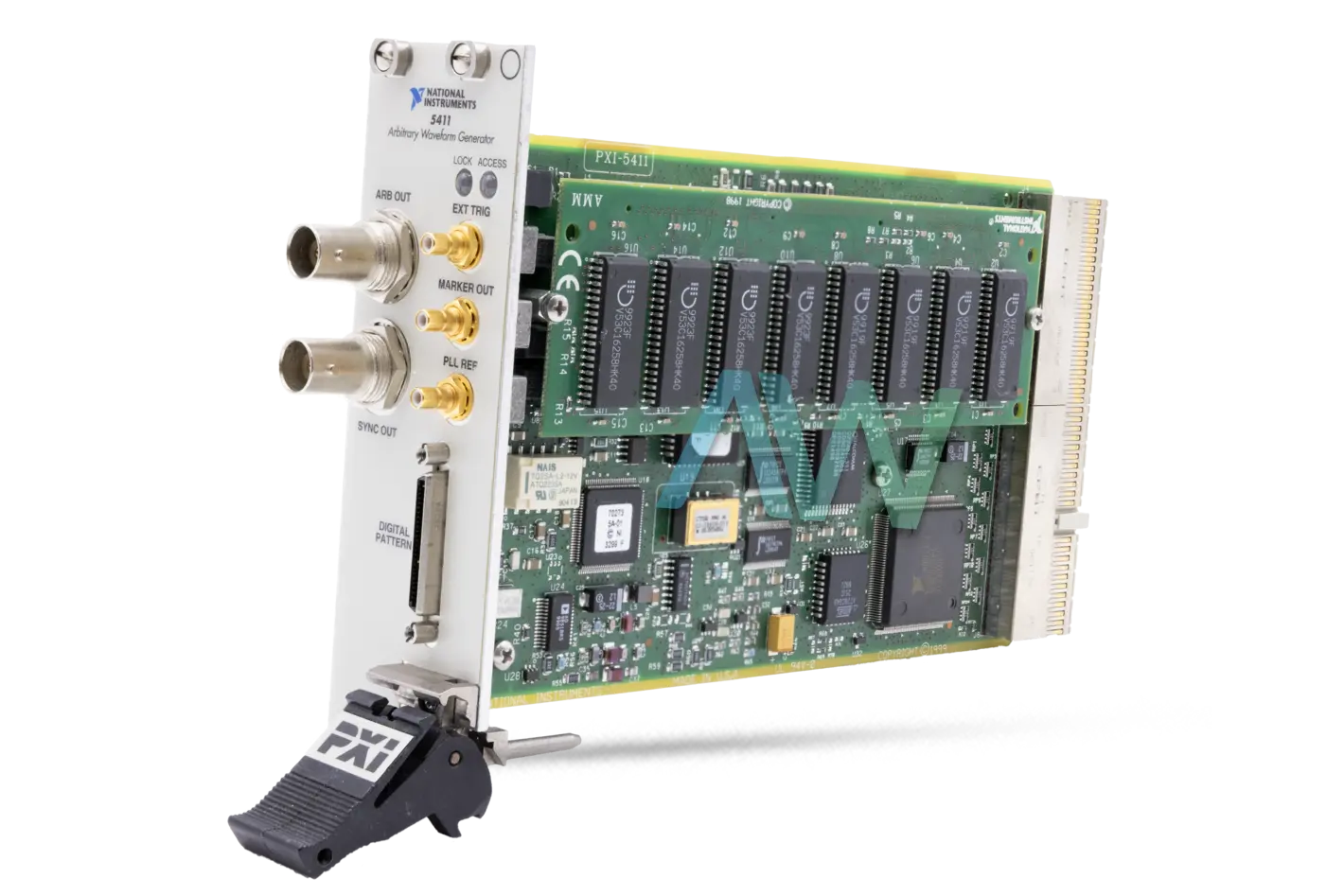

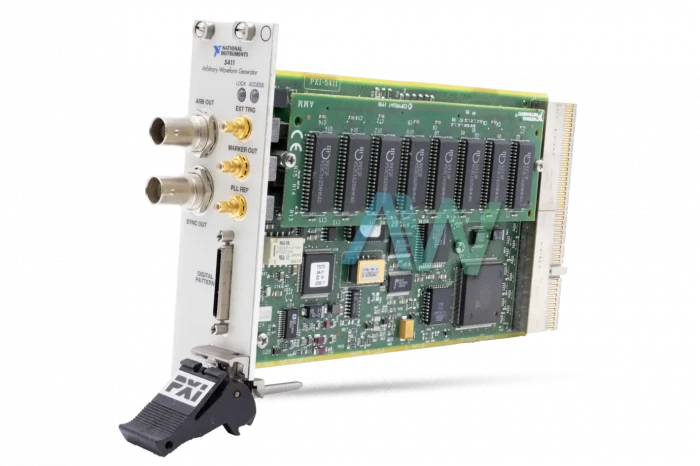

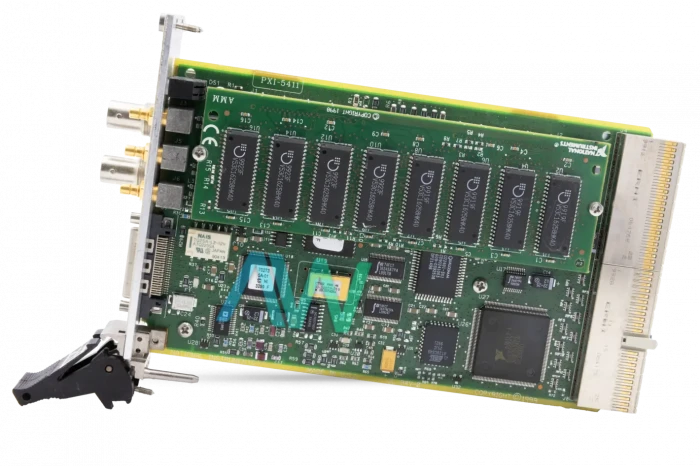

National Instruments PXI-5411 PXI Arbitrary Waveform Generator
The NI PXI-5411 High-Speed PXI Arbitrary Waveform Generator incorporates a few VirtualBench soft front boards to enable the user to get up and running rapidly with their arbitrary waveform generator. These soft front boards are an onscreen interface like independent instruments. A NI-FGEN instrument driver is likewise included, which can be used with a wide assortment of advancement devices to construct applications for the National Instruments PXI-5411.
The NI PXI-5411 Waveform Generator includes a VirtualBench function. Like independent instruments, VirtualBench obtains, controls, analyzes, and presents data. Since VirtualBench works on a PC, it gives extra processing, storage, and display abilities. VirtualBench loads and saves waveform information in a form that popular spreadsheet programs and word processors can utilize. It can likewise create reports—a complement to the raw information storage—by including timestamps, estimations, client names, and remarks. The user can additionally print the waveforms and the settings of VirtualBench to a printer associated with the PC.
The NI PXI-5411 stores arbitrary waveforms in memory as 16-bit digital words. Only the 12 most noteworthy bits are sent to the computerized channel and the DAC. On the PXI-5411 arbitrary waveform generator, trigger sources are programmatically selectable. As a matter of course, the PXI-5411 High-Speed Waveform Generator creates the trigger sources, so the user can utilize an outside trigger from a pin on the computerized I/O connector, the RTSI trigger lines on the RTSI transport, or the TTL trigger lines on the PXI trigger bus on the backplane.
| Model | PXI-5411 |
|---|---|
| Manufacturer | National Instruments |
| Type | PXI Arbitrary Waveform Generator |
| Analog Output Channels | 1 |
| Resolution | 12 bits |
| Maximum Update Rate | 40 MHz |
| Size | 1 Slot |
| PXI-5411 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a quote |
Associated part numbers for PXI-5411:
National Instruments PXI-5411 Frequently Asked Questions
Question: How many connectors are on the PXI-5411?
Answer: The PXI-5411 has six connectors: one 50-pin digital connector, two BNC connectors, and three SMB connectors.
Question: What are the power requirements for the NI PXI-5411?
Answer: The NI PXI-5411 has the following power requirements: 5 V, 3.5 A maximum; and 12 V, 125 mA.
Question: What operational modes does the PXI-5411 Arbitrary Waveform Generator have?
Answer: The following operational modes are on the PXI-5411 Arbitrary Waveform Generator: continuous, stepped, single, and burst.
Question: What is the memory for the PXI-5411 in arb mode?
Answer: In arb mode, the PXI-5411 can save 2,000,000 16-bit samples.
