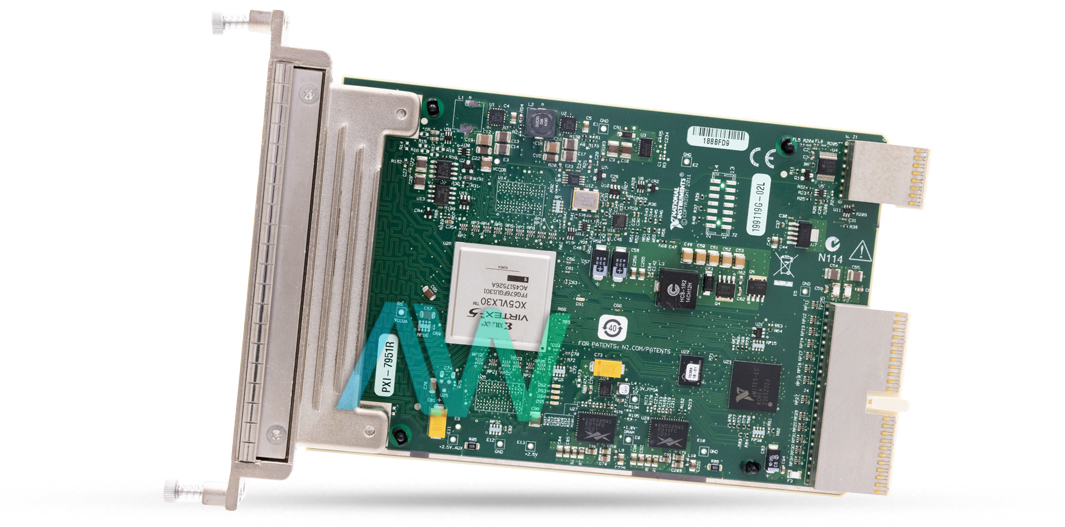

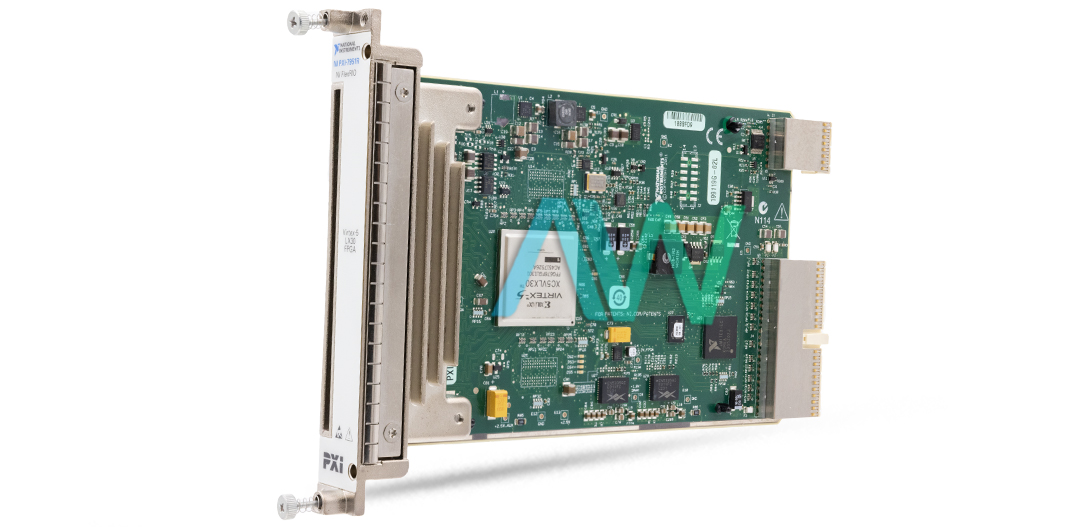

National Instruments 780560-01 FPGA Module for FlexRIO
The National Instruments 780560-01 (or PXI-7951R) is a high-performance FPGA module designed for FlexRIO systems. This FPGA uses Virtex-5 LX30 technology that offers robust computational resources with 19,200 LUTs/Flip-Flops, 1152 kbit of Block RAM, and 32 DSP48 slices. It features 132 general-purpose I/O lines, configurable as either 132 single-ended or 66 differential pairs. It offers versatile connectivity options for a range of applications.
Operating on a default timebase of 40 MHz, the 780560-01 supports timebase reference sources such as PXI 10 MHz (PXI_CLK10) with a timebase accuracy of ±100 ppm and 250 ps peak-to-peak jitter. It facilitates data transfers through DMA, interrupts, and programmed I/O while utilizing three DMA channels for efficient data handling. The module also includes onboard DRAM that is organized into two banks of 64 MB each along with a maximum theoretical data rate of 800 MB/s per bank.
Compatibility with various I/O standards (1.2V to 3.3V) ensures flexible interfacing with different peripheral devices. On the other hand, the PXI triggers, PXI_CLK10, and PXI star trigger offer extensive connection resources. The Ni 780560-01 module supports maximum I/O data rates of 400 Mb/s for single-ended and 1 Gb/s for differential signals along with global clock inputs of 1 LVTTL and 1 LVDS. This facilitates high-speed data acquisition and processing which is crucial for demanding applications in measurement and control systems.
The NI 780560-01 unit operates within a temperature range of 0°C to 55°C and a relative humidity range of 10% to 90%. It complies with safety standards IEC 61010-1, EN 61010-1, UL 61010-1, and CSA 61010-1, and meets EMC standards such as EN 61326-1 and FCC 47 CFR Part 15B. With dimensions of 18.8 cm x 12.9 cm and a weight of 190 grams, the 780560-01 module is compact and lightweight. It is designed to be powered by +5 VDC, +3.3 VDC, and +12 V supplies that consumes minimal power while delivering high performance. Its form factor is compliant with x4 PXI Express specification v1.0 and is compatible with x4, x8, and x16 PXI Express or PXI Express hybrid slots.
| Model | 780560-01 |
|---|---|
| Model Name | PXI-7951R |
| Part Type | FPGA Module for FlexRIO |
| FPGA Type | Virtex-5 LX30 |
| General-Purpose I/O Lines | 132 |
| DRAM | 2 banks of 64 MB |
| I/O Data Rates | 400 Mb/s (single-ended) and 1 Gb/s (differential signals) |
| Supply Voltage | +5 VDC, +3.3 VDC, and +12 V |
| Dimensions | 18.8 cm × 12.9 cm (7.4 in. × 5.1 in.) |
