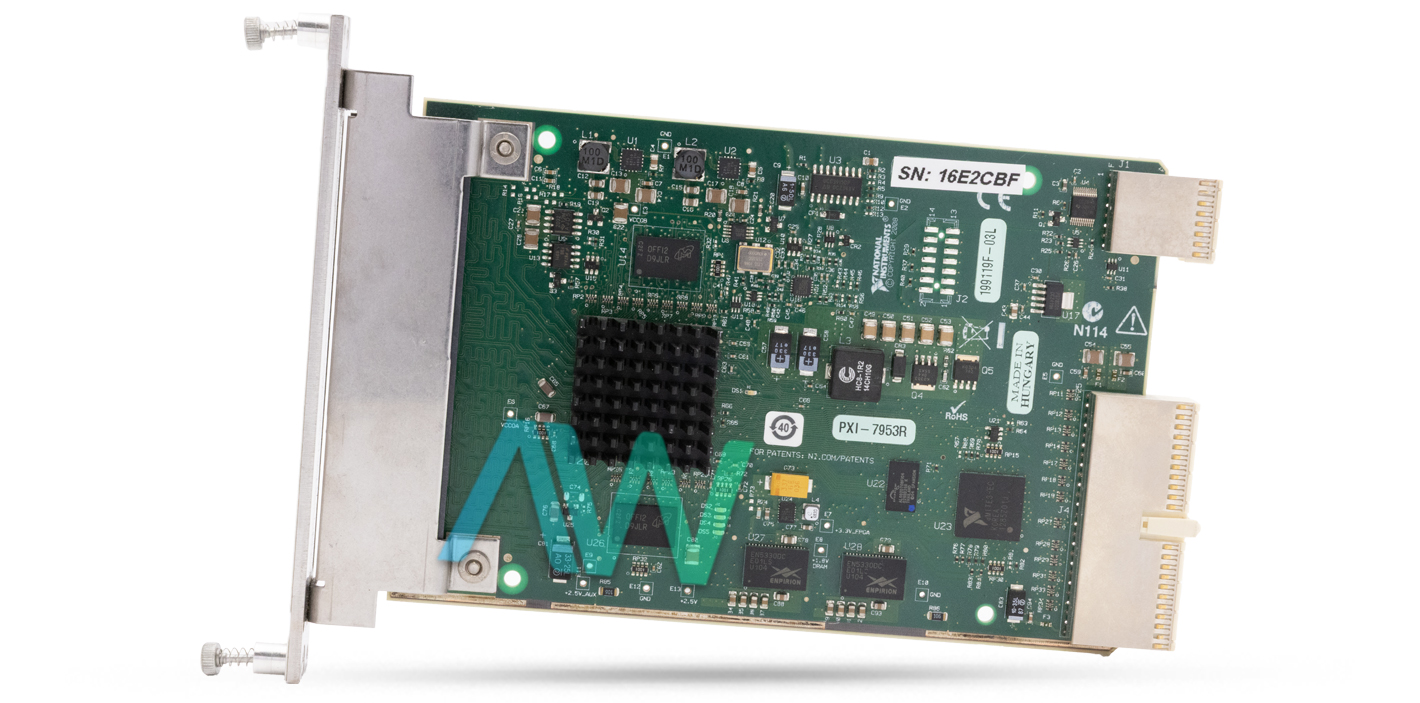

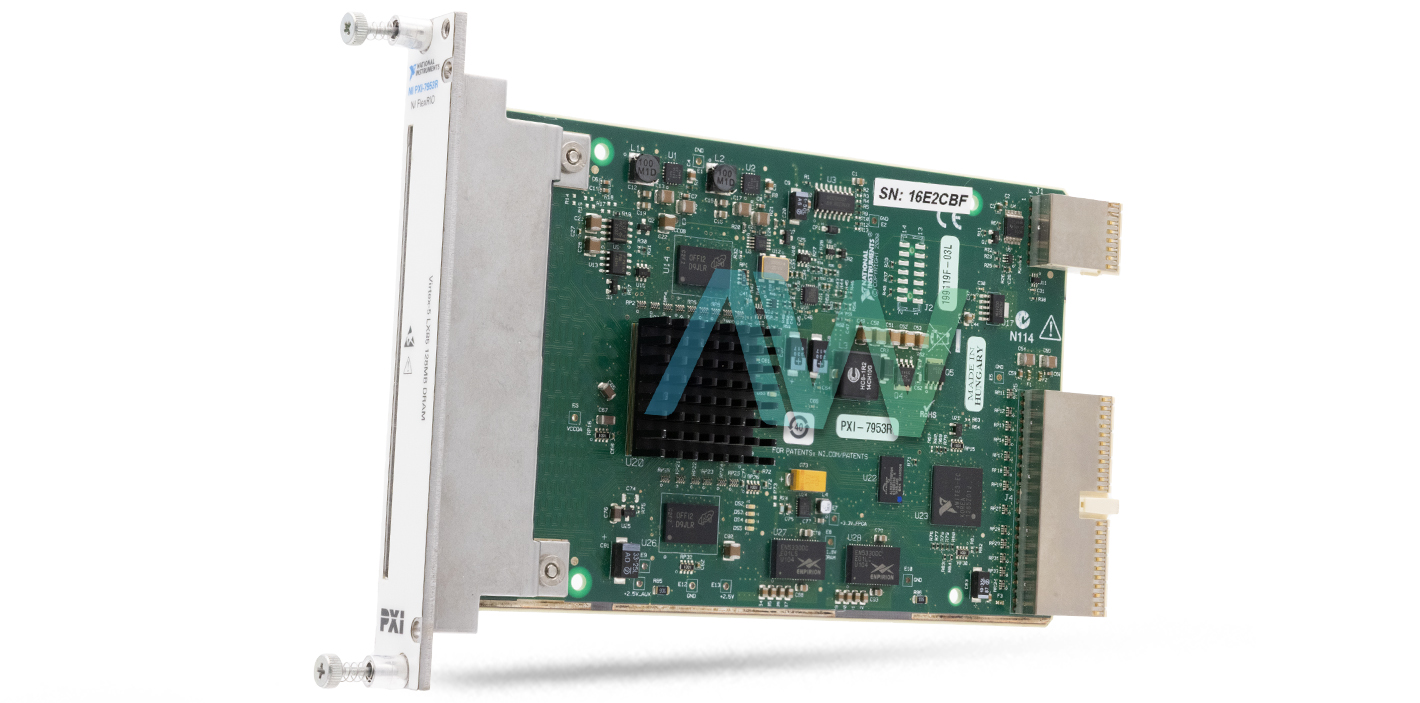

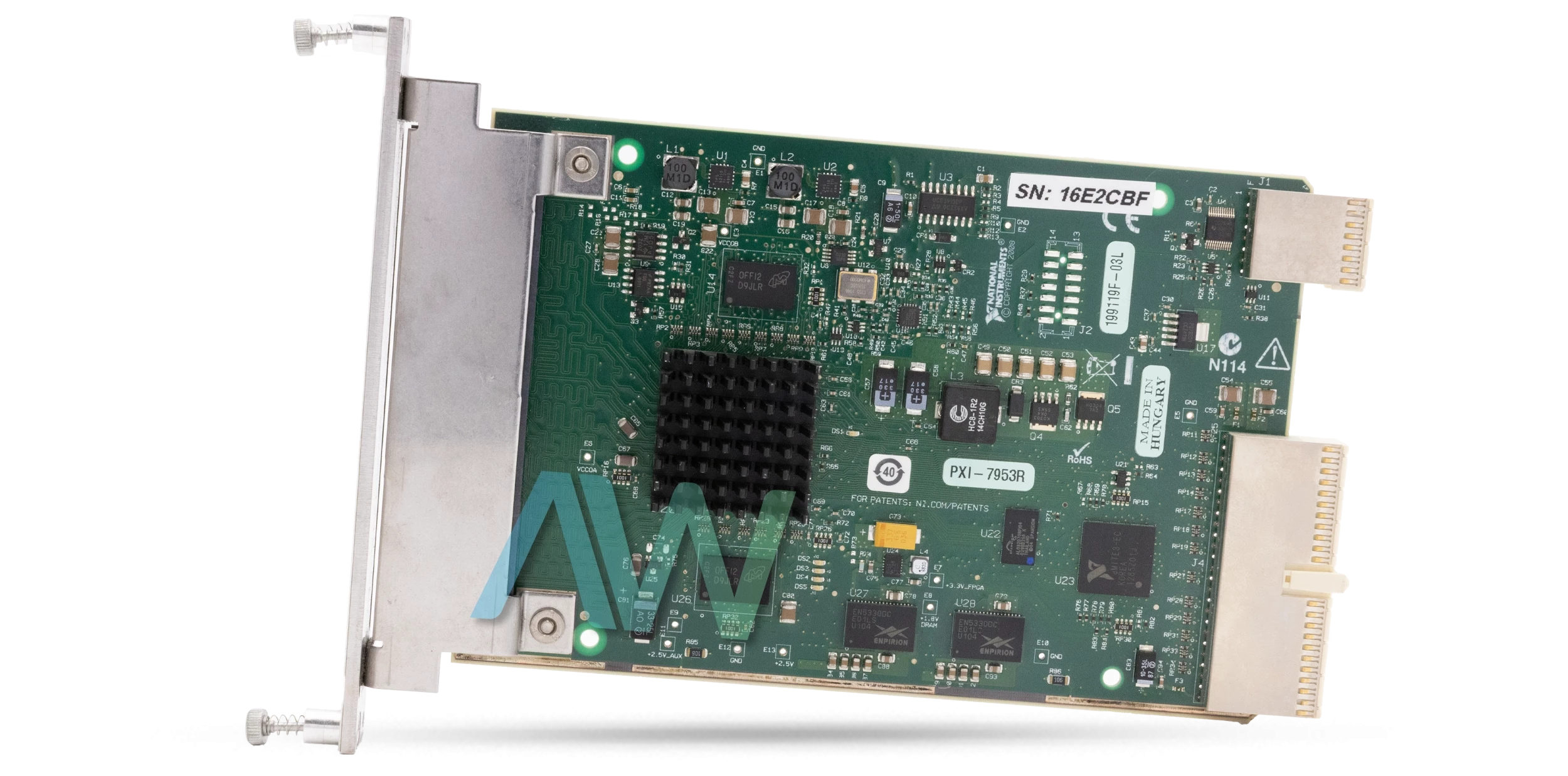

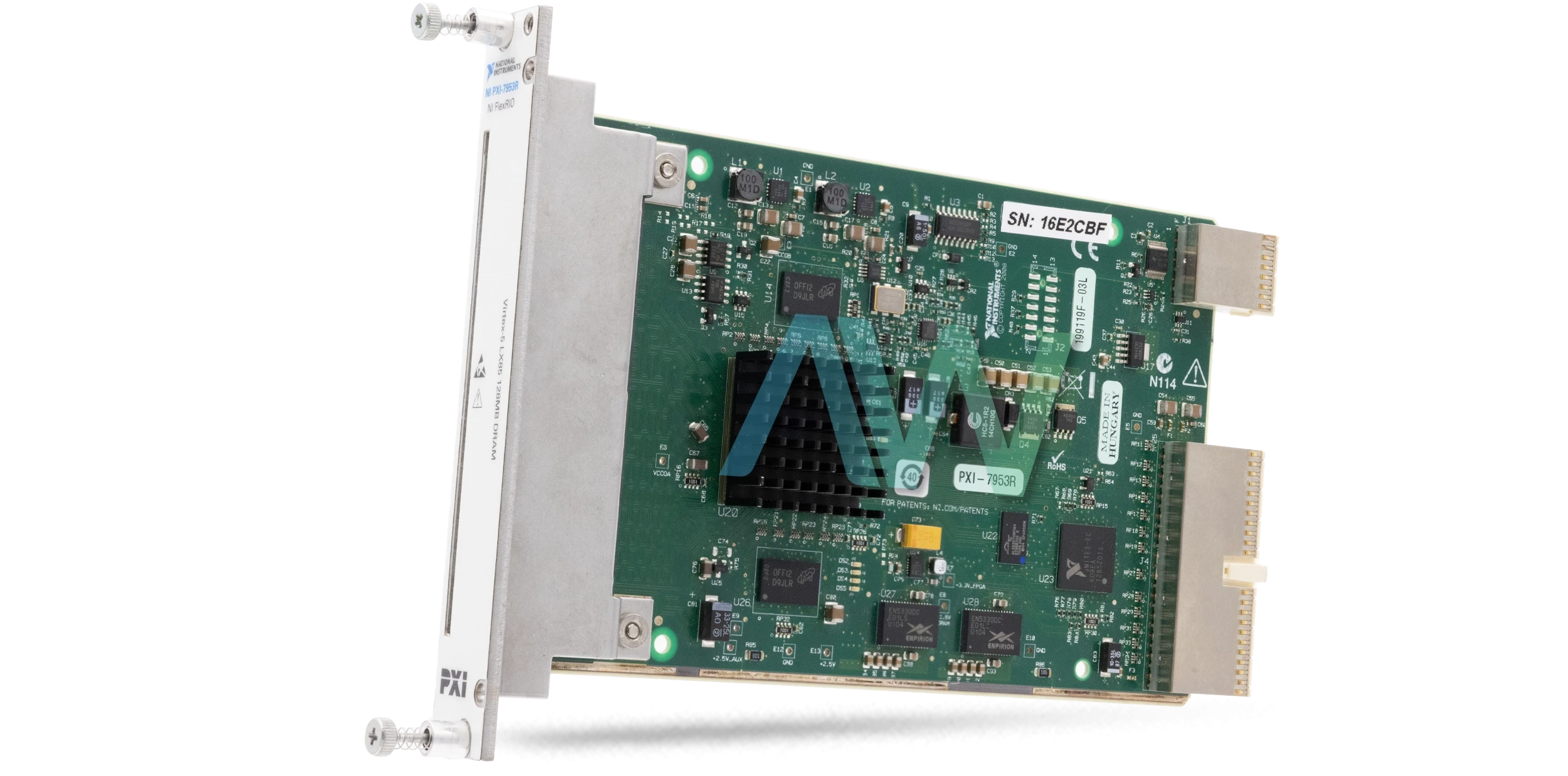

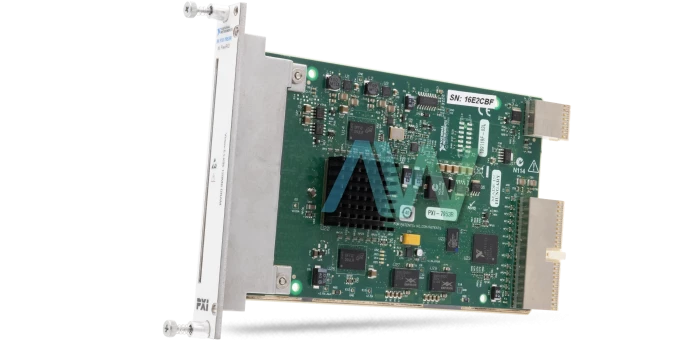

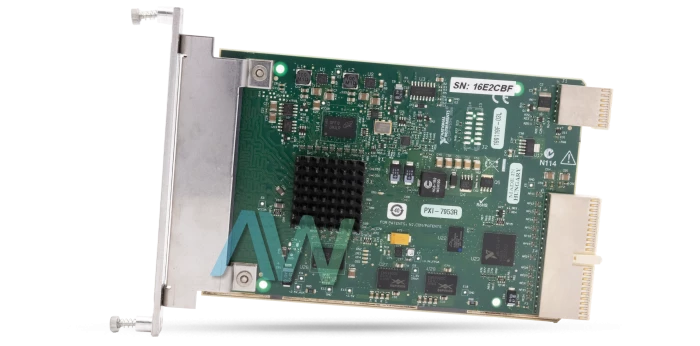

National Instruments 780562-01 FPGA Module for FlexRIO
The National Instruments 780562-01 FPGA Module is a high-performance component of the R-series that is designed for FlexRIO module. It is also known as the PXI-7953R module and features a Virtex-5 LX85 FPGA. The FPGA offers 51,840 LUTs/flip-flops, 48 DSP48 slices, and 3,456 embedded block RAM. Power requirements for the NI 780562-01 include +5 VDC at 2 A, +3.3 VDC at 2 A, and +12 VDC at 0.5 A. The module operates at a default timebase of 40 MHz along with a timebase accuracy of ±100 ppm and a 250 ps peak-to-peak jitter. It supports data transfers through DMA, interrupts, and programmed I/O while featuring 3 x DMA channels. The 780562-01 module offers 132 configurable general-purpose channels that can be arranged as 132 single-ended or 66 differential.
The 780562-01 FPGA unit supports various I/O standards that include 1.2 V, 1.5 V, 1.8 V, 2.5 V, and 3.3 V. The maximum I/O data rates are 400 Mb/s for single-ended LVDCI25 and 1 Gb/s for differential LVDS. The onboard DRAM of this module is 128 MB (2 x banks each with 64 MB). This device is designed to deliver a maximum theoretical data rate of 800 MB/s per bank. Connection resources include PXI triggers, PXI_CLK10, and PXI star triggers. The NI 780562-01 module measures 18.8 cm × 12.9 cm and weighs 190 g. It has a high-density card edge I/O connector and is compatible with x4, x8, and x16 PXI Express or PXI Express hybrid slots.
The operating environment ranges from 0 °C to 55 °C along with a relative humidity range of 10% to 90%. It is designed to meet various safety and electromagnetic compatibility standards like IEC 61010-1, EN 61010-1, UL 61010-1, CSA 61010-1, EN 61326-1, and FCC 47 CFR Part 15B. This FPGA (780562-01) is a reliable and flexible solution for high-performance data acquisition and signal processing. It is suitable for a range of industrial and research applications. Its compatibility with LabVIEW FPGA software and extensive configurability make it an ideal choice for customized measurement and control systems.
| Model | 780562-01 |
|---|---|
| Model Name | PXI-7953R |
| Part Type | FPGA Module for FlexRIO |
| FPGA Type | Virtex-5 LX85 |
| General-Purpose I/O Lines | 132 |
| DRAM Memory | 128 MB (2 banks of 64 MB) |
| I/O Data Rates | 400 Mb/s (single-ended) and 1 Gb/s (differential signals) |
| Supply Voltage | +5 VDC, +3.3 VDC, and +12 V |
| Dimensions | 18.8 cm × 12.9 cm (7.4 in. × 5.1 in.) |
